Overview

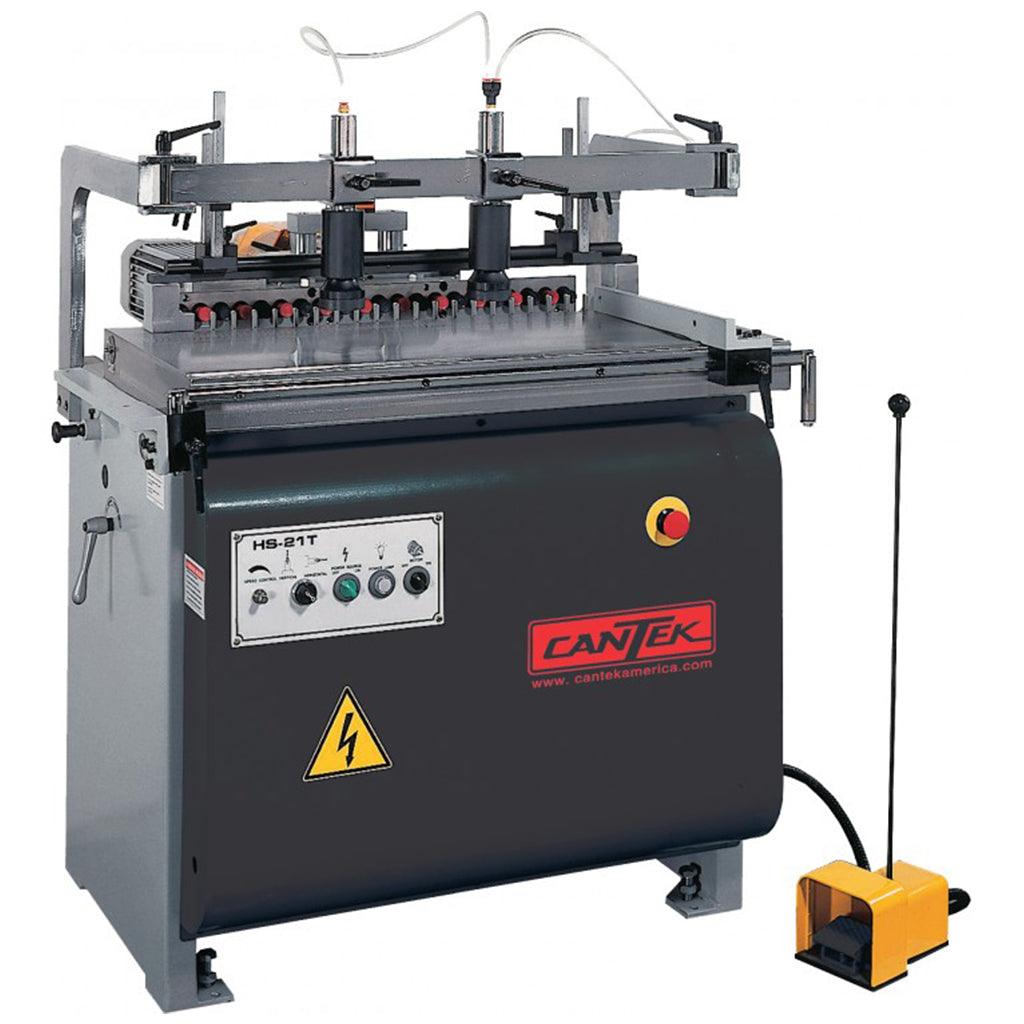

The Cantek HS21T Construction Boring Machine is a single line boring machine with 21 spindles at 32mm centers, built for both line boring and angular drilling. The boring unit tilts pneumatically from horizontal to vertical drilling or can be tilted manually for angular work, and a pneumatic cycle triggered by a convenient foot pedal keeps the operator's hands free. Two fences, a 3-meter back fence with four adjustable stops, and mechanical digital readouts allow precise, repeatable workpiece positioning.
Key Features
- 21 spindles at 32mm centers with quick-change chucks for fast changeover

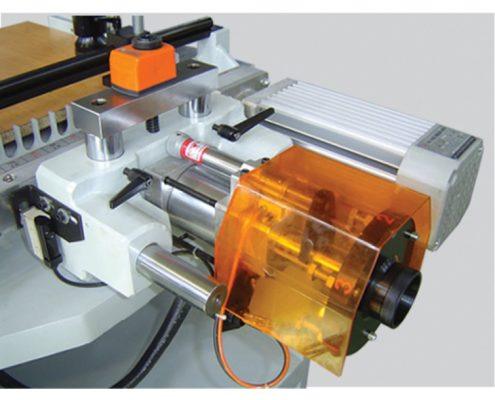

- Tiltable boring unit switches between horizontal and vertical drilling pneumatically

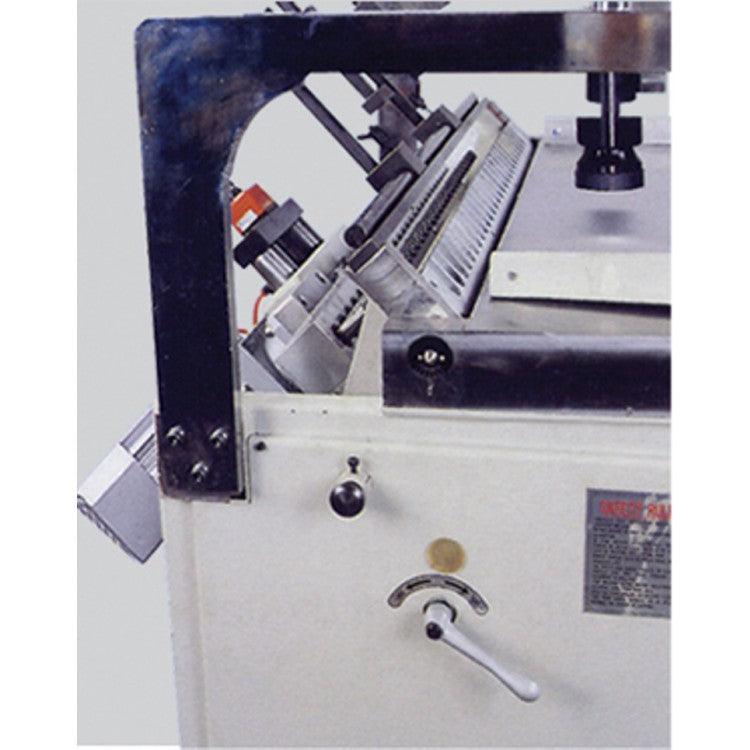

- Boring unit can also be tilted manually for angular drilling
- Pneumatic drilling cycle via convenient foot pedal
- Adjustable drill feed speed

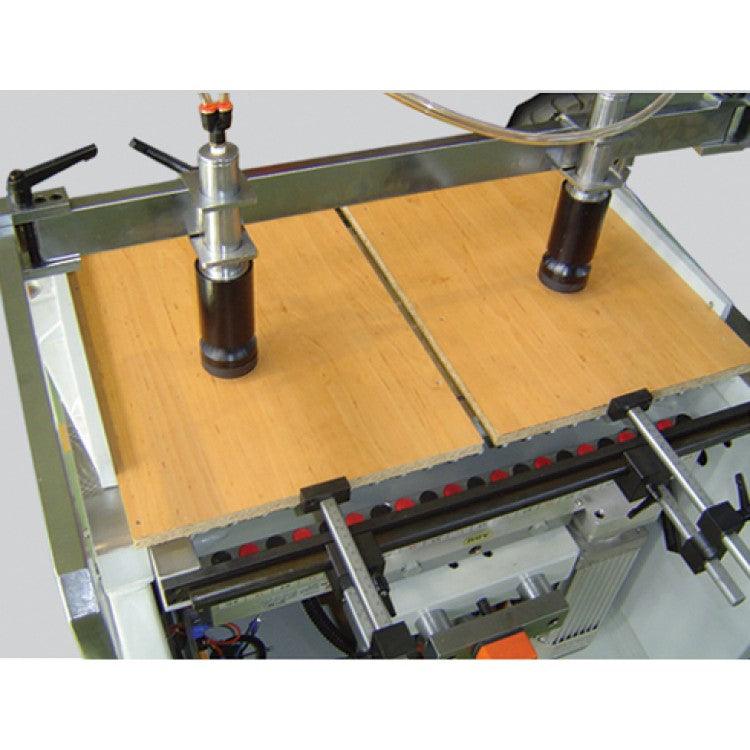

- Two fences for convenient workpiece positioning

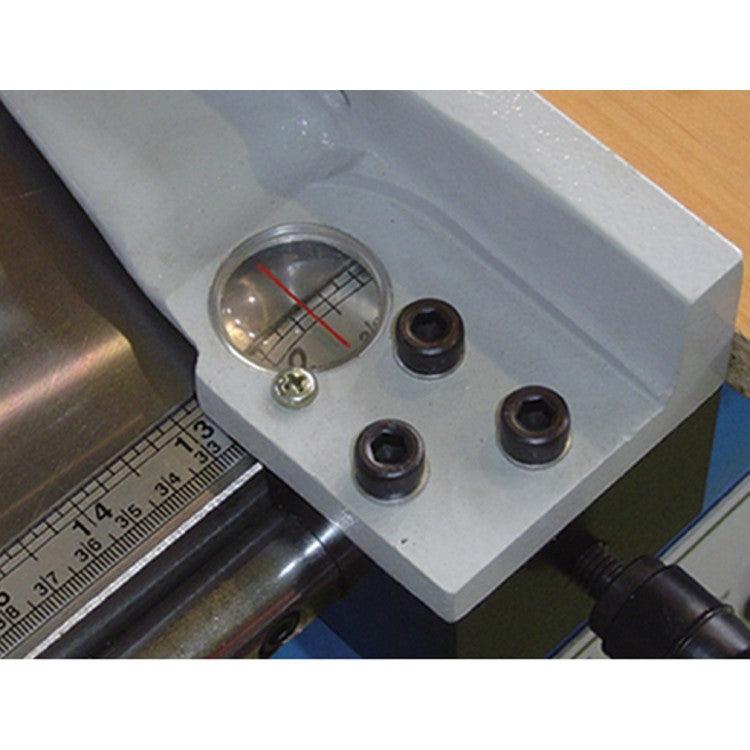

- Mechanical digital readouts for precise boring head setting
- Quick 6-position boring depth selector for fast changeover
- Two fold-away side fences for end boring or drilling smaller components
- 3 meter back fence with 4 adjustable stops for line boring, or usable on the side fence for dowel drilling
Specifications
| Distance Between Centers | 32mm |
|---|---|
| Number of Spindles | 21 |
| Max. Drilling Depth | 3″ (75mm) |
| Boring Head Adjustment | 0° to 90° |
| Table Size | 34.33″ x 19.3″ |
| Spindle Speed | 2800 RPM |
| Motor | 2.5 HP |
