Overview

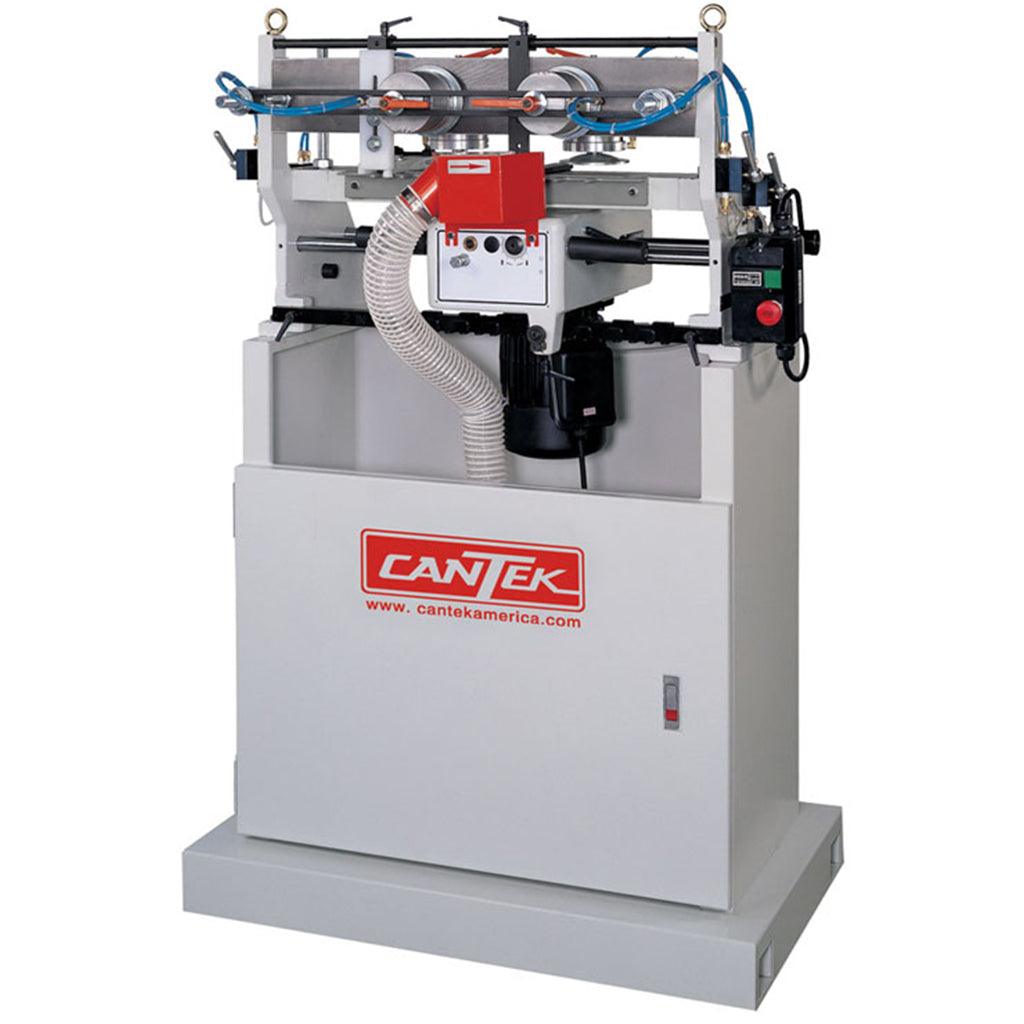

The Cantek JDT65 Manual Dovetailer produces precision dovetail drawer boxes, cutting the pin and tail of the dovetail simultaneously from plywood and solid wood. The operator follows a simple template to control the dovetail unit for easy operation and quality joints, with all four sides of the drawer loaded into the machine for optimum production capacity.
Key Features
- Ideal for drawer production and furniture parts requiring high quality dovetail joints

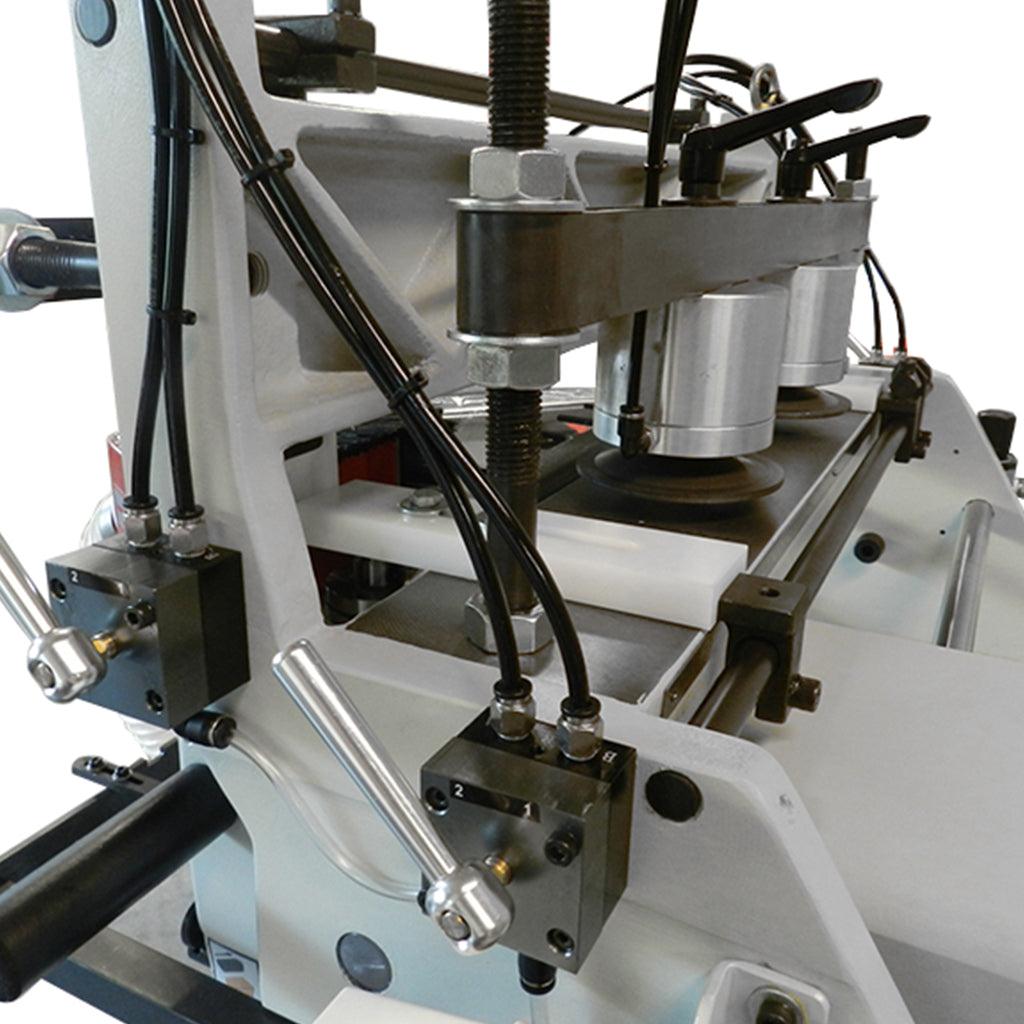

- Workpieces are pneumatically clamped to speed up material changeovers
- Equipped with one four-sided template providing four pitches between dovetails (1″, 1½″, 2″, 2½″)
- Floating dovetailing unit rides on ball bearings and chrome steel guiderails for effortless operation

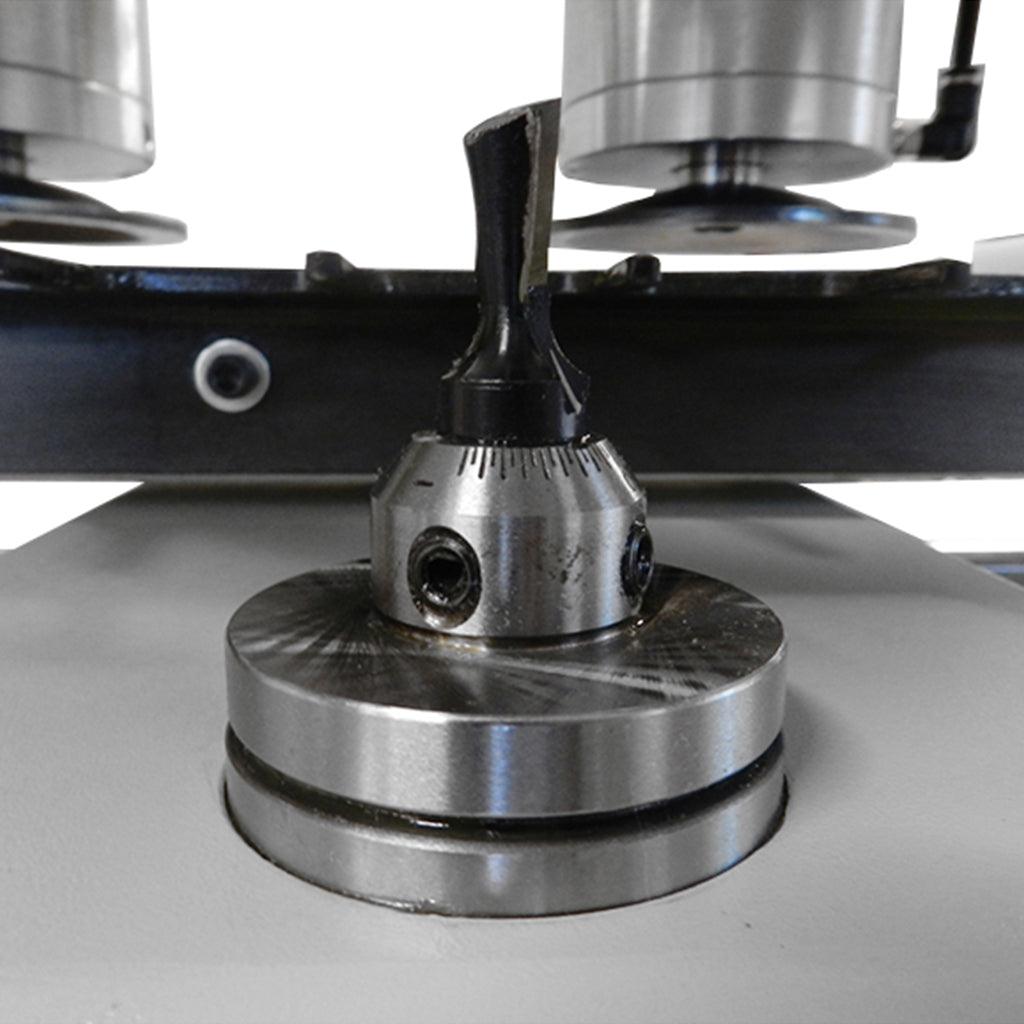

- Solid carbide single flute eccentric dovetail bit controls the fit of the joint
- 18,500 RPM spindle for superior cut quality
- Equipped with an indication bar for indicating cutting position

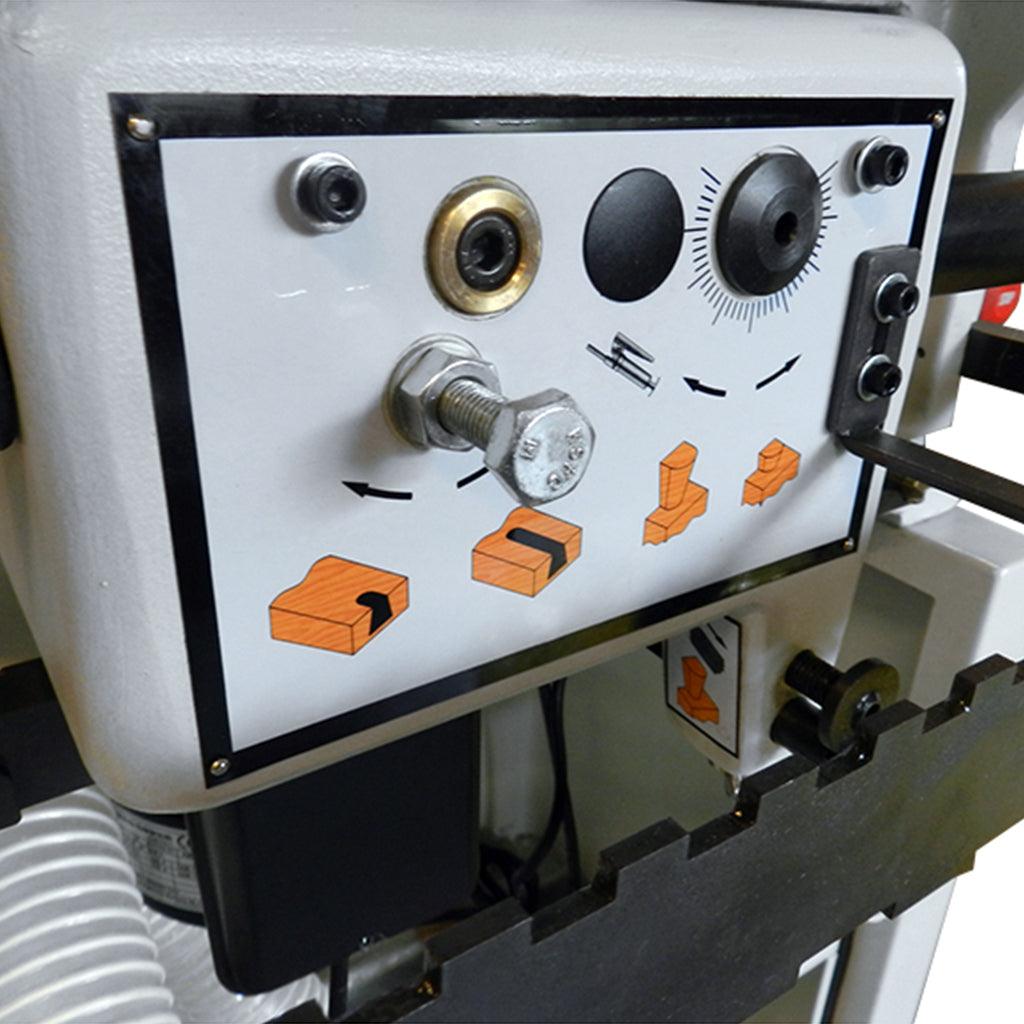

- Tenon and mortise depth conveniently adjusted according to workpiece thickness
- Enclosed base
- Magnetic switch with thermal overload protection
Specifications
| Minimum Workpiece Size | 7.9″ x 2.4″ (200 x 60mm) |
|---|---|
| Maximum Workpiece Size | 59″ x 16.5″ (1500 x 420mm) |
| Minimum Dovetail Height | 3/16″ (5mm) |
| Maximum Dovetail Height | 0.71″ (18mm) |
| Minimum Front Thickness | 0.28″ (7mm) |
| Maximum Front Thickness | 2.36″ (60mm) |
| Minimum Side Thickness | 0.28″ (7mm) |
| Maximum Side Thickness | 2.36″ (60mm) |
| Number of Spindles | 1 |
| Spindle Speed | 18,500 RPM |
| Center Spacing of Dovetails | 1″, 1.5″, 2″, 2.5″ |
| Table Height from Floor | 46.5″ (1180mm) |
| Dust Collection Ports | front 2.5″ (63.5mm), rear 4″ (100mm) |
| Air Pressure Requirement | 6 bar |
| Motor | 1 HP |
| Electrics | 230/1/60 = 8.0 FLA |
| Shipping Dimensions | 42½″ x 30″ x 65½″ (1070 x 750 x 1660mm) |
| Net Weight / Gross Weight | 440 lbs. / 510 lbs. (200 kgs / 223 kgs) |
