Overview
The Laguna JX|6 QuadTec I Jointer is loaded with highly desirable features to make jointing safer and more enjoyable. Parallelogram table adjustments keep consistent distance to the cutterhead, and an emergency knee-stop bar lets you shut the machine off quickly without taking hands off the workpiece. The all-new QuadTec I cutterhead delivers an amazing surface finish on all woods, including difficult hardwoods.
Key Features
- Parallelogram table adjustments
- Emergency knee-stop bar
- Redesigned ergonomic body with toe-kick

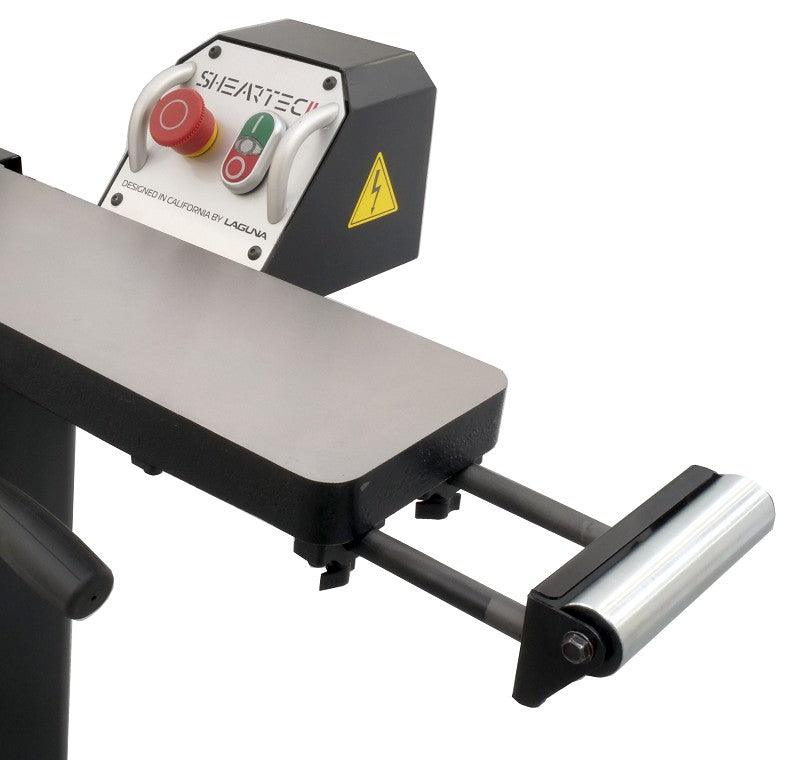

- Pull-out infeed support roller
- QuadTec I cutterhead with rotatable 4-sided carbide inserts
- Built-in wheels, no mobility kit needed
- Cast-iron tables and fence
Specifications
| Motor | 110V, 1.5 HP, 1 Phase, 60Hz, 13A |
|---|---|
| Certification | CSA |
| Bed Size | 6″ x 60″ |
| Infeed Table Pull-Out Extension | 8″ |
| Rabbeting Capacity | 1/2″ |

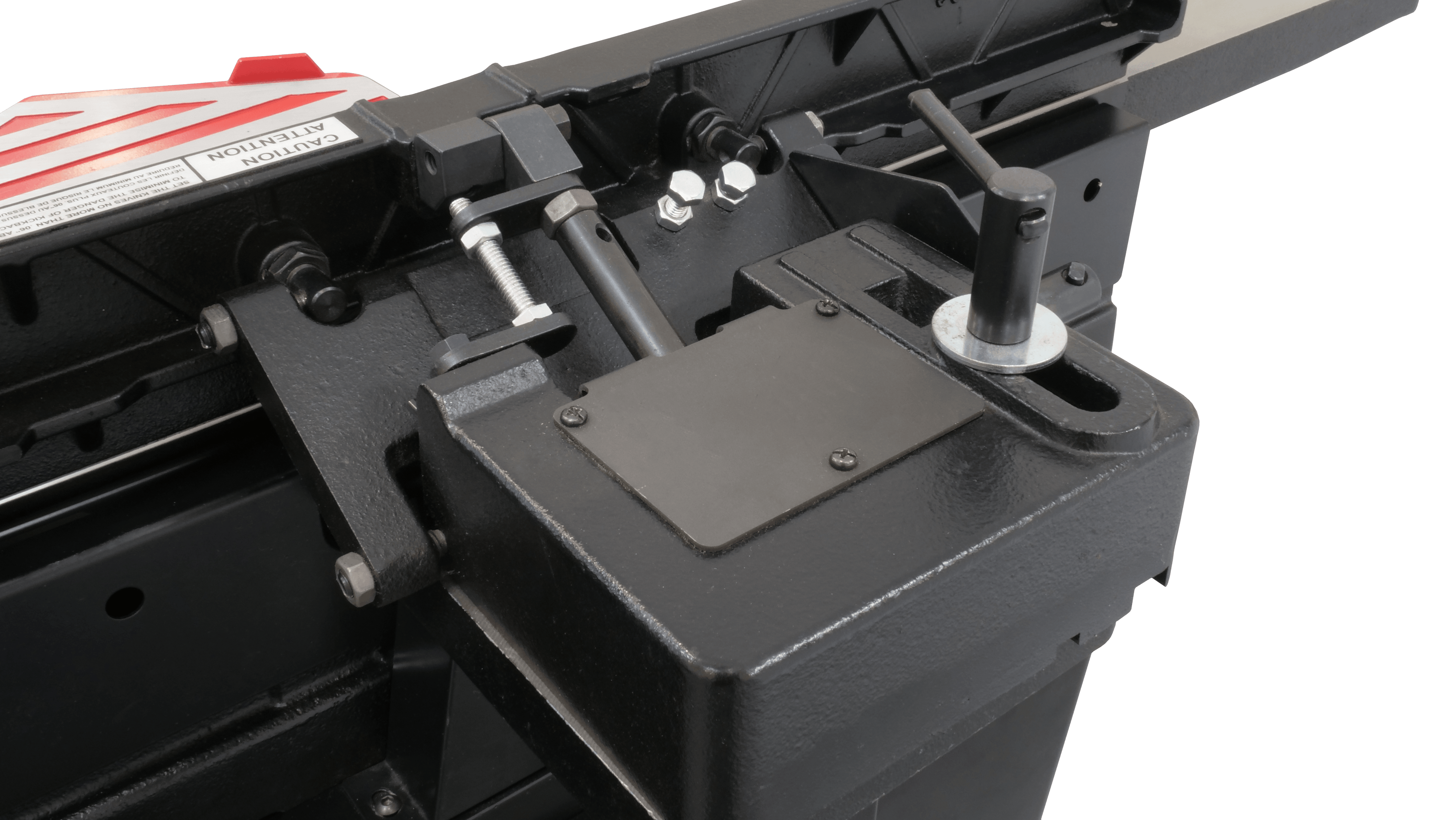

| Fence Size | 29″ x 3-3/4″ cast iron |
| Fence Tilt | ±45°/90° |

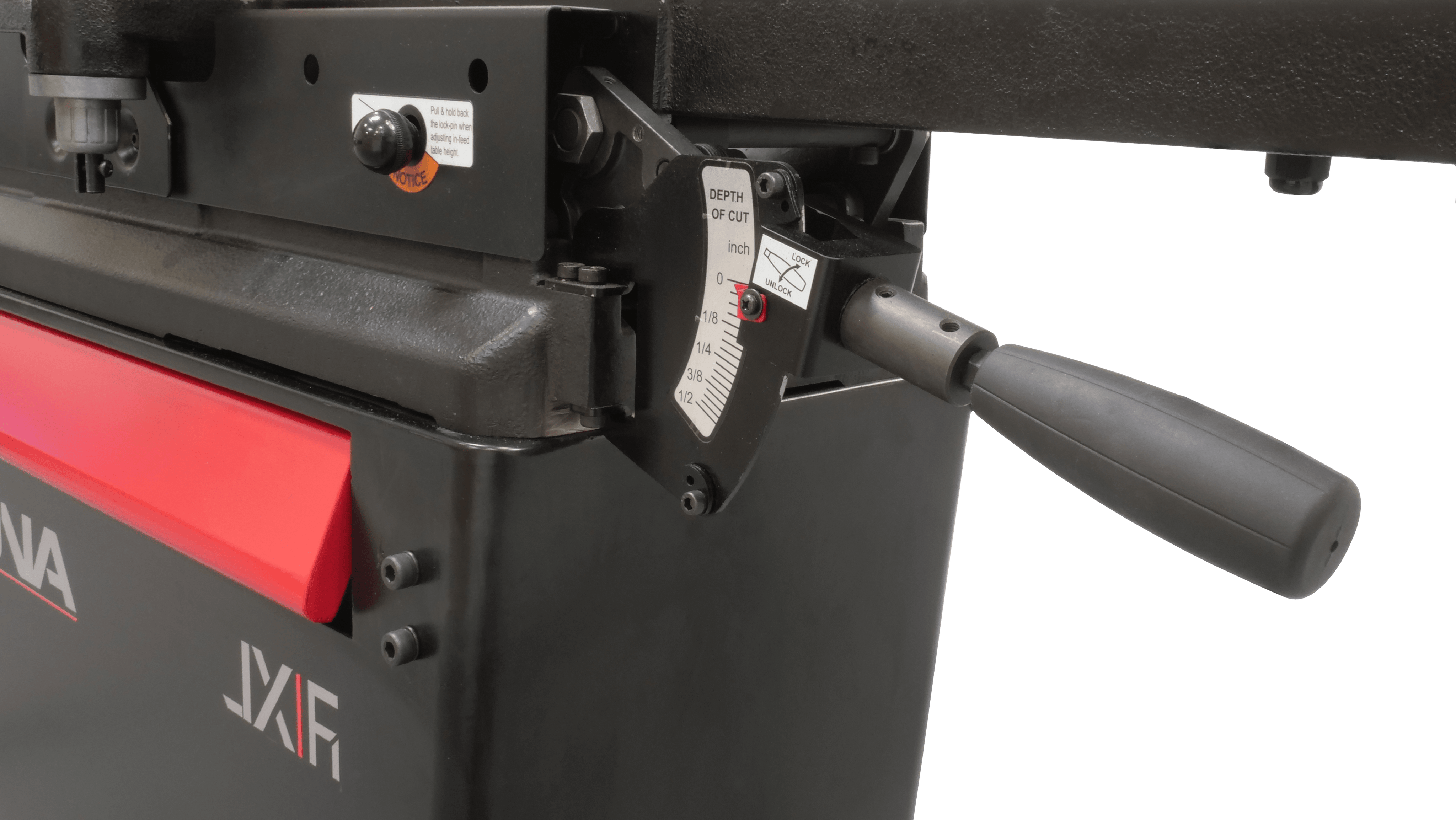

| Max Depth of Cut | 1/8″ |
| Table Height from Floor | 31″ |

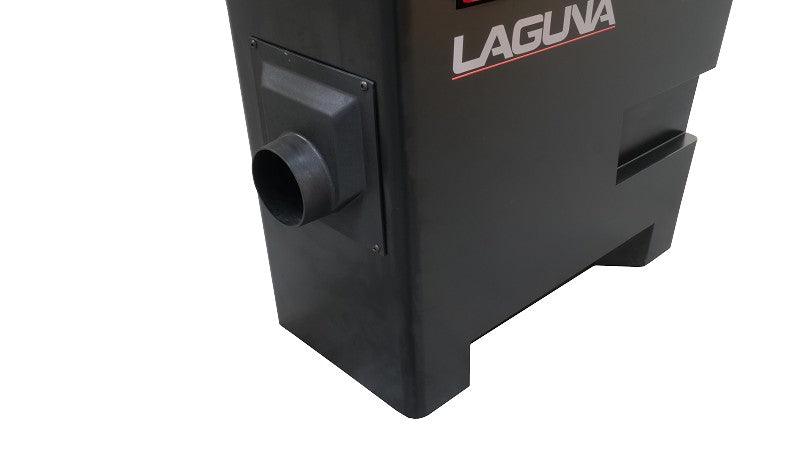

| Dust Port Diameter | 4″ |
| Cutterhead Inserts | 12 x 4-sided carbide, 4 rows |
| Cutterhead RPM | 5500 |
| Cutterhead Diameter | 2-1/2″ |
| Bed Adjustment | Parallelogram |
| Setup Dimensions | 63″ x 22″ |
| Net/Ship Weight | 161/174 lb + 88/94 lb (2 boxes) |
