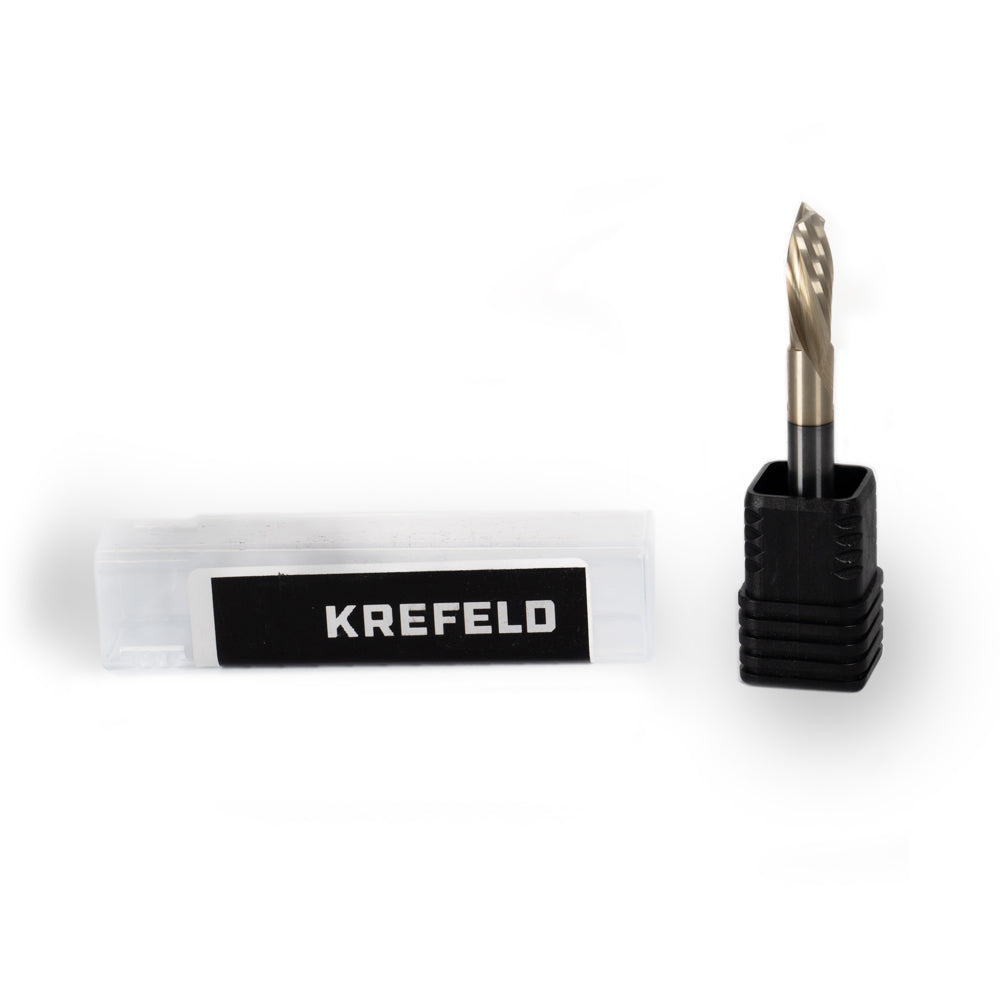

Krefeld Solid Carbide Extreme Tool Life Spiral Plunge 1/4 Dia x 3/4 x 1/4 Inch Shank
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
-
(Diameter) → 6.35 mm
-
19.05 mm
-
(Shank) → 6.35 mm
| Direction | Down-Cut |
|---|---|
| (D) Diameter | 1/4 |
| (B) Cutting Height | 3/4 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| Flutes | 2 |

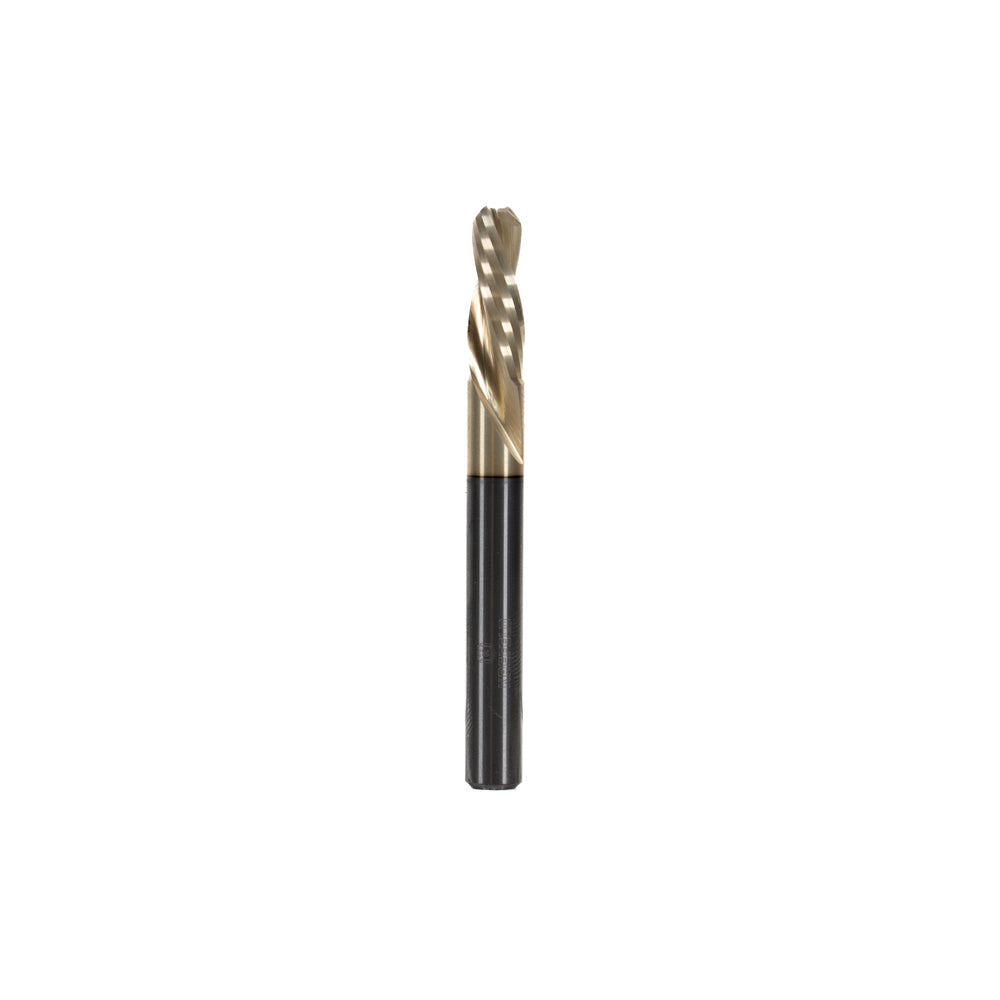

Solid Carbide KREFELD™ Extreme Tool Life Spiral Plunge Down-Cut Router Bits are crafted from a specialized, ultra-hard carbide with an advanced
Optimized Cutting Performance
Spiral-flute bits combine a shearing action for clean, precise cuts with an augering action that efficiently clears chips. The Down-Cut design ensures a smooth surface finish, reducing chipping and tear-out.
Advanced Carbide
Featuring a specialized carbide grade, these bits offer improved clearance geometry, razor-sharp cutting edges, and polished flutes for superior performance, especially in abrasive materials.
- Exceptional Edge Retention: A micro-thin ceramic coating maintains sharpness and reduces friction for cleaner cuts.
- Superior Heat & Oxidation Resistance: Protects the tool from heat damage, ensuring longevity.
- Long-Lasting Protection: The coating remains effective even after the multi-colored hue fades with use.
- Extreme Hardness: With a 4,500 Vickers rating, these bits are up to 2.5 times more durable than uncoated versions.
Ideal for CNC & Router Applications
These bits are designed for use in CNC machines, automatic routers, and handheld or table-mounted routers. They are excellent for creating grooves, dado cuts, and shelf pin holes, especially in System 32 cabinetry applications.
Best for Cutting:
✔ Cork
✔ Laminate
✔ Melamine & Melamine Particle Board
✔ MDF
✔ Veneered Plywood
✔ Wood
