Overview

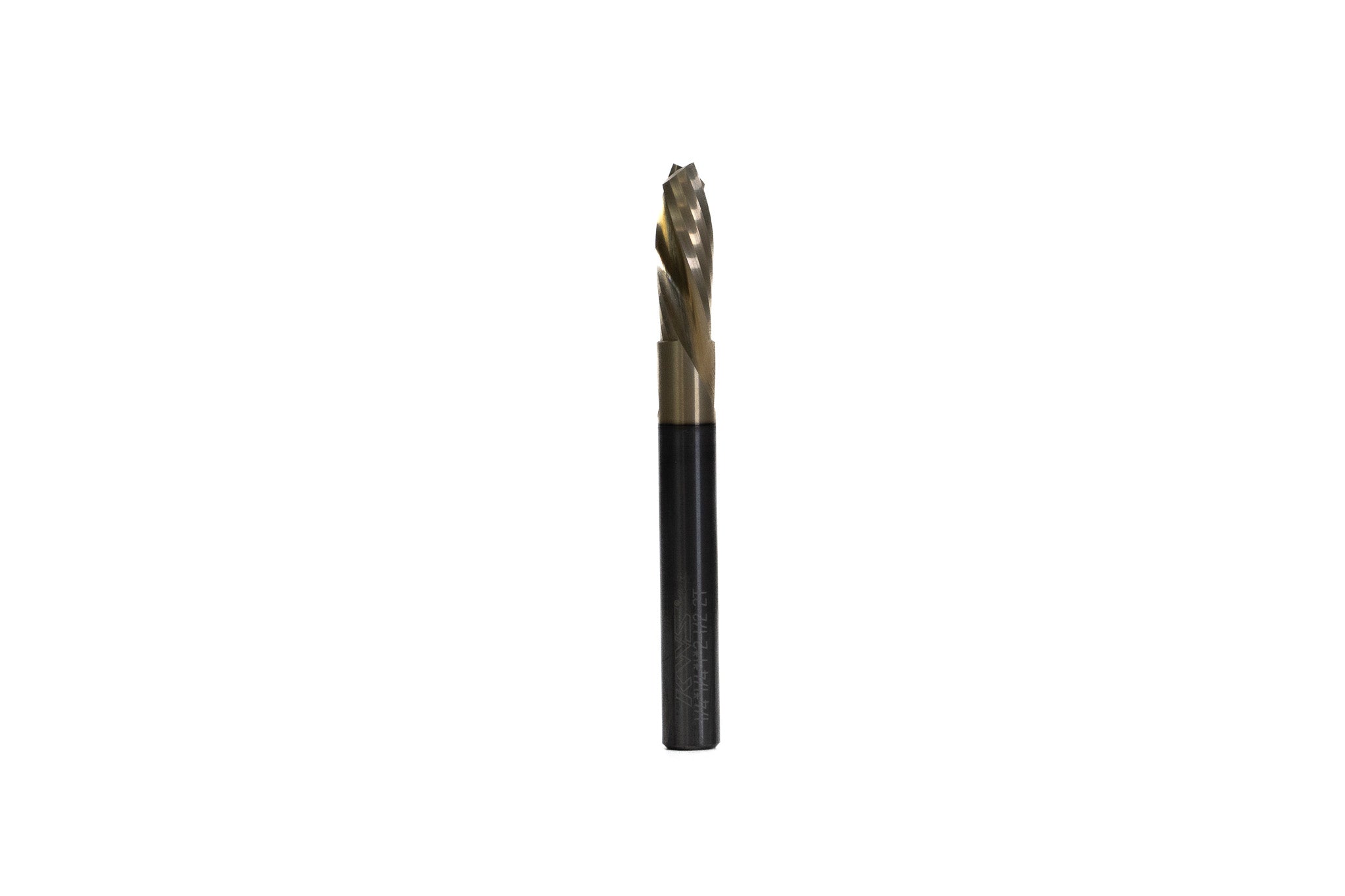

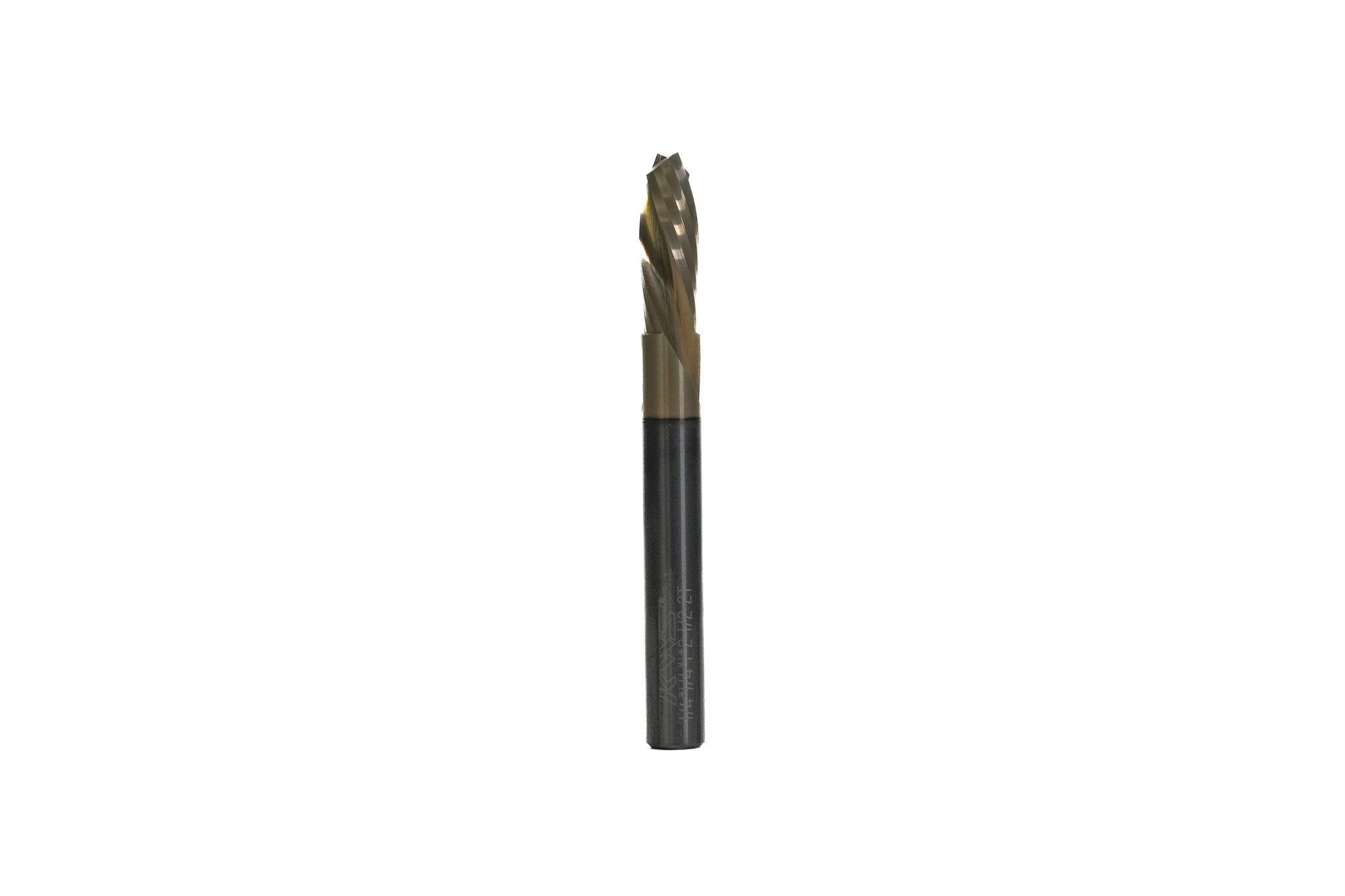

The KWS CNC Solid Carbide Compression Spiral Router Bit (1/4" Dia x 1" CH) is built for CNC applications that demand high feed rates and an exceptionally clean finish in grooves and dadoes. It performs especially well on double-sided melamine and laminated boards.
Key Features
- Compression spiral design for grooves and dadoes in plywood and composite panels
- Special carbide blend for maximum durability in abrasive materials
- Razor-sharp cutting edges and polished flutes for a superior, long-lasting finish
- Performs especially well on double-sided melamine and laminated boards
- Compatible with CNC, hand-held, and table-mounted routers
Specifications
| Rotation | Compression |
|---|---|
| Diameter (D) | 1/4" |
| Cutting Height (B) | 1" |
| Shank (d) | 1/4" |
| Overall Length (L) | 2-1/2" |
| B1 | 0.2756" |
| Flutes | 2 |
