KWS - Extra Long CNC 2D and 3D Carving Tapered Ball Nose 0.10 Deg Angle x 1/4 Dia x 1/8 R x 1/2 Cut Height x 1/4 Shank x 4" Long x 3 Flute Solid Carbide ZrN Coated Reduced Shank Router Bit Fits KPM Krefeld
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview

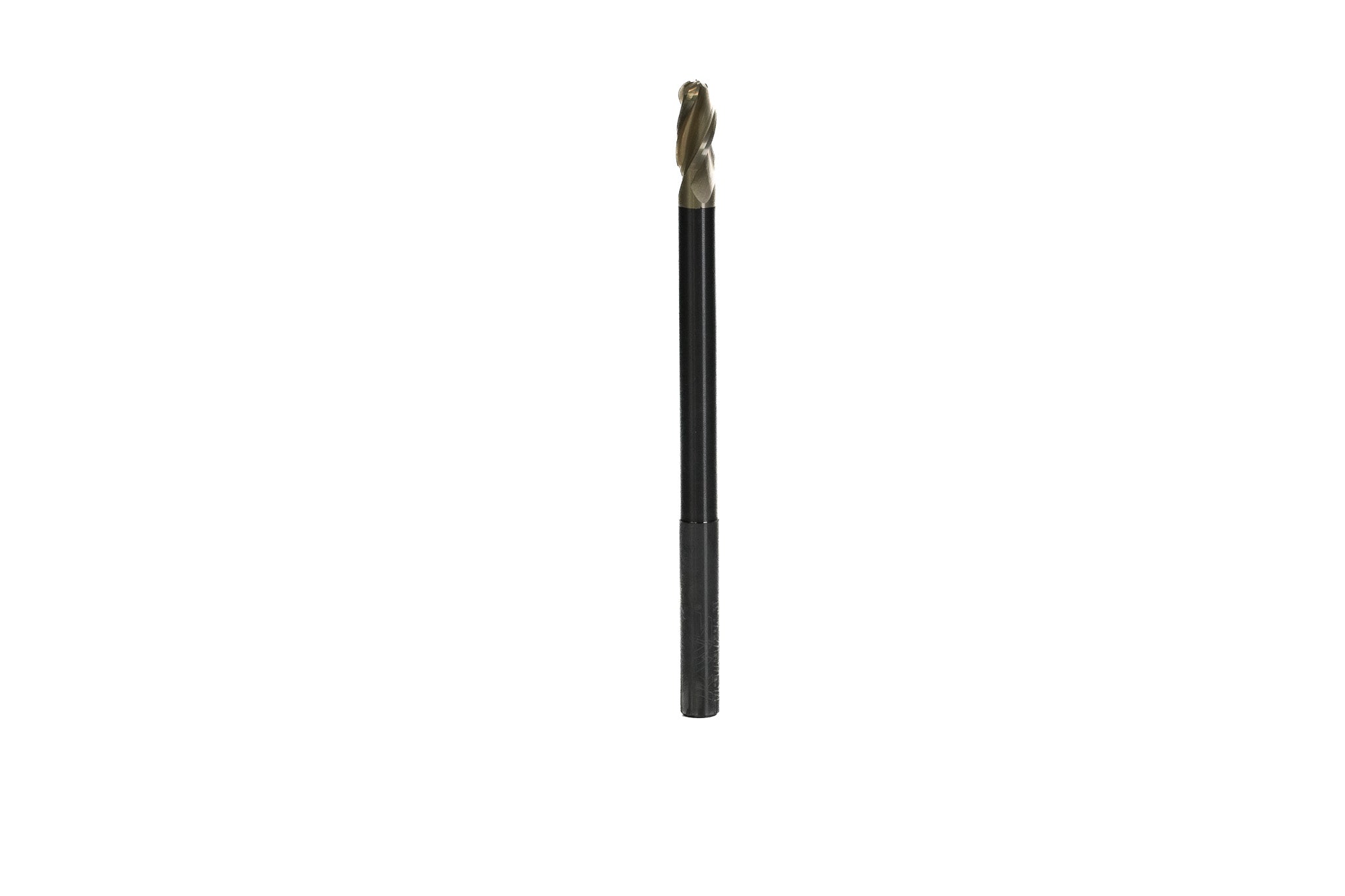

The KWS Extra-Long Tapered Ball Nose Router Bit (1/4" Dia, 3-Flute, ZrN Coated) is a solid carbide CNC carving bit built for detailed 2D and 3D contour work. It is manufactured with high balance to run at speeds up to 60,000 RPM.
Key Features
- Extra-long tapered ball nose profile for deep 2D/3D carving
- 3-flute solid carbide construction
- ZrN (zirconium nitride) coated for wear resistance
- High balance allows speeds up to 60,000 RPM
- Suited for a wide range of materials including plastics, foams, composites, and wood
Specifications
| Diameter (D) | 1/4" |
|---|---|
| Cutting Height (B) | 1/2" |
| Shank (d) | 1/4" |
| Overall Length (L) | 4" |
| Radius | 1/8" |
| Taper Angle | 0.10° |
| D1 | 15/64" (.235") |
| L1 | 1-1/4" |
| Flutes | 3 |
| Coating | ZrN |
| Max RPM | 60,000 |
