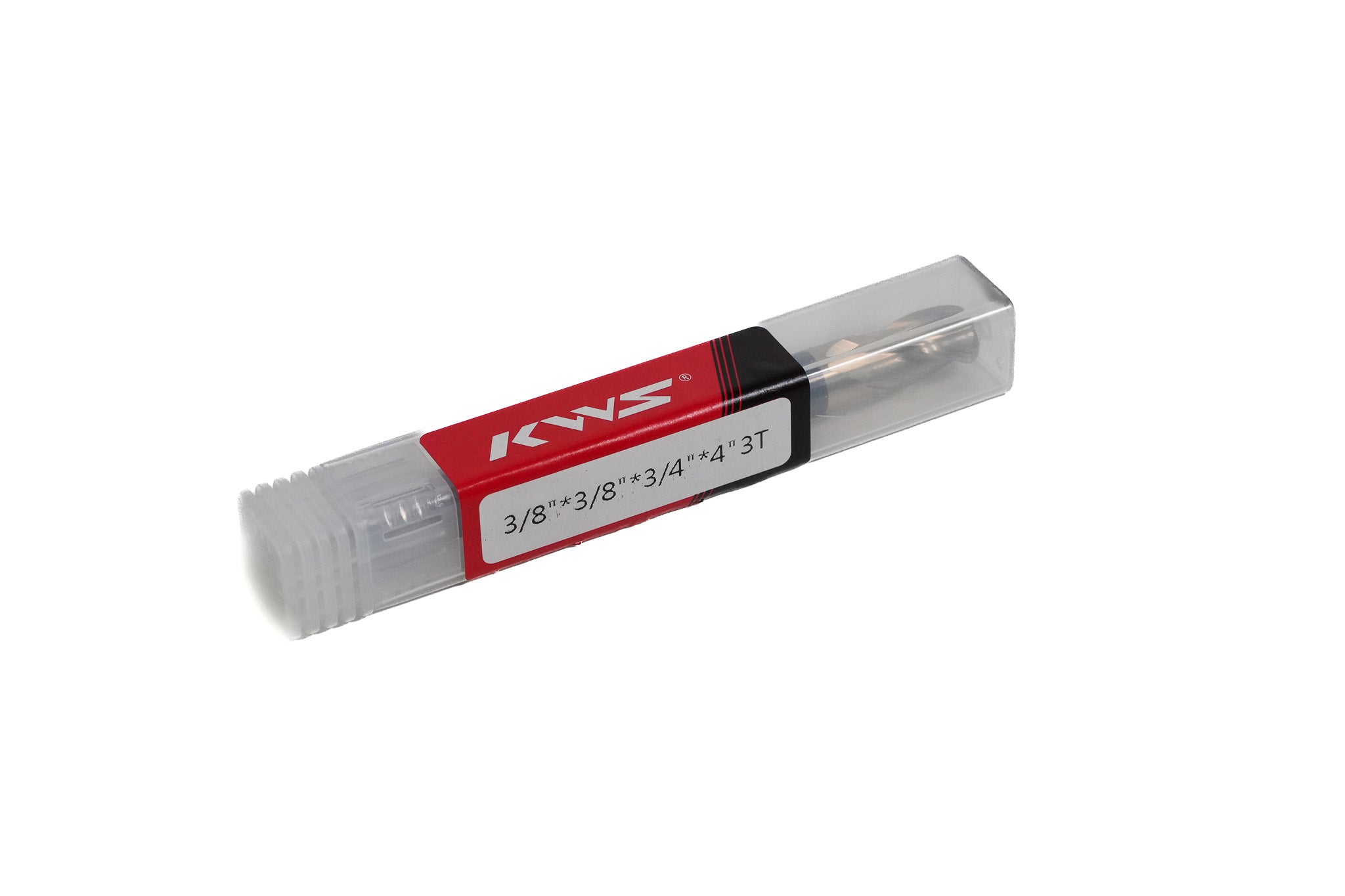

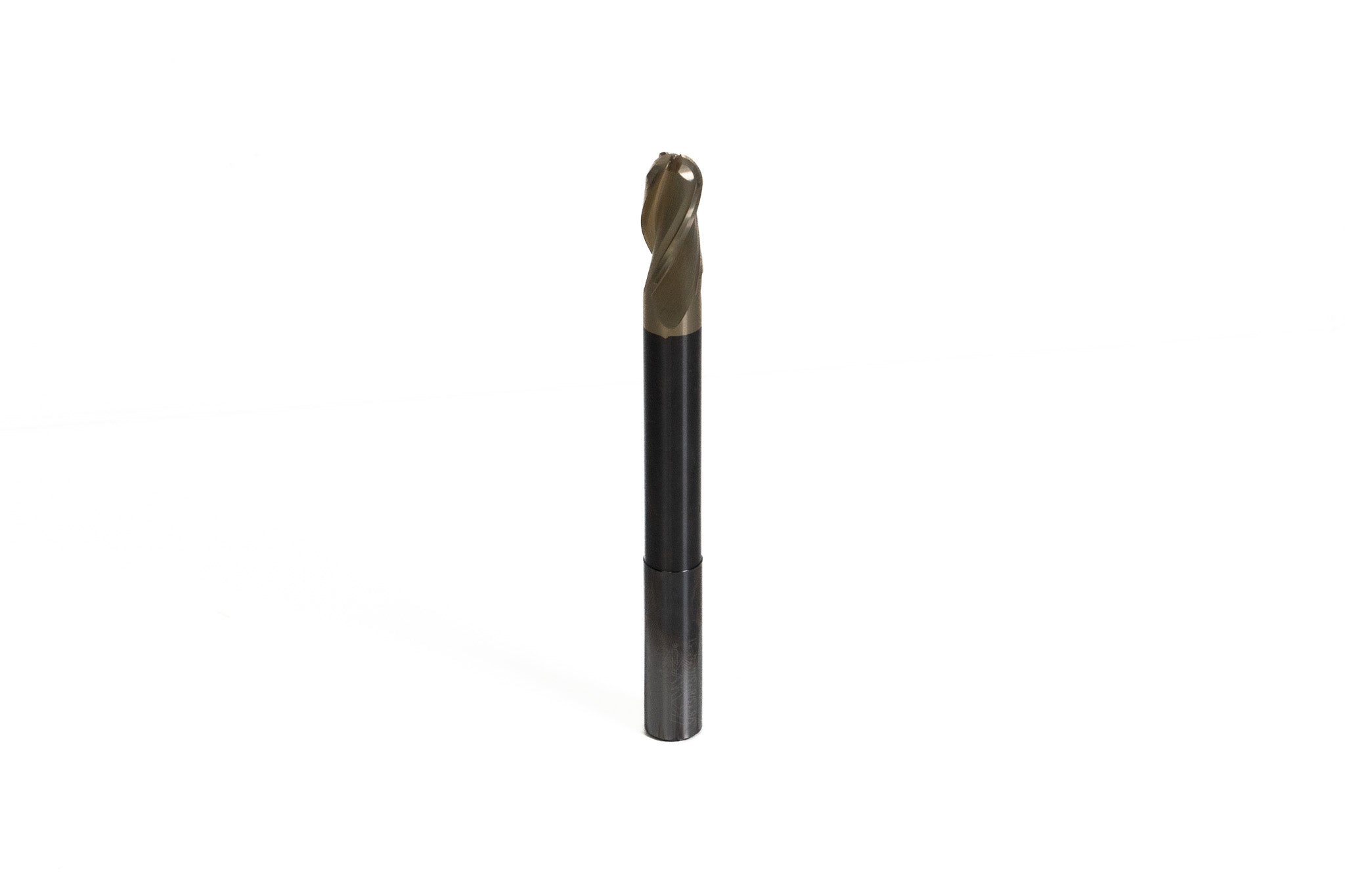

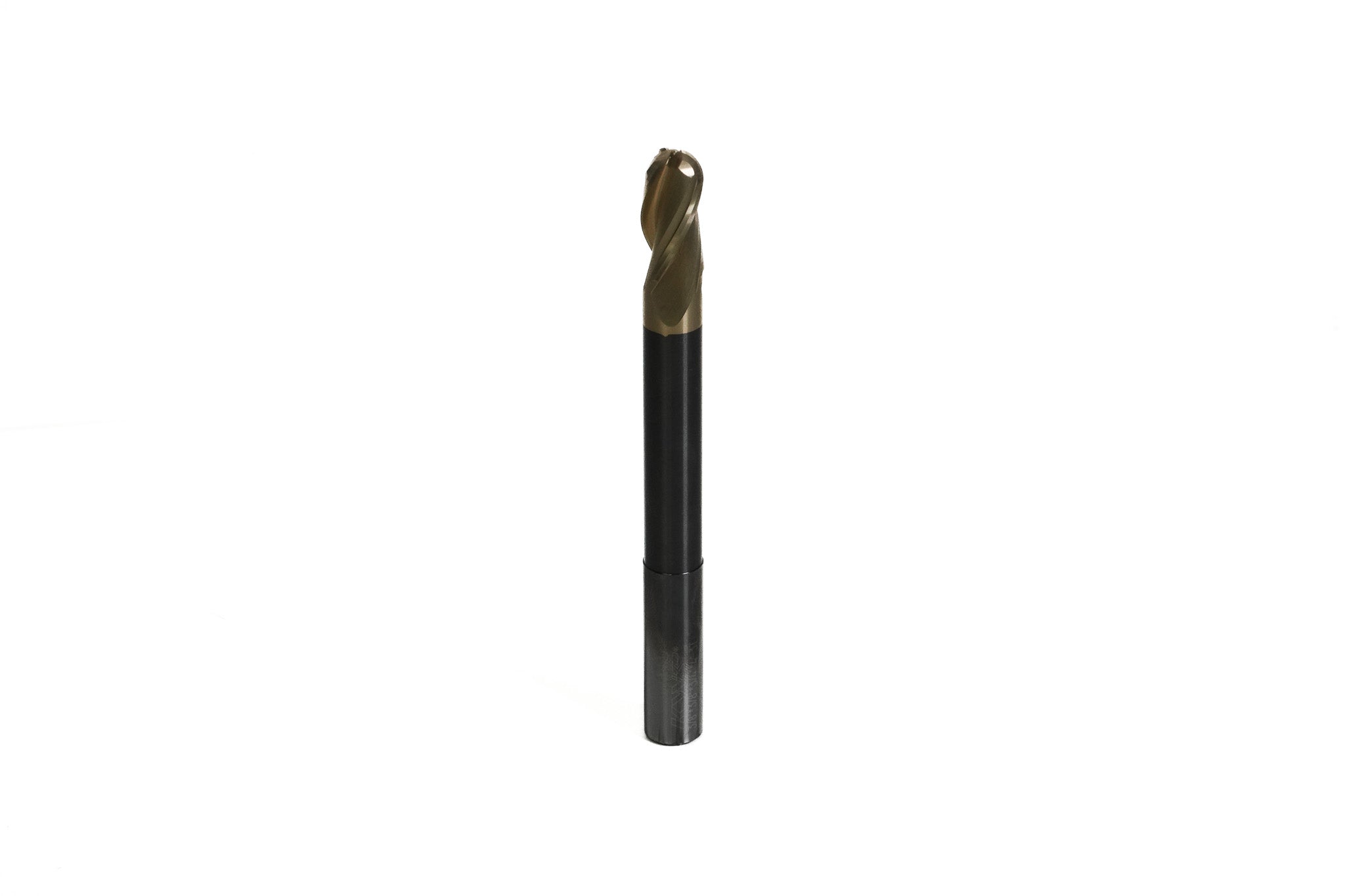

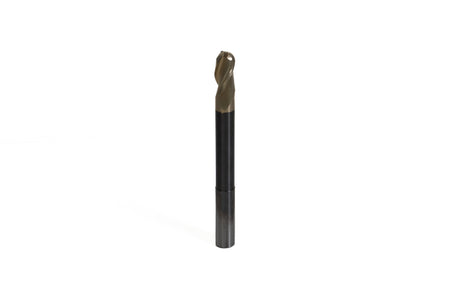

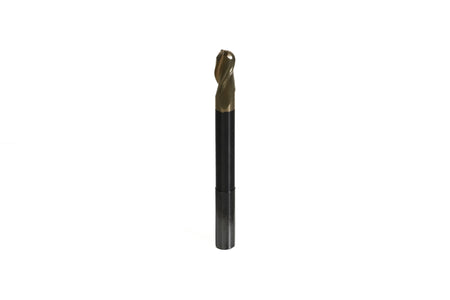

KWS - Extra Long CNC 2D and 3D Carving Tapered Ball Nose 0.10 Deg Angle x 3/8 Dia x 3/16 Radius x 3/4 Cut Height x 3/8 Shk x 4" Long x 3 Flute Solid Carbide ZrN Coated Reduced Shank Router Bit
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview
The KWS Extra-Long Tapered Ball Nose Router Bit (3/8" Dia, 3-Flute, ZrN Coated) is a solid carbide CNC carving bit that cuts smooth 2D and 3D contours with reduced stepping. Its proprietary ZrN coating adds wear resistance and extends tool life.
Key Features
- Proprietary ZrN coating for high resistance to wear and sharper cutting edges
- Low Total Indicated Runout (TIR) for clean cuts and reduced chatter
- Harder, tougher cutting edge that resists material build-up and galling
- High flute volume supports high feed rates and faster spindle speeds
- Optimized for sign foam, sign board, hardwoods, thermoplastics, and phenolic composites
- Manufactured with high balance to run at speeds up to 60,000 RPM
Specifications
| Diameter (D) | 3/8" |
|---|---|
| Cutting Height (B) | 3/4" |
| Shank (d) | 3/8" |
| Overall Length (L) | 4" |
| Radius | 3/16" |
| Taper Angle | 0.10° |
| D1 | 23/64" (.352") |
| L1 | 1-1/4" |
| Flutes | 3 |
| Surface Coating | ZrN |
