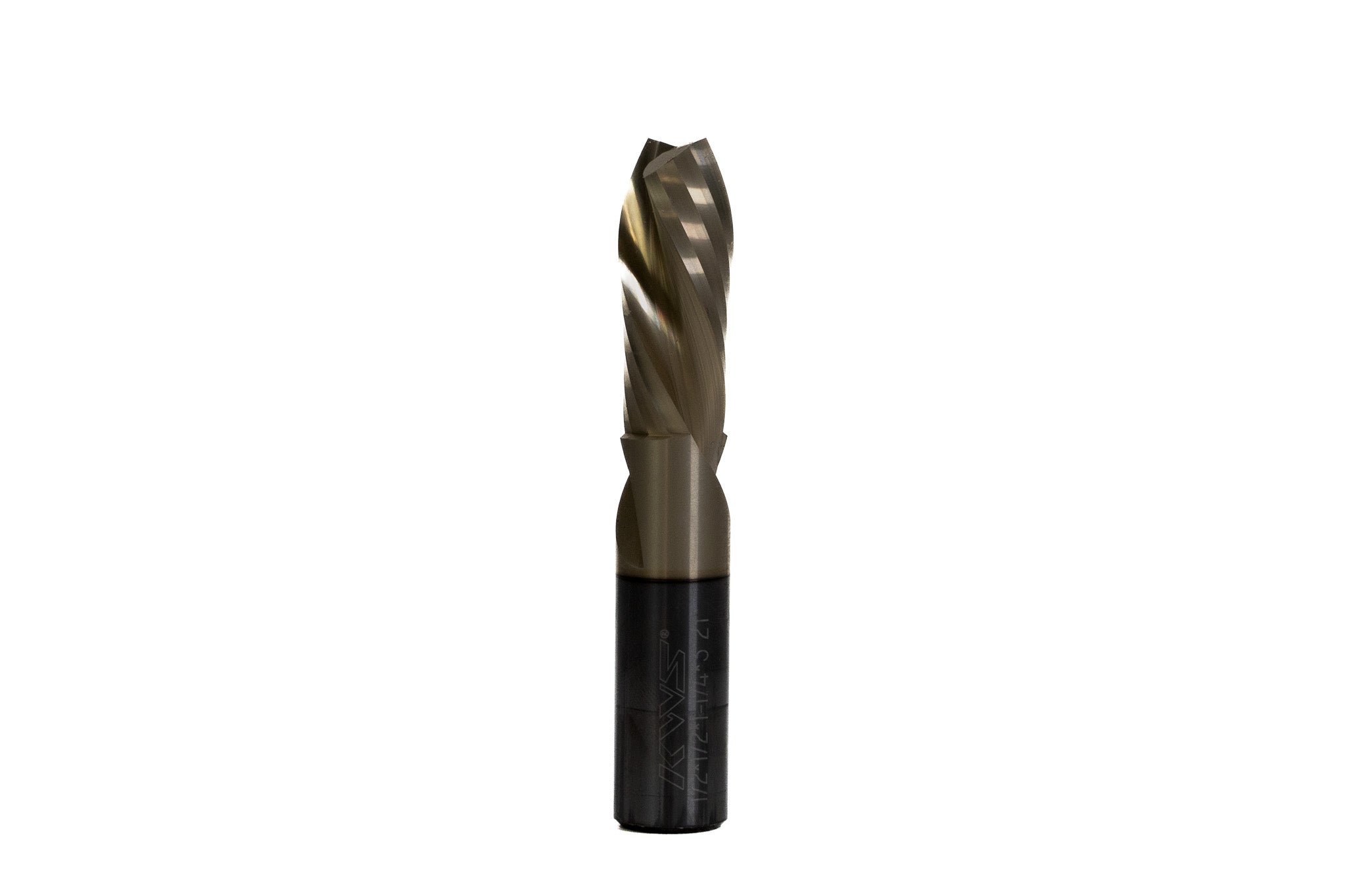

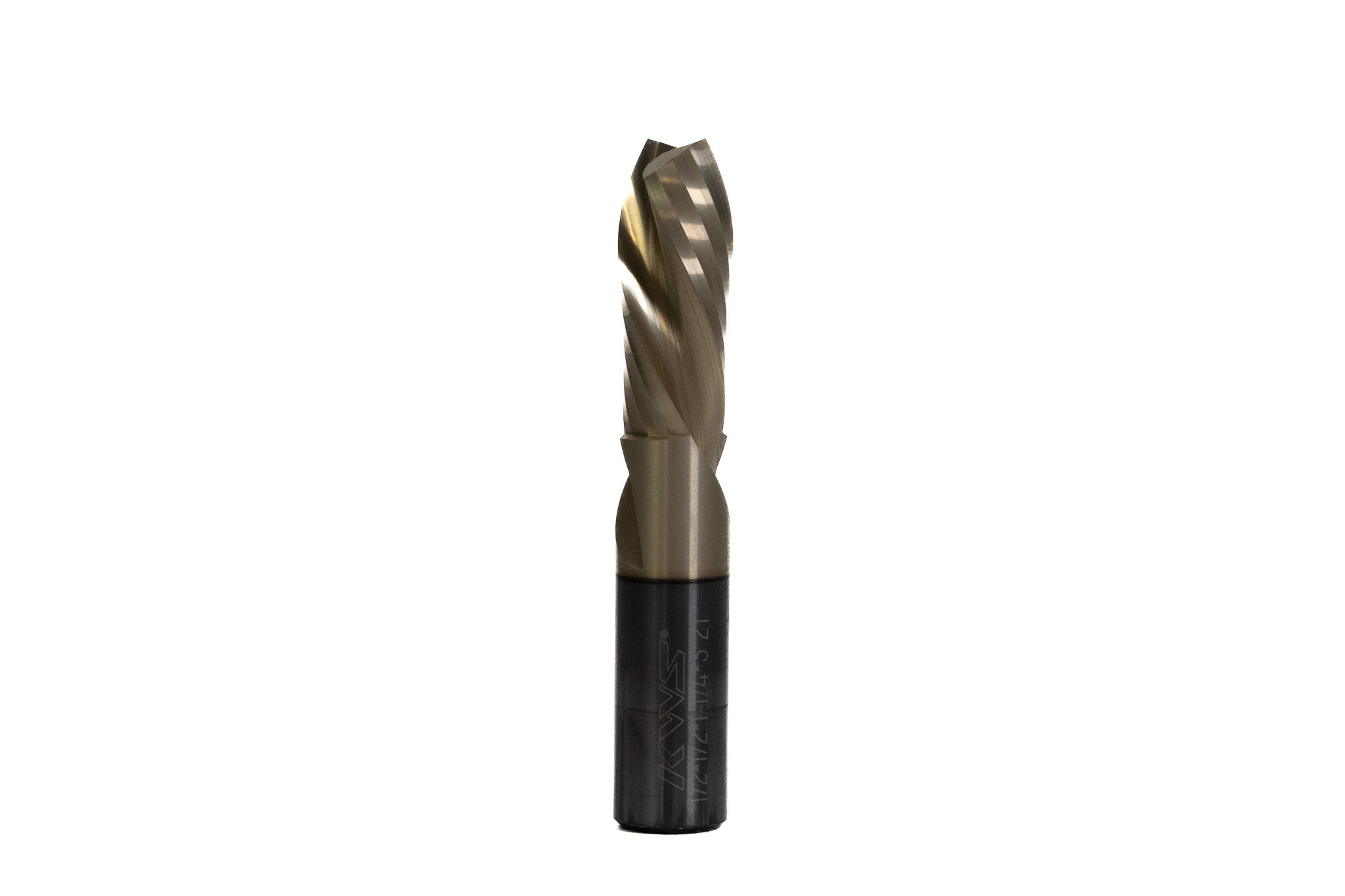

KWS - CNC SC Mortise Compression Spiral 1/2 D x 1-1/4 CH x 1/2 SHK x 3 Inch Long 2 Flute Router Bit
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview
The KWS CNC Solid Carbide Mortise Compression Spiral Router Bit (1/2" Dia x 1-1/4" CH) features a shorter up-cut section than standard compression bits, making it well suited for mortising, grooving, and dado applications.
Key Features
- Shorter up-cut section than standard compression bits
- Compression (up-down) spiral geometry for clean top and bottom edges
- Designed for mortising, grooving, and dado applications
- Works well in MDF/HDF, laminate, laminated plywood, melamine, particle board, and veneered plywood, softwood and hardwood
Specifications
| Rotation | Up-Down (Compression) |
|---|---|
| Diameter (D) | 1/2" |
| Cutting Height (B) | 1-1/4" |
| Shank (d) | 1/2" |
| Overall Length (L) | 3" |
| B1 | 1/4" |
| Flutes | 2 |
