Overview
The Laguna 18|BX Bandsaw is a 3HP, 220V bandsaw with a 145-inch blade, built for consistent results cut after cut regardless of wood material. Dynamically balanced cast iron wheels, a magnetic blade tension guide, worm gear and pinion upper guide, and 10-point Laguna ceramic guides deliver smooth, accurate cuts, and this machine is sold exclusively through Laguna's dealer network.
Key Features
- 3HP, 220V, 1 Phase motor, 12 Amp
- Magnetic starter
- Disc-brake with micro switch
- Magnetic blade tension guide
- Worm gear & pinion upper guide

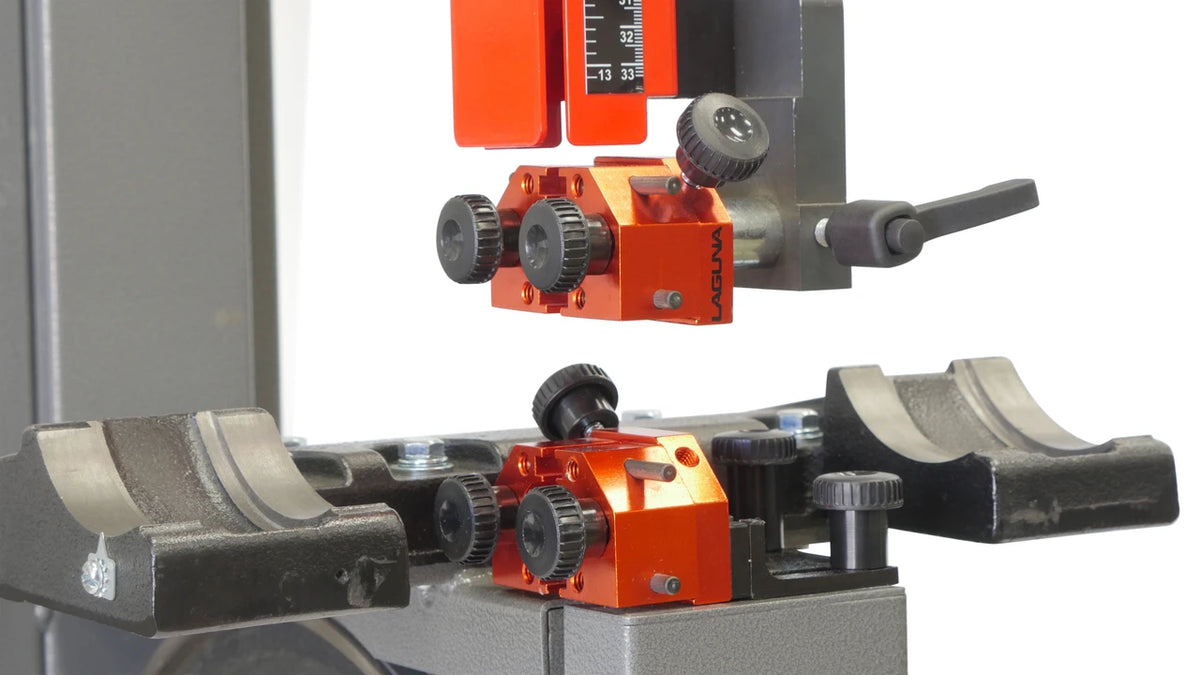

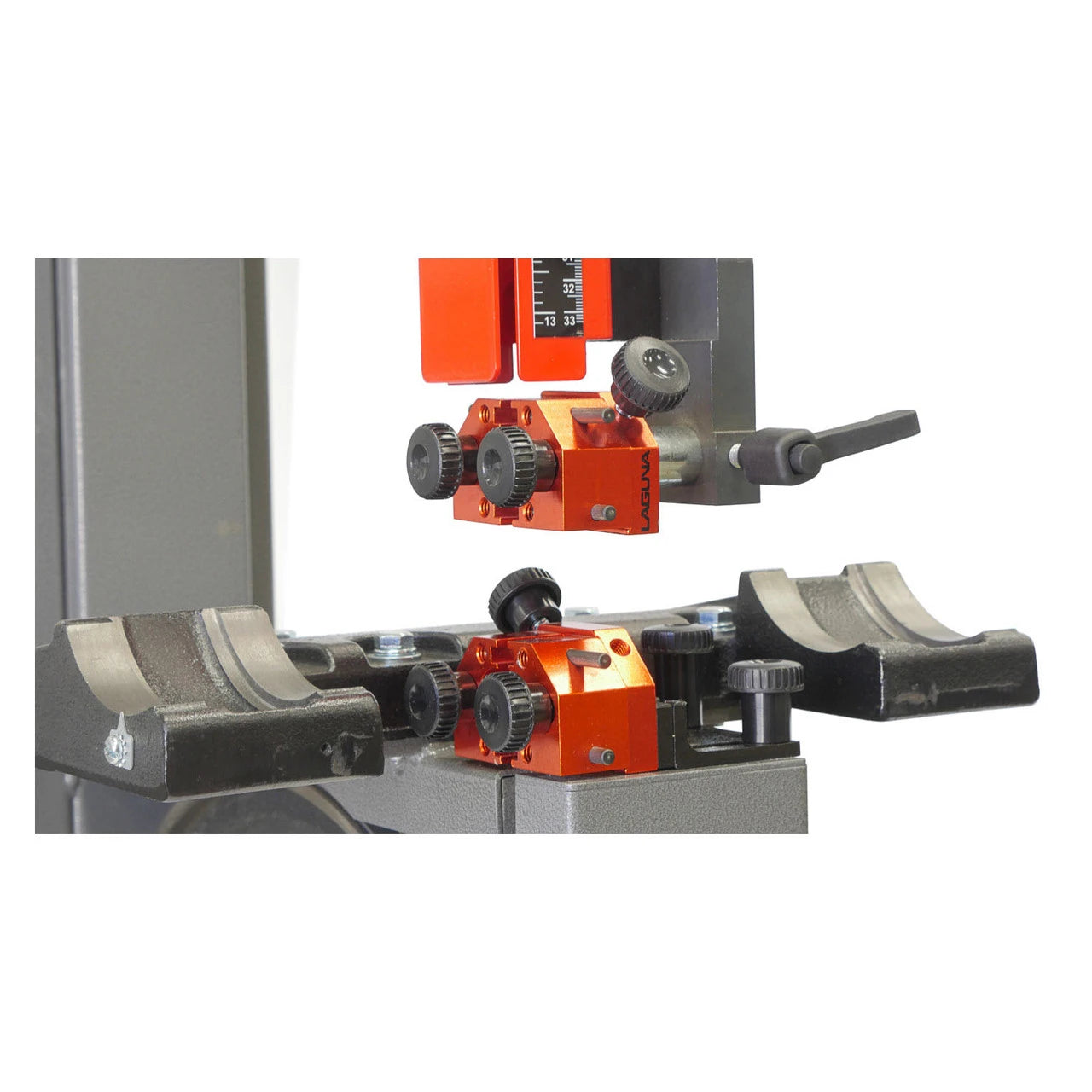

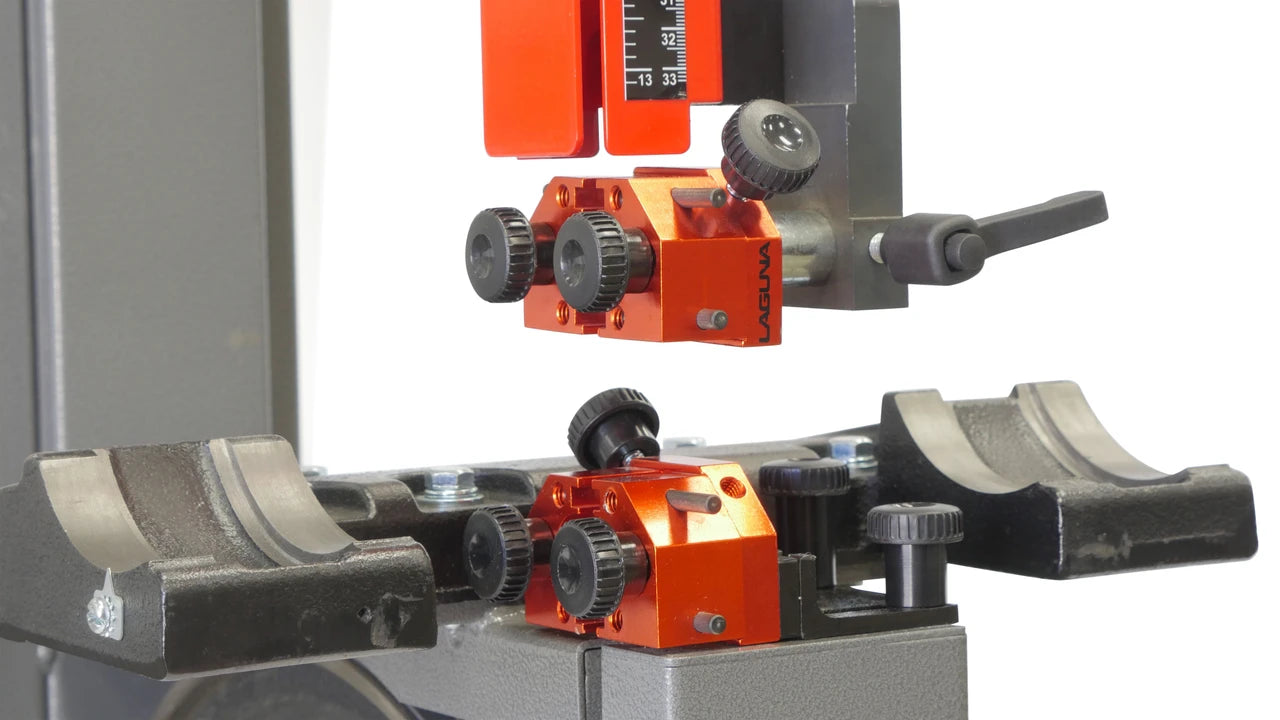

- 10-point Laguna ceramic guides

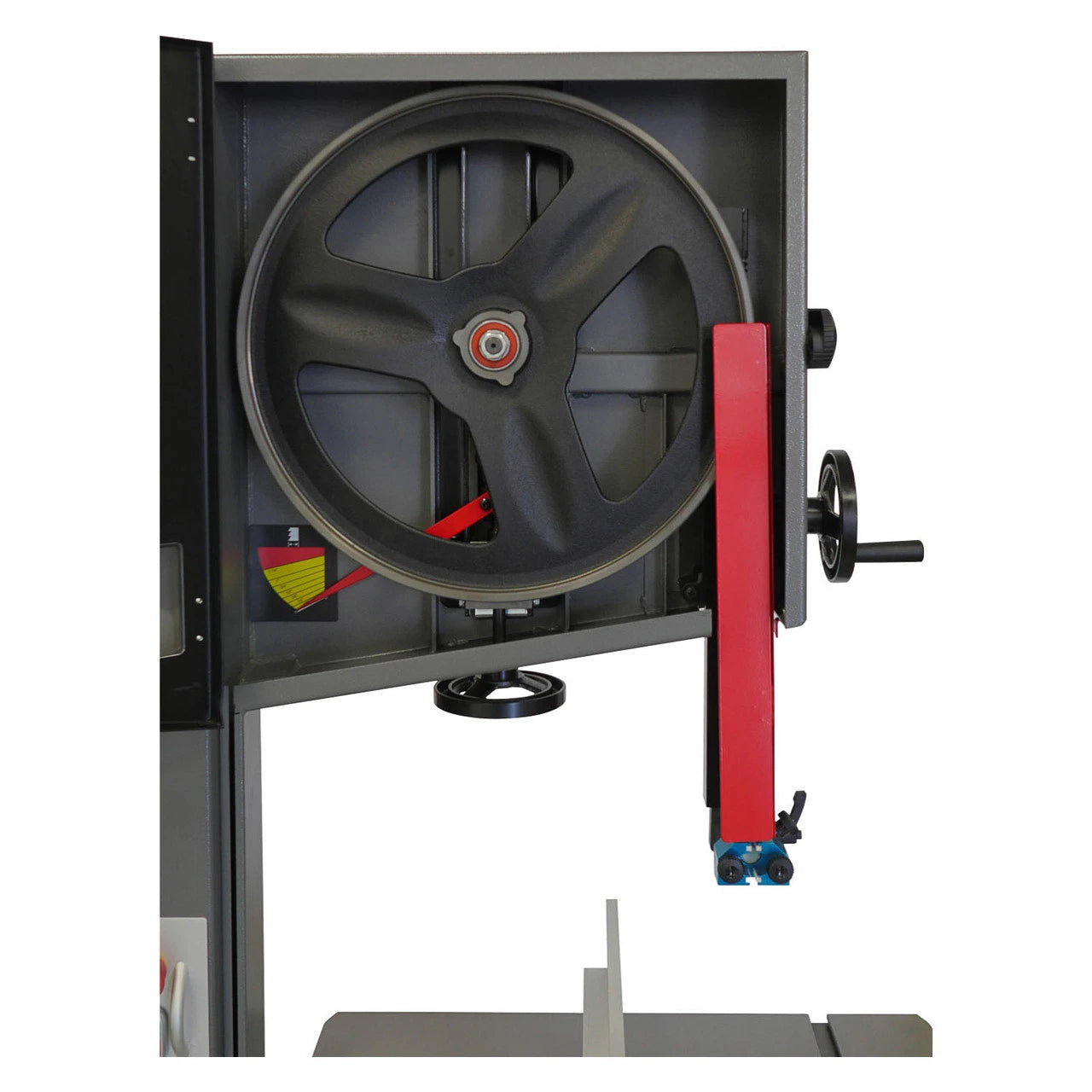

- Dynamically balanced cast iron wheels with urethane single-piece snap-on tire
- Flat poly-groove drive belt
- Premium anodized insert with micro adjustment
- Quick-release tension
- Sold exclusively through Laguna's dealer network
Specifications
| Motor | 3HP, 220V, 1 Ph, 12 Amp |
|---|---|
| Recommended Breaker | 20 Amp |
| Min-Max Blade Width | 1/8″ – 1-1/4″ |
| Resaw Capacity | 16″ |
| Throat | 18″ |
| Blade Length | 145″ |
| Cast Table Size | 20″ x 26″ |
| Table Tilt | -6°, +45° |
| Cord | 6 ft |
| Hi/Low Anodized Aluminum Fence | 22-1/2″ x 5-3/4″ x 1/2″ |
| Table Height | 38″ |
| Dust Ports | 4″ x 2 |
| Overall Height | 77-3/4″ |
| Base Dimensions | 27″ x 20″ |
| Overall Dimensions | 36″ x 30″ |
| Box Dimensions | 36″ x 84″ x 30″ |
| Weight (Net/Ship) | 410/460 lbs |
