LAGUNA- CNC Routers Swift Vacuum

by laguna
Original price $22,000.00 - Original price $23,995.00
Original price $22,000.00
$25,495.00
$23,995.00 - $25,495.00
Current price $25,495.00

Swift Vacuum

Furniture - Rapid Prototyping - Budget Friendly

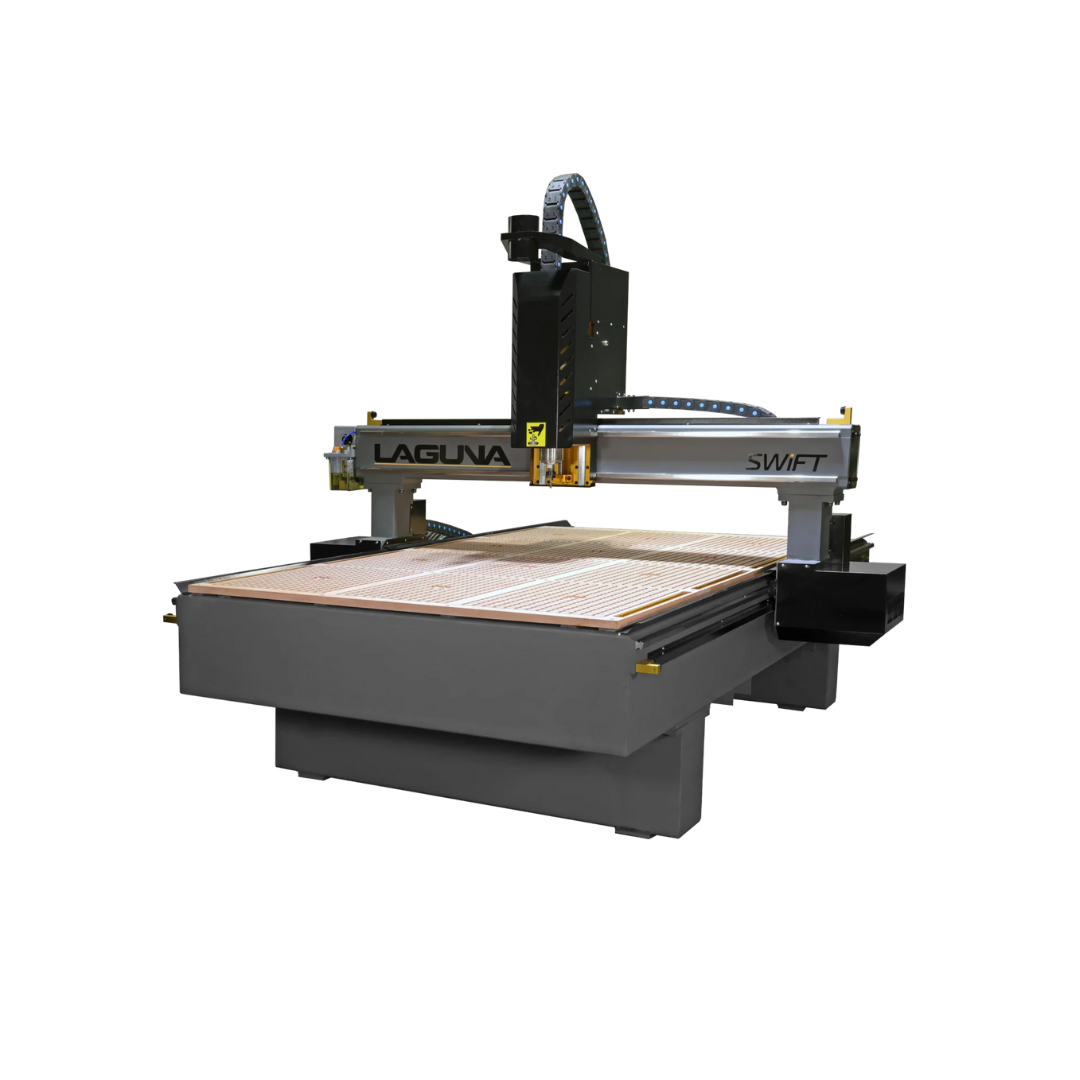

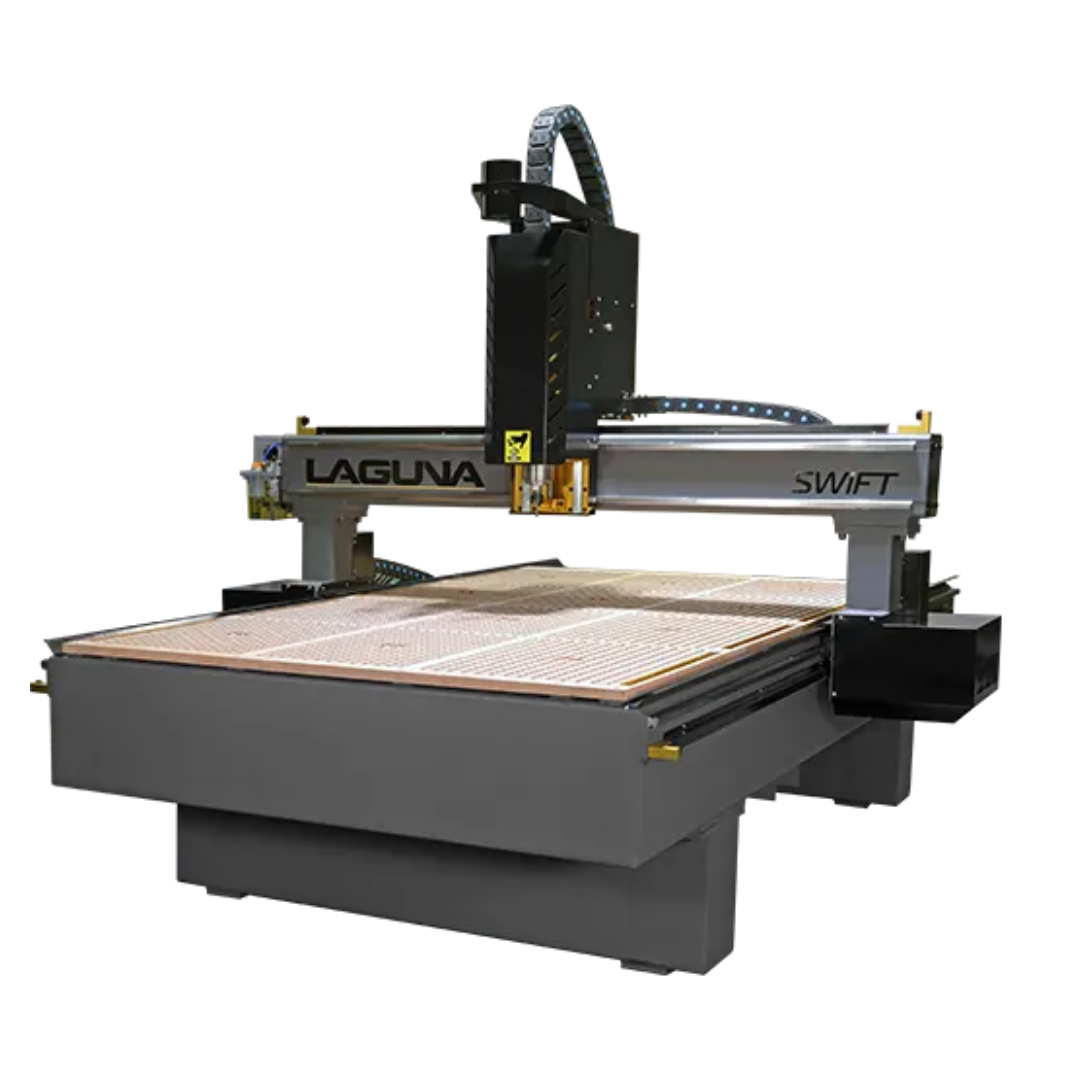

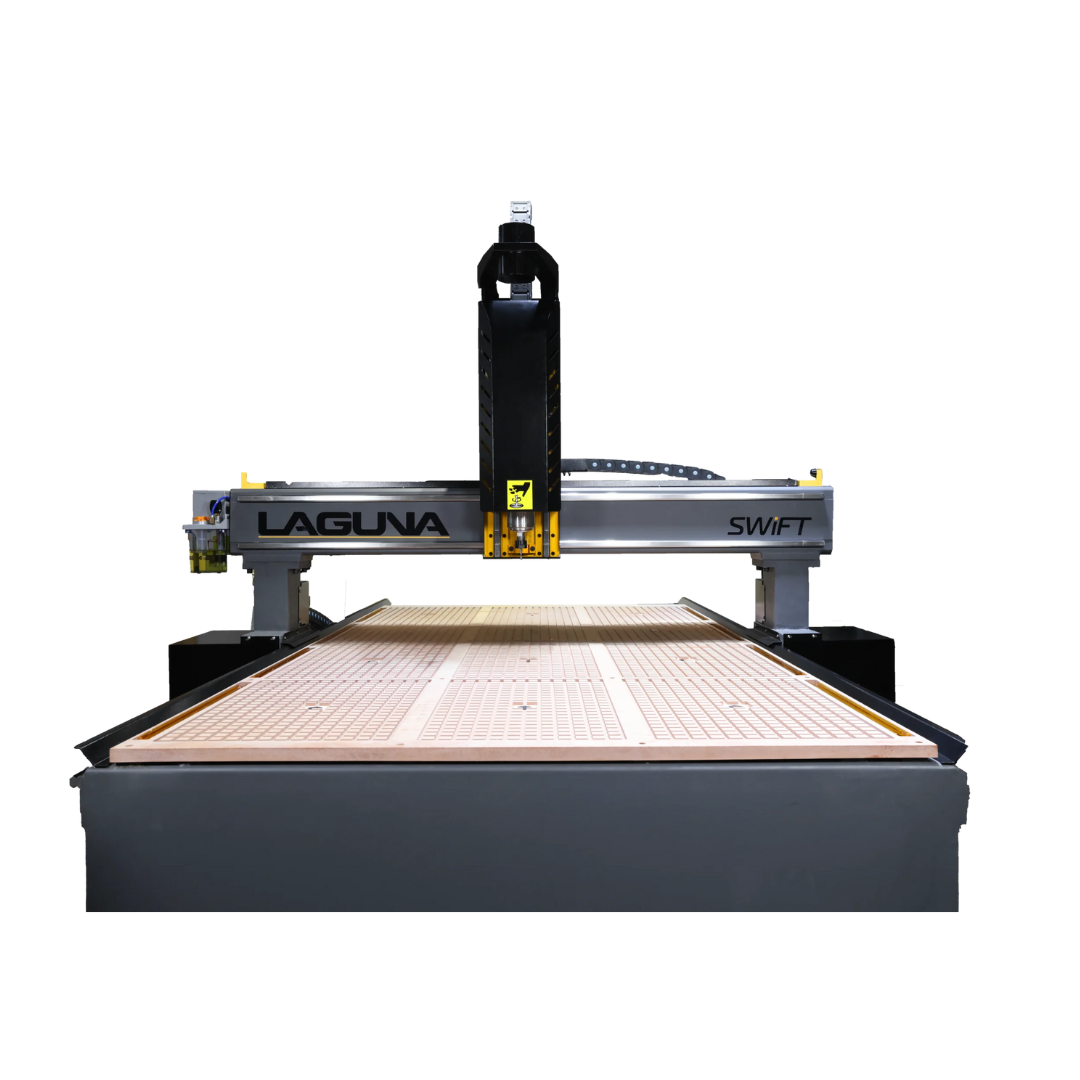

The Laguna Swift Vacuum CNC Router features a work envelope of 4′ x 4′, 4′ x 8′, 5′ x 10′. It also includes an industrial-grade liquid cooled electrospindle. The Swift vacuum features a 4-zone (4′ x 4′ table) or 6-zone (4′ x 8’/5′ x 10′) vacuum phenolic table to hold down your parts.

Machine Details:
  • 3HP Water Cooled Electrospindle (ER-20 Collet)
  • 6,000 – 24,000 RPM Spindle
  • Vacuum Table
  • Hand Held Controller
  • Gantry Height: 7-1/2″
  • Ball Screw On Z Axis
  • Double Helical Rack Drive On X & Y Axis

*Vacuum Pump Sold Separately





Swift Spindle Vacuum

Spindle


With a powerful 3HP motor and liquid cooling system, this spindle delivers exceptional perfomance, making it the ideal solution for a wide range of material and machining applications. High-quality construction and precision combine to deliver performance you can count on, even in your heaviest workloads.

Control


Featuring a sleek, ergonomic design and intuitive interface, the Laguna DSP Handheld CNC Control puts the power of industrial-grade CNC technology right in the palm of your hand. Designed with ease of use and reliability at the forefront, our control is built to last and simple to operate.

Swift Control
Swift Vacuum Gantry

Frame & Gantry


With dual support, direct drive, helical rack and pinion gantry system, and heavy-duty all tube welded steel frame, and 7 1/2″ of clearance under the gantry, the Swift CNC offers the precision, performance and reliability to take your shop to the next level.

Table


Our vacuum table is designed to provide a strong, durable, and reliable work surface for all your CNC machining projects. The six separate vacuum zones insure that you’ll be able to achieve maximum hold-down performance no matter your application.
