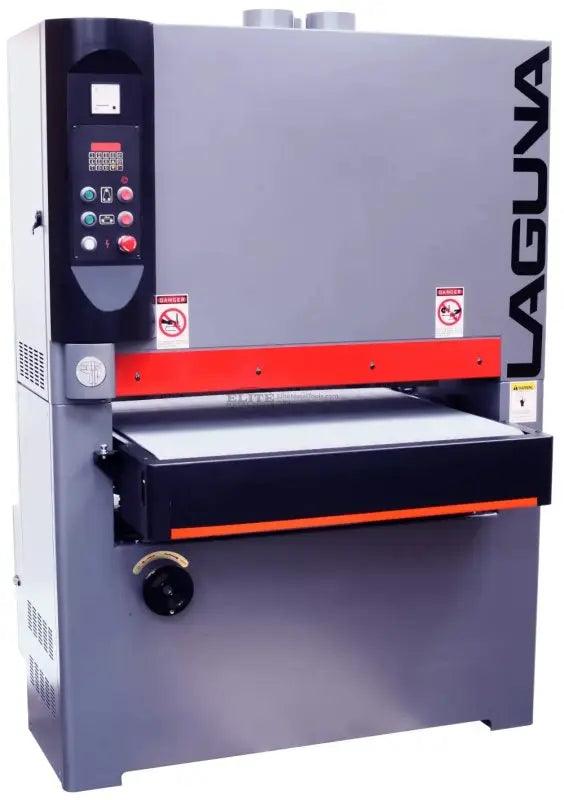

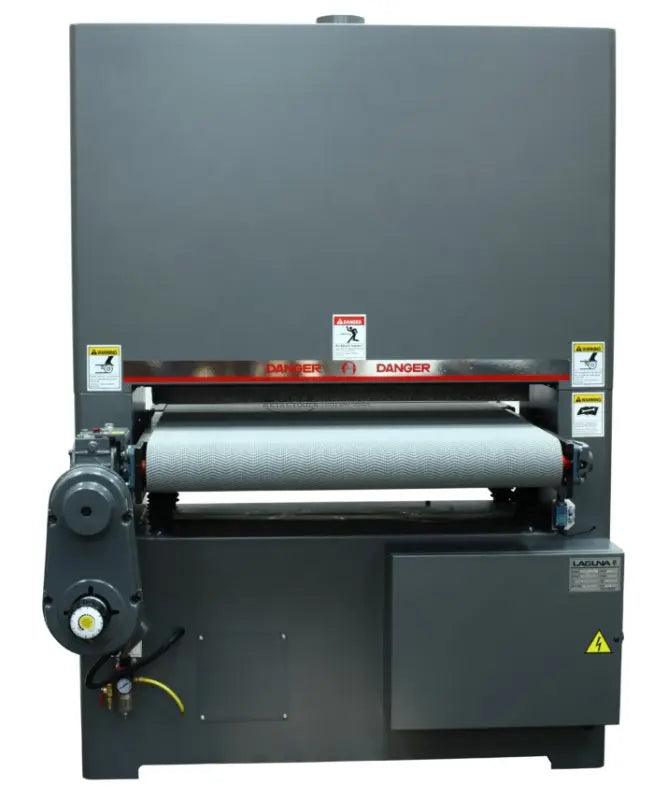

Laguna Wood Compact 25″ 1K Widebelt
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview
The Laguna Wood Compact 25″ 1K Widebelt Sander is an industrial-quality widebelt sander with a 7.5HP motor and 60-inch belt, built for affordable, precision results. A single-drum combo head pairs a 4-inch rubber roller with a fully adjustable felt-and-graphite platen, so you can dimension wood with the drum alone or lower the platen for sanding sensitive material like veneer without breaking through.
Key Features
- Single drum combo head: roller + adjustable platen
- 7.5 HP main motor
- Electric bed adjustment (0.33 HP motor) with manual micro-adjust handle
- 2 conveyor speeds: 22 & 49 FPM
- Pneumatic, adjustable oscillation
- Industrial cast iron bed on 4 Acme-threaded screws with center alignment
- Air disc brake on main motor
- Fully CSA certified
Specifications
| Voltage | 220V, 1 Phase, 60 Hz |
|---|---|
| Bed Height | 32″ (min) – 38″ (max) |
| Max Capacity | 5.9″ (150mm) |
| Max Width Capacity | 24-3/8″ |
| Belt Size | 25″ x 60″ |
| Drum | 4″ x 26″ Rubber Roller |
| RPM | 1750 (Drum) |
| Air Pressure | 75 psi |
| Dust Port | 5″ x 2 |
| Footprint | 20″ x 40″ |
| Total Size (WxD) | 40″ x 50″ |
| Height (incl. dust ports) | 66¼″ |
| Weight (Net/Gross) | 1650/1920 lbs |
