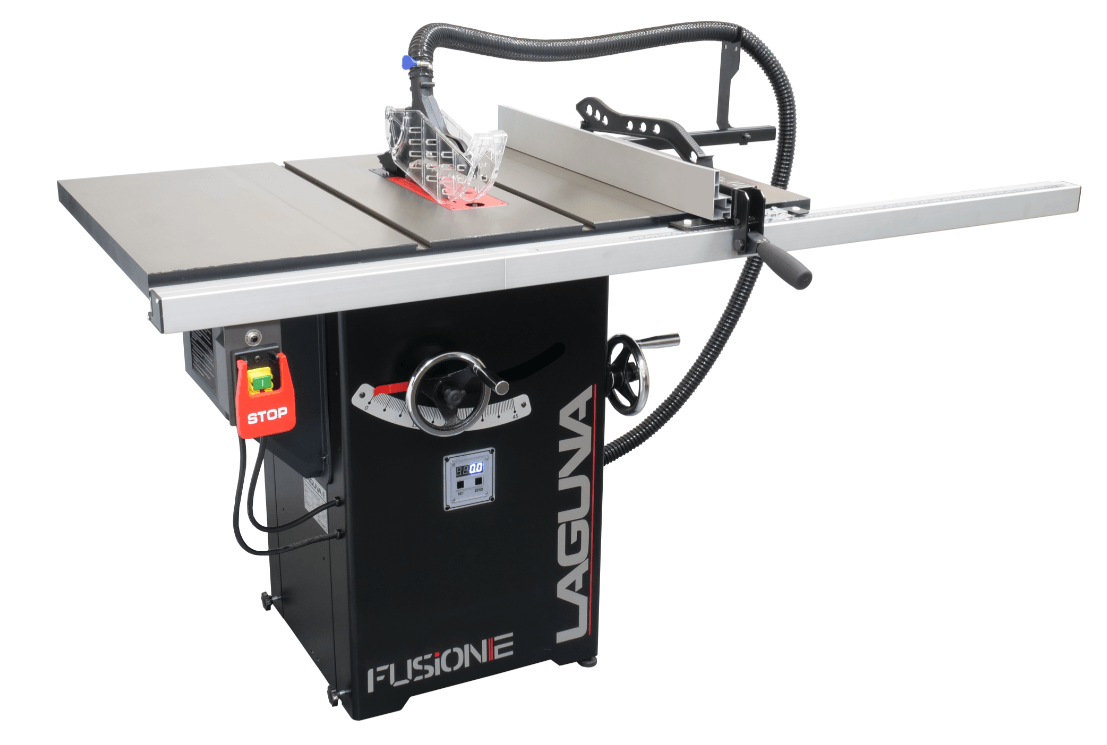

LAGUNA Fusion F2 Tablesaw
The new Laguna Fusion line was developed for demanding woodworkers.
Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.
All models are equipped with a precision fence, plus the F2 & F3 feature the Hi/Low aluminum extrusion known from European saws.
The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on the LEFT side is provided only to make the ON/OFF switch position.
Permanently lubricated bearings & Acme screws are
part of the internal DNA.
Fusion 2 is the true successor to the original Fusion Table Saw.
The task was simple: make a saw that was more refined, more precise, and cleaner.
- robust and versatile fence

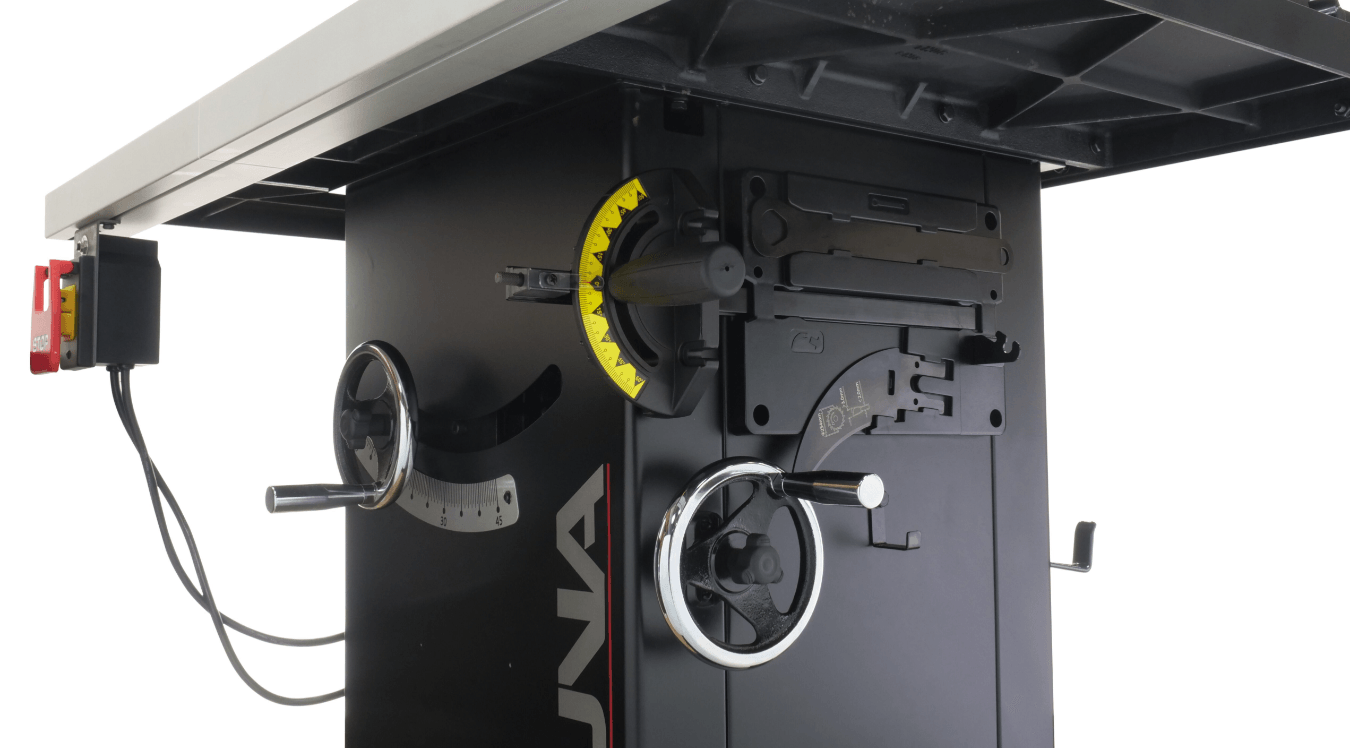

- cabinet mounted trunnion
- mechanically assisted blade movements
- hybrid cabinet saw with trunnion that rides on two solid steel 1" posts
2 New Features Now Standard On F2 & F3 Fusions

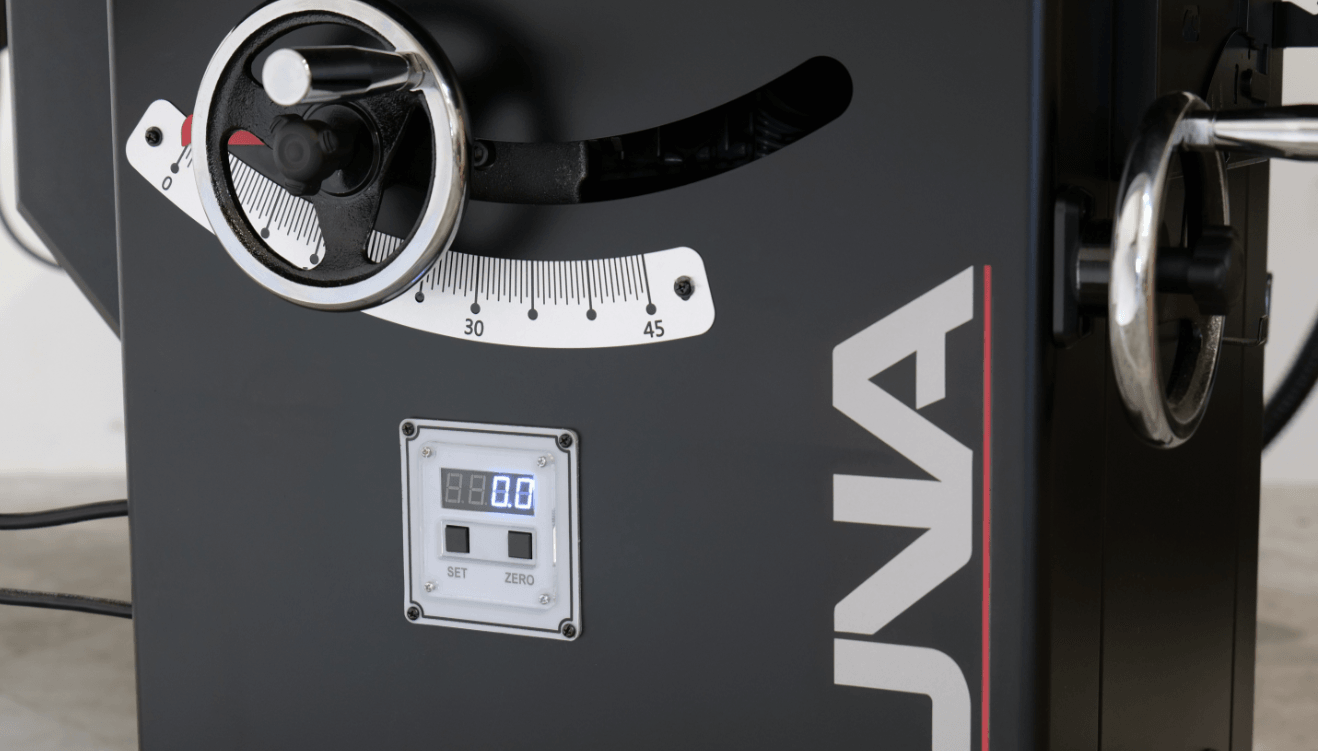

- DRO For The Tilt Angle Of Blade

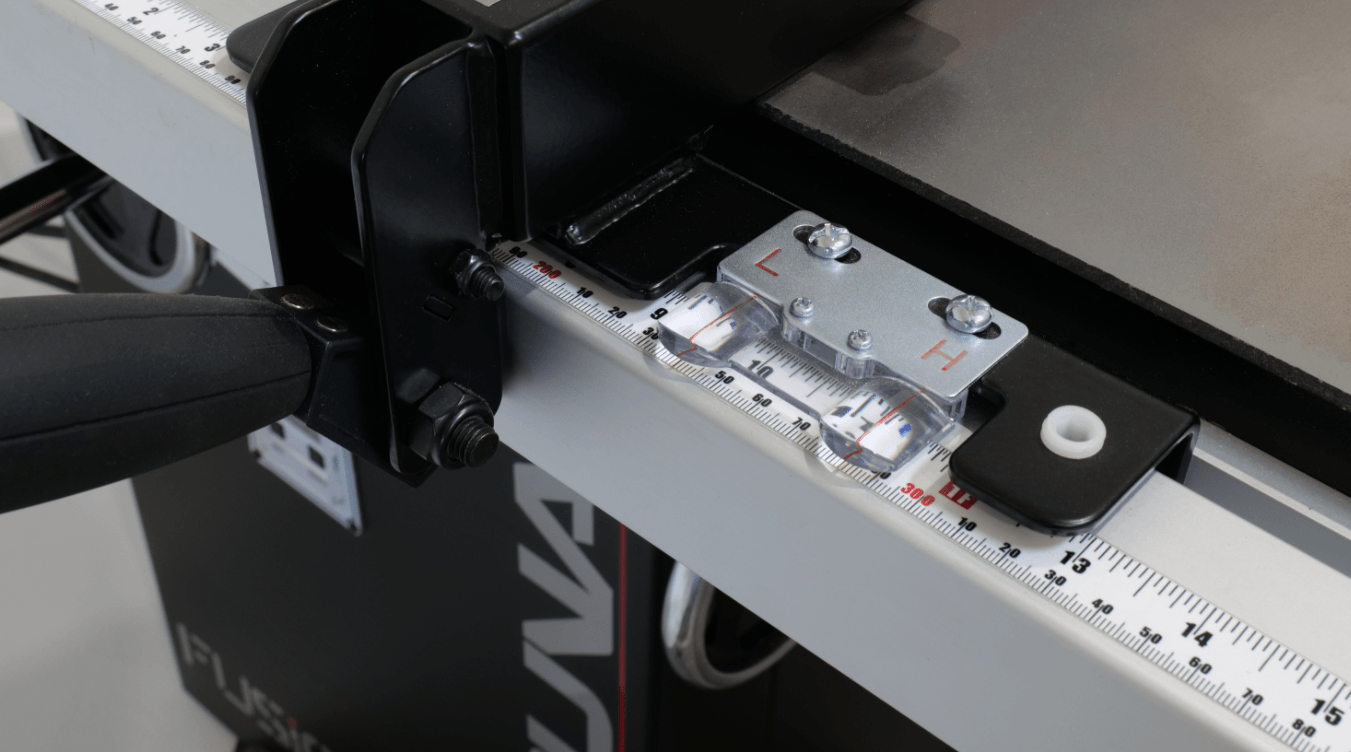

- Double Window With Hairline For Hi/Low Fence
Specs:
Electrical:
Power Requirements: 110V-1PH-60HZ*
Amperage (FLA) :14 AMP
Motor Power: 1.75 HP
Motor Speed: 3450 RPM
Starter Switch: Magnetic
Plug Included: 5-15
Circuit Breaker Req.: 110V - 25 AMP
Receptacle Req. : 5-15
General:
Certification: CSA C/US 175370
Net Weight: 275 lbs (125 Kgs)
Shipping Weight: 368 lbs (167 Kgs)
Shipping Dimensions: L29-3/4" W46-5/8" H42-5/8"
Overall Size: L39-3/4” W65-5/8” H38”
Tablesaw:
Blade Size: 10"
Vertical Cut Height: 3 1/8”
45° Cut Height: 2 1/8"
Tilt: 0-45° Left
Min. Kerf: 3mm ~1/8" (actual: 0.1875")
Max. Kerf (Dado Blade): 13/16"
Arbor Speed: 4500 RPM
Arbor Diameter: 5/8"
Mitre Slot: 3/4" to 1" T

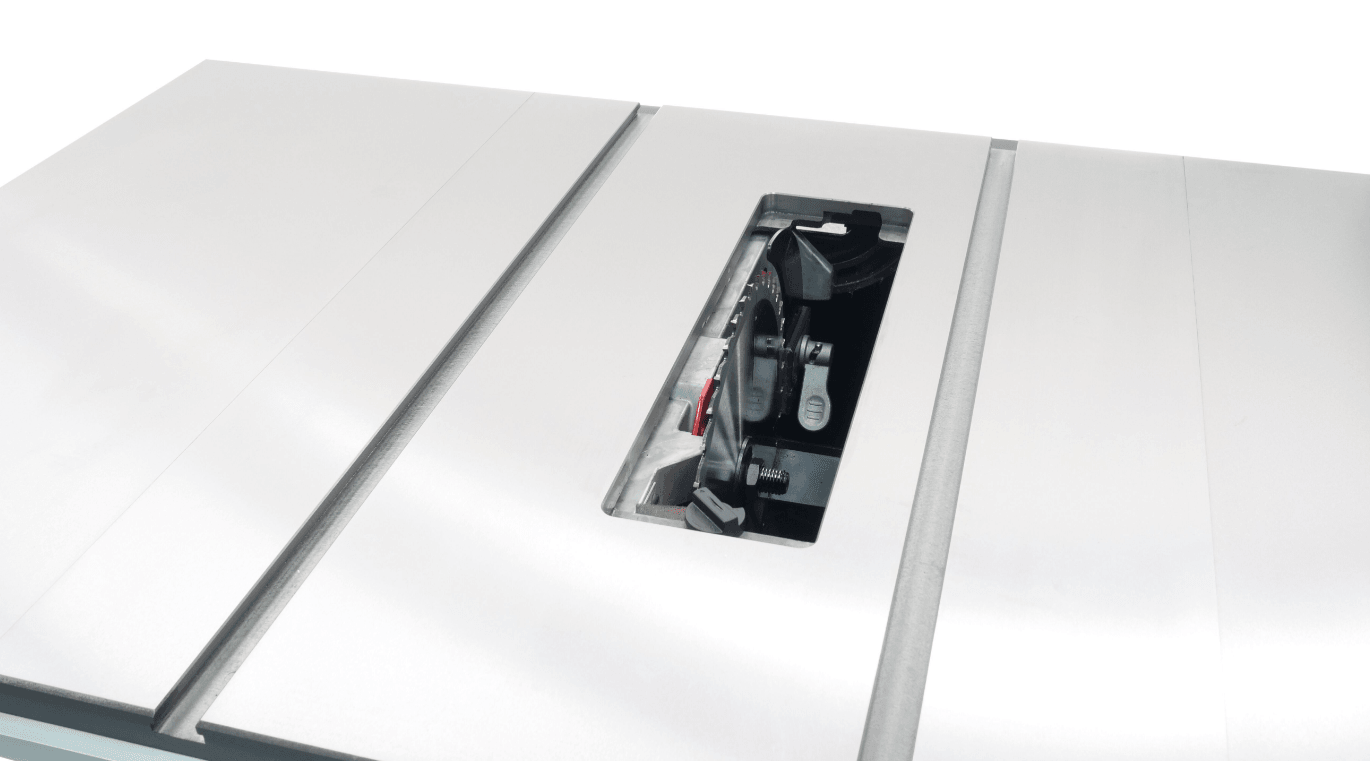

Throat Plate: Zero Clearance Square Composite, w/ adjustment
Fence: Double Rail Cam Action
Dimensions:
Overall Size: L39-3/4" W65-5/8" H38"
w/ 52" Extension: +16" to W in Overall Size
Base: L18-5/8" W19-1/4"
Floor to To Table: H34-3/4"
Table: L27" W20"
Extension Wing: L27" W12" (x2)
Throat Plate: L14-5/8" W4-1/16" th1/2"
Dust Collection:
Dust Port Outer Diameter: 3-7/8"
CFM Requirement: 350 CFM
Dust Port Outer Diameter: 3-7/8"
Materials:
Table: Cast Iron
Table Wing: Cast Iron
Cabinet: Sheet Steel
Throat Plate: Composite
Arbor Wheels: Iron
Fence: Aluminum Rail, Steel Body
Upper : Trunnion Cast Aluminum Alloy
Lower Trunnion : Cast Aluminum Alloy
Features & Comparison :
Industrial Use: NO
Enclosed Cabinet: YES
Integrated Mobility: YES
Quick Release Guards: YES
Quick Blade Change: YES
Integrated Tool Holder: YES
TEFC Motor: YES
110V Power: YES
Iron Upper Trunnion: NO
Accessories & Options:
Dado Throat Plate: PTSF236110175-001
Thin Kerf Riving Knife: PTSF132110150-0130-000
Right of wing table: NO
Outfeed Table Attachment: NO
Dust Collection Guard: Included with purchase
Mitre Guage: Included with purchase
Blade Guard: Included with purchase
Arbor Wrench: Included with purchase
Riving Knife: Included with purchase
Standard Throat Plate: Included with purchase
