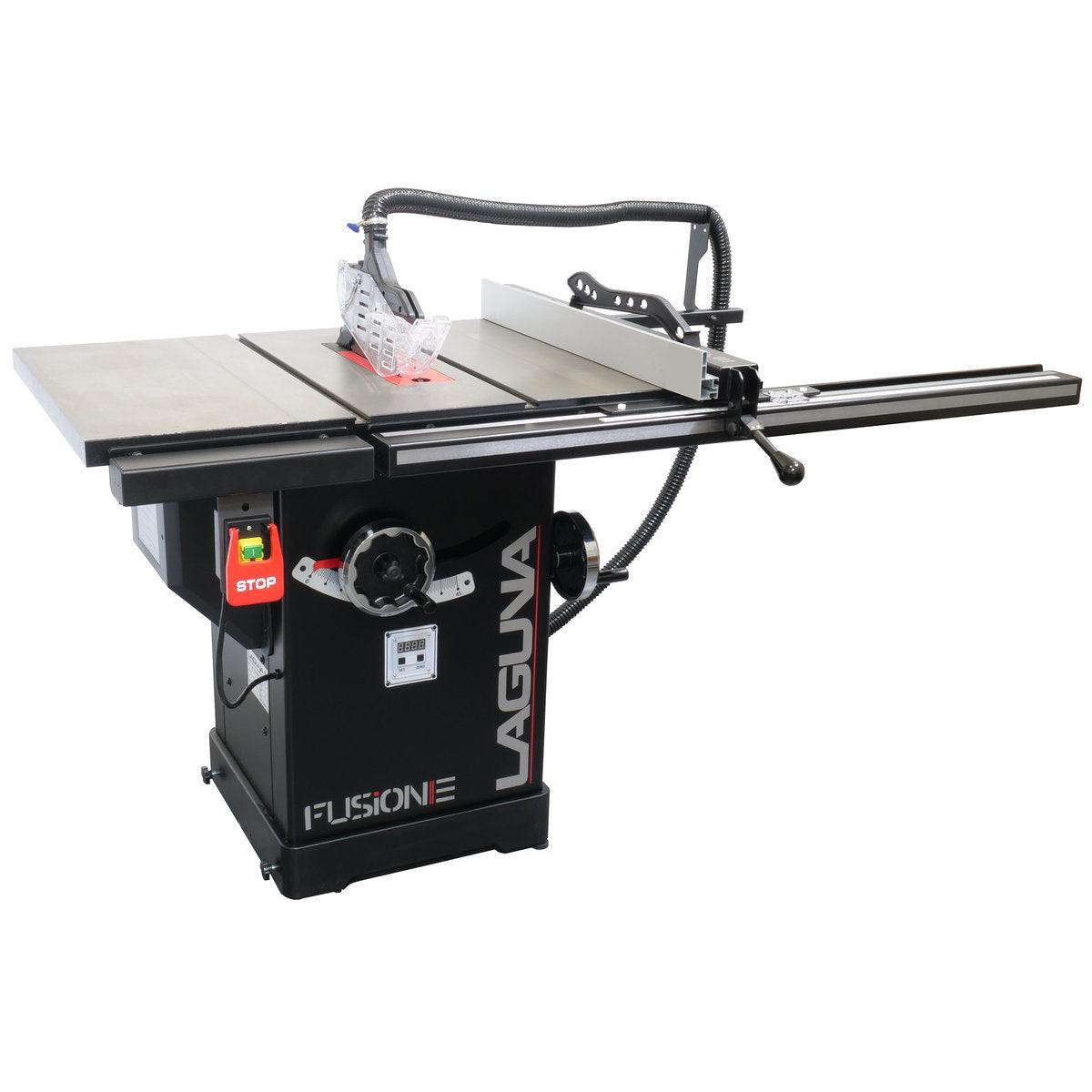

Laguna F3 Fusion Tablesaw

The new Laguna Fusion line was developed for demanding woodworkers.

Designed around quality components with an emphasis on superior dust collection enhanced by utilizing over/under collection & sealed bottoms.

All models are equipped with precision fence, plus the F2 & F3 feature

the Hi/Low aluminum extrusion known from European saws.

Permanently lubricated bearings & Acme screws are

part of the internal DNA.

Fusion 3 is the big brother to Fusion 2.

• cast iron trunnion
• upgraded handles & Miter Gauge
• outfield table equipped with double miter slots
• built with an extra heavy-duty cabinet, 36" still fence

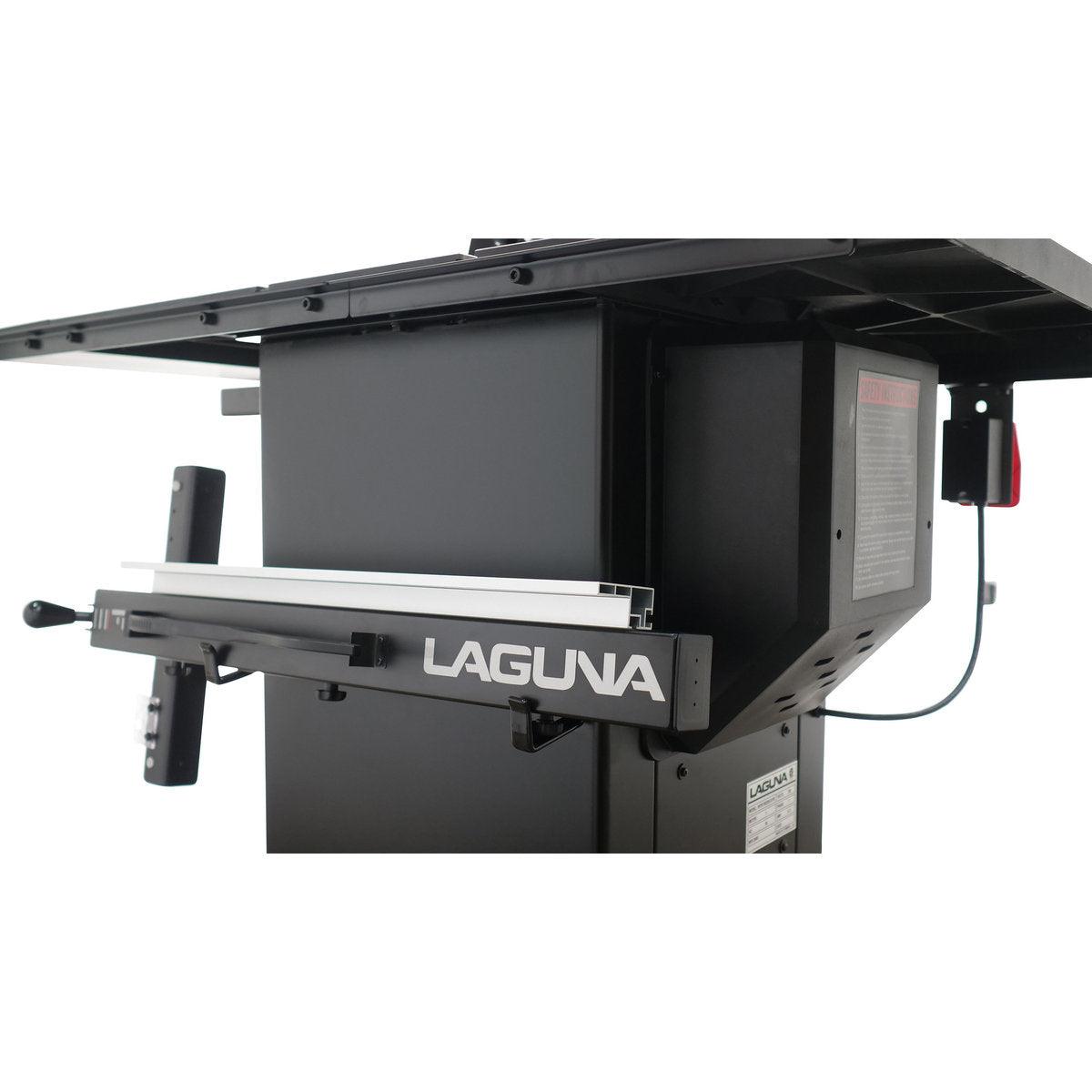

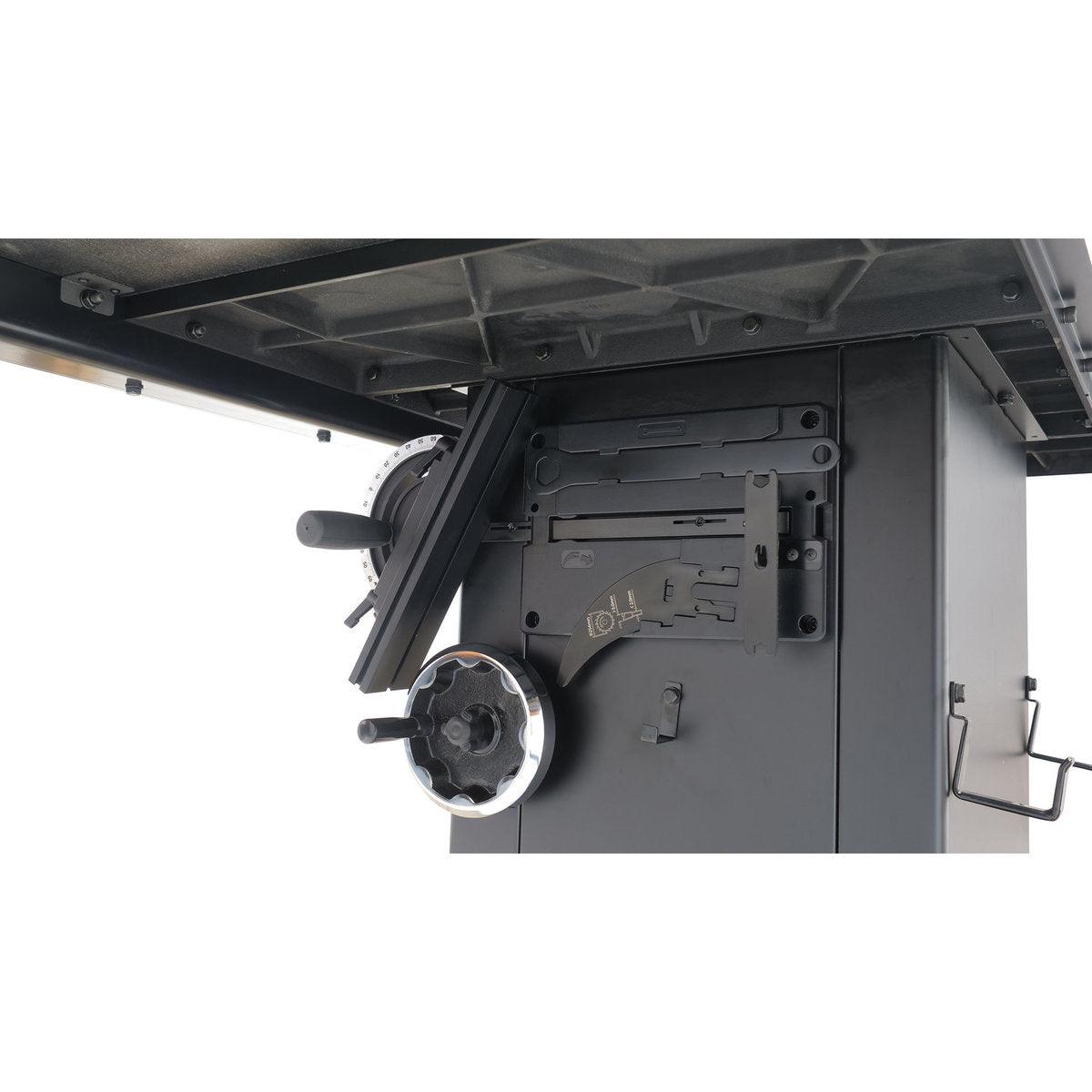

On board storage of all accessories.

The Fusion F3 features professional cabinet saws built with no compromises.

2 New Features Now Standard On F2 & F3 Fusions

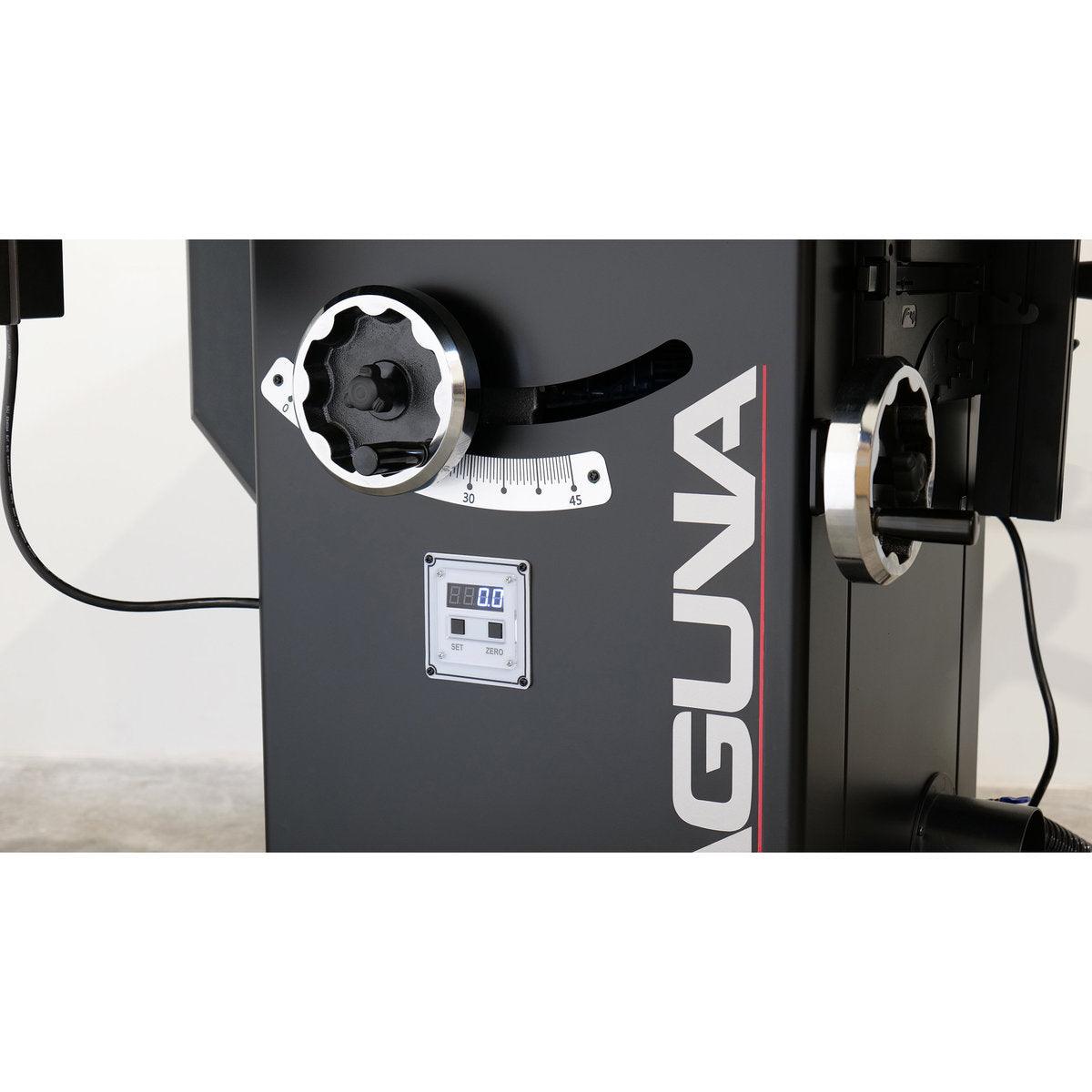

• DRO For The Tilt Angle Of Blade

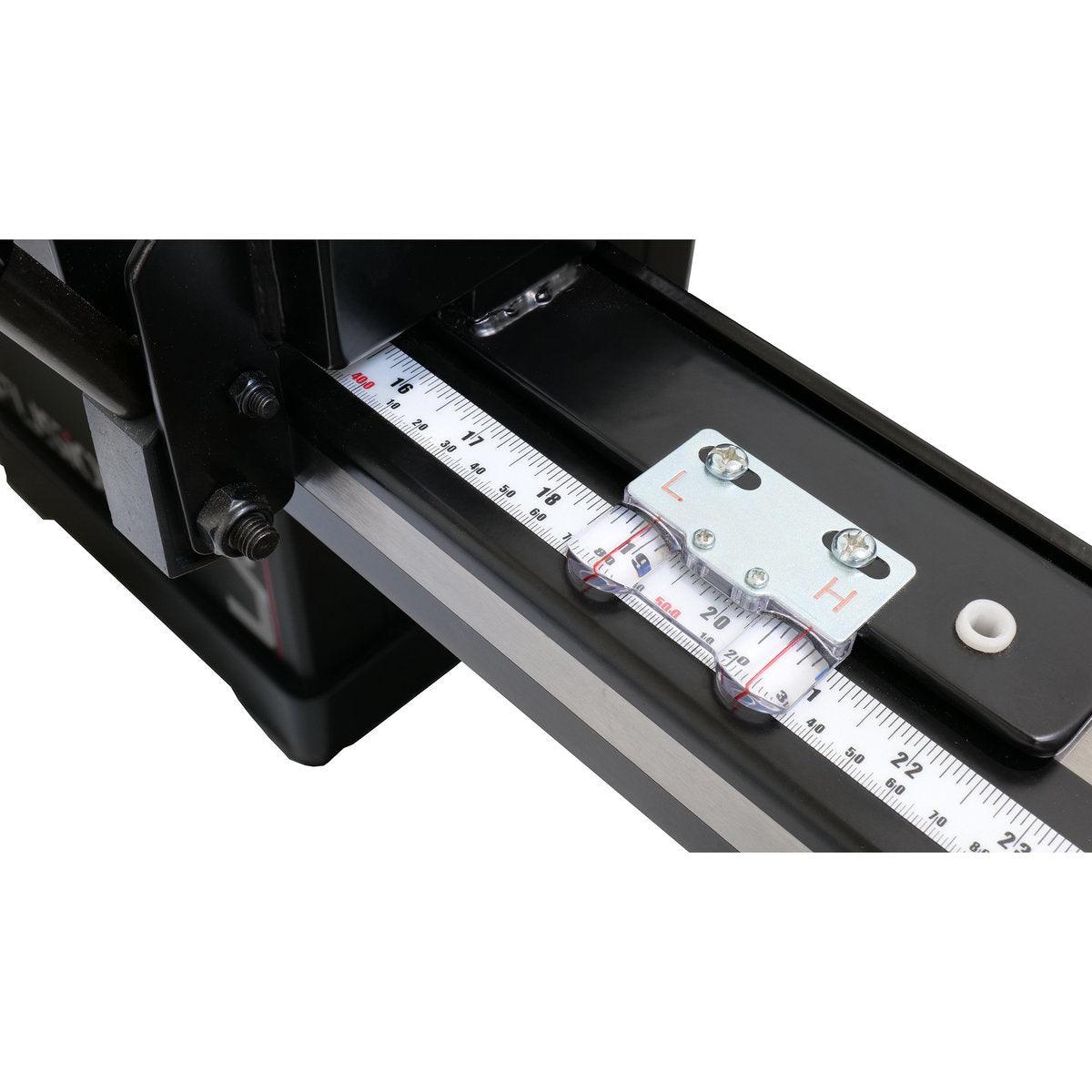

• Double Window With Hairline For Hi/Low Fence

Download Manual

DRO Manual

Specs:

Electrical

Power Requirements: 220V-1PH-60HZ

Amperage (FLA): 14 AMP

Motor Power: 3 HP

Motor Speed: 3450 RPM

Starter Switch: Magnetic

Plug Included: 6-15

Circuit Breaker Req.: 220V - 25 AMP

Receptacle Req. : 6-15

General:

Certification: CSA C/US 175370

Net Weight: 290 lbs (132 Kgs)

Shipping Weight: 390 lbs (177 Kgs)

Shipping Dimensions: L29-3/4" W46-5/8" H42-5/8"

Overall Size: L39-3/4" W65-5/8" H38"

Tablesaw:

Rip Capacity: 36" STD, 52" OPTION

Blade Size: 10"

Vertical Cut Height: 3 1/8”

45° Cut Height: 2 1/8"

Tilt: 0-45° Left

Min. Kerf: 3mm ~1/8" (actual: 0.1875")

Max. Kerf (Dado Blade): 13/16"

Arbor Speed: 4500 RPM

Arbor Diameter: 5/8"

Mitre Slot: 3/4" to 1" T

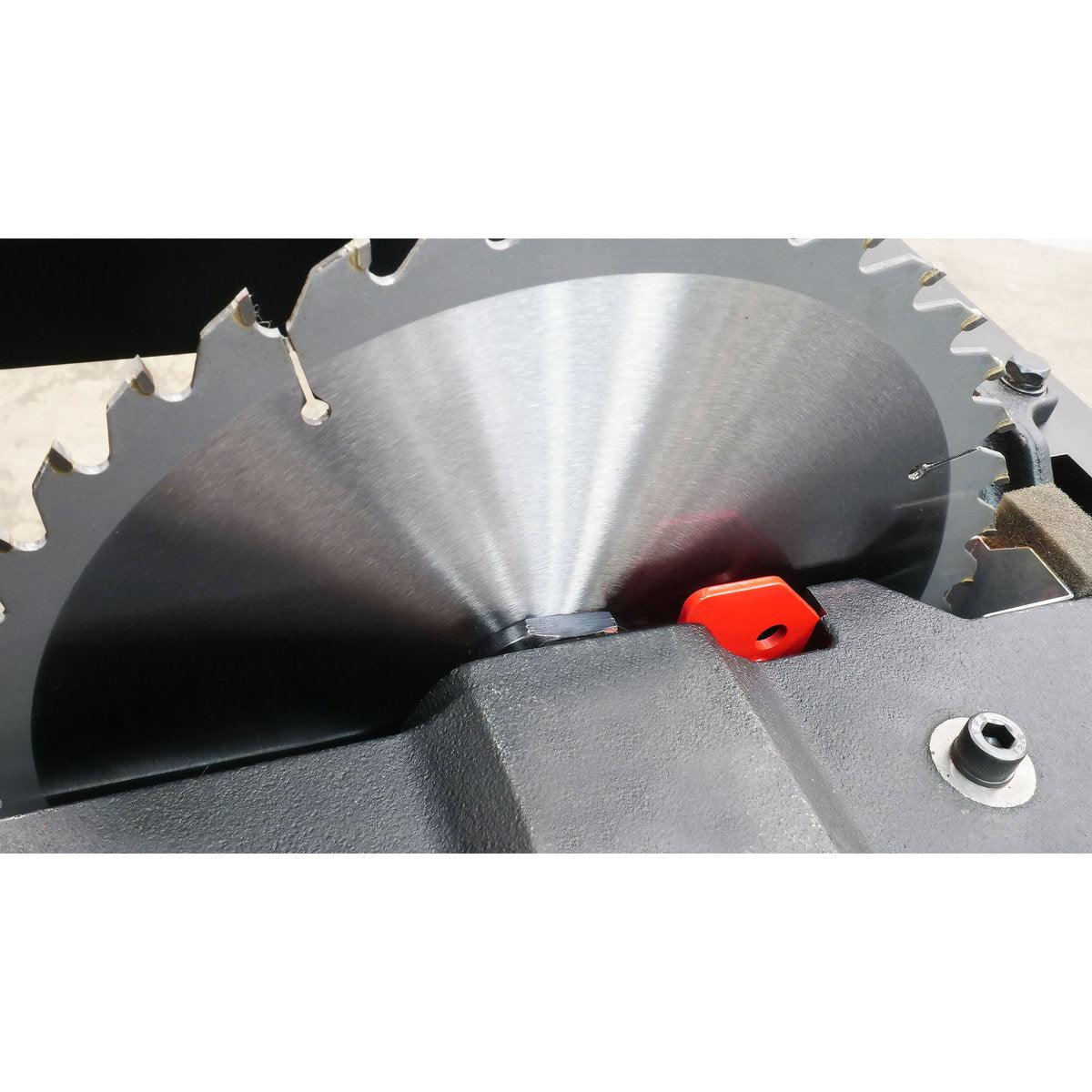

Throat Plate: Zero Clearance Square Composite, w/ adjustment

Fence: Double Rail Cam Action

Dimensions:

Overall Size: L39-3/4" W65-5/8" H38"

w/ 52" Extension: +16" to W in Overall Size

Base: L18-5/8" W19-1/4"

Floor to To Table: H34-3/4"

Table: L27" W20"

Extension Wing: L27" W12" (x2)

Throat Plate: L14-5/8" W4-1/16" th1/2"

Dust Collection:

Dust Port Outer Diameter: 3-7/8"

CFM Requirement: 350 CFM

Dust Port Outer Diameter: 3-7/8"

Materials:

Table: Cast Iron

Table Wing: Cast Iron

Cabinet Thick: Sheet Steel

Throat Plate: Composite

Arbor Wheels: Premium Iron

Fence: Aluminum Rail, Steel Body

Upper Trunnion: Cast Iron

Lower Trunnion: Cast Aluminum Alloy

Features & Comparison :

Industrial Use: YES

Enclosed Cabinet: YES

Integrated Mobility: YES

Quick Release Guards: YES

Quick Blade Change: YES

Integrated Tool Holder: YES

TEFC Motor: YES

110V Power: NO

Iron Upper Trunnion: YES

Accessories & Options:

Dado Throat Plate: PTSF236110175-001

Thin Kerf Riving Knife: PTSF132110150-0130-000

Right of wing table: Included with purchase

Outfeed Table Attachment: Included with purchase

Dust Collection Guard: Included with purchase

Mitre Guage: Included with purchase

Blade Guard: Included with purchase

Arbor Wrench: Included with purchase

Riving Knife: Included with purchase

Standard Throat Plate: Included with purchase
