LAGUNA Industrial Series 16 Jointer 1 Phase J16

by Laguna
Original price $10,499.00 - Original price $10,499.00
Original price
$10,499.00
$10,499.00 - $10,499.00
Current price $10,499.00

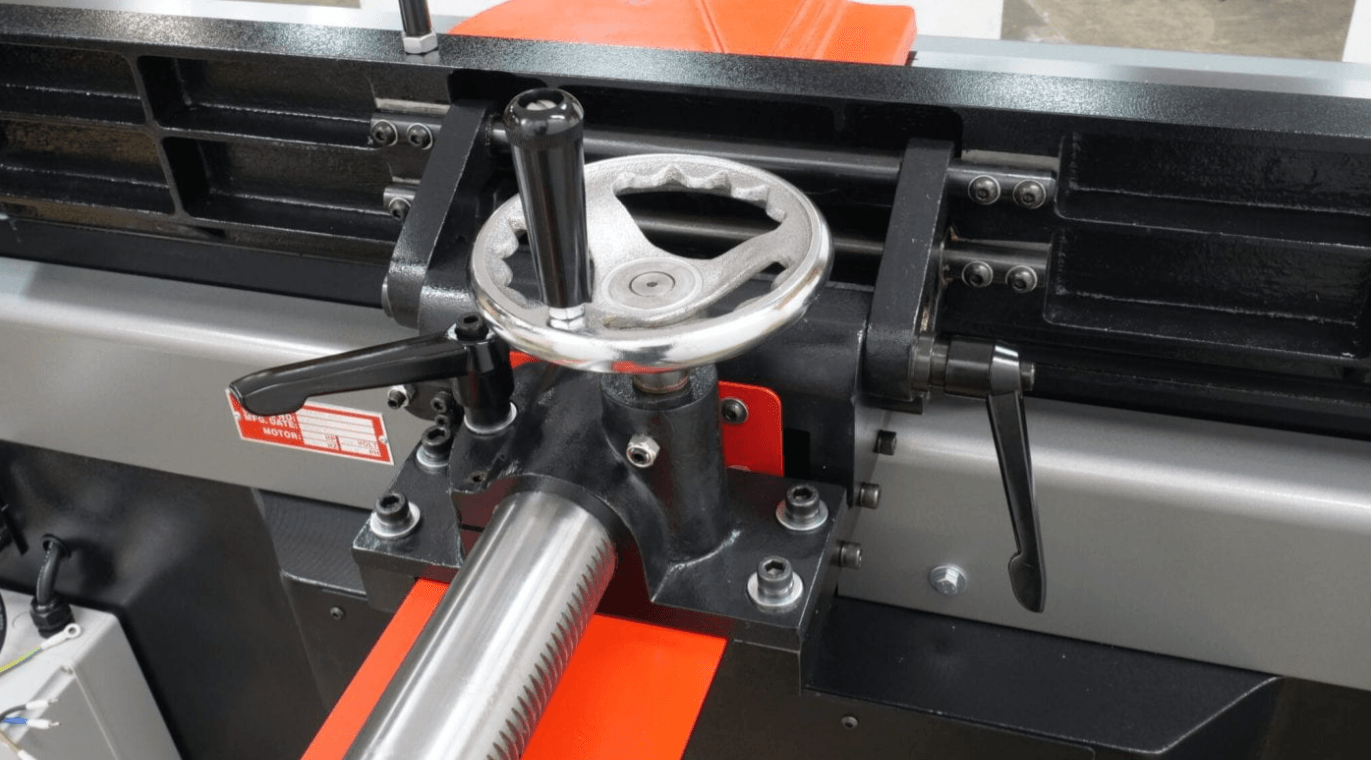

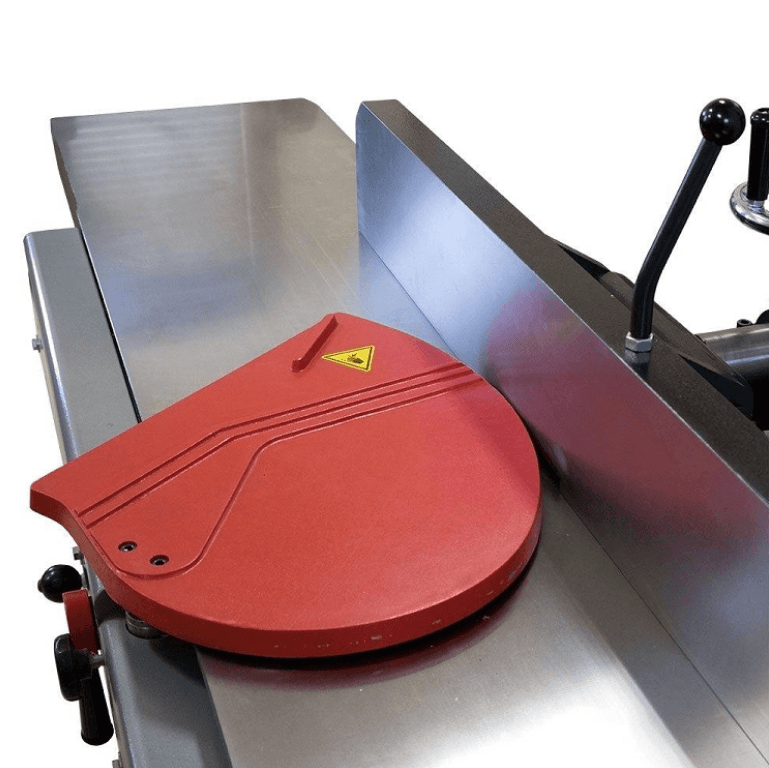

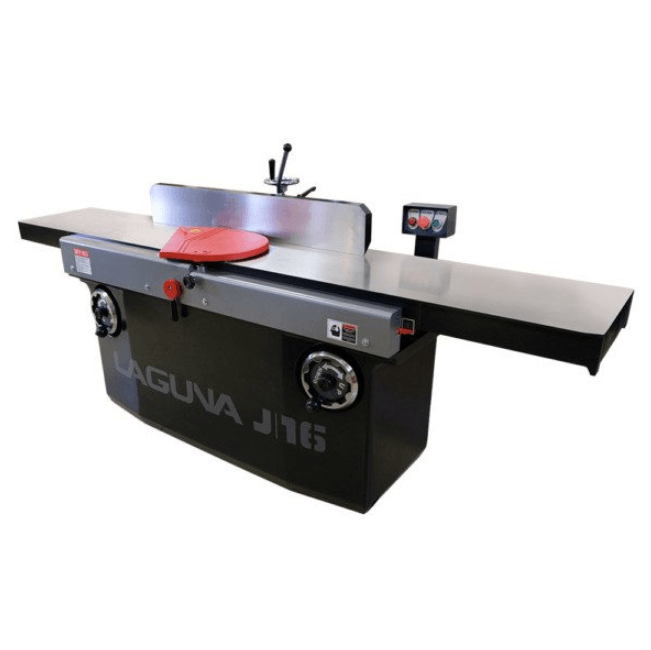

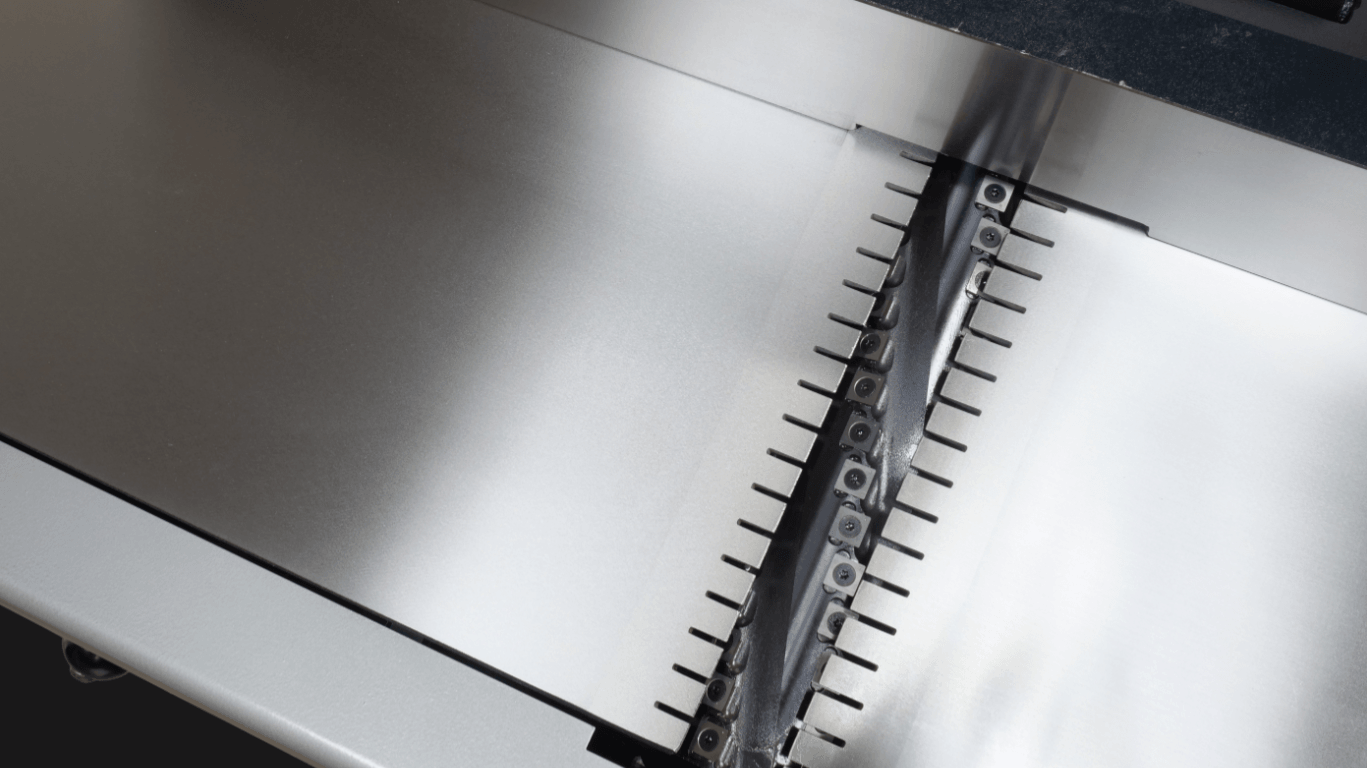

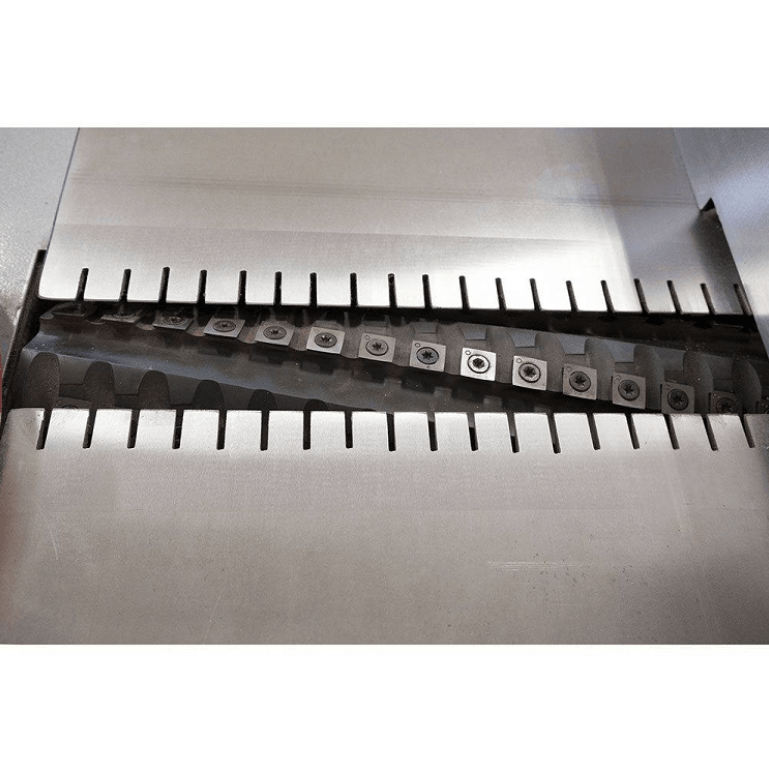

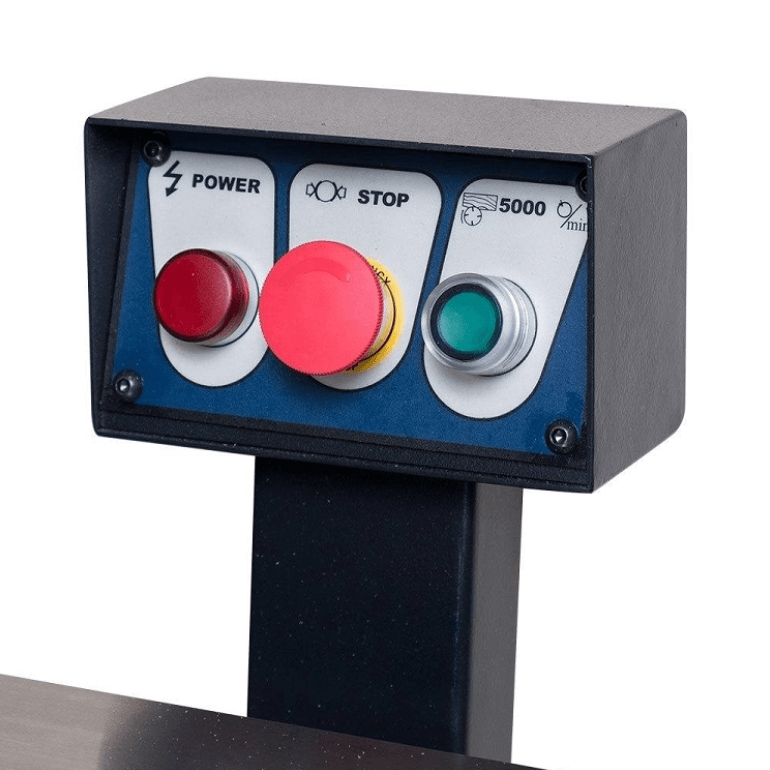

The Laguna Industrial Series Jointer is the true heavyweight of jointers. Our 16 version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements. Also available in 12 models.



The Laguna Industrial Series Jointer is the true heavyweight of jointers. Our 16" version features a total length of over 8 feet. The heavy cast-iron tables are supported by parallelogram adjusters and controlled through precision hand-wheel adjusters. The Laguna ShearTec cutterhead is equipped with German carbide insert knives for maximum durability and quick replacement. The fence is a heavy casting supported by a large diameter shaft with rack and pinion movement for smooth, repeatable accuracy. The overhead control panel allows for quick, easy operation. The swing-away guard is easily adjustable and removable for knife replacements. Also available in 12" models.

Specs:

  • Table length: 98
  • Jointer Width: 16
  • Table Height: 31-1/2
  • Parallelogram Adjustments
  • Jointer Fence Tilt: 90 45 degrees
  • Motor: 5 HP 220 volts 1 Phase
  • Cutterhead Speed: 5000 RPM
  • Cutterhead Diameter: 110 mm
  • Cutterhead: Laguna ShearTec I
  • Cast Iron Body
  • Over Head Controls
  • Rack and Pinion Fence
  • Ship Weight: 1400 Lbs
  • Net Weight: 1250 Lbs
