Laguna Italian LT16 Bandsaw
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Overview

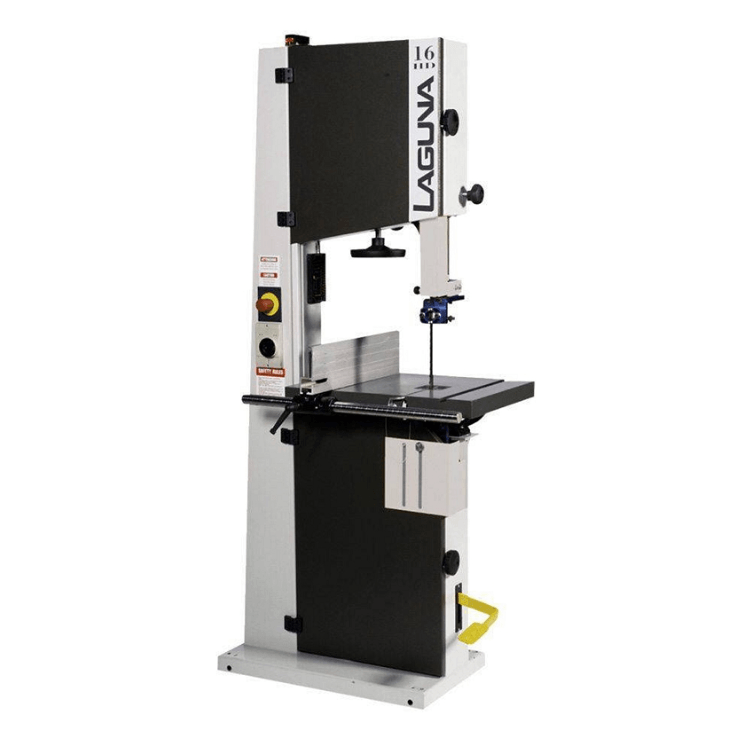

The Laguna Italian LT16 Bandsaw is a 5HP, 220V bandsaw with 16-3/8-inch resaw capacity for precise, heavy-duty resawing and curved cuts. A rack-and-pinion blade guide adjustment, foot brake, and Laguna guides provide smooth, repeatable accuracy, and optional cool blocks are available for blades under 1/4 inch.
Key Features
- 5HP, 220V, 1-phase continuous duty motor
- 16-3/8″ resaw capacity

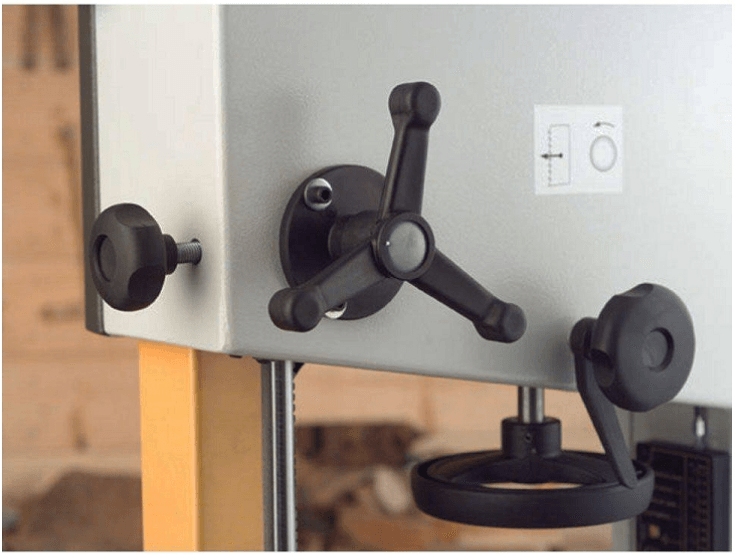

- Rack and pinion blade guide adjustment
- Foot brake
- Laguna Guides
- Optional cool blocks available for blades under 1/4″
Specifications
| Motor | 5 HP, 220V, 1 Phase (continuous duty) |
|---|---|
| Motor Weight | 84 lbs |
| Resaw Capacity | 16-3/8″ |
| Amp Breaker | 40A |
| Min. Blade | 1/16″ |
| Max. Blade | 1-3/8″ |
| Throat | 15 1/2″ |
| Table Size | 16-1/2″ x 22-3/4″ |
| Blade Length | 150″ |
| Table Height | 33-1/2″ |
| Base Size | 15″ x 27″ |
| Height | 76-1/2″ |
| Weight | 465 lbs |
