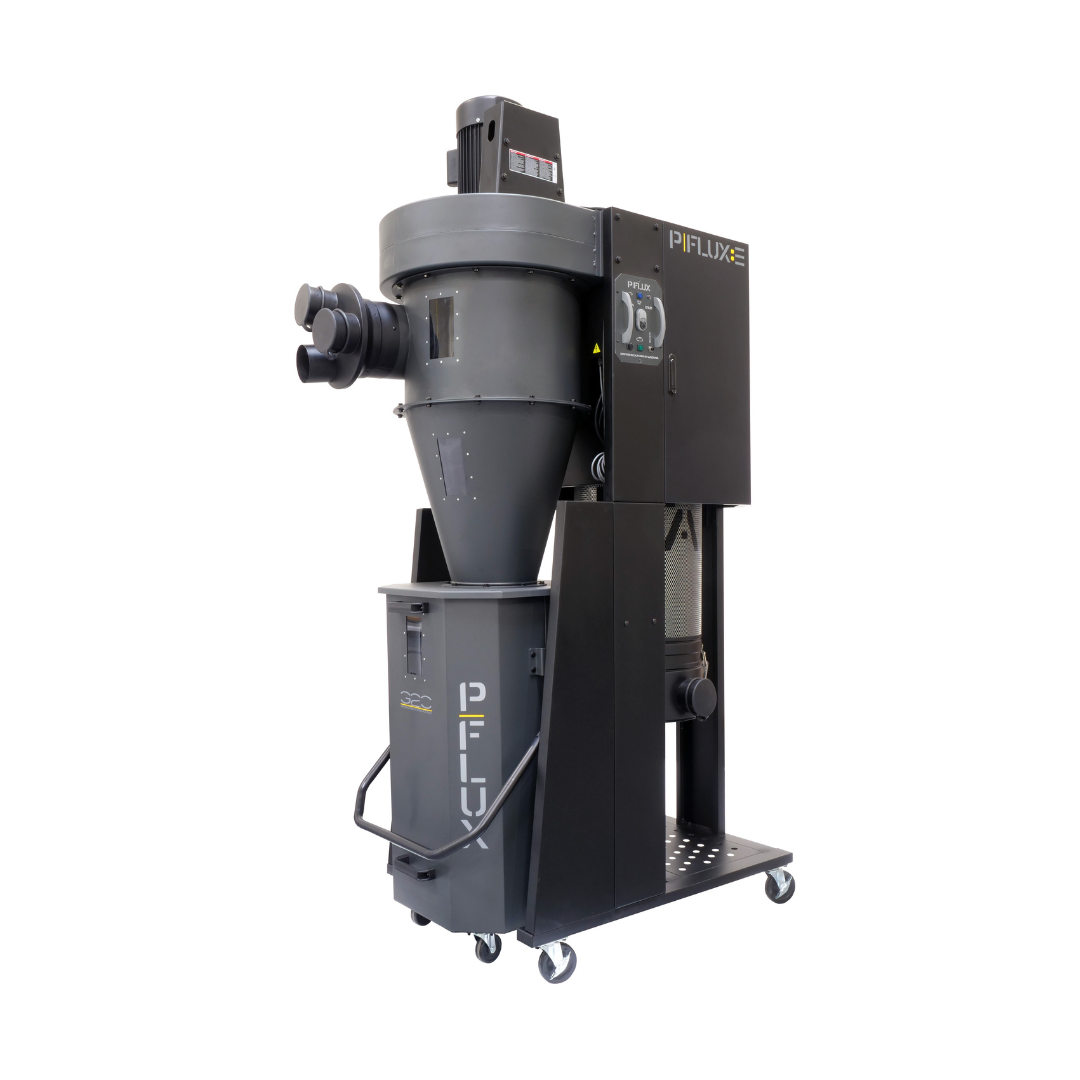

LAGUNA P|flux III Dust Collector
The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46 gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models. Plus, LED and audio warning lets you know when the drum is full – features that are now standard in this line.
Specs:
Motor Specs: 3 HP
Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM
Running AMP: (8” inlet) 22A at 220V
Air Volume: 1624 CFM (cubic feet per minute)
Max. static pressure: 11.2 Inches of water
Fan size: 15.5”
Inlet: Ø8” (Ø 8” BY Ø 4” X 3 PORTS)

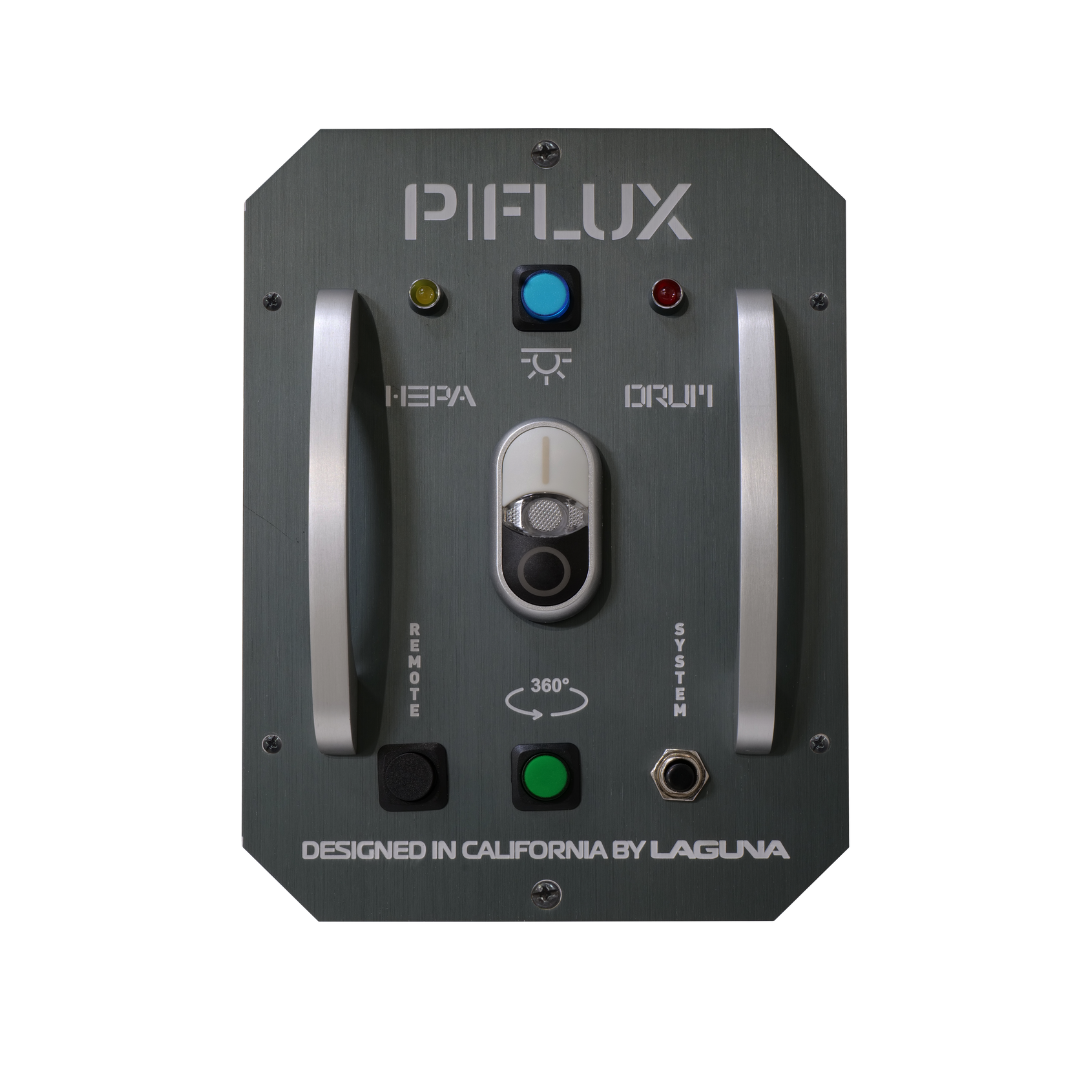

Remote Control: High frequency

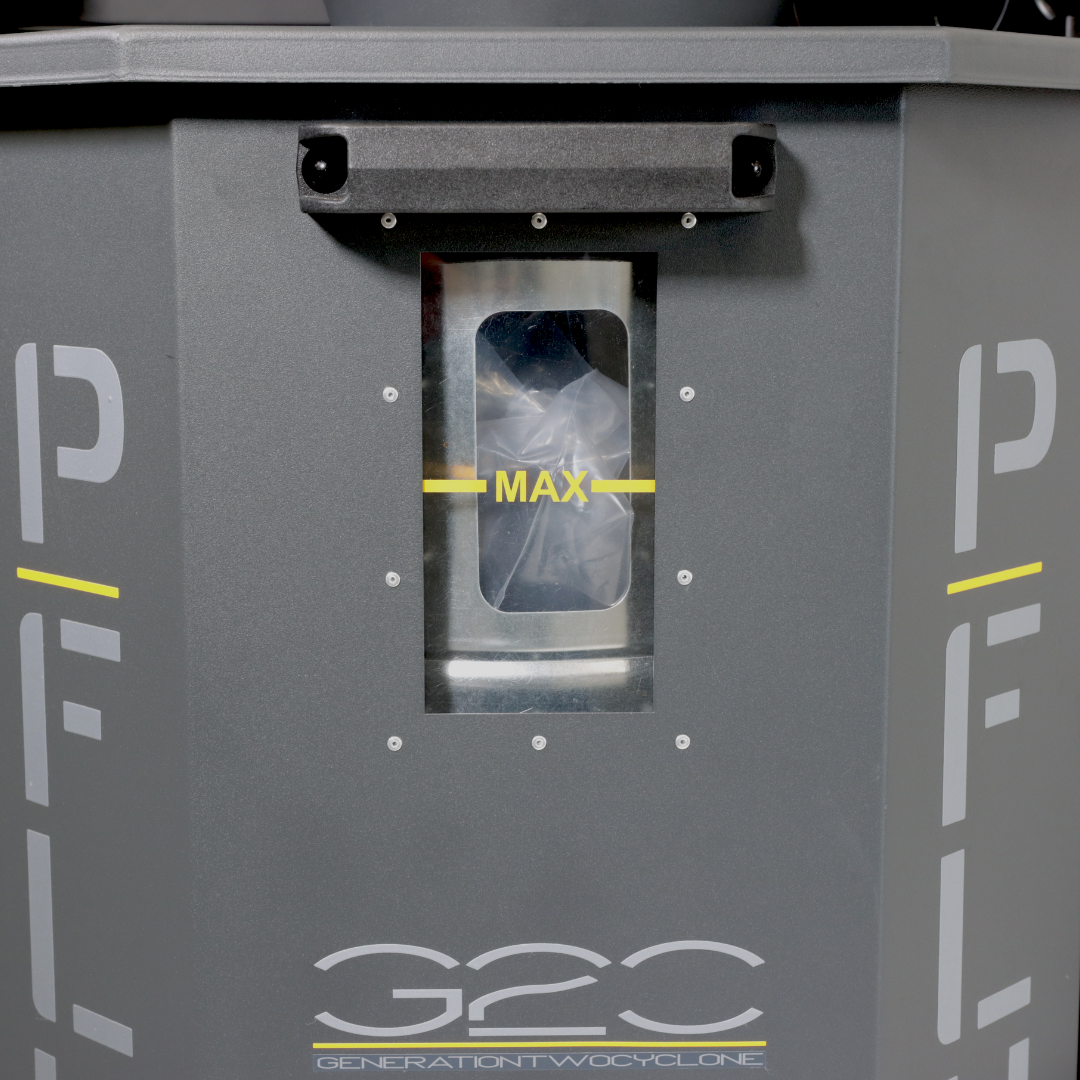

Collection capacity: 46-gallon Octagon drum
Packing Size: (L x W x H)
50” x 31.5” x 50.6”
(127 x 80 x 128.5 cm)
Assembled Dimensions:
(L x W x H) 48” x 28” x 88”
Machine weight: 372.6 lbs. (169 kgs)
Shipping weight: 441 lbs. (200 kgs)

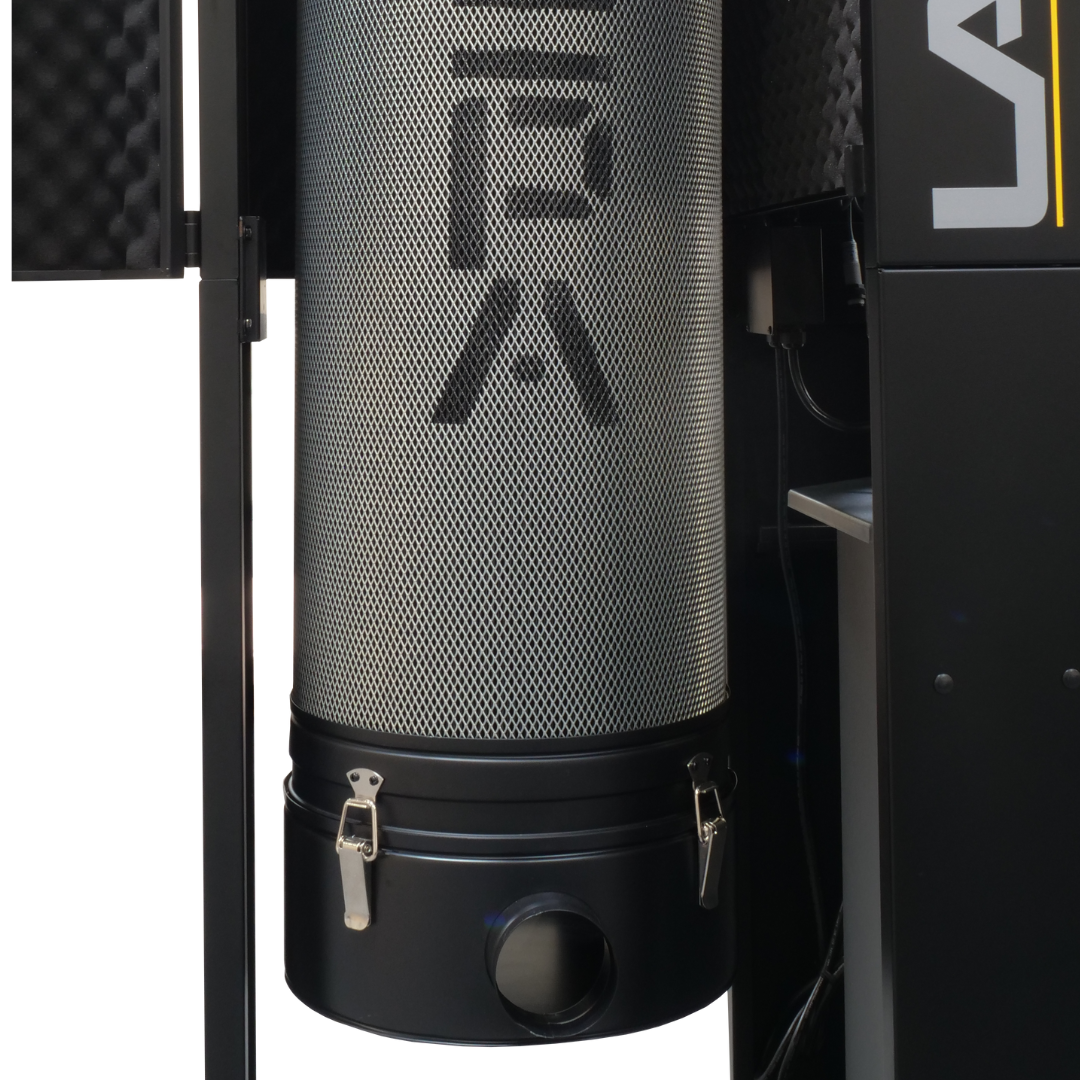

Filter Media
filtering area: 102 sq/ft (9.5 M2) Cartridge Filter
Black HEPA 15.74” x 35.43” (Ø40 x 90cm) x 1pc
