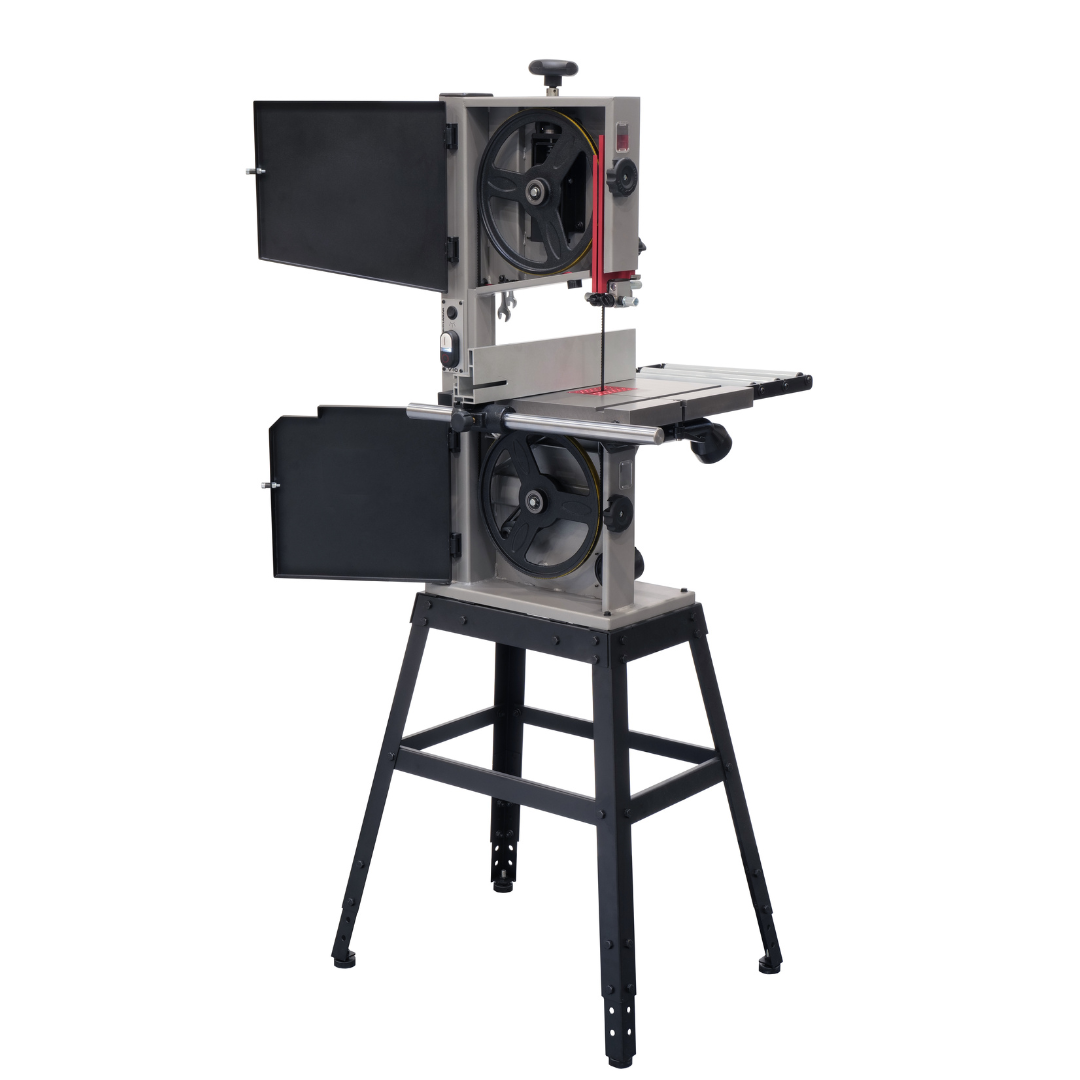

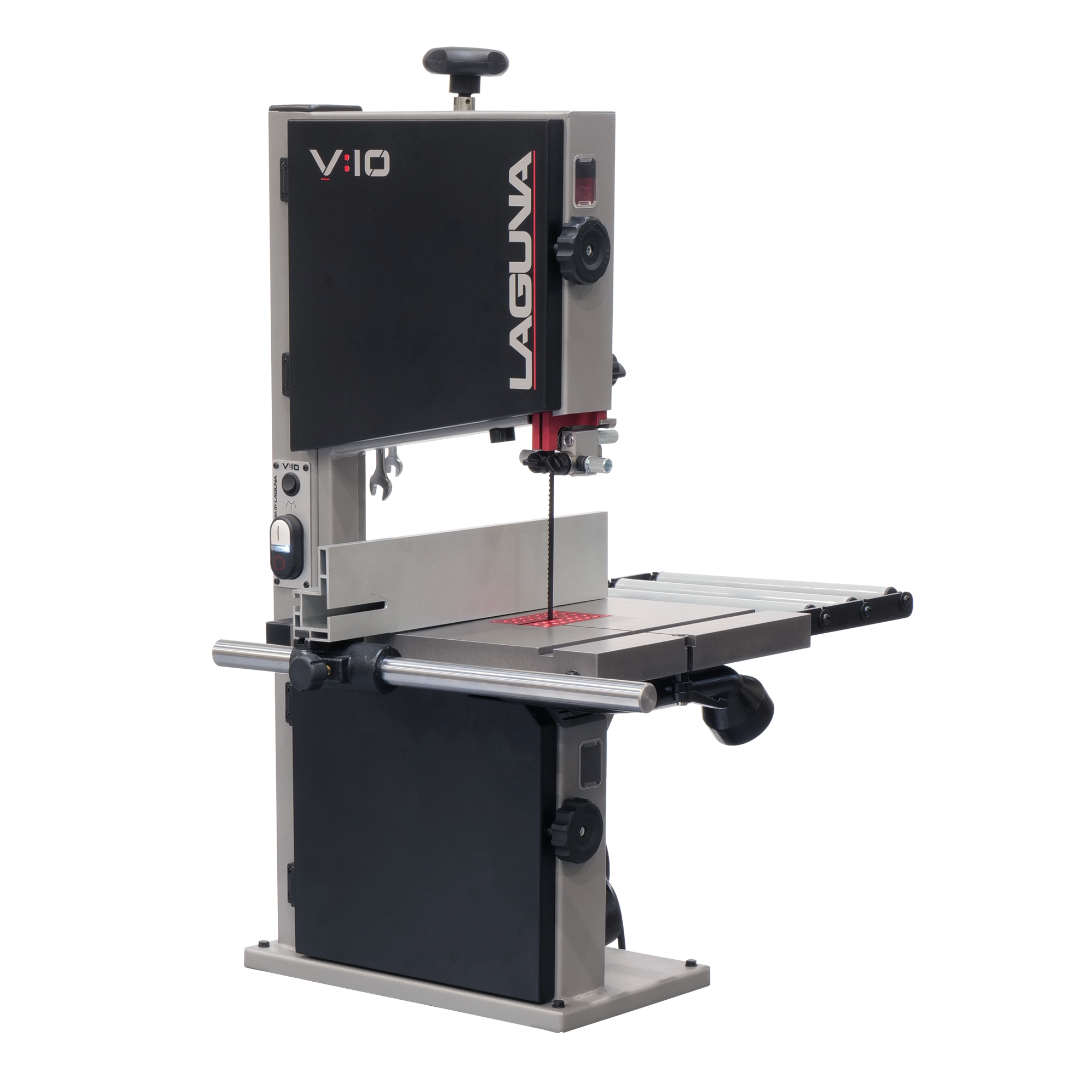

Laguna V:10 Bandsaw – 10”

Model: V:10

Compact Size. Big Performance.

The Laguna V:10 Bandsaw redefines what a 10” woodworking bandsaw can do. With innovative features normally found on larger machines, the V:10 offers precision, power, and versatility in a compact, user-friendly package. Ideal for professional woodworkers and serious hobbyists alike.

Best-In-Class Features

• Cast Iron Wheels: Only 10” woodworking bandsaw with cast iron wheels for superior stability

• 1 HP Induction Motor: Consistent power for demanding cuts

• 5.75” Resaw Capacity: Maximum cutting height for a 10” bandsaw

• Advanced Dust Collection: Dual dust ports including thru-table extraction

• Integrated LED Lighting: Built-in work light plus 120V outlet for auxiliary lighting

Additional Features

• Quick-release magnetic under-table dust port

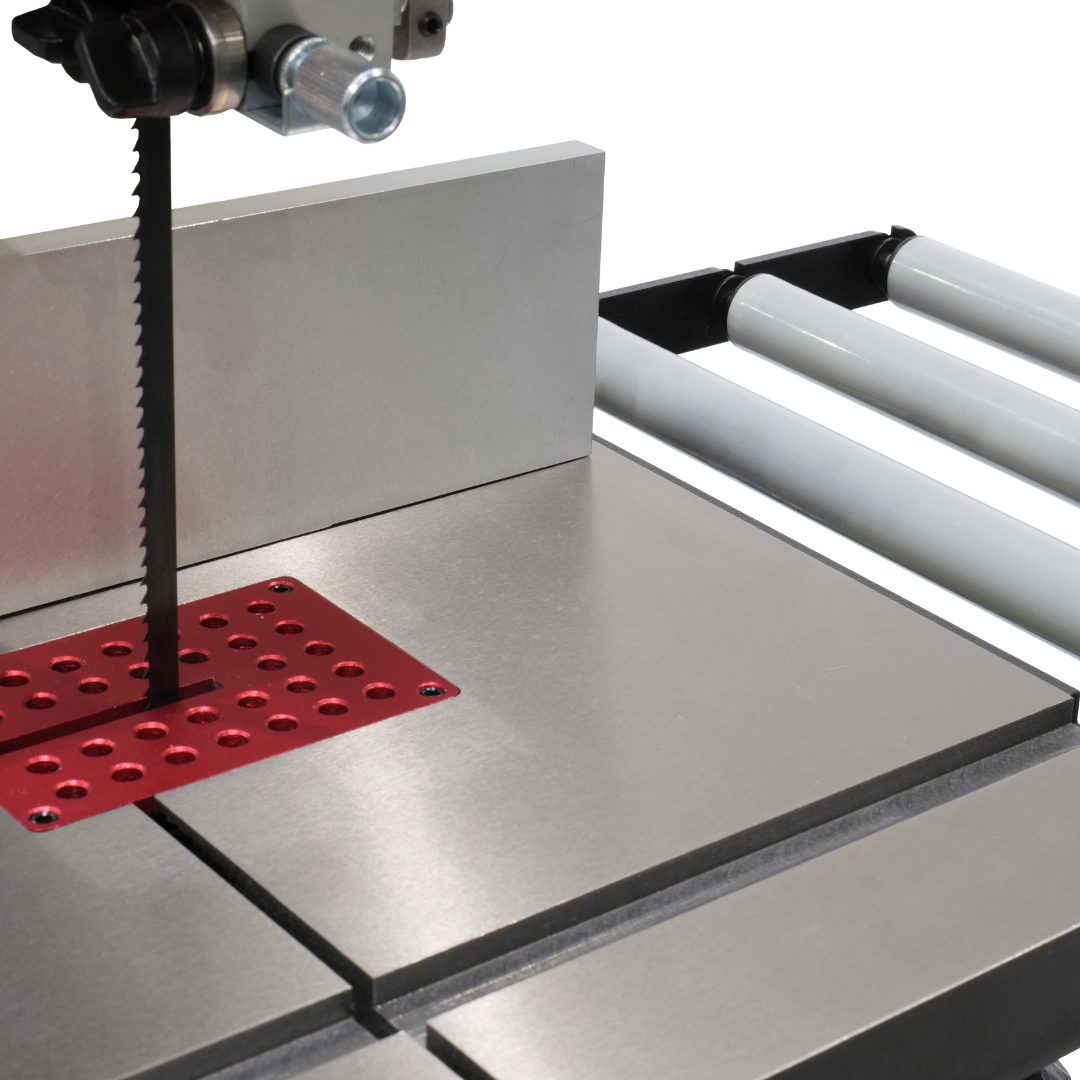

• Perforated throat-plate insert with leveling screws

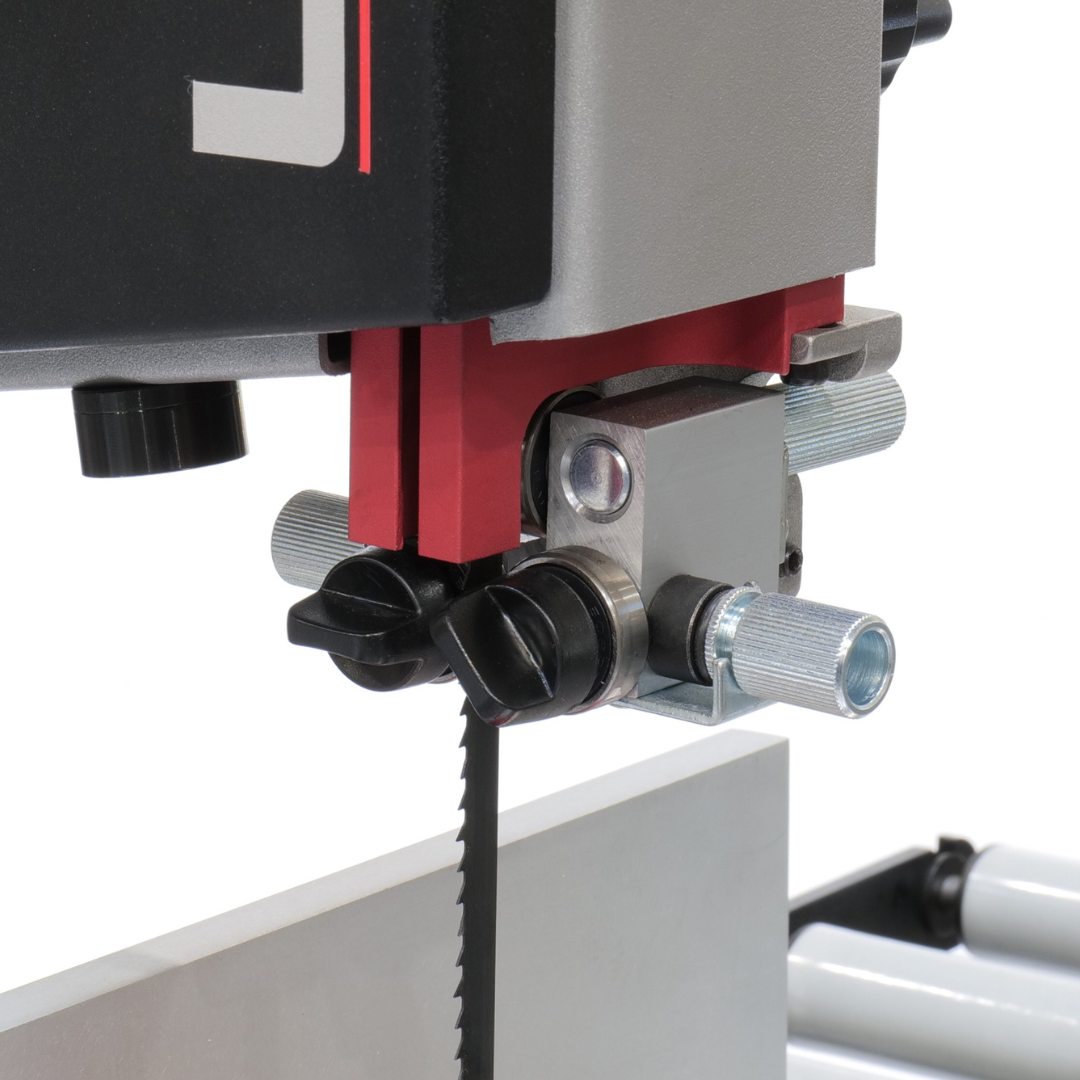

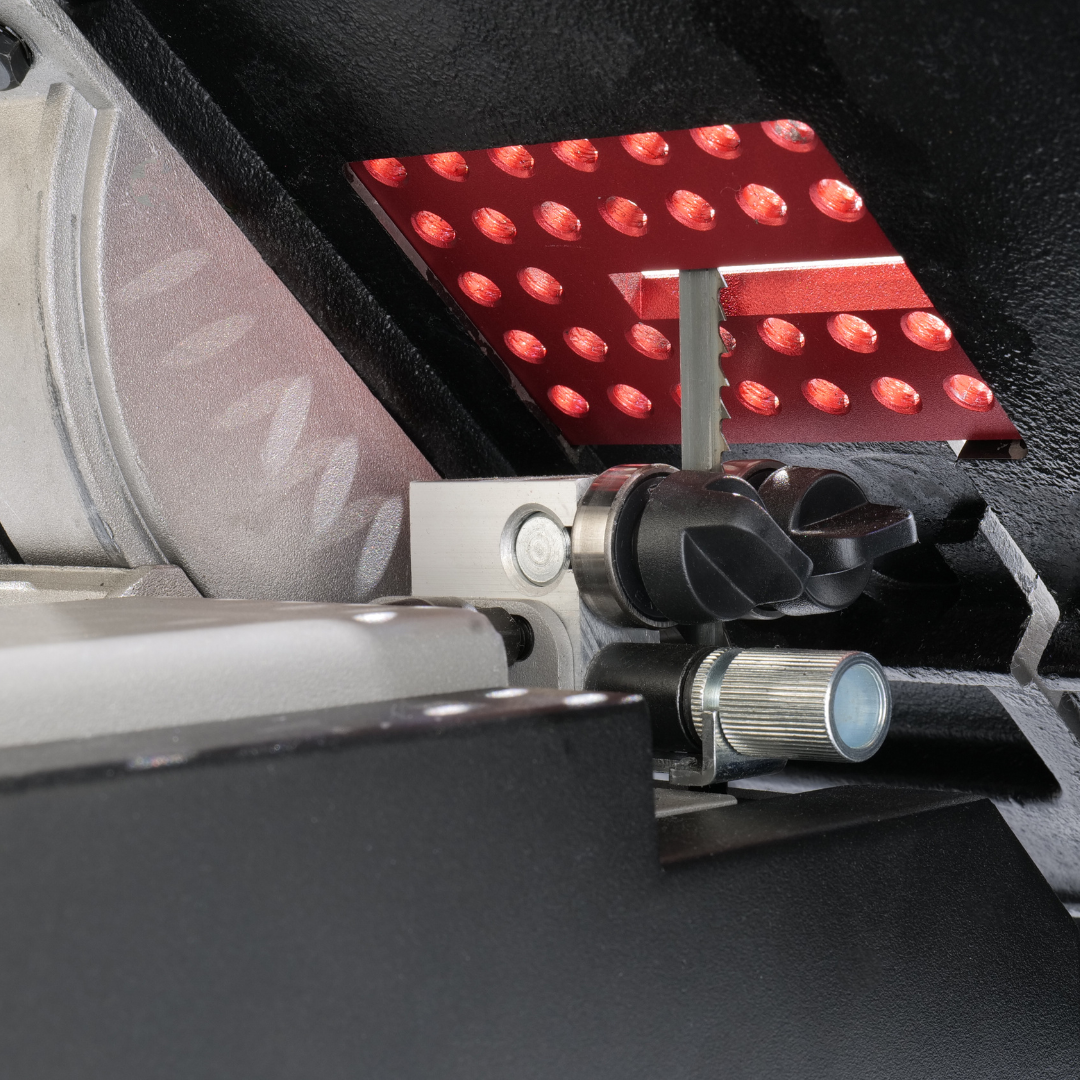

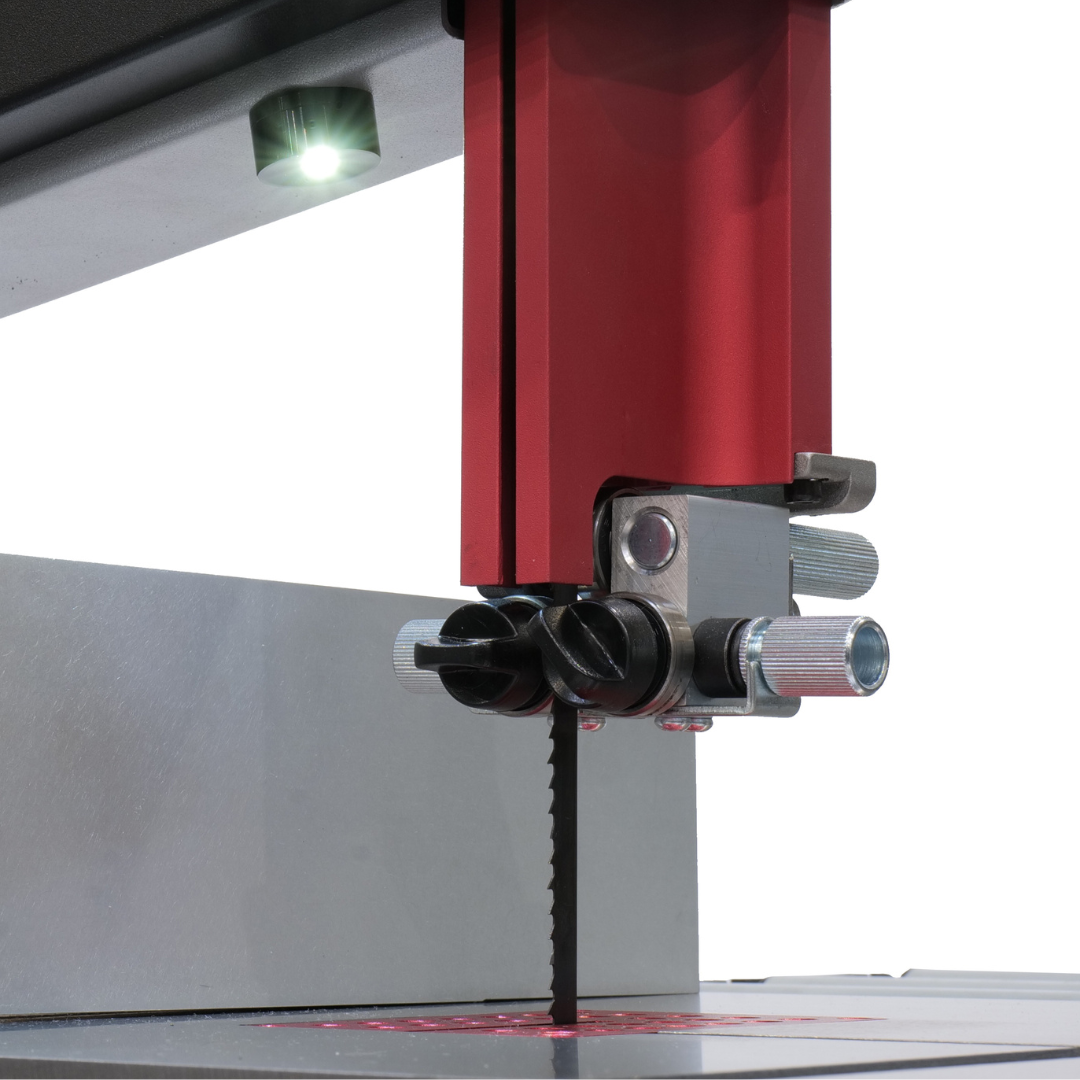

• Roller bearing blade guides with micro-adjustment

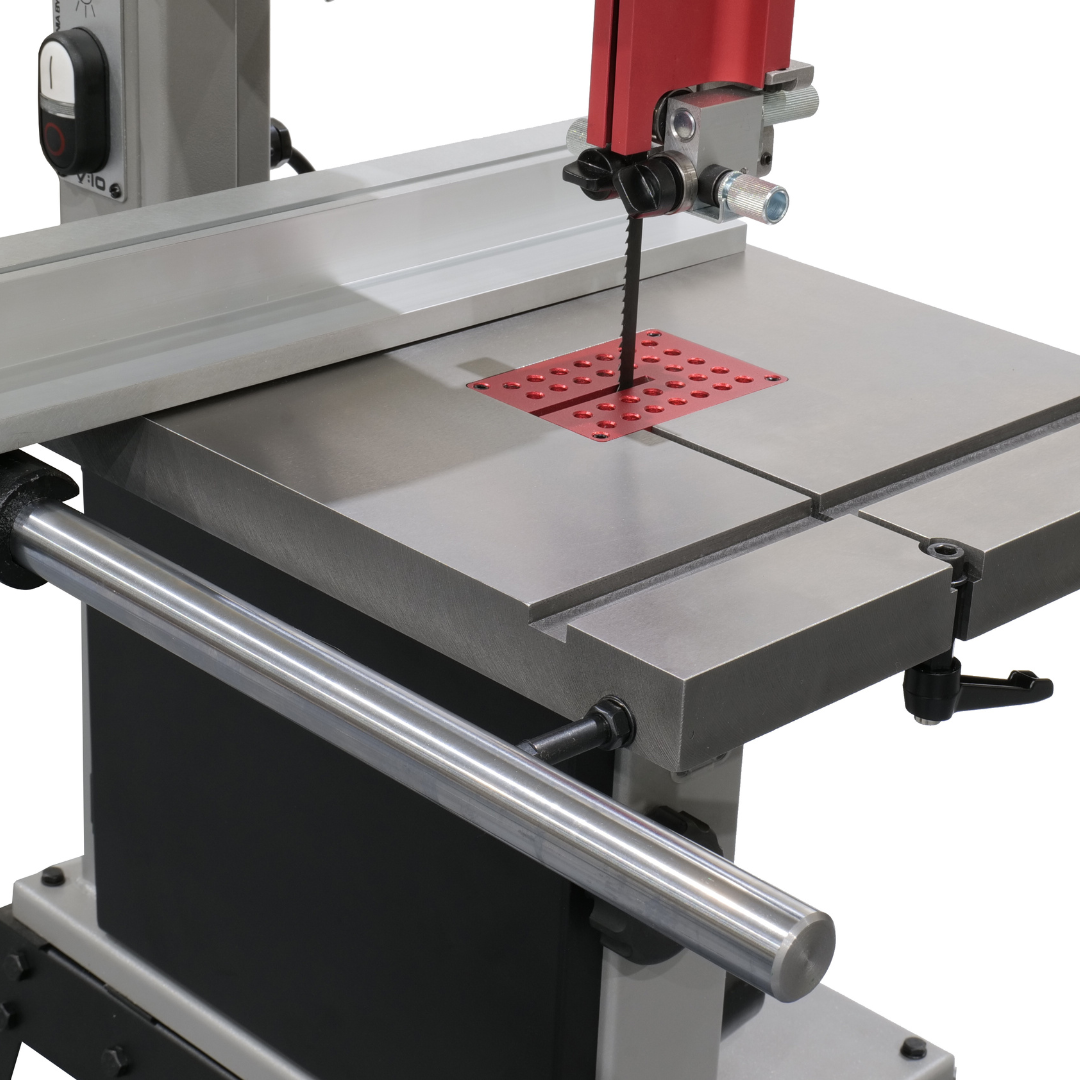

• Hi/Low fence with solid steel rail

• Dual blade tracking windows

• Quick-release blade tension lever

• Dual blade speeds

Key Specifications

✅ Motor: 1 HP Induction
✅ Power: 120V, 60Hz
✅ Flywheel Size: 10” Diameter
✅ Resaw Height: 5.75” (146 mm)
✅ Throat: 9-5/8” (245 mm)
✅ Blade Length: 70-1/2” (1791 mm)
✅ Blade Width: 1/8” – 1/2” (3.18 – 12.7 mm)
✅ Blade Speed: 1515 High / 3280 Low Ft/Min (462 / 1000 m/min)
✅ Table Size: 13-3/4” x 12-1/2” (+1.25” left extension)
✅ Table Tilt: Left -5° / Right 45°
✅ Table Height: 14-1/2” (without optional stand)
✅ Dust Port Diameter: 2-1/2” x 2
✅ Base Size: 9-1/4” x 15-3/4” (235 x 400 mm)
✅ Overall Size: 22-1/2” x 21” x 34-1/2” (546 x 533 x 876 mm)
✅ Included Blade: 3/8”

Optional Equipment

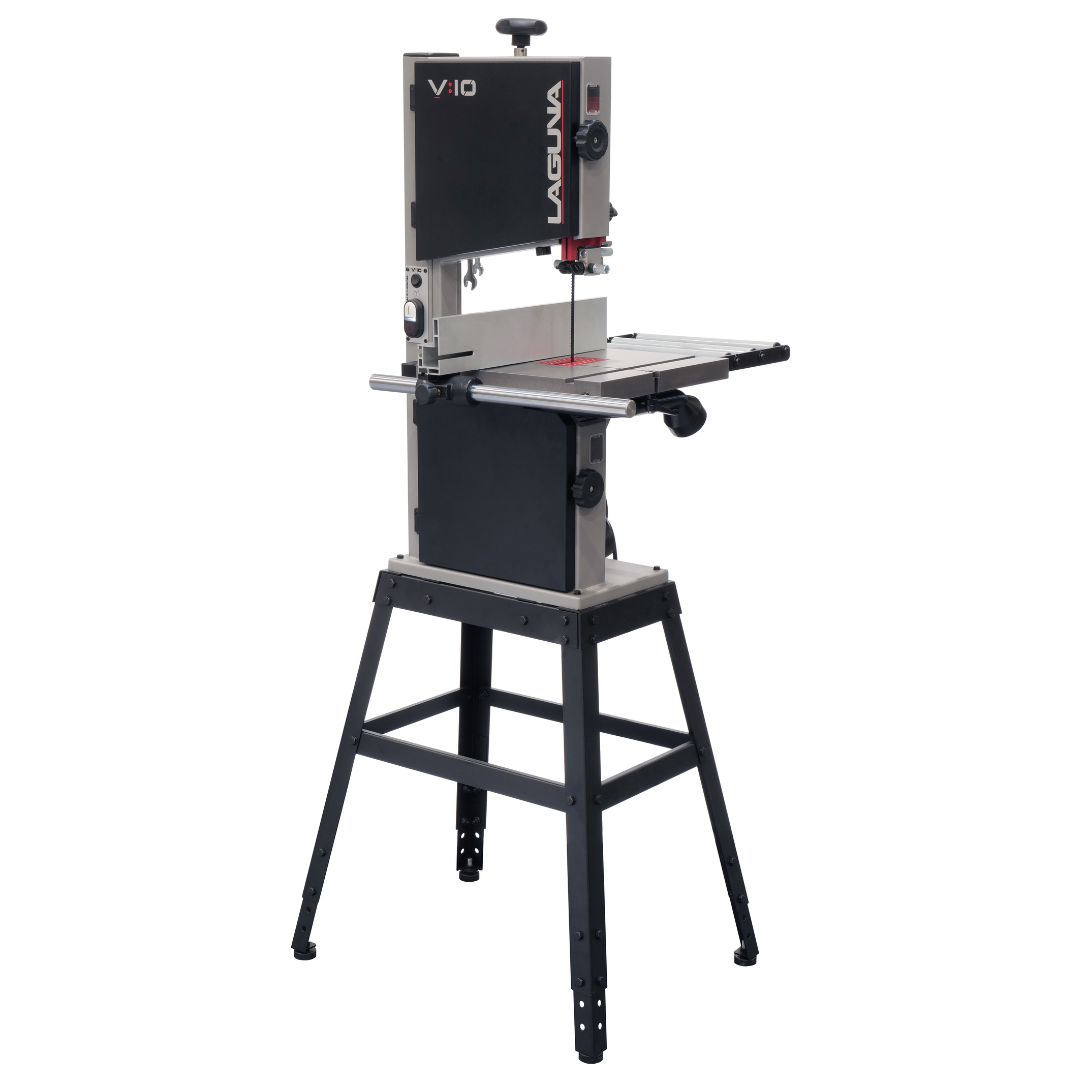

• Adjustable Height Stand – 110001

• Roller Outfeed Table – 110004

• Caster Set – 110002

• 3-Blade Combo Pack – 110003

• Auxiliary LED Work Light – ALEDSPINE

• Magnetic Base for Auxiliary Lamp – ALED-STRONGMAG

• Resaw King Blade – BBRK-12-7012

Why Choose the Laguna V:10?

The V:10 Bandsaw offers precision, stability, and versatility unmatched in its class. With cast iron wheels, dual dust collection, and integrated lighting, it delivers professional-quality results while remaining compact and affordable. Perfect for resawing, ripping, and fine woodworking, the V:10 is the ultimate 10” bandsaw for your shop.
