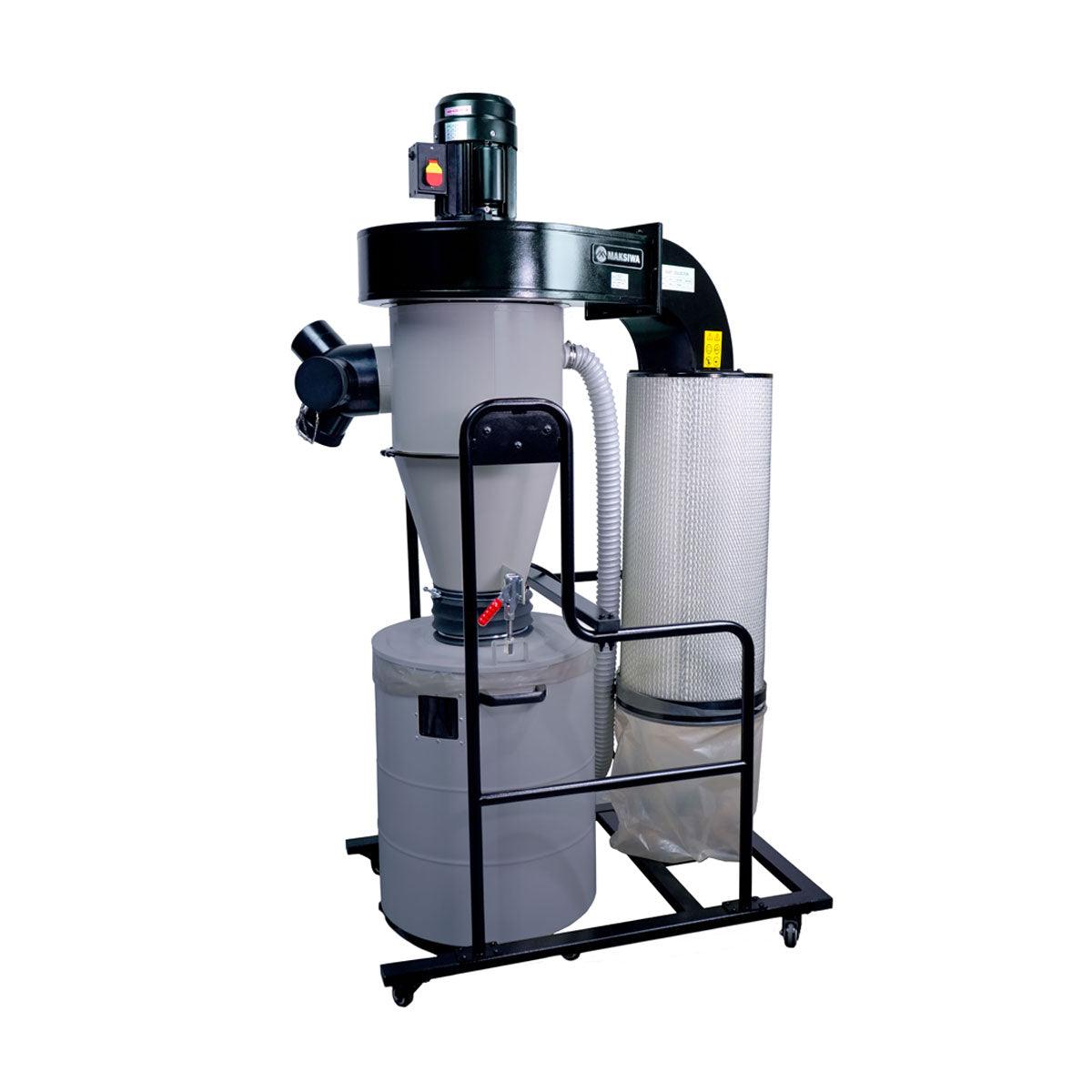

MAKSIWA Cyclone Dust Collector CY/3.C

The Dust Collector CY/3.C was developed for cabinet shops with high production. The CY/3.C collects dust of up to 3 machines simultaneously. A light weight and easily transportable machine.

SPECIFICATIONS

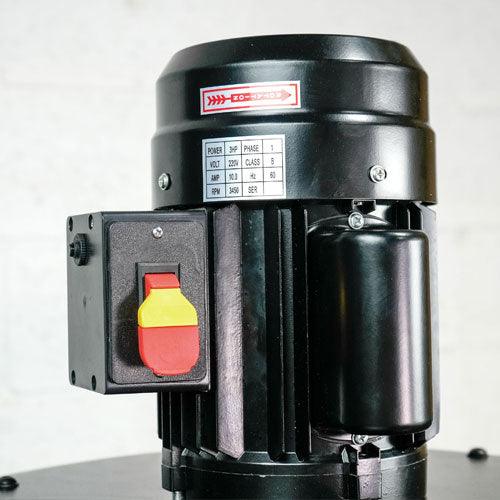

- Motor Spec: 1 Phase 220V 3HP 15A
- Airflow capacity: 1000 CFM
- Sound rating: 80db
- Fan Diameter: 14" / 356 mm

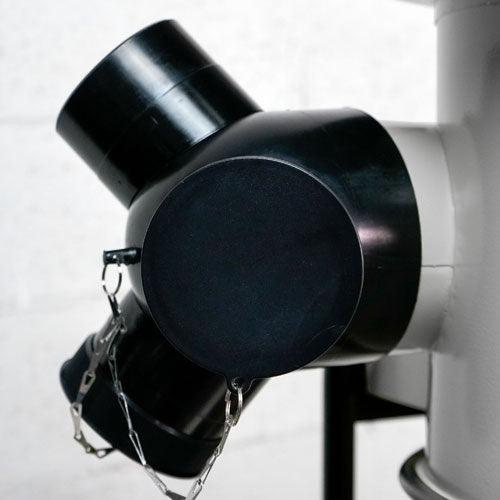

- Number of Inlet: 3
- Inlet size: 4"
- Filtration : 1-micron
- Cartridge Filtration size: 13" x 31"
- Cartridge bag Size: 14.5" x 29.5"
- Drum size: 31 Gal
- Drum bag Size: 20" x 43"
- Machine Dimensions (LxWxH): 45" x 26" x 72"
- Machine weight: 181 lbs.
