Overview

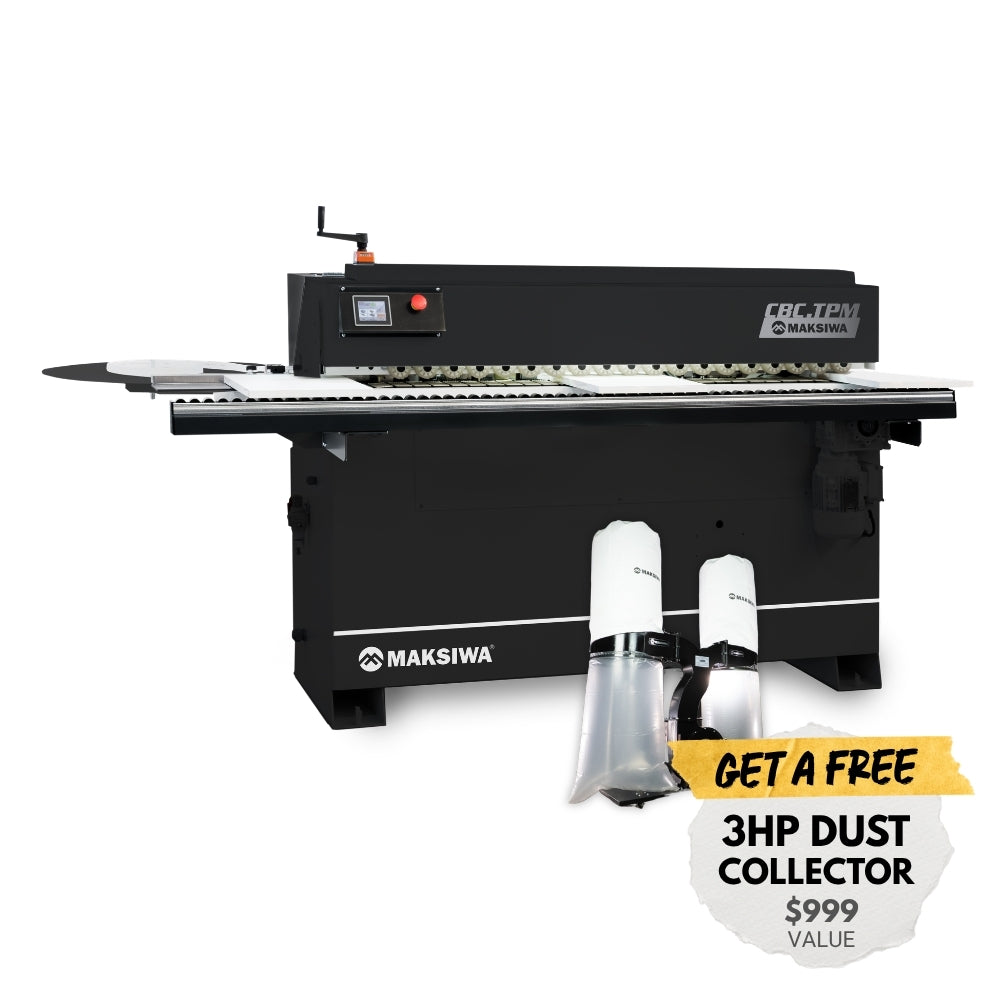

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency in a compact design, ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end and top/bottom trimming, glue scraping, buffing, and vertical rounding. A touchscreen panel makes operation easy. This offer includes a free dust collector.
Key Features
- Pre-milling, trimming, glue scraping, buffing, and vertical rounding in one machine
- Touchscreen control panel for easy operation
- Compact footprint for space-limited workshops
- Works with melamine, PVC, ABS, and PP edge materials
- Includes a free dust collector with this offer
Specifications
| Automatic Feed Speed | 21 ft/min (6.5 m/min) |
|---|---|
| Panel Thickness (Min/Max) | 10–45 mm (13/32″–1-3/4″) |
| Max Pre-Milling Height | 1″ (30 mm) |
| Edgebanding Thickness | 0.4–2 mm (0.0157″–0.07″) |
| Glue Pot Capacity | 0.5 kg (1 lb), Teflon coated |
| Max Edgebanding Height | 30 mm (1″) |
| Extendable Panel Support Rail | 2122 mm (83-1/2″) |
| Dust Collector Port Size | 150 mm (6″) |
| Recommended Glue Temperature | 180°C–210°C (356°F–410°F) |
| Machine Dimensions (L x W x H) | 2376 x 1028 x 1347 mm (93.5″ x 40.8″ x 53″) |
| Net Weight | 540 kg (1191 lb) |
| Glue Type | Granulated Hot-Melt EVA |
| Electrical Requirement | 1 Phase, 220V, 30A, 60Hz |
