Overview

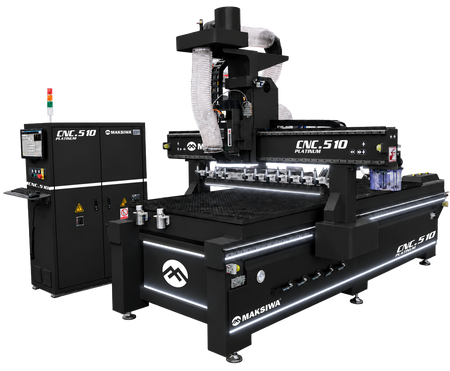

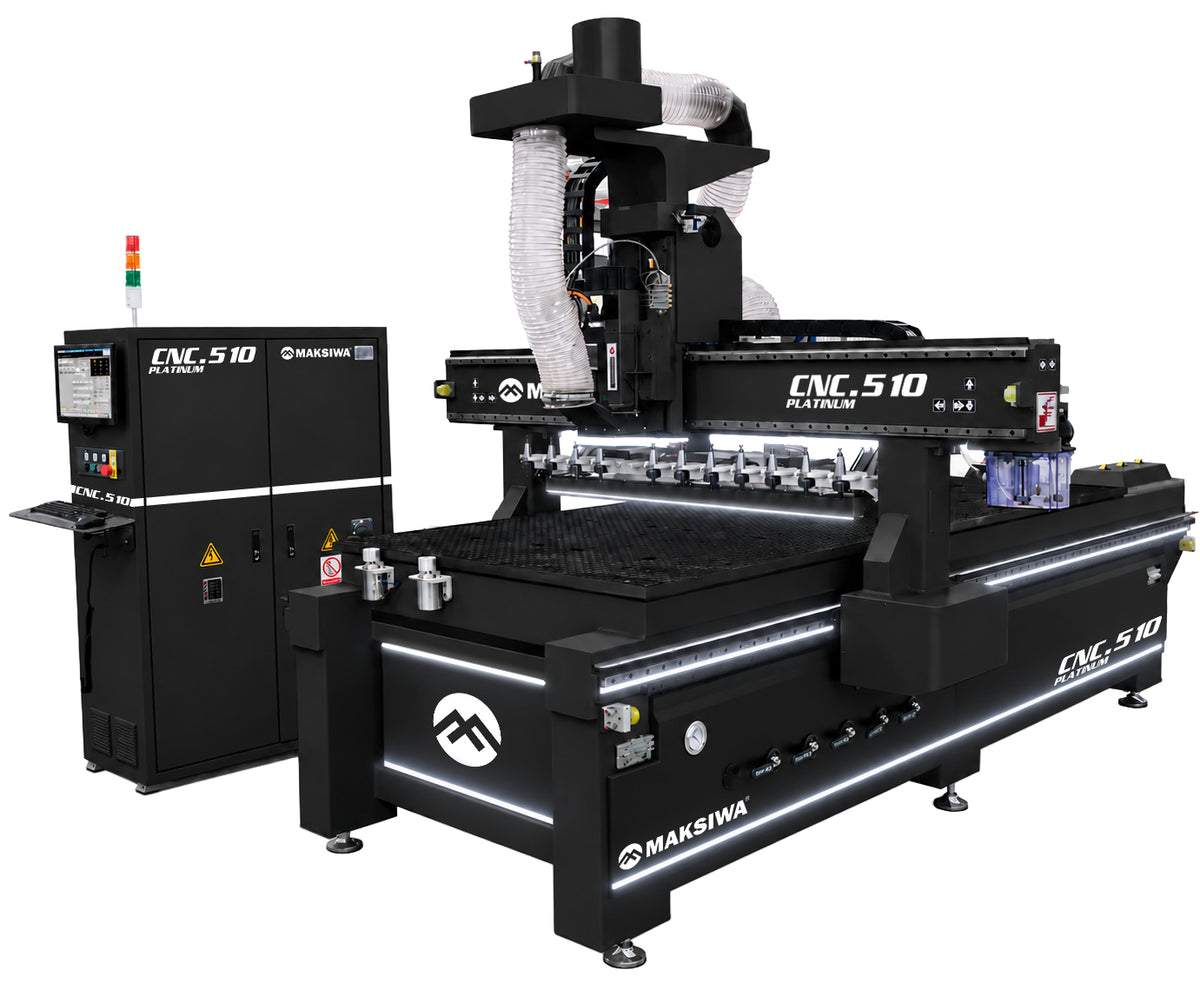

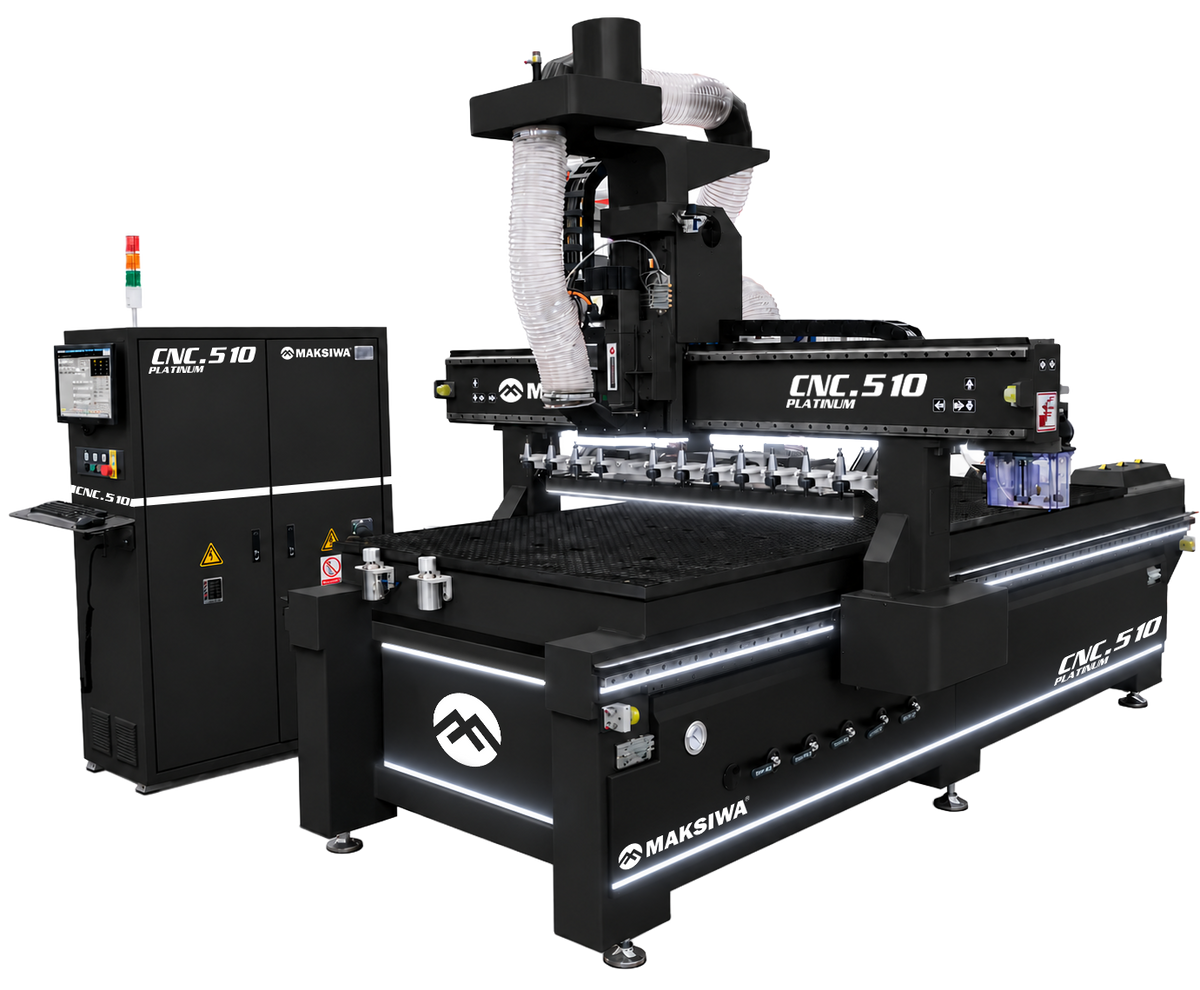

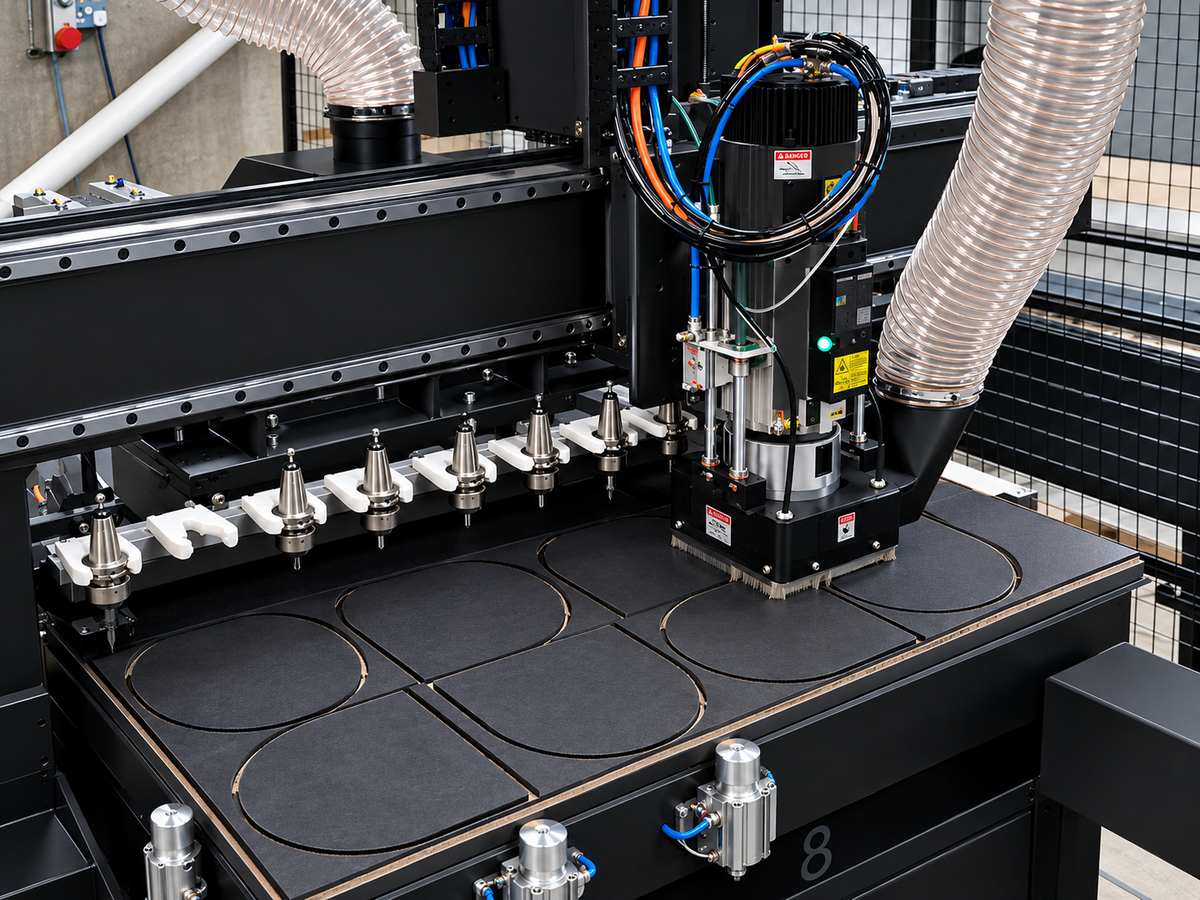

The Maksiwa CNC.510 Platinum is an industrial nesting CNC router designed for precision panel processing and professional cabinet production. With a powerful 12HP spindle, automatic tool changing, a 6-zone vacuum table, and industrial servo technology, it delivers reliable performance and efficient machining for demanding woodworking applications. 2-Year Warranty.
Key Features
- Cabinet & Flat Door
- Molded Door

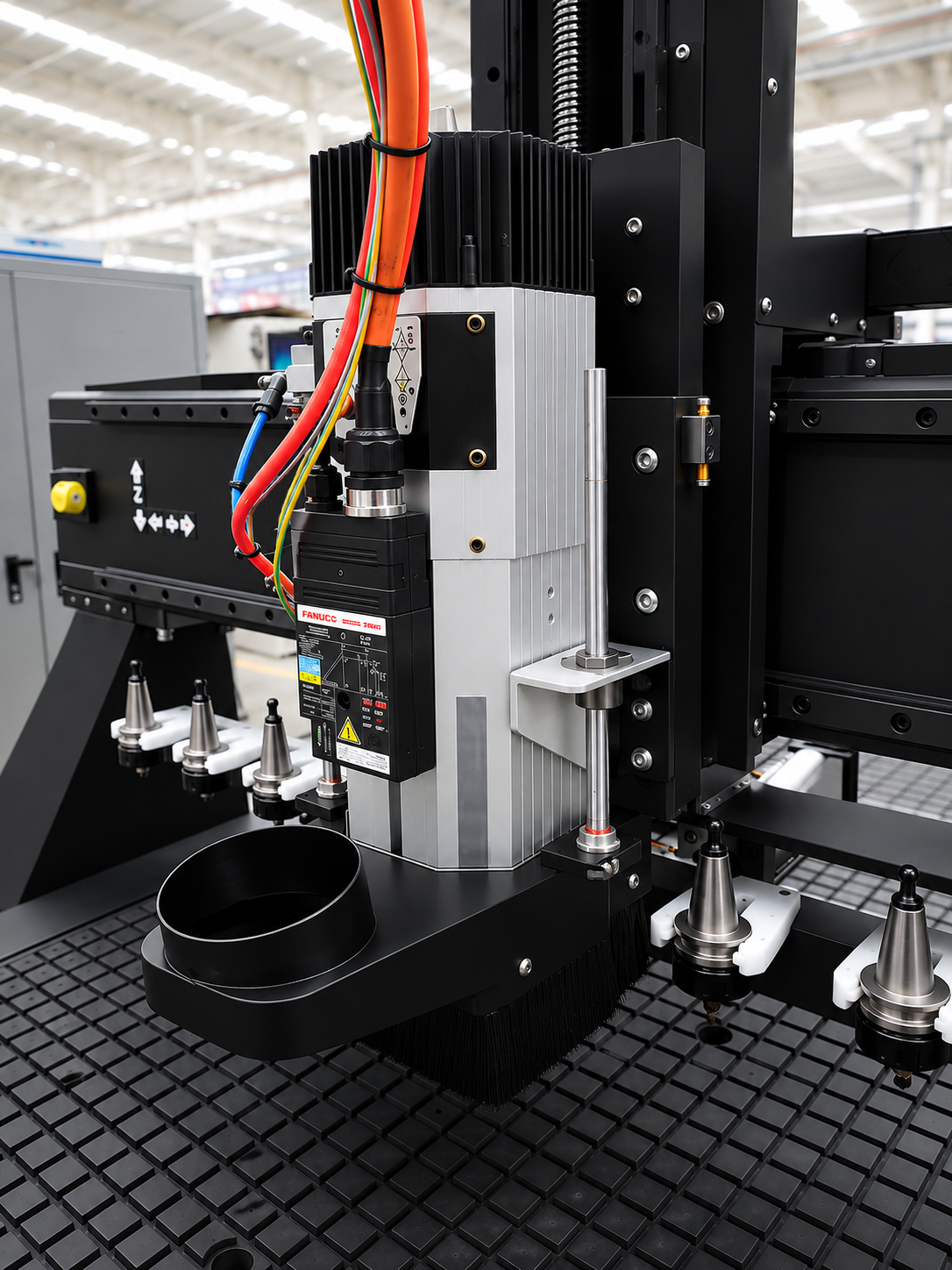

- 12HP (9kW) Air-Cooled ATC Spindle
- Up to 24,000 RPM

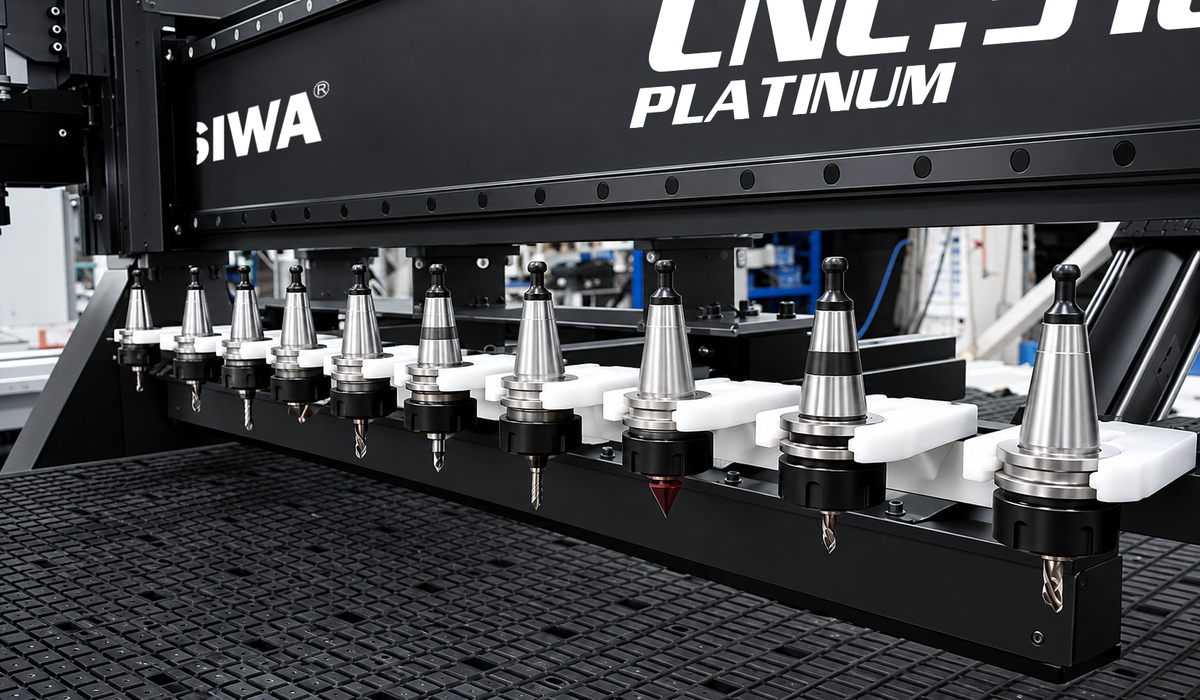

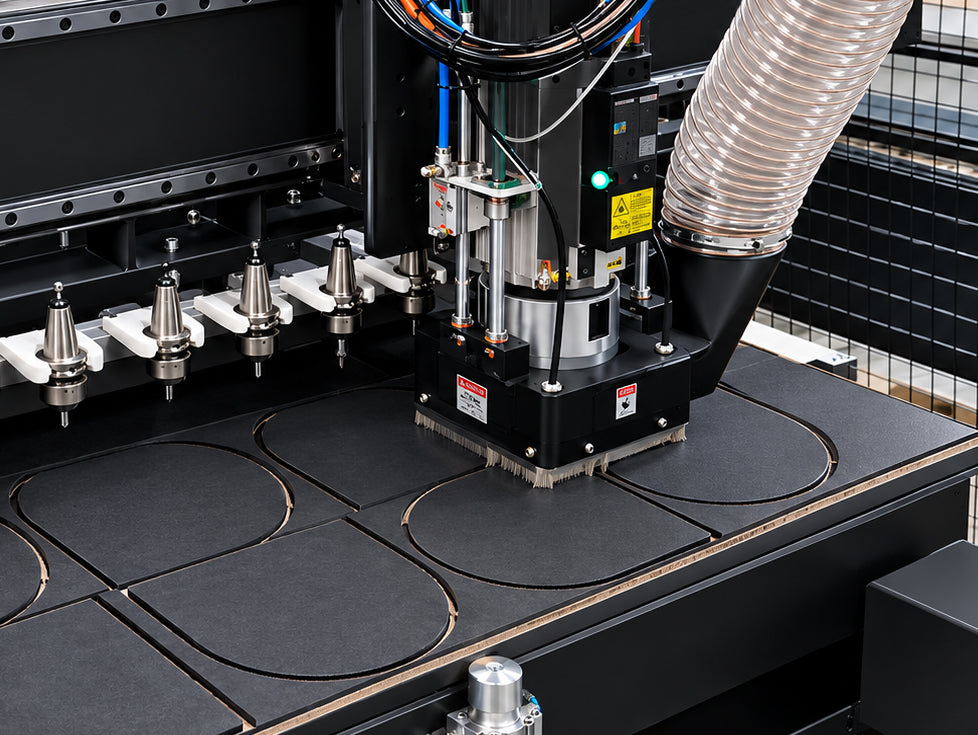

- 10-Position Automatic Tool Changer
- 5′ × 10′ Processing Capacity

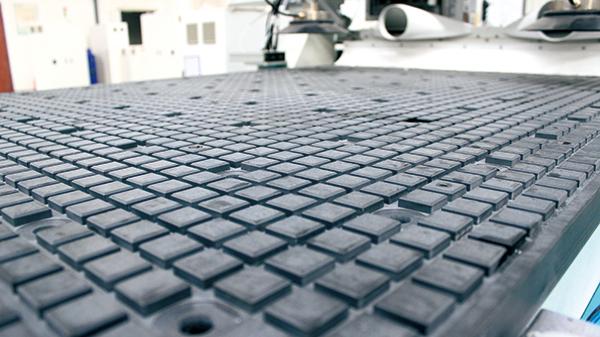

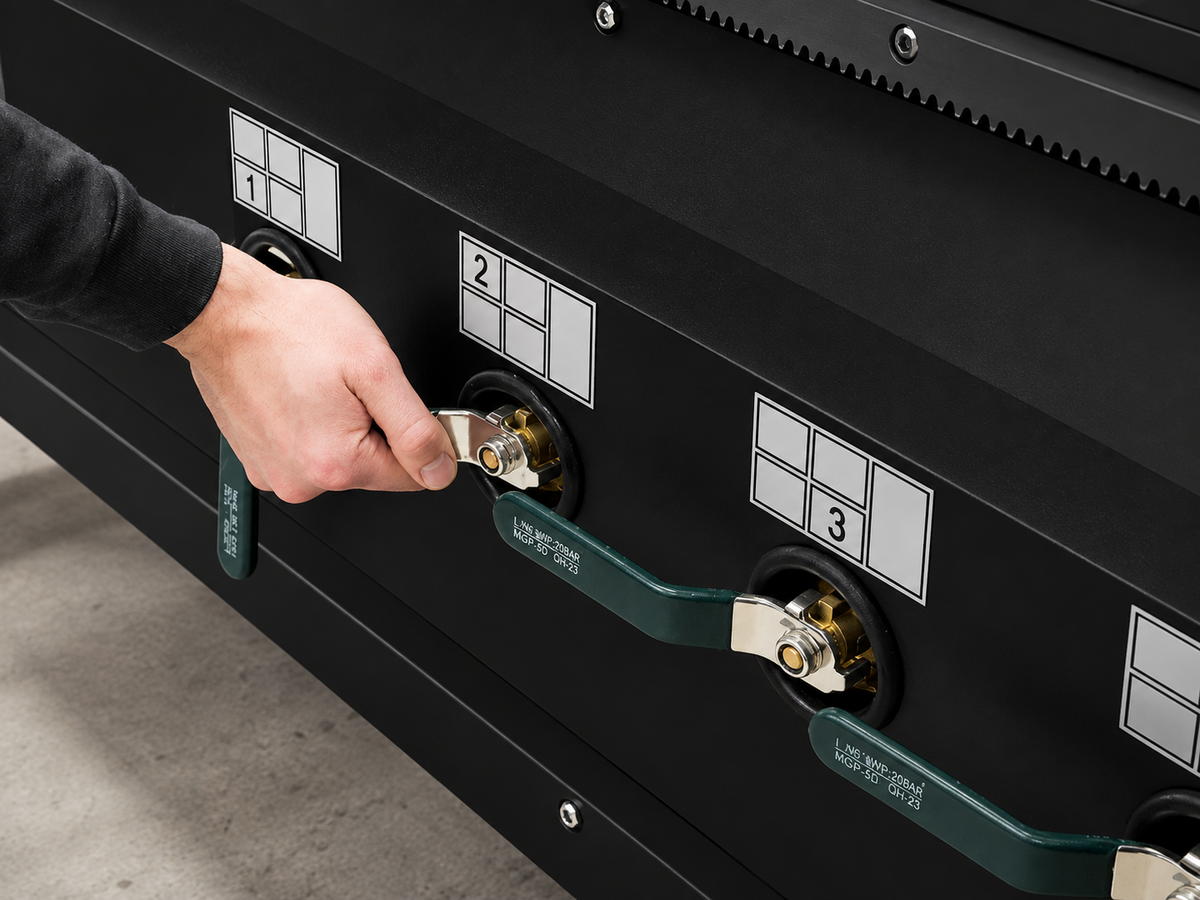

- 6-Zone Vacuum Table
- Dual 7.5kW Vacuum Pumps
- Industrial Servo Motors
- Heavy-Duty Welded Steel Frame

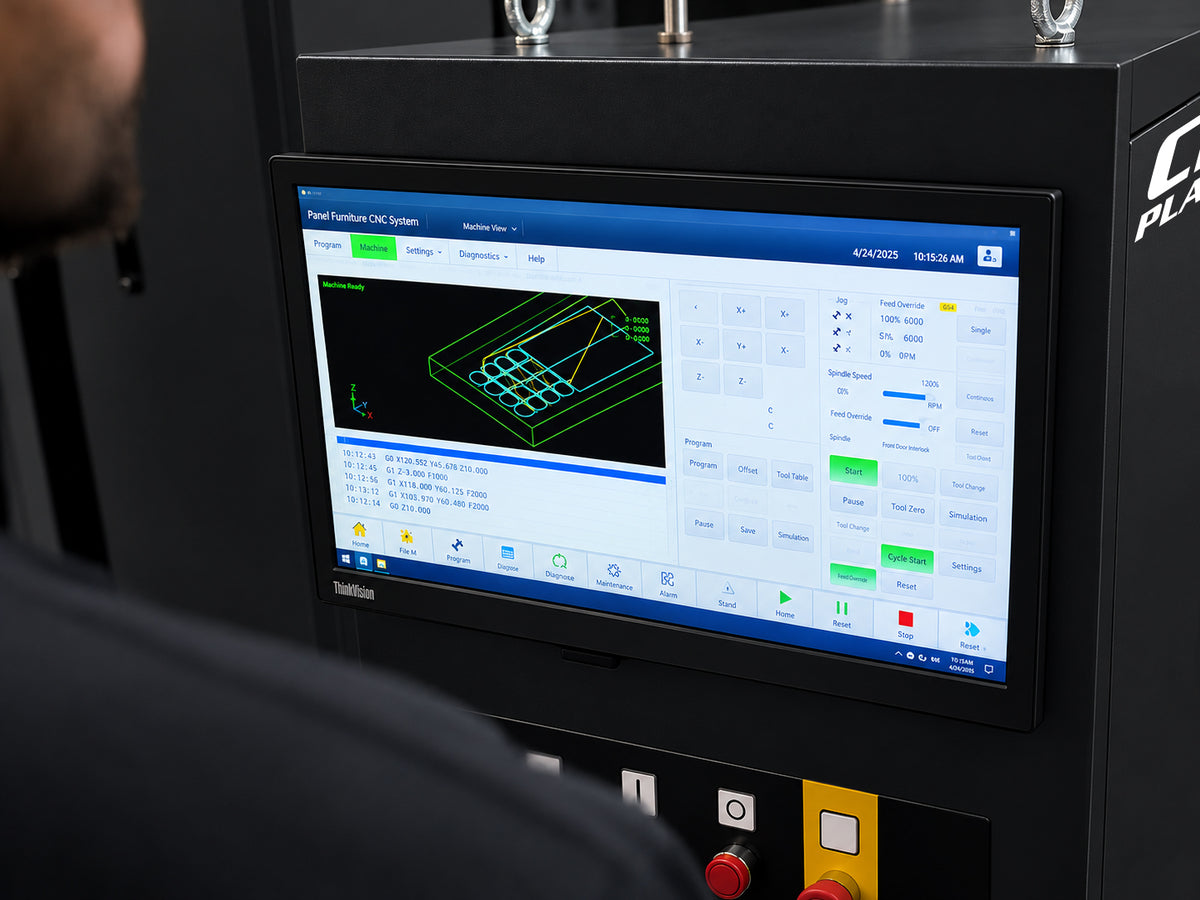

- Industrial Control System
- Helical Rack & Pinion X/Y Axes
- Ball Screw Z Axis
- Automatic Tool Measurement

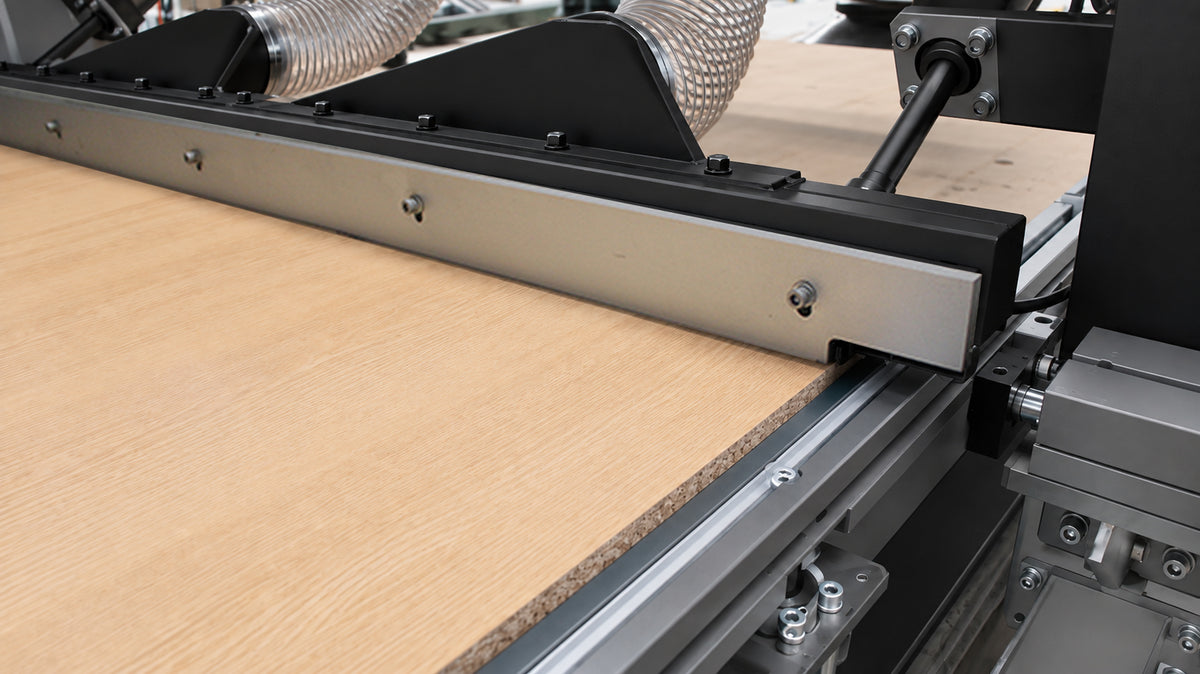

- 4 Pneumatic Positioning Cylinders
- Automatic Lubrication System
- Pneumatic Dust Hood
- 2-Year Warranty
Specifications
| Electrical Specs | 3 Phase 220V 60Hz |
|---|---|
| Spindle | Single 9.0 kW (approx. 12 HP) Air-cooled ATC spindle |
| Spindle Speed | Up to 24,000 RPM |
| Tool Changer | 10 Position ISO 30 Automatic System |
| Working Area | 5′ × 10′ |
| Material Thickness | 9–68 mm |
| Total Tool Length | 123 mm (including the holder) |
| Processing Accuracy | ± 0.15 mm |
| Repeatability | ± 0.05 mm |
| Linear Guide Rails | 20/25 mm industrial linear guide rails |
| X/Y-Axis Transmission | Helical rack and pinion |
| Z-Axis Transmission | Ball screw |
| Vacuum Table | 6-zone vacuum table |
| Vacuum Pumps | 2 × 7.5 kW vacuum pumps |
| Positioning System | 4 pneumatic positioning cylinders |
| Tool Measurement | Automatic tool measurement system |
| Lubrication | Automatic lubrication system |
| Dust Collection | Pneumatic dust hood |
| Materials & Applications | Any type of wood, cabinet making, plastic, veneers, high-density foam, and non-ferrous metals when used with a cooling system |
| Warranty | 2 years |
