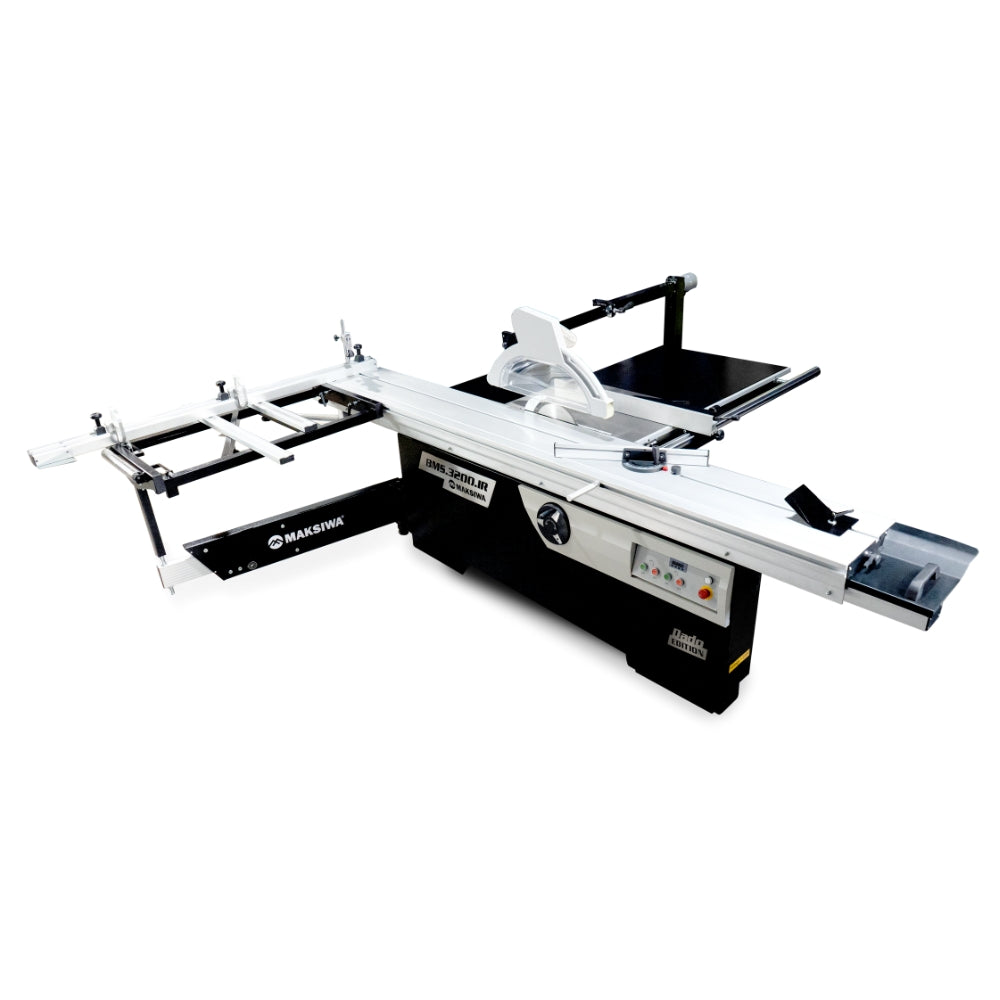

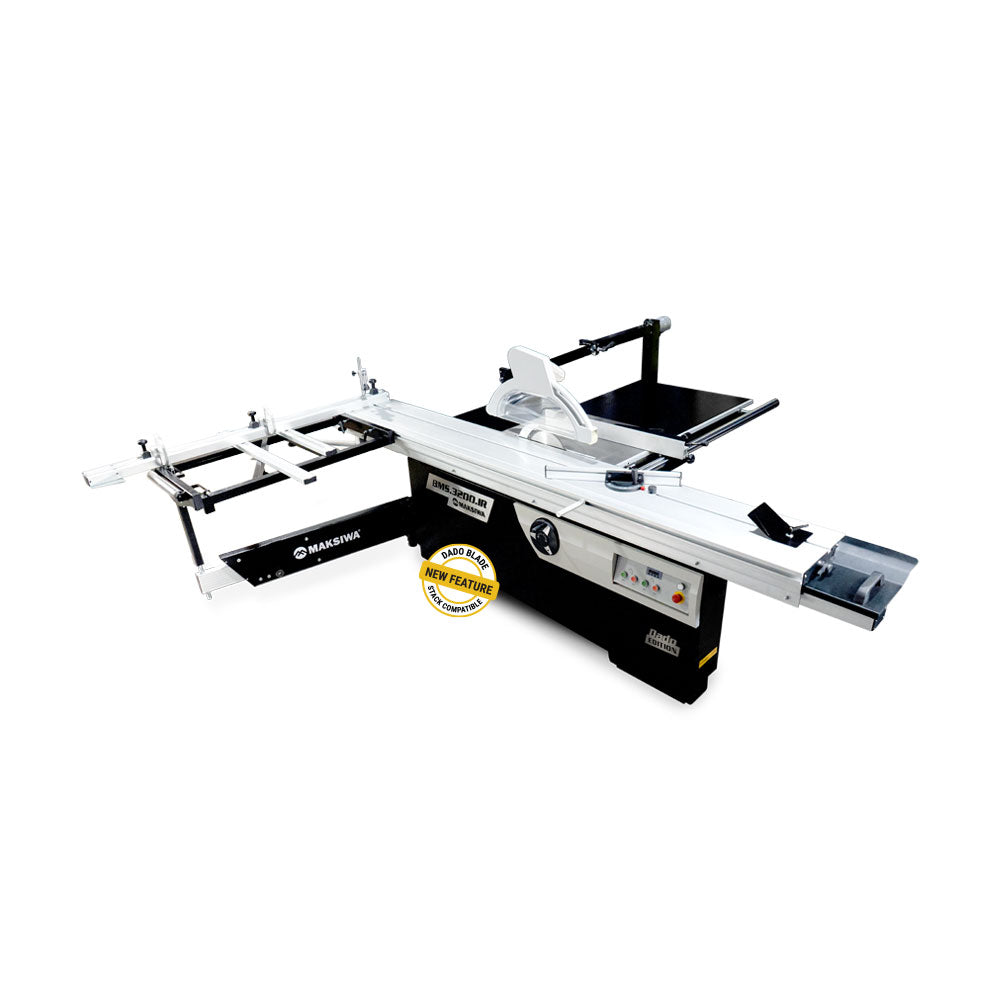

Maksiwa BMS.3200.IR 1Phase Black Edition - Sliding Panel Saw 126" - Dado Blade and Scoring Blade
BMS.3200.IR
Introducing the new BMS.3200.IR Dado Edition, a reflection of our commitment to bringing you the best. This latest model in our best-selling series has been redesigned to offer superior performance and affordability.
With dado blade capabilities, the BMS.3200.IR is a versatile addition to your workshop. Available in both 1 Phase and 3 Phase 220V options, it seamlessly fits your needs, whatever they may be. The powerful 5HP main motor and 1 hp scoring motor ensures strength and reliability for any task.

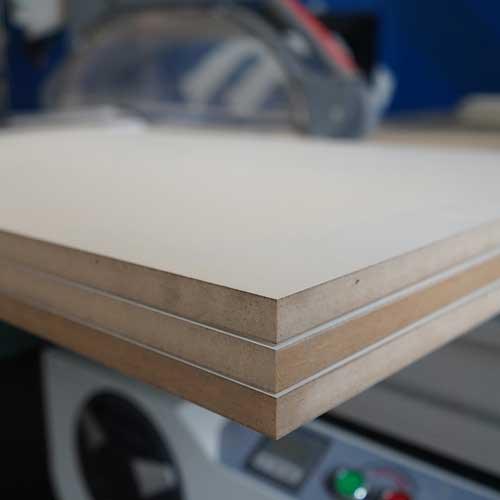

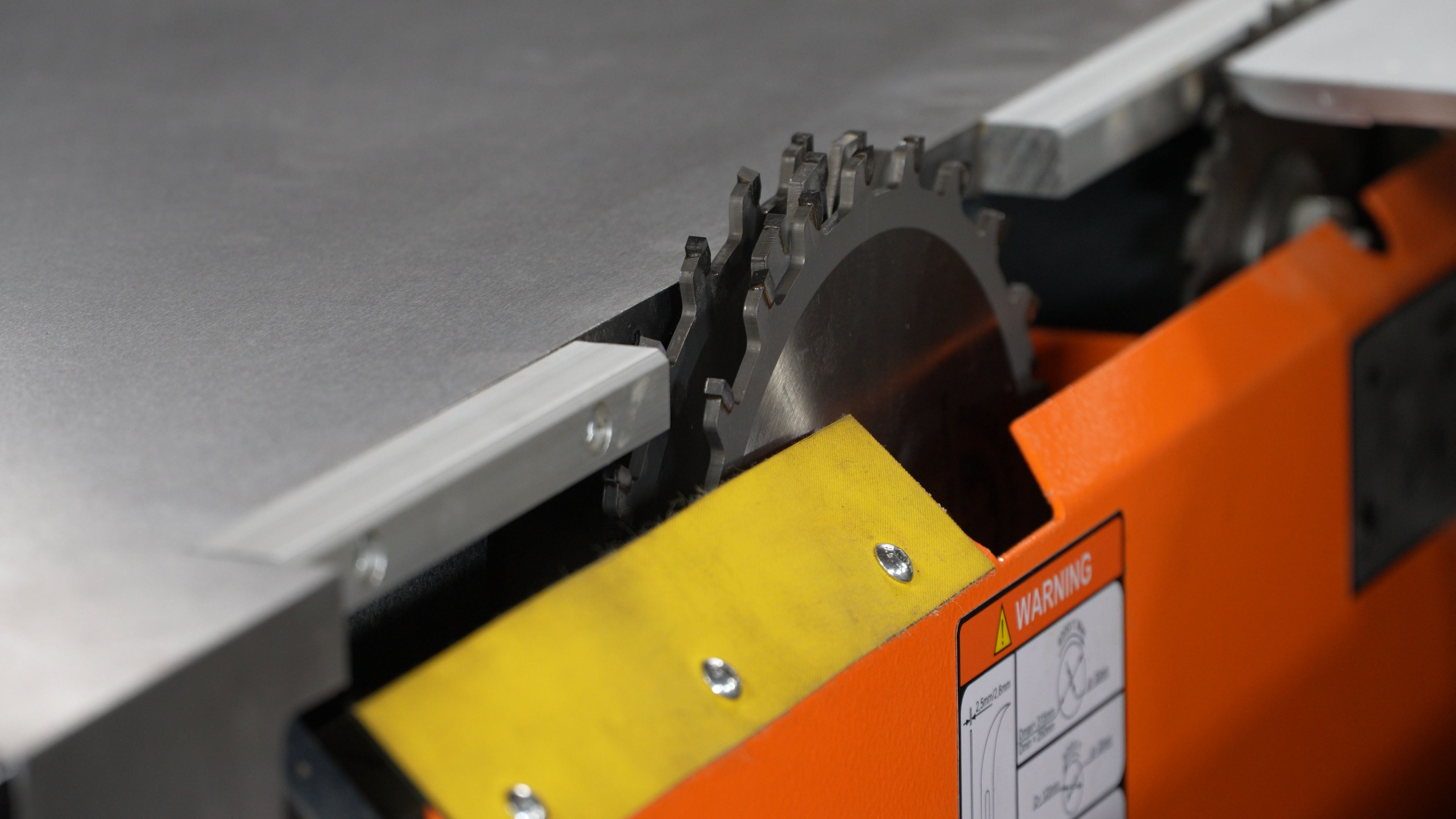

Dado stacks are an essential tool for creating seamless and clean joinery. The BMS.3200.IR is compatible with an 8″ blade and has a max capacity of 1-1/4″. This machine ensures perfect straight chip-free parallel cuts, enhancing the quality of your work. The easy blade access allows you to switch effortlessly between dado and regular blades, making your work more efficient.
The BMS.3200.IR comes with a powerful 5HP motor and offers both 1 Phase and 3 Phase 220V options/configuration, ensuring it fits seamlessly into your setup. It also features a 1HP scoring motor for precise cuts.
. 2 Year Warranty.
ADDITIONAL INFORMATION
General:
• Weight: 1,470 LBS
• Machine dimensions (closed): L 133” X W 135” X H 65’’
• Machine dimensions (max): L 192” X W 280” X H 65’’

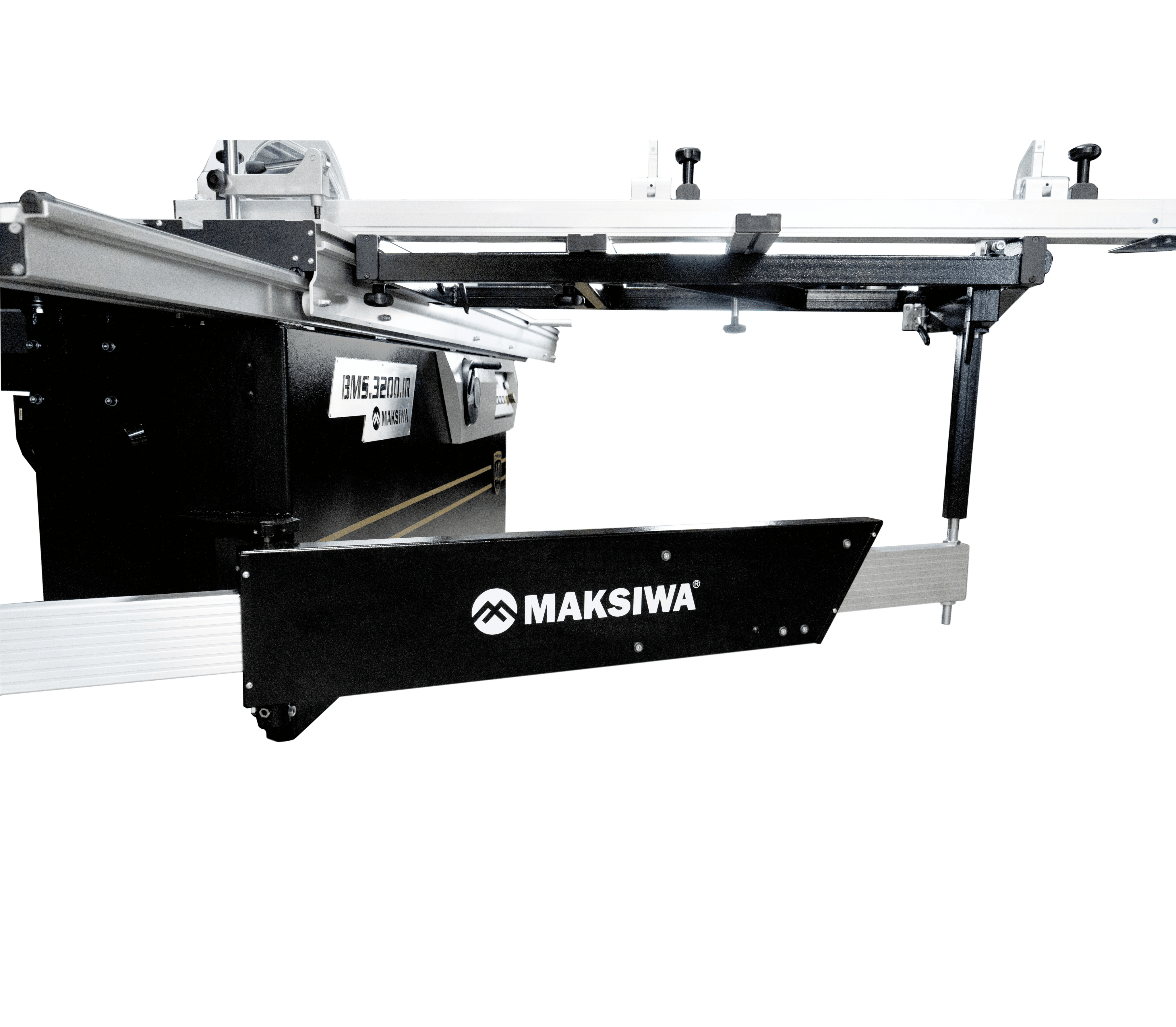

• Sliding table dimension: 14 3/4” X 132”
• Sliding table max travel length: 280”
• Fixed table max width: 52”
• Guide size (closed): 71”
• Guide size (max): 128’’

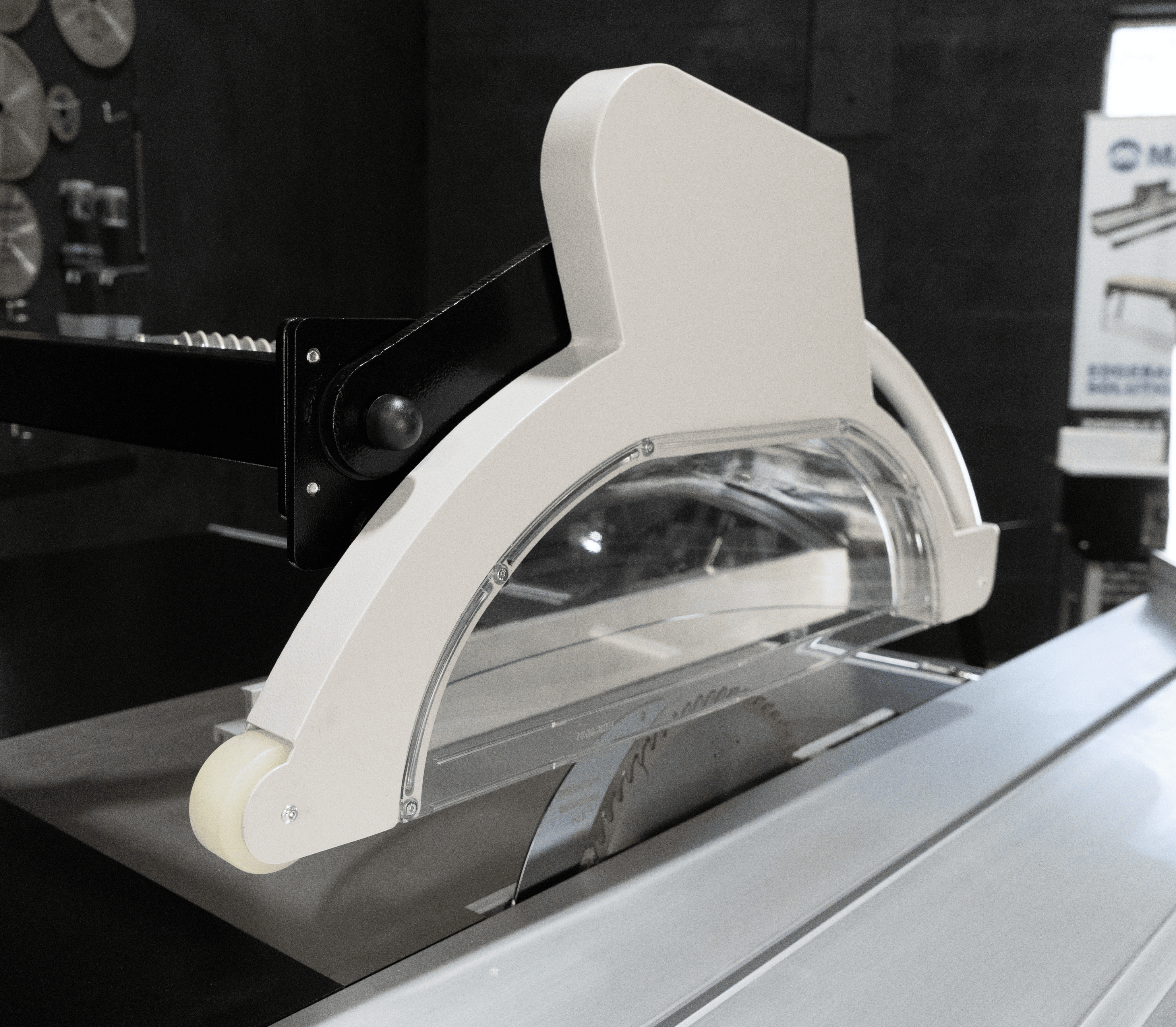

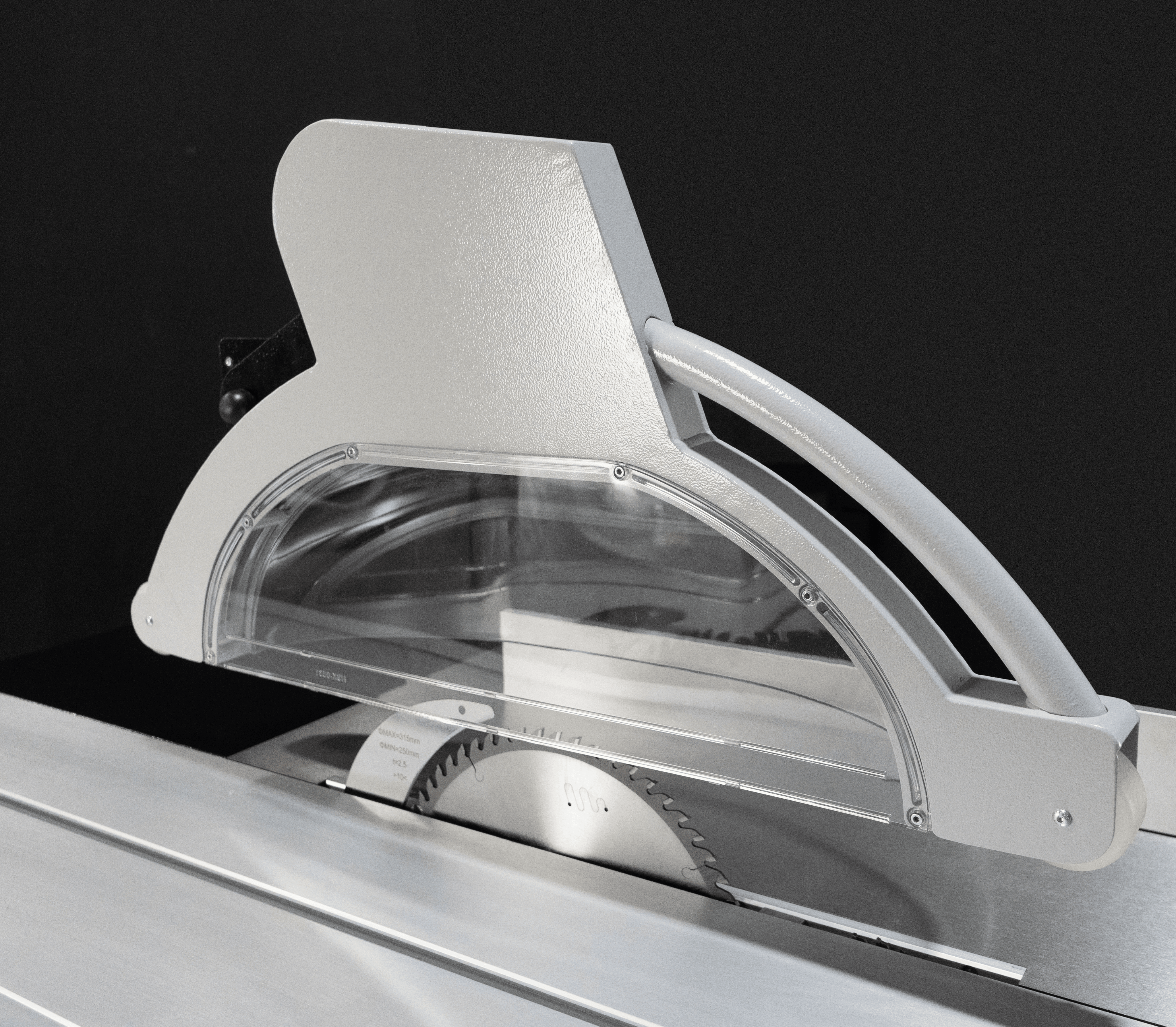

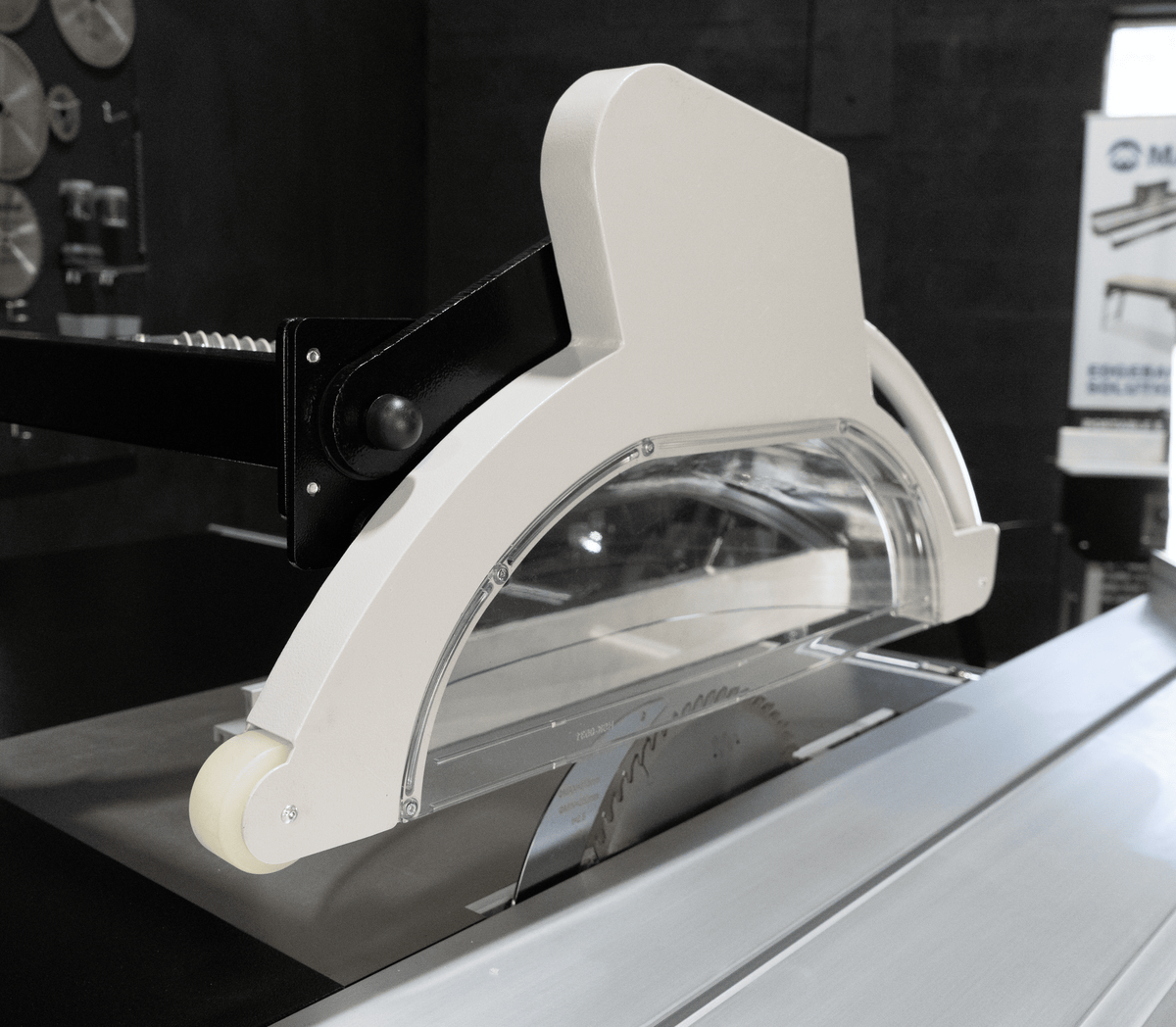

• 1 Blade Cover

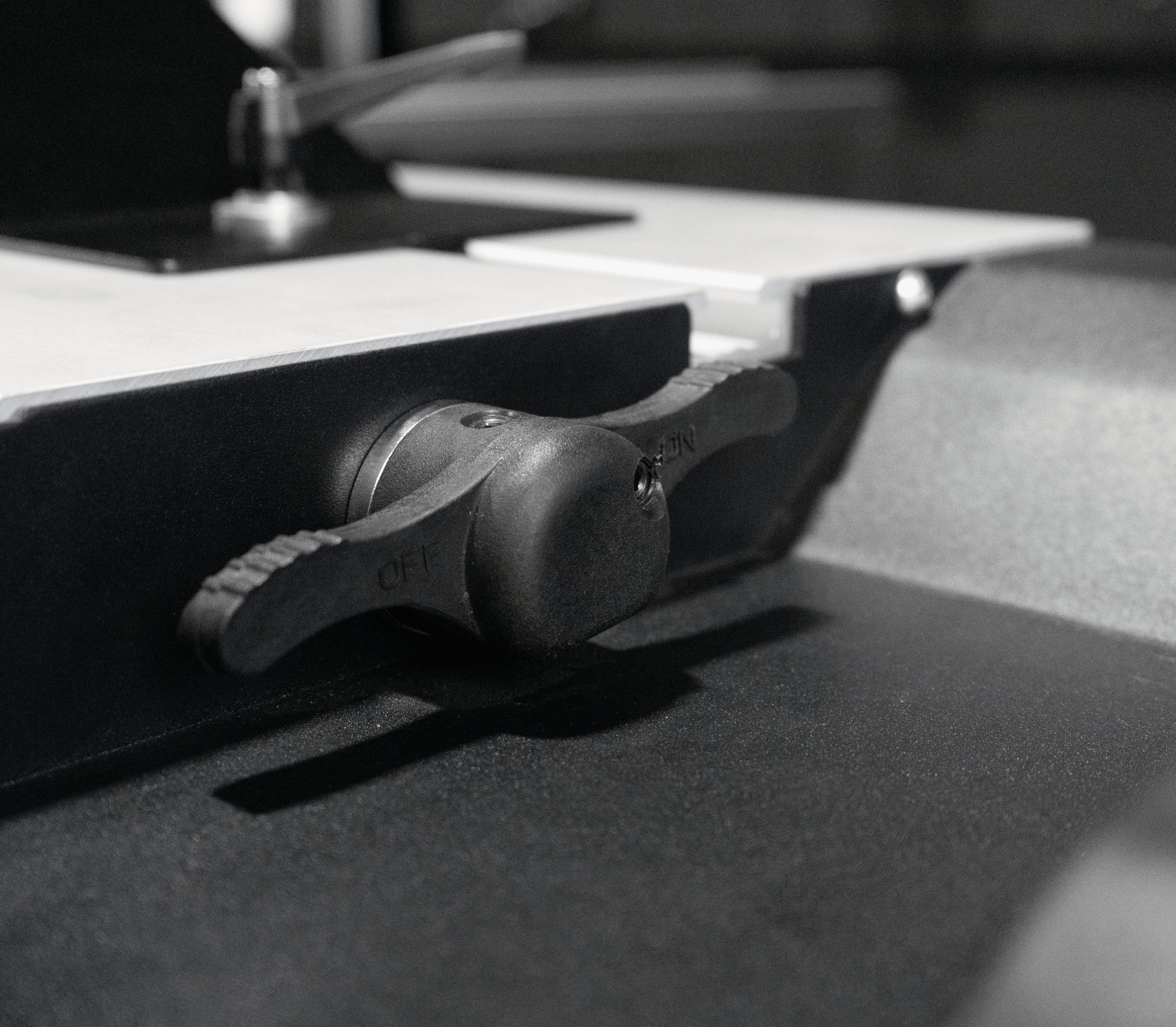

• 1 Lockable main power switch

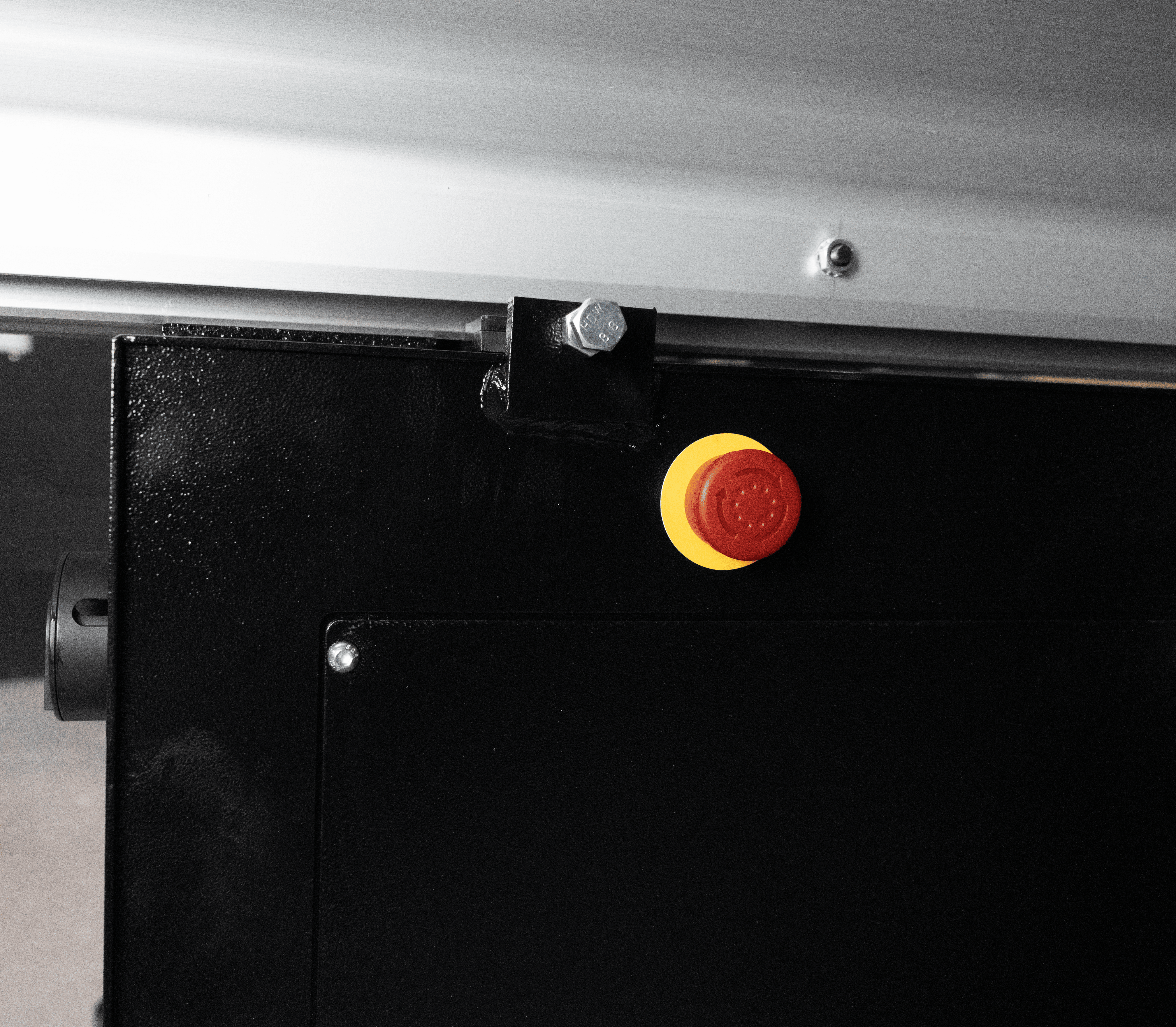

• 2 Emergency buttons
• Max tilt: 45°
• Max depth cut: 3“
• Max cutting length: 120”
Blade:

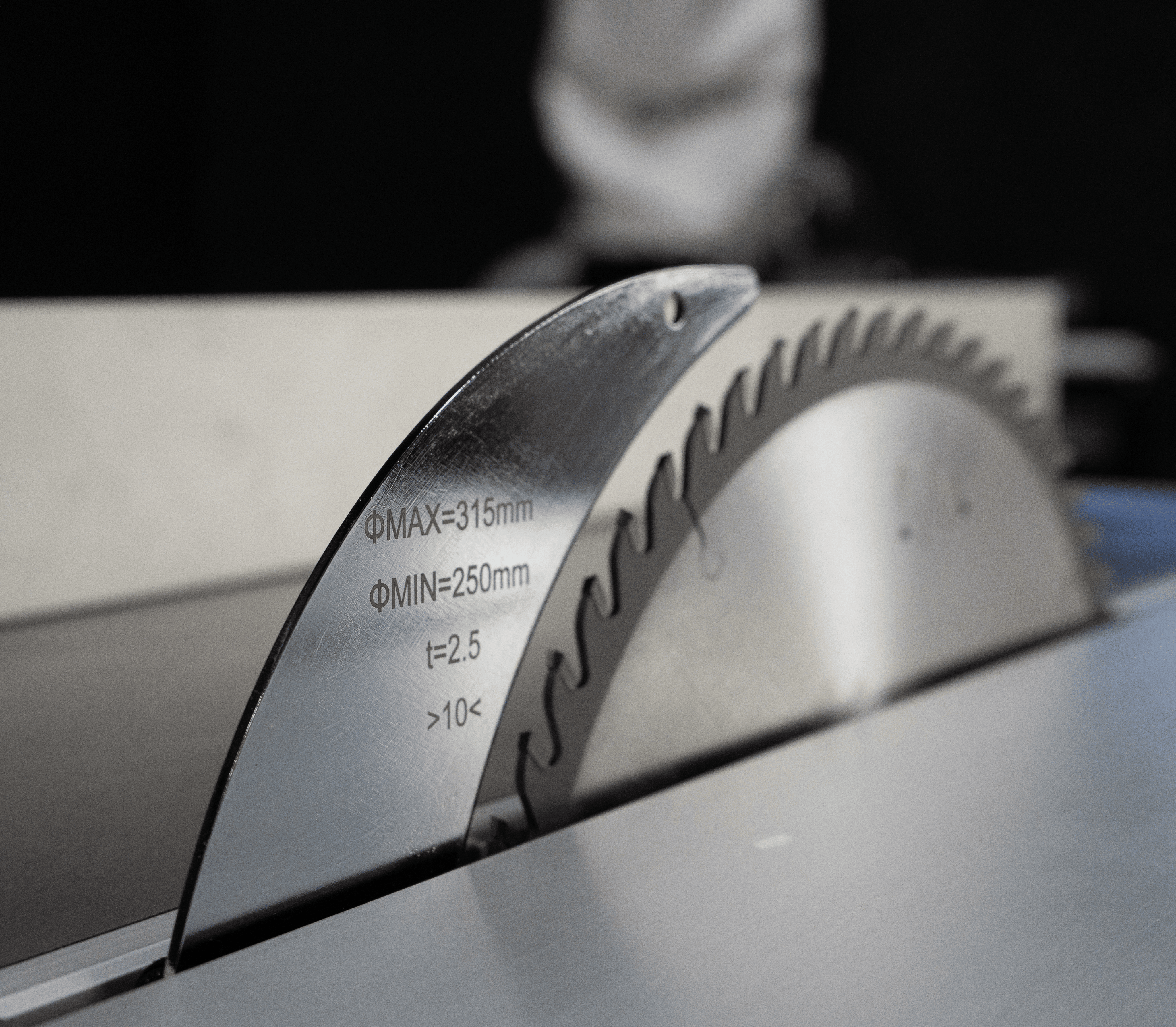

• Main blade diameter: 12”
• Main blade arbor size: 1 3/16”
• Scoring blade diameter: 4 ¾’’
• Scoring blade arbor size: 25/32”
Electrical OPTIONS:
3 Phase Model 380 V:
Main motor:
• 8 Amps - 3 HP
• Non-loaded blade speed: 3,500 RPM
Scoring motor:
• 3/4 HP - 1.8 Amps
• Non-loaded scoring blade speed: 3,500 RPM
3 Phase Model 220 V:
Main motor:
• 15 Amps - 5 HP
• Non-loaded blade speed: 3,500 RPM
Scoring motor:
• 3 Amps - 3/4 HP
Non-loaded scoring blade speed: 3,500 RPM
1 Phase Model 220 V:
Main motor:
• 20 Amps - 5 HP
• Non-loaded blade speed: 3,400 RPM
Scoring motor:
• 5,5 Amps - 3/4 HP
• Non-loaded scoring blade speed: 3,400 RPM
