Laguna - PL 12|20 Laser

Free Shipping!


  • $4,499.00

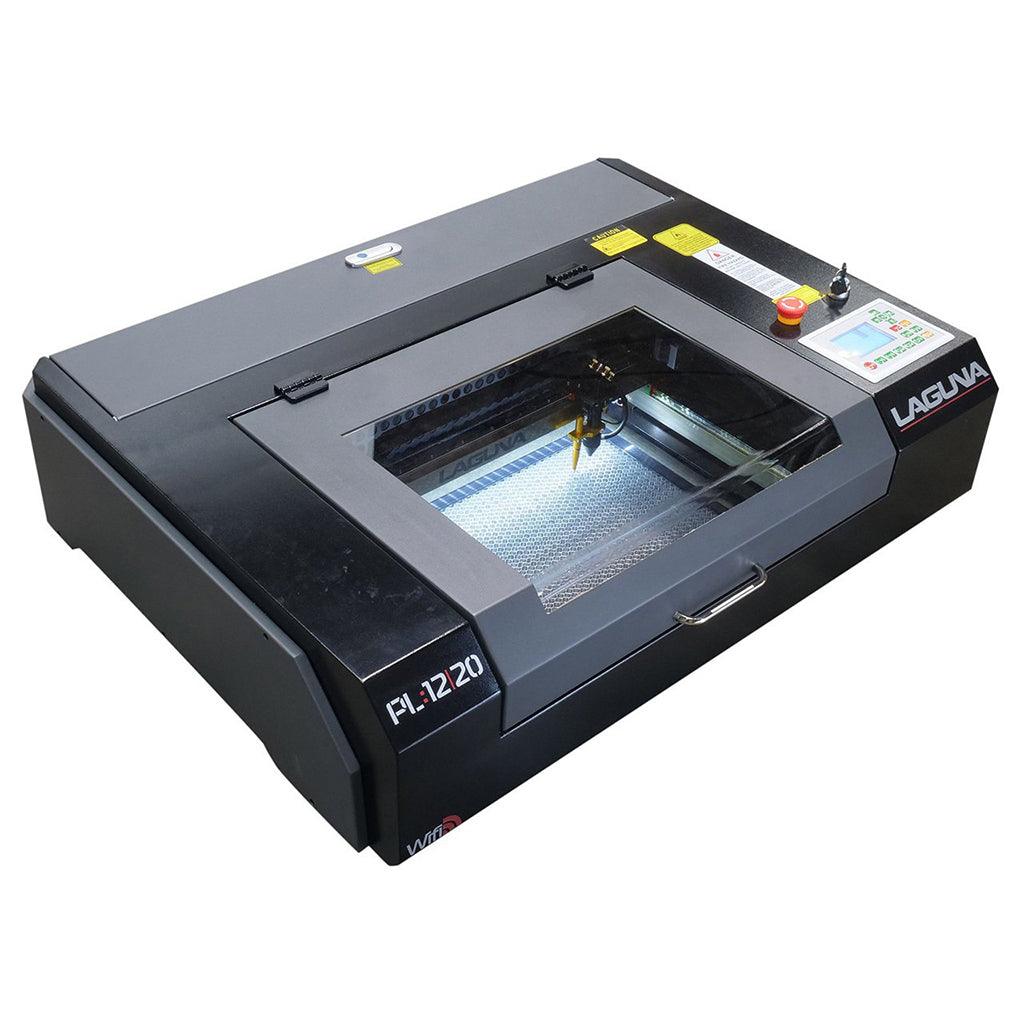

Laguna Tools PL 12|20 Laser - MLC122040-2

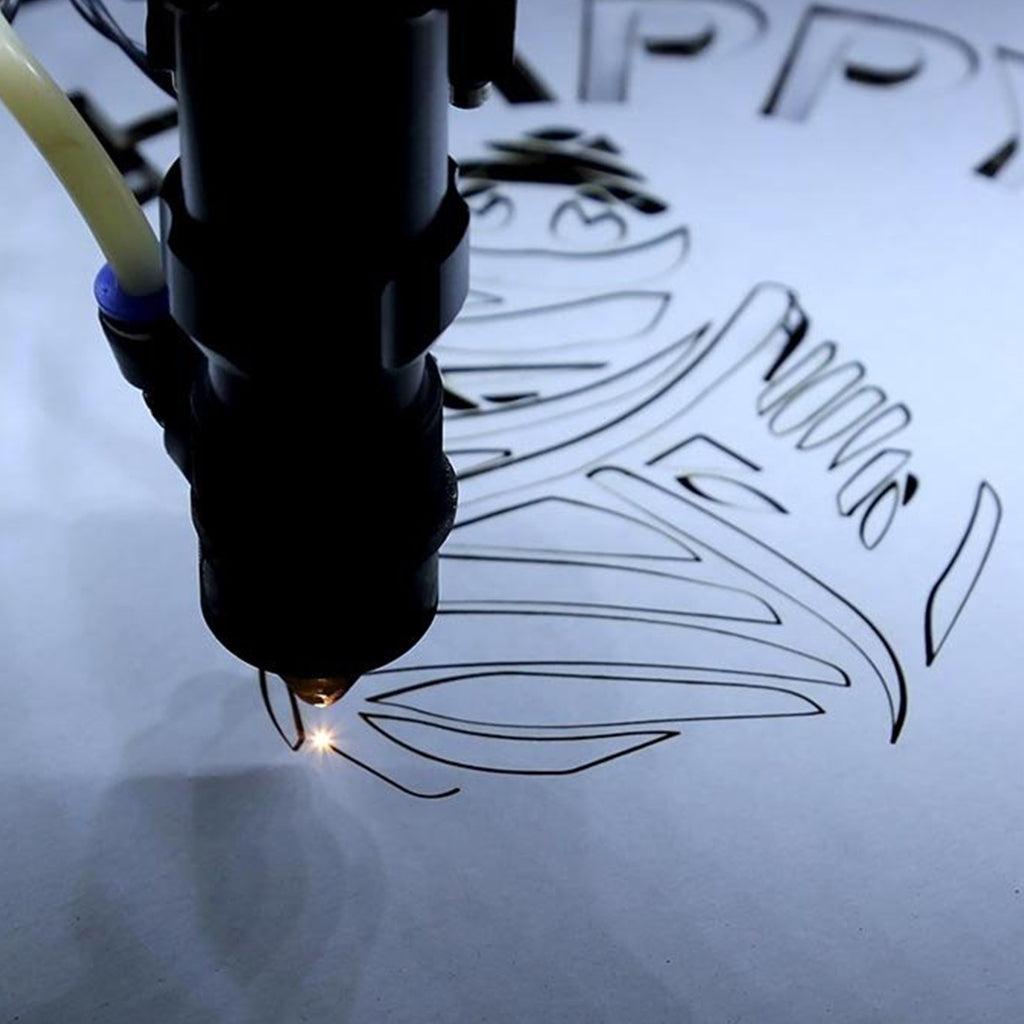

The redesigned PL12|20 laser from Laguna offers a complete ecosystem with optional rotary, fume collector, stand & software. The 40-watt laser makes quick work of complicated inlay techniques, cuts intricate designs out of wood, acrylic, and several other materials, along with perfect engraving lithography in most non-metallic materials. The PL12|20 has a full 12" by 20" workspace with a full 12" z-axis to fit large materials and a rotary device. The bottomless design allows the user to engrave large projects like tabletops and murals. The PL12|20 keeps raising the bar!

The PL 12|20 is designed to pair with the M|Flux:5 Fume Extractor

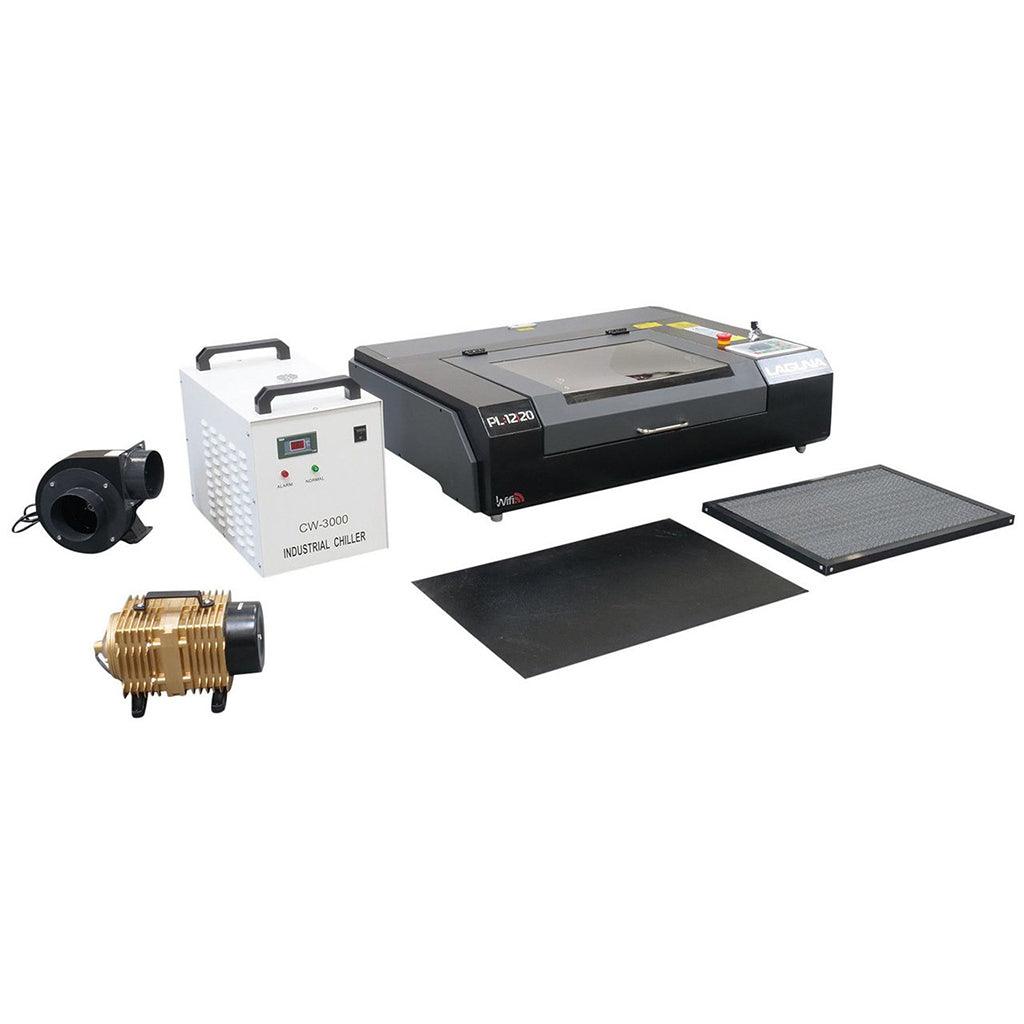

Package Includes:

  • PL12|20 Laser Machine: 12" x 20" work surface
  • 40-Watt CO2 Laser
  • Z-Axis Base; 12" Capacity
  • Industrial Water Chiller
  • Air Pump
  • Exhaust Fan
  • Multiple Work Surfaces: Steel, Honeycomb, Bottomless
  • Ruida RDWorks Laser Software for Windows

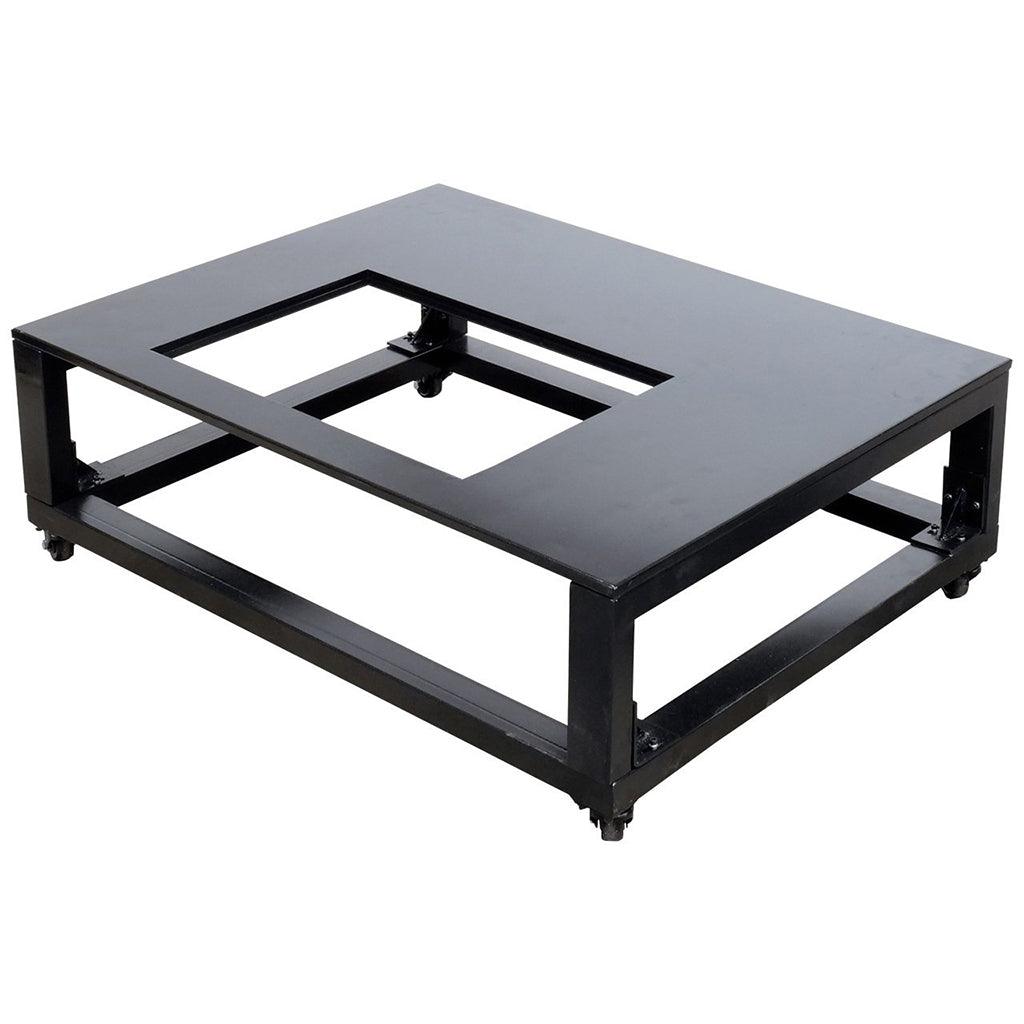

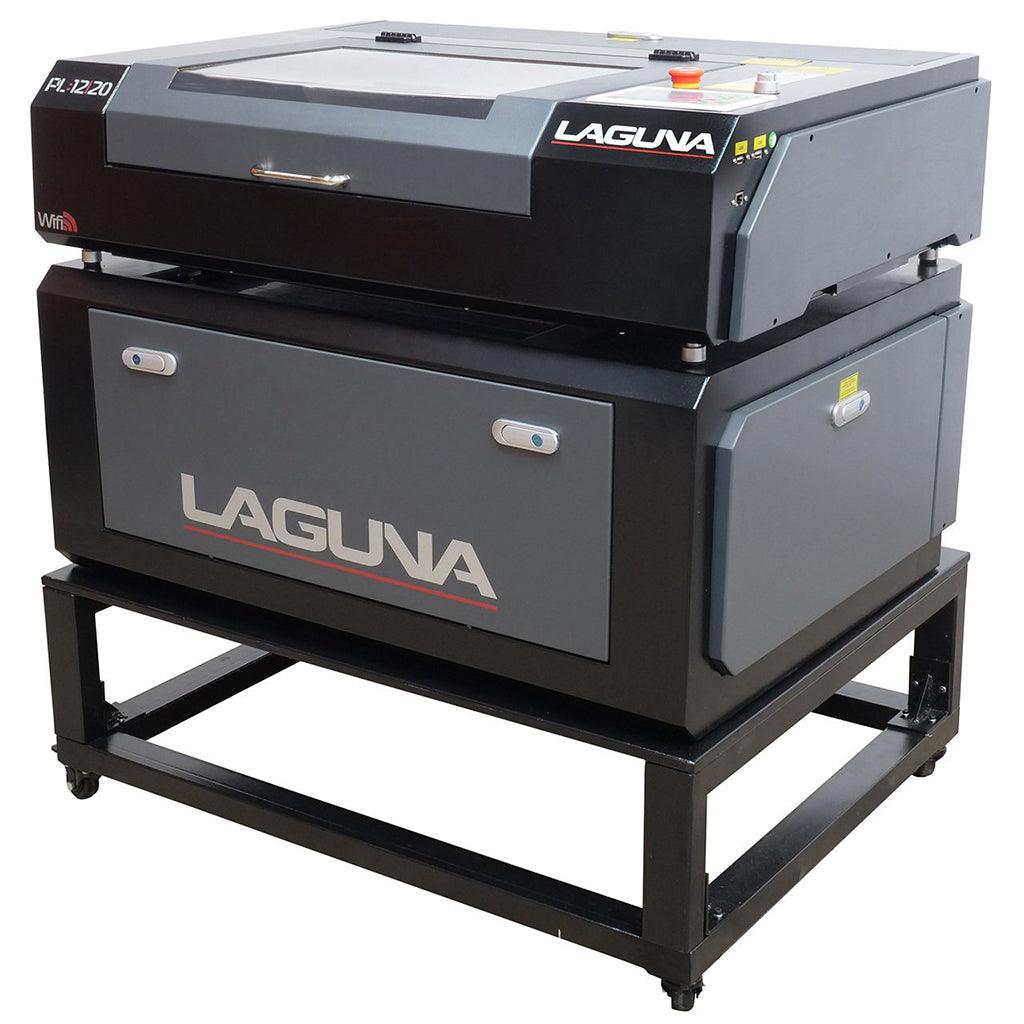

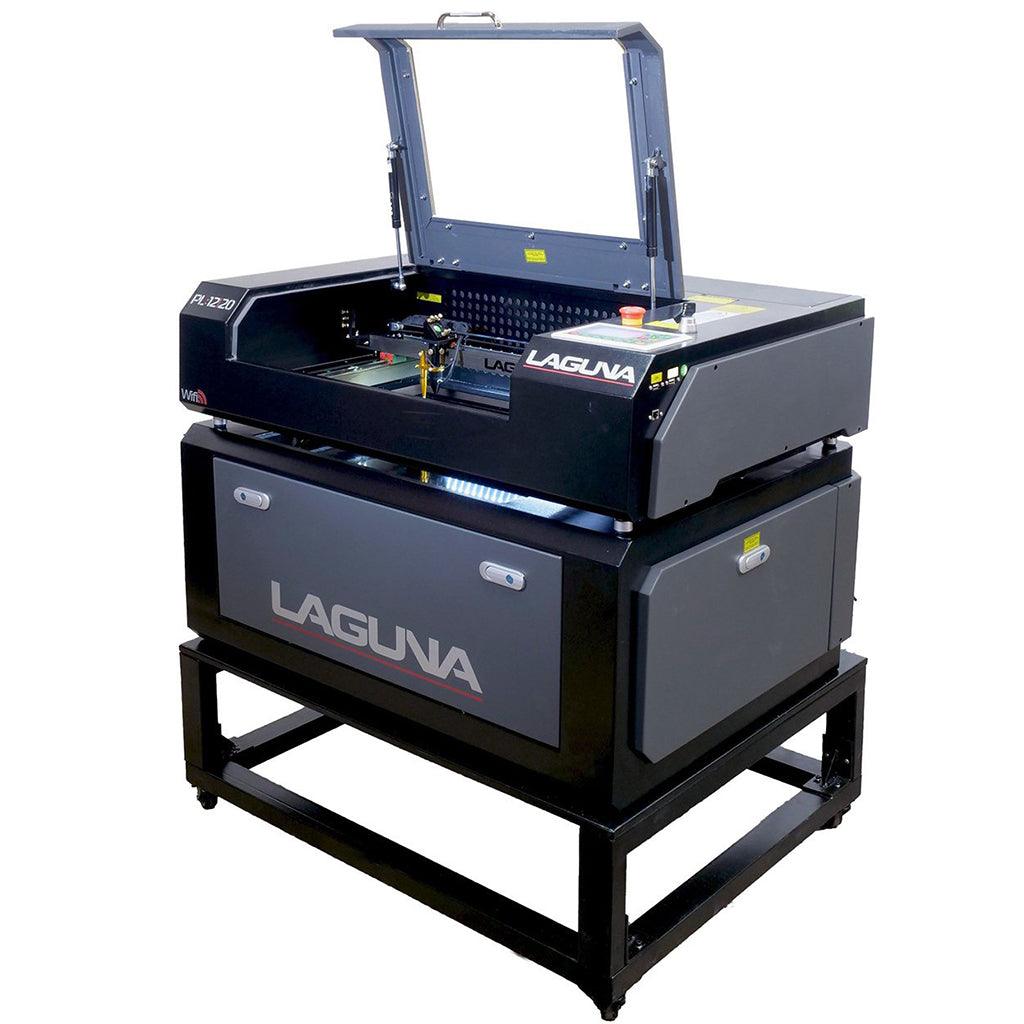

See the Optional Stand

See the Optional Rotary

Auto Adjusting Work Table

  • Automatically adjustable working table to fit odd shaped stock, a rotary attachment, and different tapes of mounts like a bead bed. The lifting height can reach 12"

Automatic Focusing

  • Autofocusing makes the laser head focus easily and quickly. Other models use a focal spacing block to adjust the focal length by hand. The Bed moves up until the workpiece hits the limit switch, and the focal length is always set at the exact height.

U.S. II-VI Optical Lenses

  • II-VI's broad portfolio of optics is one of the largest and most advanced in the industry, leveraging deep expertise in diamond turning technology, magnetorheological finishing (MRF), and IBS coatings.

RECI Laser Tube

  • RECI Laser tubes are boasting optimal laser output power density, concentrated light beam, uniform light spot, highest working efficiency, and highest cutting speed. Each Reci tube has approximately a 15,000-hour working life.

Hiwin HG Linear Guide Rails

  • The HG series linear guideways are designed with load capacity and rigidity higher than similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial, and lateral directions, and self-aligning to absorb installation-error. Thus, the HG series linear guideways can achieve a long life with high speed, high accuracy, and smooth linear motion.

Wifi Control

  • Wifi Control allows the operator to work remotely and upload work files to the Laser unit form anywhere – just like a printer.



Specifications:

Power
Voltage 115V
Hertz 60Hz
Phase 1Ph
Running Amperage 9.6A (14.4A with all components)
Recommended Breaker Dedicated 15A on power strip for all components
CO2 Laser
Laser Tube RECI Water Cooled 40W 15,000H working life
Optics U.S. II-VI Focusing lens & Beam Combiner
Drive System Leadshine Motors & 3PH Drivers
Linear Guides Hiwin HG Resin Capped
Work Envelope 12" x 20"
Table Lift 12"
Control Software RUIDA RDWorks, Lightburn option
Engraving Speed 0-500 mm/s
Cutting Speed 0-500 mm/s
Laser Output Control 0-100% Software controlled
Exhaust 300 CFM
Working Environment 32° – 104°F, Humidity 5-95%
Dimensions
Net Weight 300 Lbs (all components)
Ship Weight 325 Lbs
Assembled Height 10"/27"/40" (top unit, with base, with base and stand)
Assembled Width 40"
Assembled Depth 30"
Chiller CW-3000DG
Voltage 115V
Hertz 60Hz
Phase 1Ph
Running Amperage 0.9A
Net Weight 21 Lbs
Ship Weight 26 Lbs
Tank Capacity 9L (2.3 Gal)
Flow 10L/min (2.64 Gal/min)
Air Pump
Voltage 115V
Hertz 60Hz
Phase 1Ph
Running Amperage 1.3A
Air Flow 5 CFM
Net Weight 9.9 Lbs
Ship Weight 10 Lbs
Exhaust Fan
Voltage 115V
Hertz 60Hz
Phase 1 Ph
Running Amperage 2.6A
Horse Power 1/3 HP
Air Flow 300 CFM


Dimensions:

  • Item Weight: 150 lbs.
  • Item Length: 40 in
  • Item Width: 30 in
  • Item Height: 9 in
  • Package Weight: 230 lbs.
  • Package Length: 35 in
  • Package Width: 42 in
  • Package Height: 19 in

Chiller

  • Net Wight: 21 lbs.
  • Ship Weight: 26 lbs.
  • Dimension (L x W x H): 23" x 15" x 19"
  • Padding Dimension (L x W x H): 23" x 15" x 19"
  • Rated Power Input: 145

Pump

  • Dimension (L x W x H): 10" x 5" x 7"
  • Weight: 9.9 lbs.
