Laguna Raised Panel Master 5

SKU: MDM2050-0148
$29,999.00
In stock
On backorder

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Help your customers identify what payments are accepted by your store.

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 866-5988

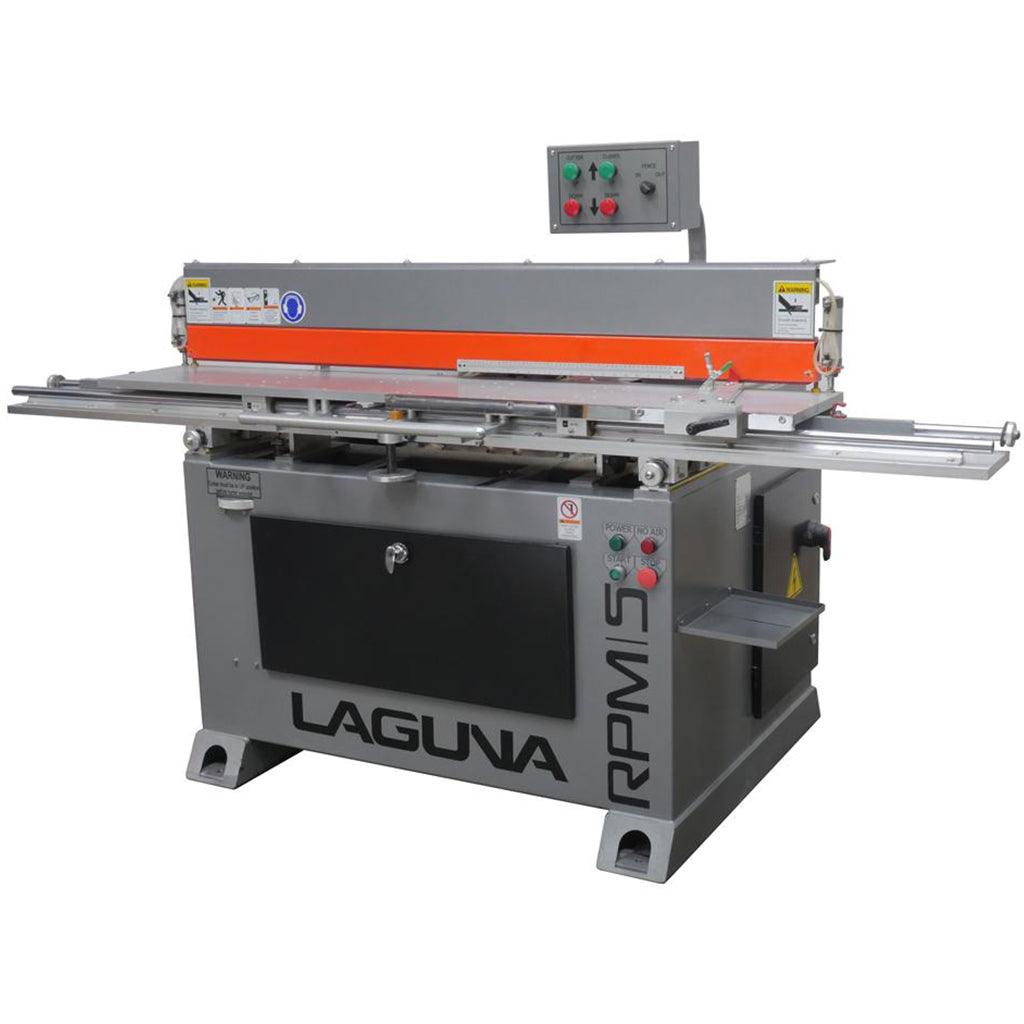

Laguna is proud to introduce our latest Industrial Series machine, the Raised Panel Master. This machine is designed to allow a single operator to produce a complete cabinet door in less than 2 minutes. The single-piece welded steel frame provides the ultimate support for chatter-free work. The heart of the machine is a shaper spindle which holds all three cutters needed to produce a door. The spindle is powered by a 10 HP motor for smooth cuts and is quickly positioned from the front of the machine with a dial. The turret system insures complete accuracy without test cuts and the pneumatically controlled spindle height is quickly set. The 2 axis sliding table rides on linear bearings in all directions and includes a pneumatic hold-down clamp for quick setup. The pneumatic EZ fence quickly positions stock for the next cut. A large diameter tracer bearing provides perfect control for straight and curved template following.

Features



  • Motor: 10hp 220v 3-phase w/ VFD
  • Speed range: 6000 to 8000 RPM
  • Spindle: 1.25? Diameter x 7.25? Height
  • Cutter capacity: up to 7? Diameter

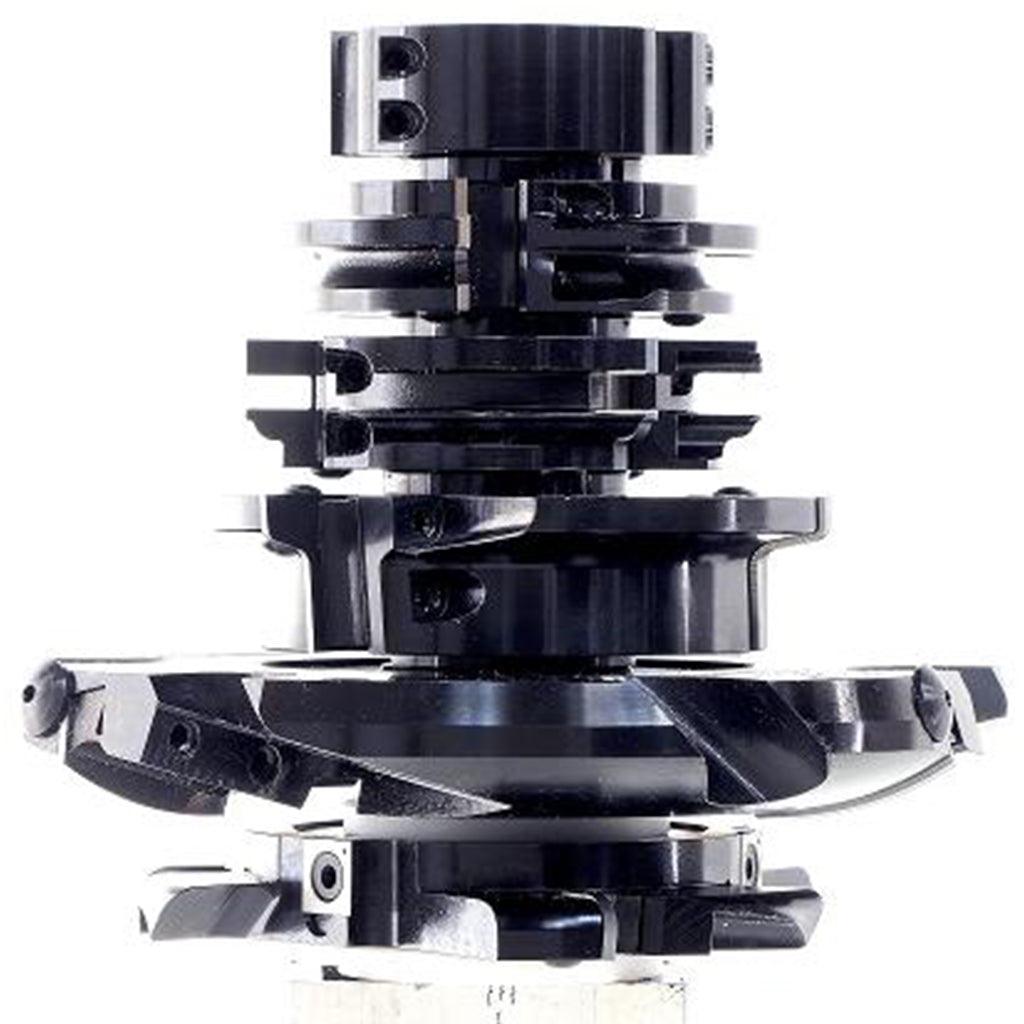

The heart of the machine is a shaper spindle which holds all five cutters needed to produce a door. The spindle is powered by a 10 HP motor for smooth cuts and is quickly positioned from the front of the machine with a dial. The turret system insures complete accuracy without test cuts and the pneumatically controlled spindle height is quickly set. The 2 axis sliding table rides on linear bearings in all directions and includes a pneumatic hold-down clamp for quick setup. The pneumatic EZ fence quickly positions stock for the next cut. A large diameter tracer bearing provides perfect control for straight and curved template following.

Compressed Air Requirement: 90 PSI 1 CFM

Dust Port: 5

Maximum Arch Height: 2 Standard

Maximum Material Thickness: 1.25?

Maximum Arch Width: 24?

Weight: 1500 lbs

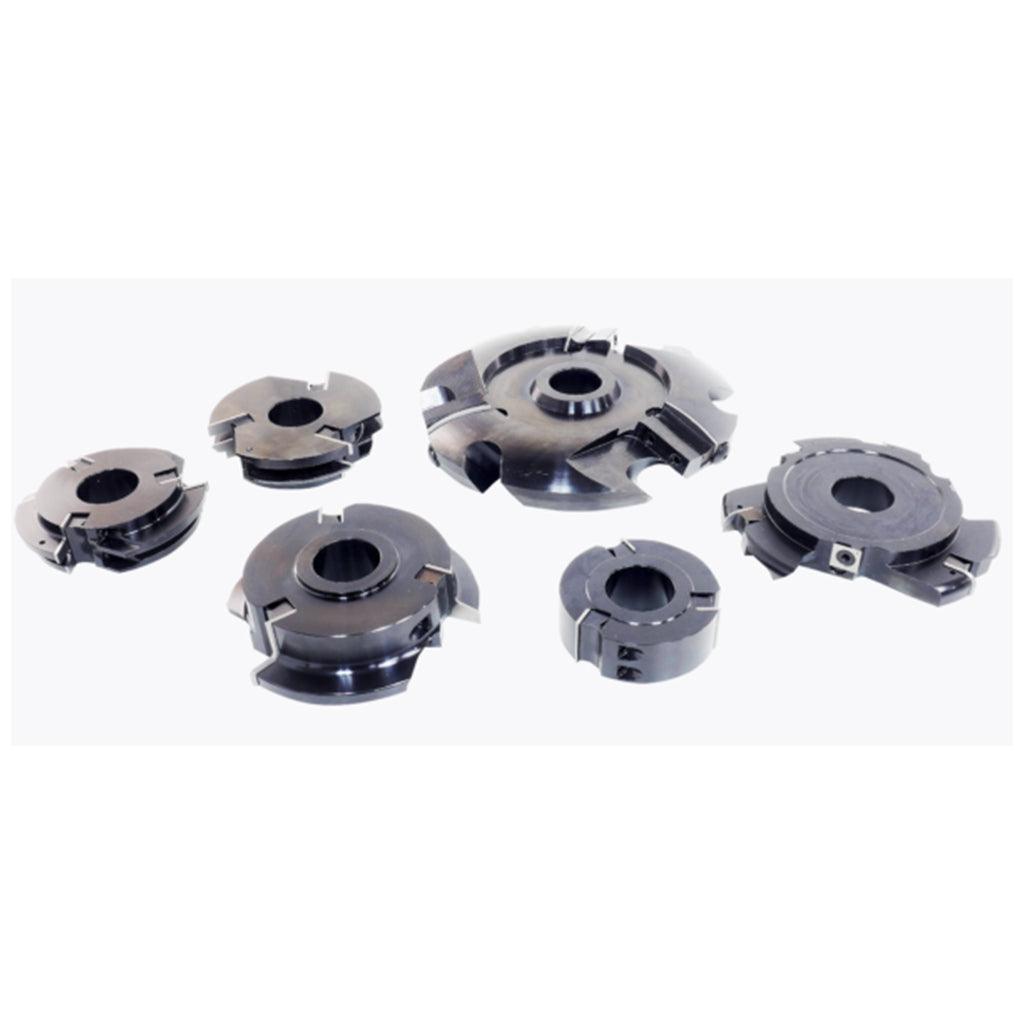

*Carbide insert tooling sold separately


Specs:
  • Motor: 10hp 220v 3-phase w/ VFD
  • Speed range: 6000 to 8000 RPM
  • Spindle: 1.25 Diameter x 7.25 Height
  • Cutter capacity: up to 7 Diameter
  • Compressed air requirement: 90 PSI 1 CFM
  • Dust port: 5
  • Maximum arch height: 2 standard
  • Maximum material thickness: 1.25
  • Maximum arch width: 24
  • Weight: 1500 lbs
