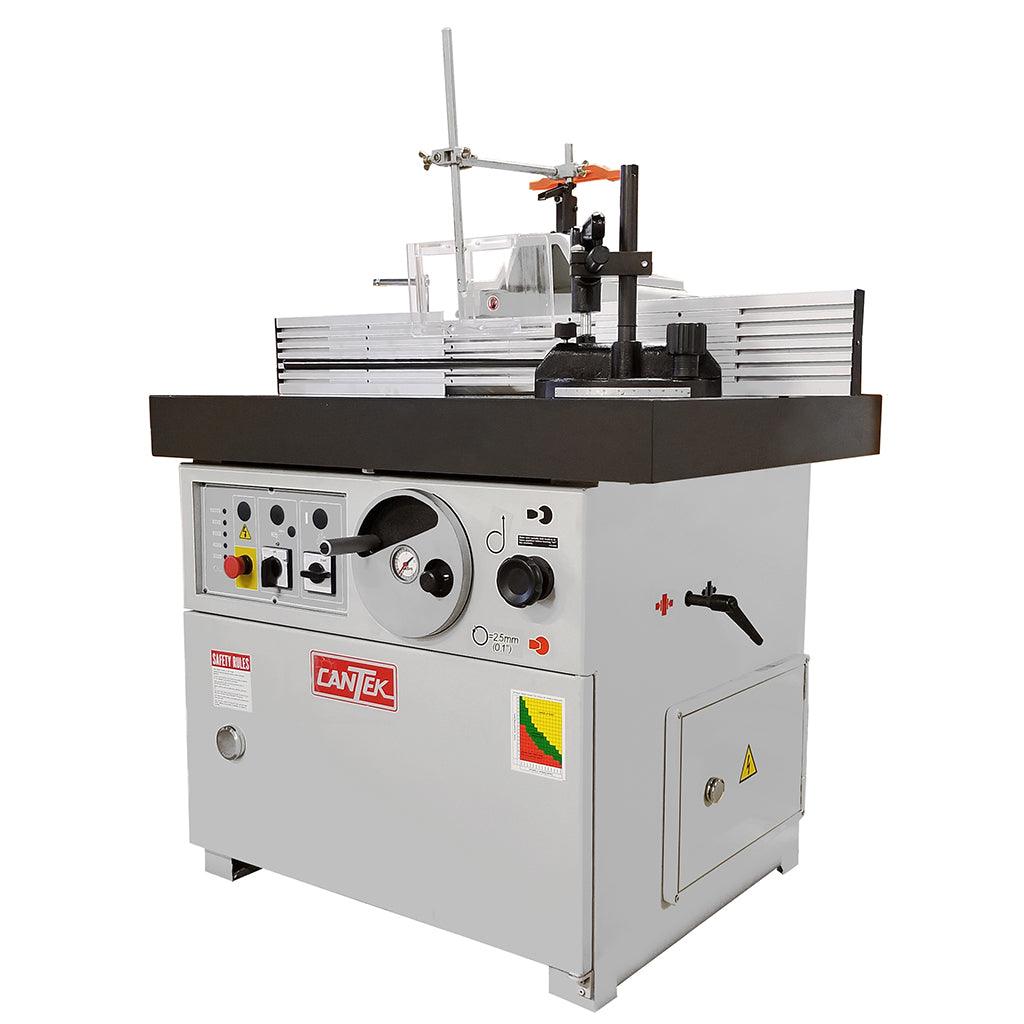

CANTEK Shaper SS512CB

by Cantek
Original price $9,650.00 - Original price $9,650.00
Original price $9,650.00
$9,660.00
$9,660.00 - $9,660.00
Current price $9,660.00

Production 7.5 HP shaper.

The Cantek SS512CB shaper is a ruggedly built shaper with refined features well suited for demanding production environments.  Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more.  The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles.  The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.


Why Cantek SS512CB Shaper?

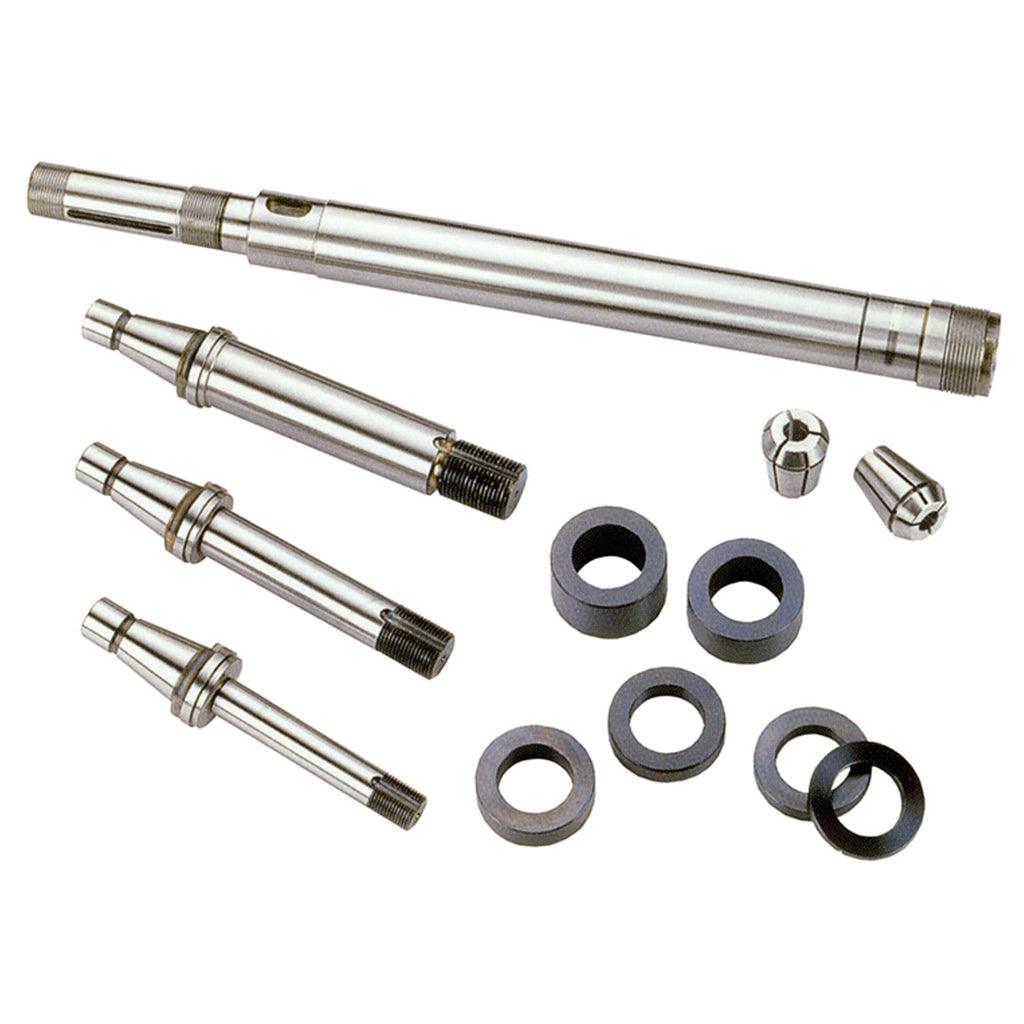

  • 1 ¼” interchangeable spindle is standard (other sizes available)
  • Large cast-iron table is ground and polished for maximum stability and durability
  • Powerful 7.5 HP motor for even the most demanding profiling work
  • Five spindle speeds can be easily adjusted to suit your tool diameter
  • Electronic spindle brake for added safety and facilitates with fast changeover

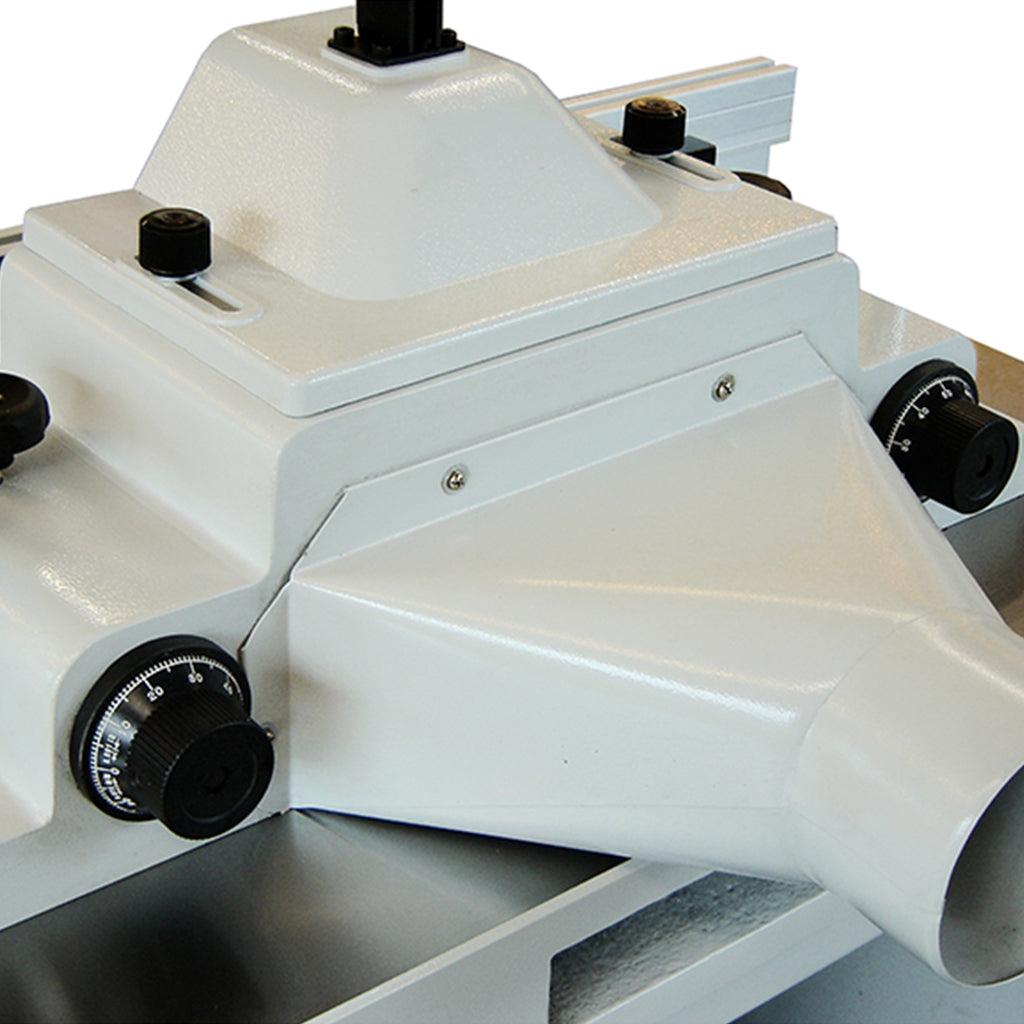

  • Precision fence assembly with micro infeed and outfeed fence adjustment

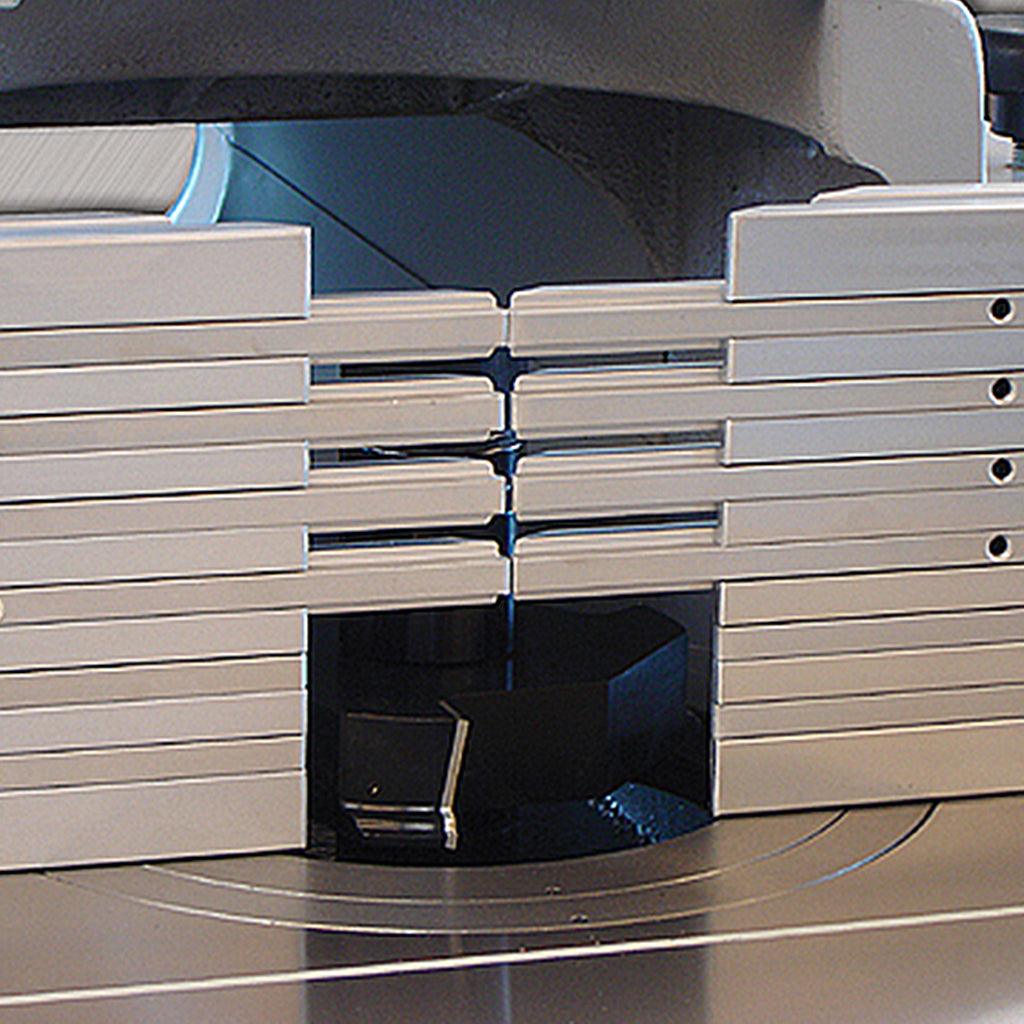

  • Finger style fence allows fence to be adjusted around the cutter for added safety and workpiece stability


  • Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig

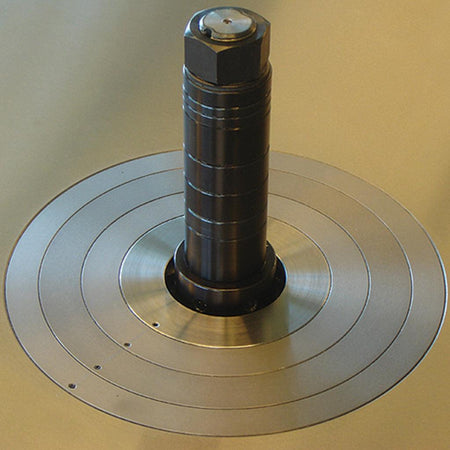

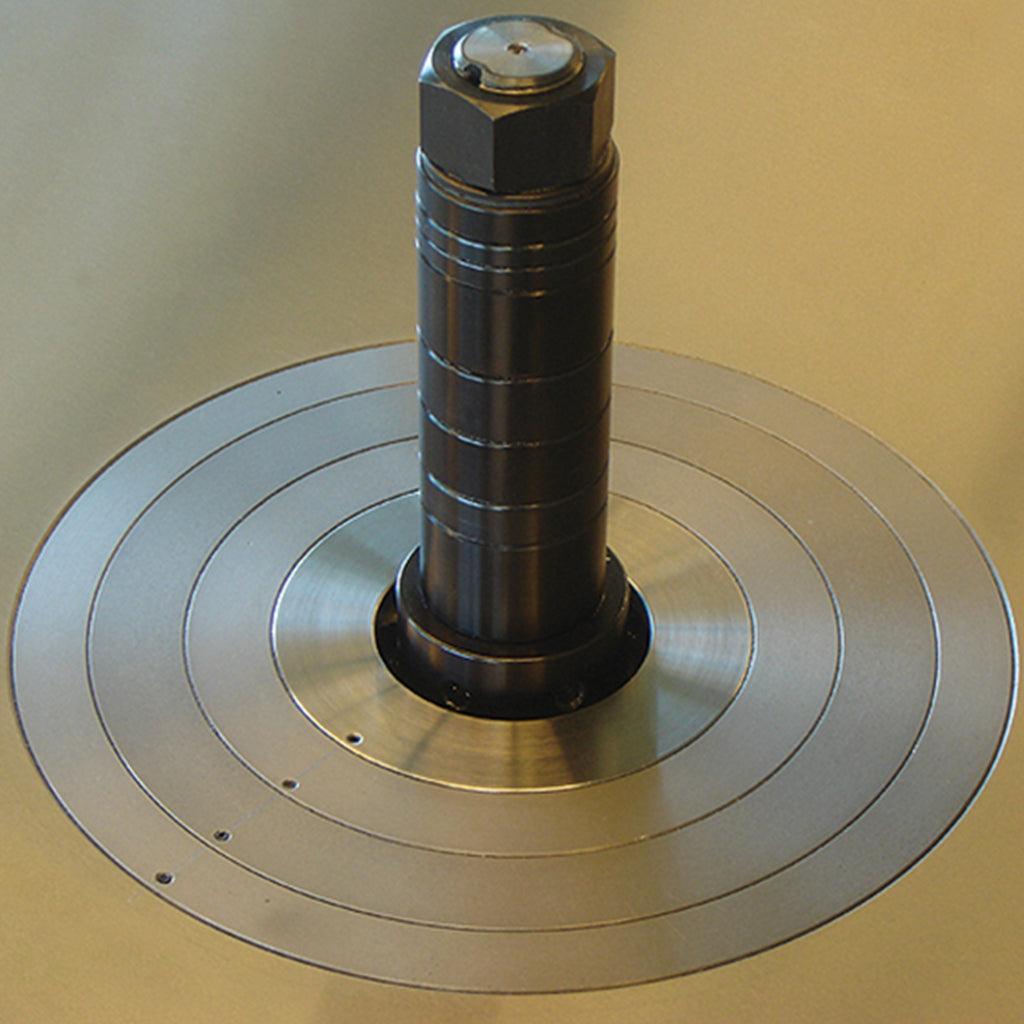

  • Precision ground and electronically balanced spindle

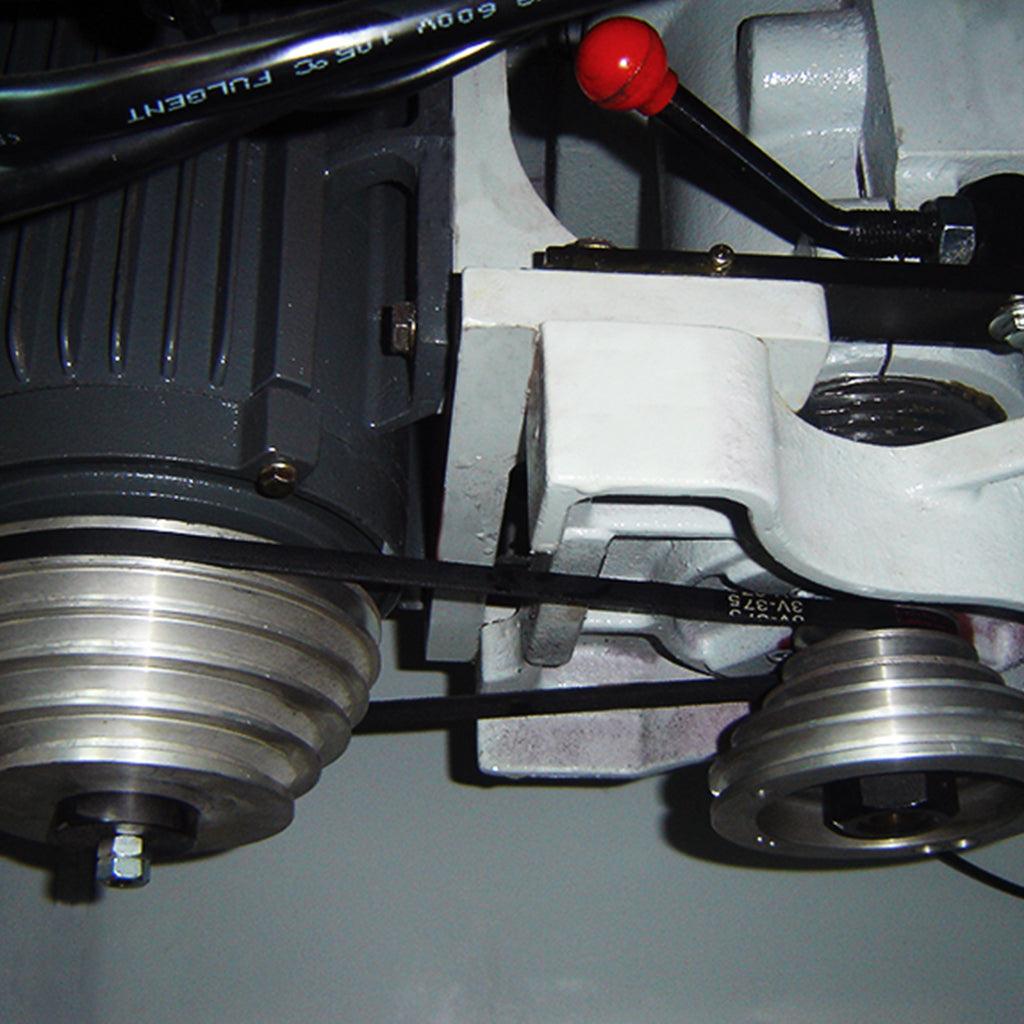

  • V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM)
  • Electric spindle brake for added safety
  • Spindle lock – with limit switch safety, machine will not start with lock engaged

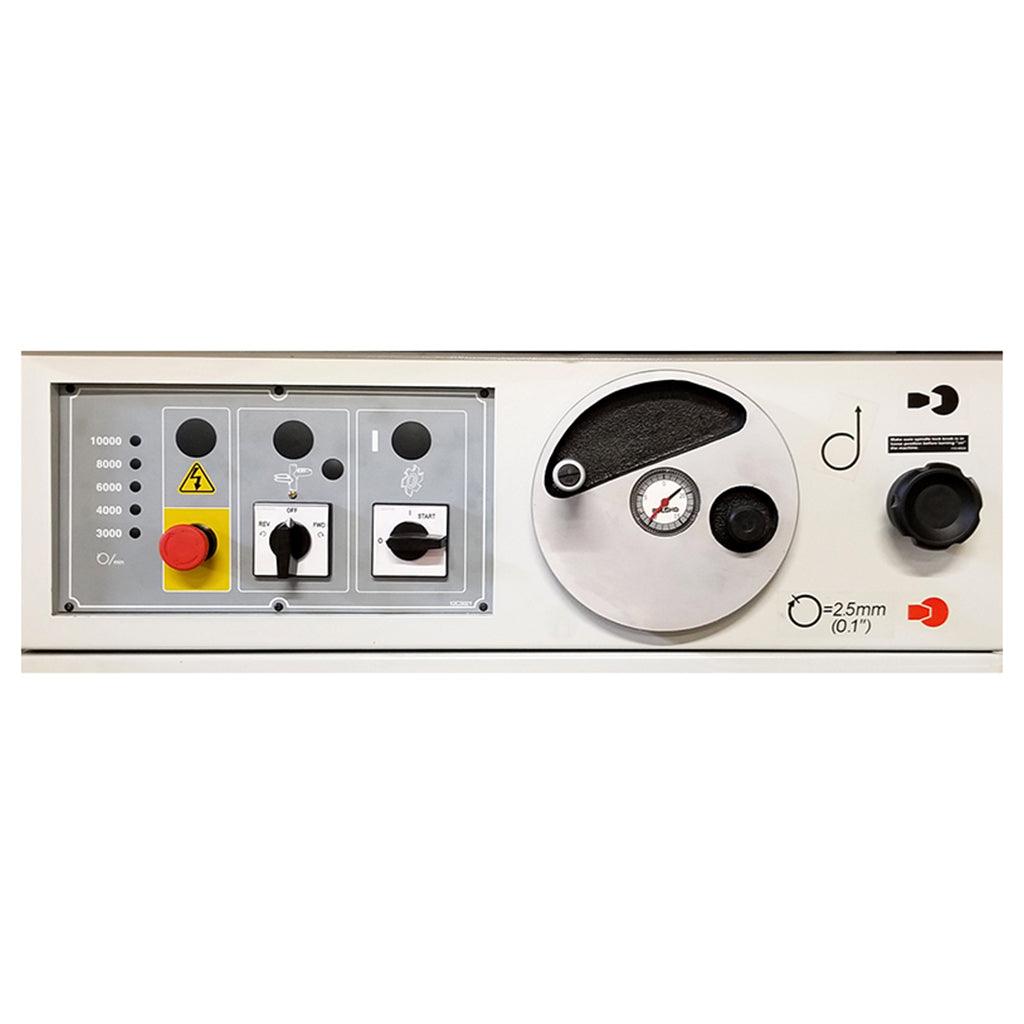

  • Micro spindle height adjustment with dial indicator for precise height adjustment
  • 1 ¼” Interchangeable cutter spindle is standard
  • Forward/reverse spindle rotation
  • Adjustable “finger” type fence
  • Independent micro-fence adjustment on both sides

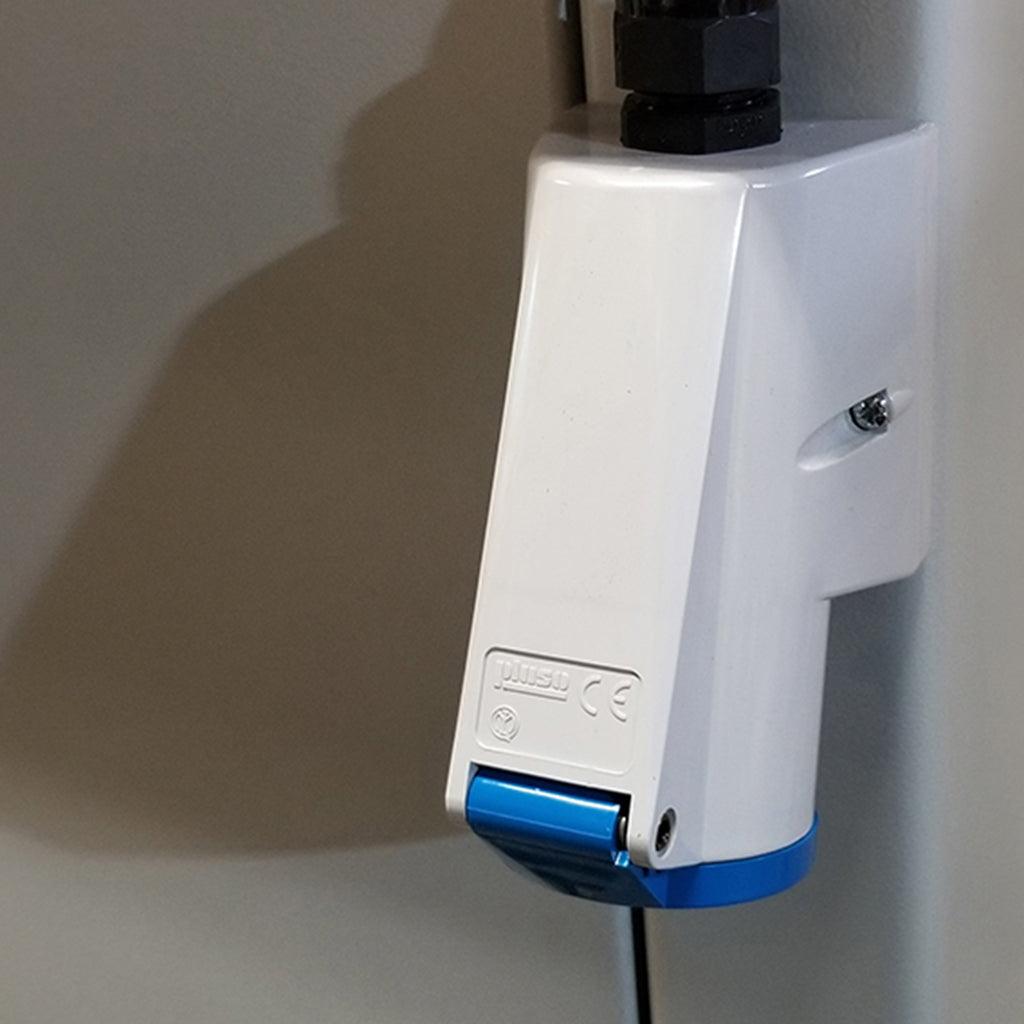

  • Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base
  • Includes the following standard equipment:
    • 1 ¼” spindle
    • (1) 5” dust chute on guard & (1) 4” dust chute in the table
    • Safety guard

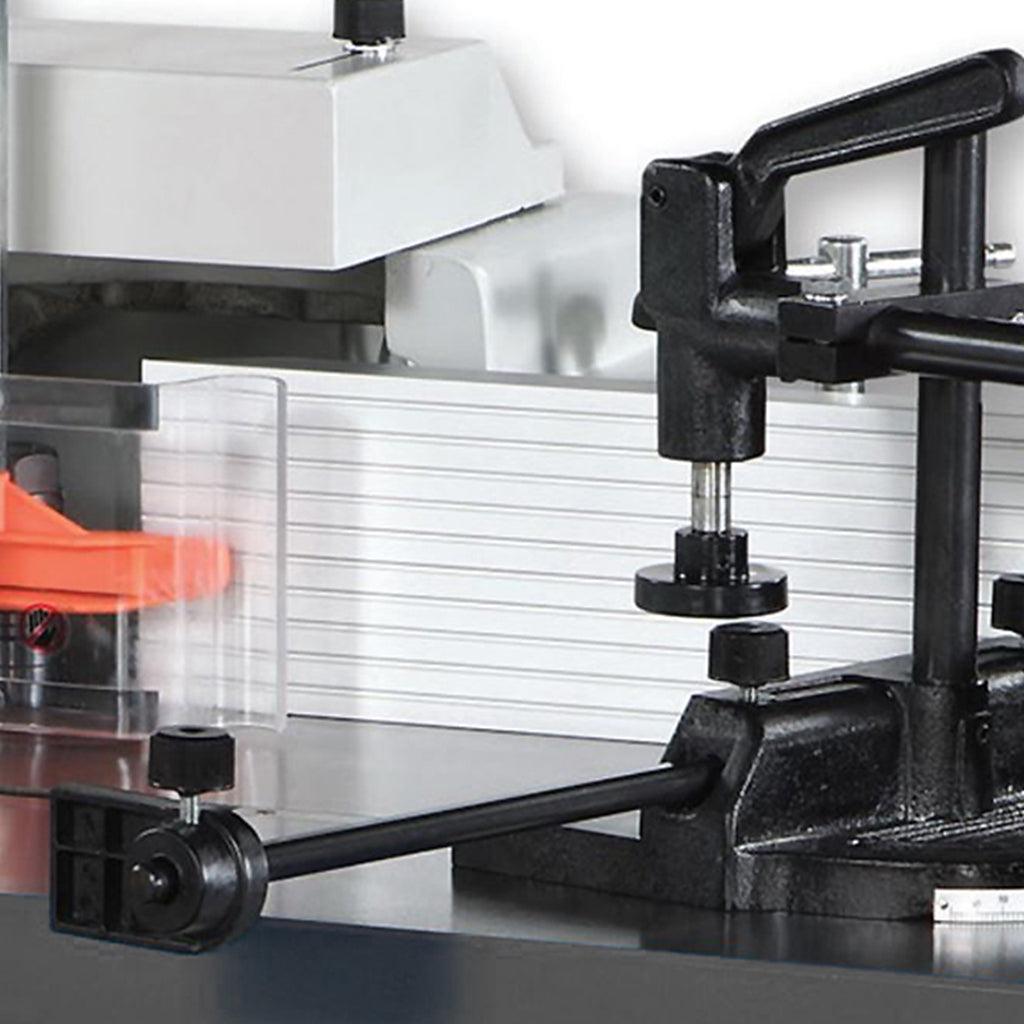

    • Mitre tenoning jig

      Table size
      31 ½” x 39.4″
      Spindle speeds (5)
      3000/4000/6000/8000/10000 RPM
      Spindle taper
      5 MT
      Spindle diameter
      1 ¼”
      Motor
      7.5 HP
      Largest diameter of cutter:

           Above table
      8 ¼”
           Below table
      13 ¼”
      Fence size
      6″ x 43″
      Vertical spindle stroke
      7″
      Useable length of spindle
      5 ½” long
      Dust port
      (1) 5″ on guard,  (1) 4” in table
      Total HP
      7.5 HP
      Net weight
      1034 lbs.
      Machine dimensions
      48.4″ x 39.4″ x 52 ¾”
      Shipping weight
      1166 lbs.
      Shipping dimensions
      45 ¼” x 37″ x 41″
