Maksiwa Edgebander Platinum Corner Rounding + FREE 3HP Dust Collector CBC.PCR (Delivery and Onsite Installation Included)

$34,900.00
-3% $35,899.00 $34,900.00

As low as $819.98 / month APPLY NOW
Call to purchase
In stock
Usually ships within 24 hours

Payment details

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Help your customers identify what payments are accepted by your store.

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +1 (786) 866-5988

Overview

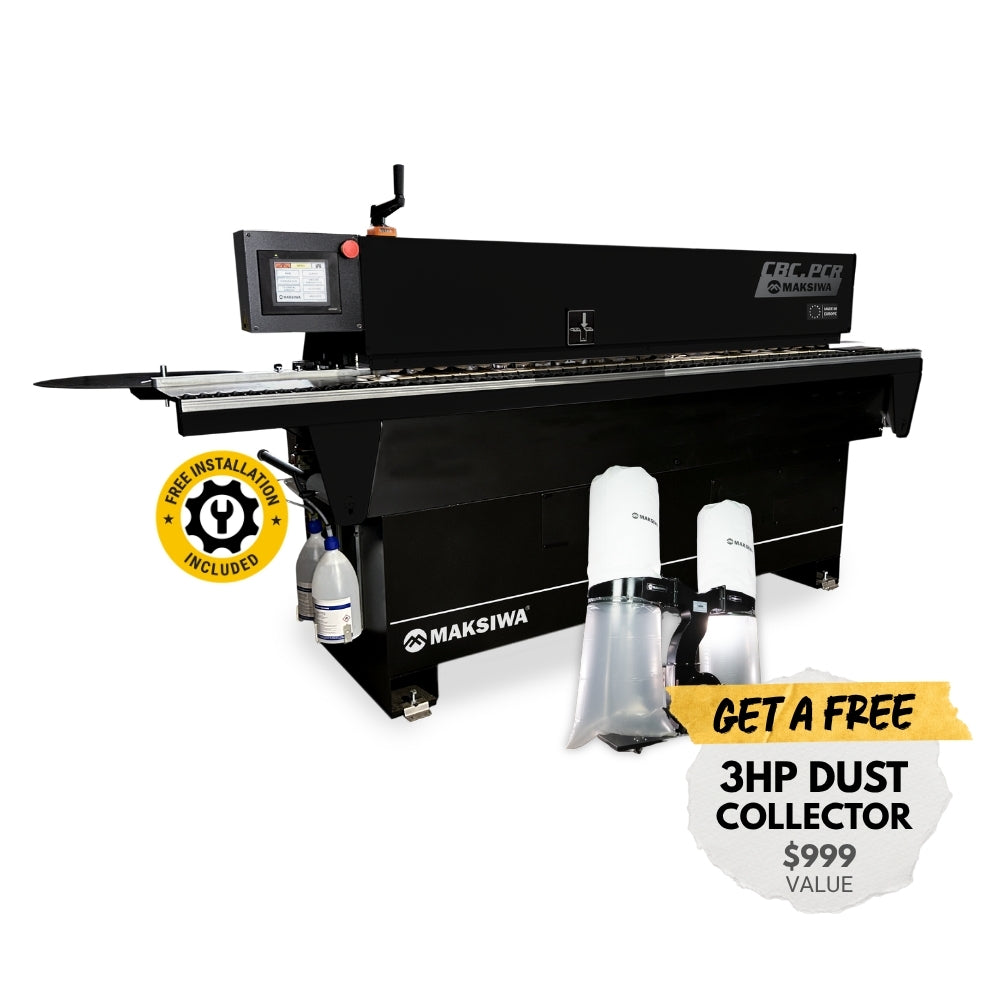

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with a highly requested corner rounding feature, plus pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports both EVA and PUR adhesives. With an 8HP motor and a user-friendly PLC touchscreen, it handles edge tapes from 0.4–3mm and panel thicknesses from 10–50mm. This summer deal includes a free 3HP dust collector, plus delivery and onsite installation.

Key Features

  • Corner rounding, pre-milling, trimming, glue scraping, and buffing in one machine
  • XMELT glue pot system compatible with EVA and PUR adhesives
  • PLC controlled with TFT touchscreen
  • Includes a free 3HP dust collector with this offer
  • Delivery and onsite installation included

Specifications

Automatic Feed Speed 18 ft/min (5.5 m/min)
Panel Thickness (Min/Max) 8–50 mm (21/64″–1-31/32″)
Max Pre-Milling Height 1″ (30 mm)
Edgebanding Thickness 0.4–3 mm (0.0157″–0.118″)
Glue Pot Capacity 1.5 kg (3.3 lb), Teflon coated
Max Edgebanding Height 51 mm (2″)
Extendable Panel Support Rail 2627 mm (103″)
Dust Collector Port Size 150 mm (6″)
Recommended Glue Temperature 180°C–210°C (356°F–410°F)
Machine Dimensions (L x W x H) 3026 x 1036 x 1230 mm (119″ x 40.7″ x 48.4″)
Net Weight 640 kg (1411 lb)
Glue Type Granulated Hot-Melt EVA/PUR
Sound Rating 80 dB
Electrical Requirement 1 Phase, 220V, 30A, 60Hz
