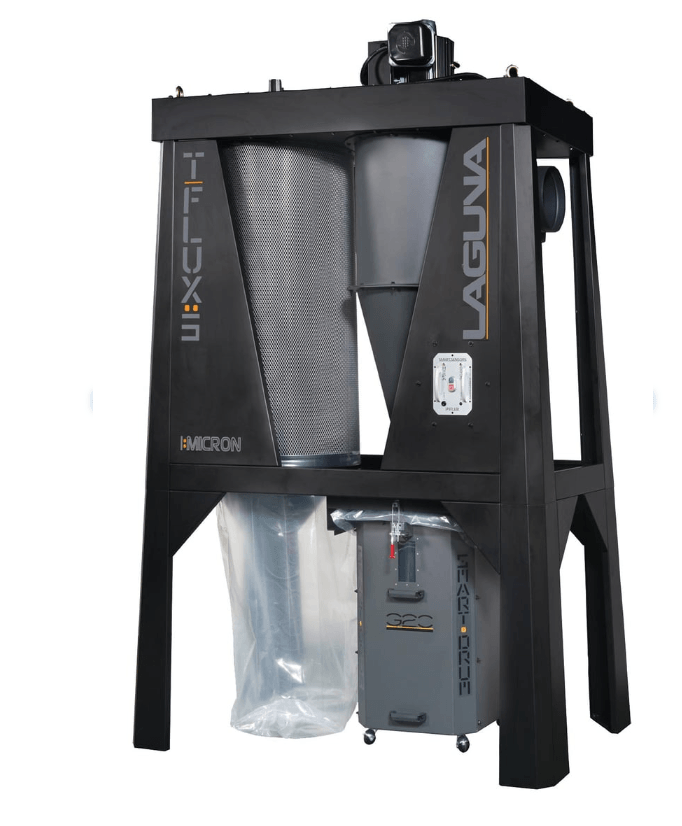

Laguna T|Flux: 10 Industrial Cyclone 10 HP Motor
Laguna Tools T|Flux Dust Collector Series
Industrial Power. Whole-Shop Performance.
The T|Flux series is Laguna’s most robust dust collection solution, designed for shops that demand a single central unit capable of servicing multiple machines. Engineered for maximum airflow and efficiency, the Titan cyclones feature a 12″ main port that splits into 3 × 4″ ports, making it easy to run a large-diameter pipe system with drops to individual workstations.
With a 10HP motor, high-frequency remote control, and LED indicators for full drum and filter dirt detection, the T|Flux is built for serious, professional shop environments.
Key Features
-
10HP Motor delivering industrial-grade suction
-
220V / 3 Phase / 30 Amps with recommended 50 Amp breaker
-
3450 RPM for consistent airflow
-
High-frequency remote control for easy operation
-
LED Drum & Filter Indicators to monitor maintenance at a glance
-
12″ Main Port with 3 × 4″ Outlets for full-shop connectivity
-
Sunken Radio Frequency Switch for safe, convenient control
Specifications
| Spec | Details |
|---|---|
| Motor HP | 10 HP |
| Voltage / Phase | 220V / 3 Phase |
| Amps | 30A |
| Recommended Breaker | 50A |
| Hertz | 60Hz |
| RPM | 3450 |
| Switch Type | Sunken RF Remote with LED Full Drum & Filter Detection |
| Handheld Remote | High Frequency |
| Main Inlet | 12” |
| Outlet Ports | 3 × 4” |
Why Choose T|Flux?
The Laguna T|Flux series is ideal for professional shops and woodworking businesses looking for a single, powerful dust collection unit capable of servicing multiple stations with minimal effort. Its industrial-grade motor, smart indicators, and robust port design ensure consistent performance and easy maintenance.
Manual here.
