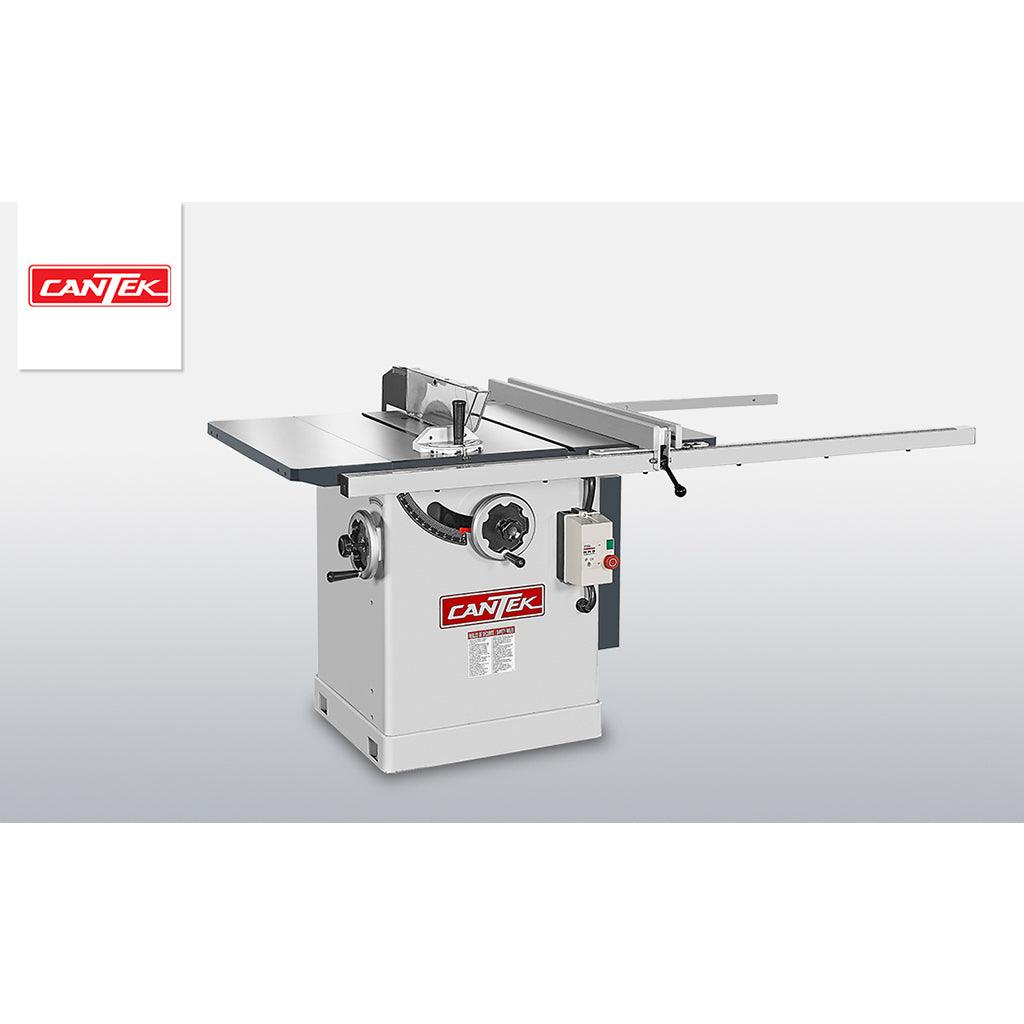

CANTEK Table Saw TA12 - 5hp/1hp
Industrial 12” cabinet table saw with 5HP motor.
The Cantek TA12 12″ Table Saw is for serious woodworkers and production shops that require an industrial strength and powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration free cutting with optimum cut quality. The quick setting T-square rip fence is equipped with dual inch & metric scales for precise rip cutting. The blade guard is mounted to a splitter with anti-kickback pawls for safe operation. Comes standard with both standard and dado arbors and table inserts. Driven by a powerful 5HP motor it can make the cuts you need effortlessly.
Why Cantek TA12 12″ Table Saw?
- Heavy-duty cast iron table is precision ground for accuracy & precision
- Industrial strength cast iron saw carriage and trunnion for vibration free cutting

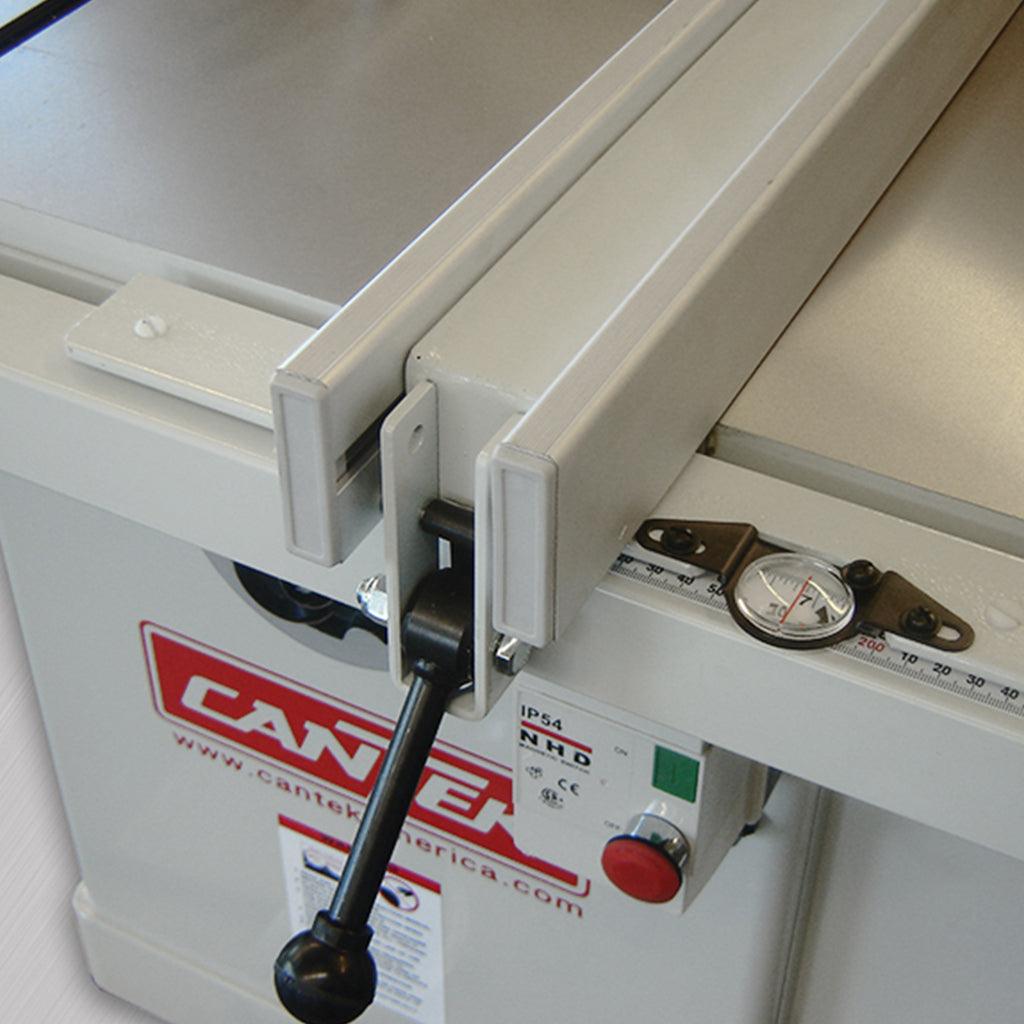

- 50” capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the saw blade

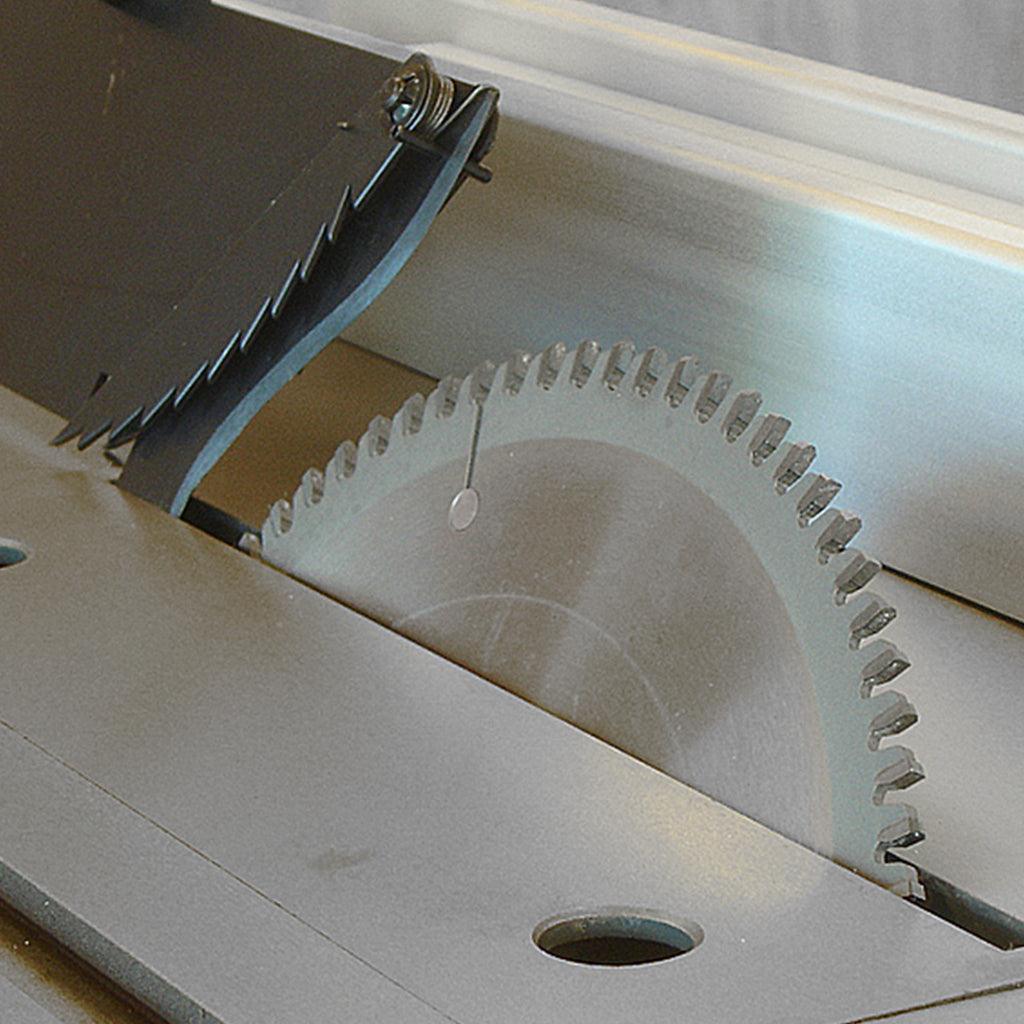

- Right tilt blade to 45o
- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility
- Miter gauge with two miter slots in the table
- Comes with dado arbor & dado table insert
- Rugged machine frame construction provides maximum stability and reduced vibration

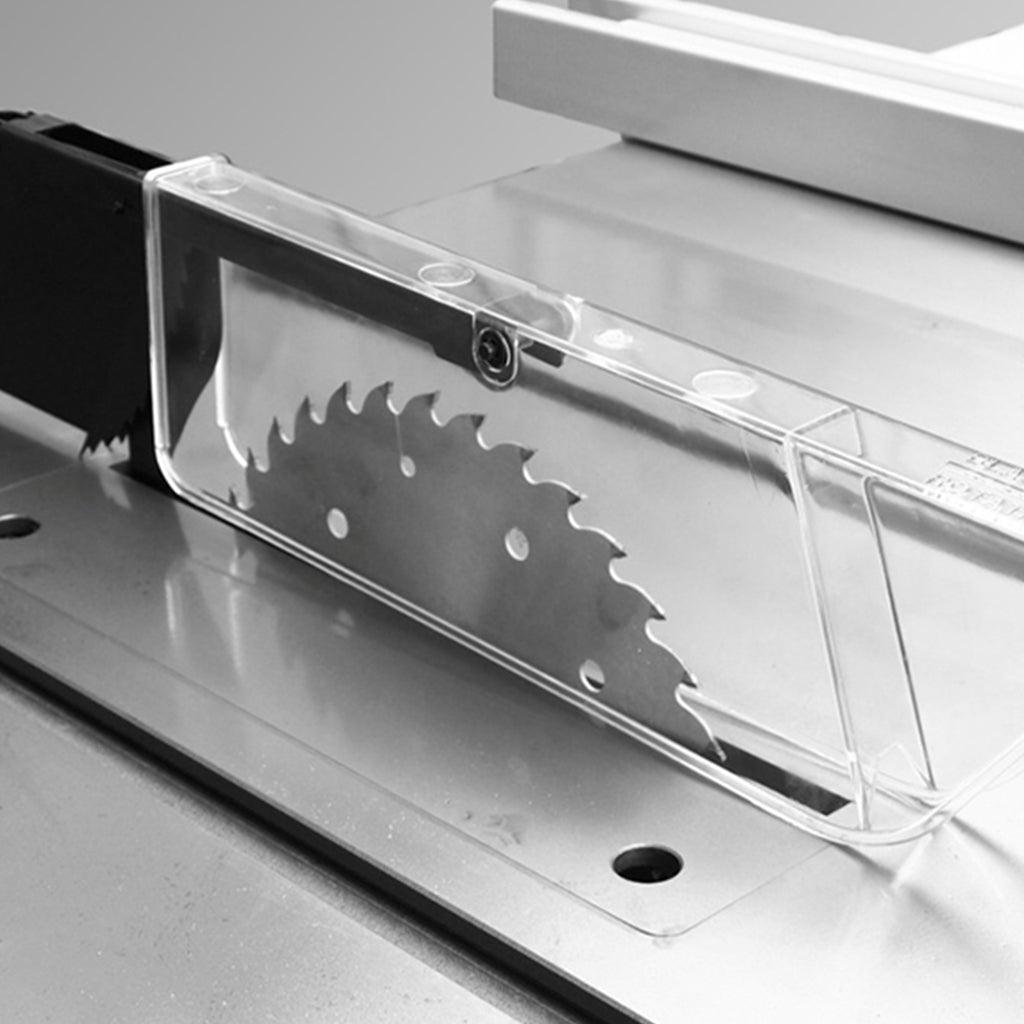

- Saw guard with built in splitter and safety anti-kickback unit

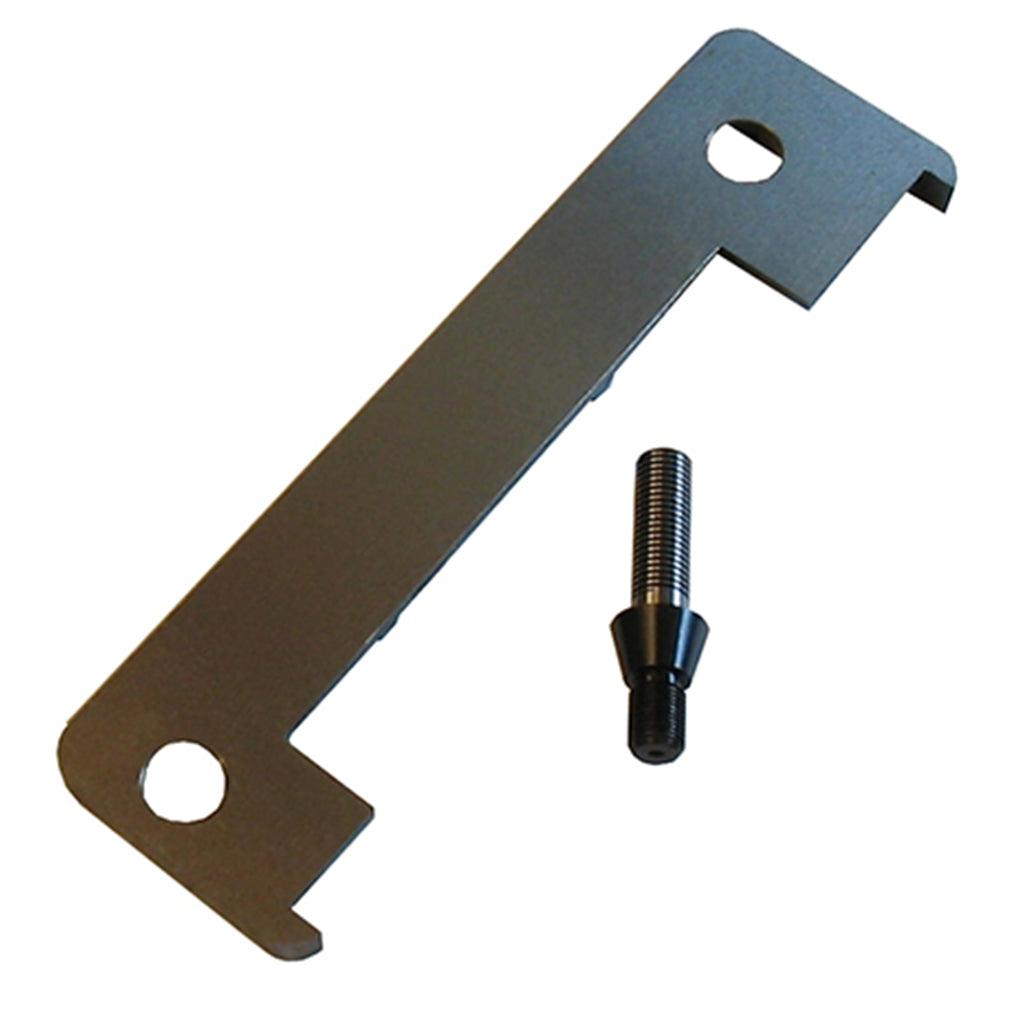

- 1” standard and 5/8” dado arbor included along with appropriate cast iron table inserts

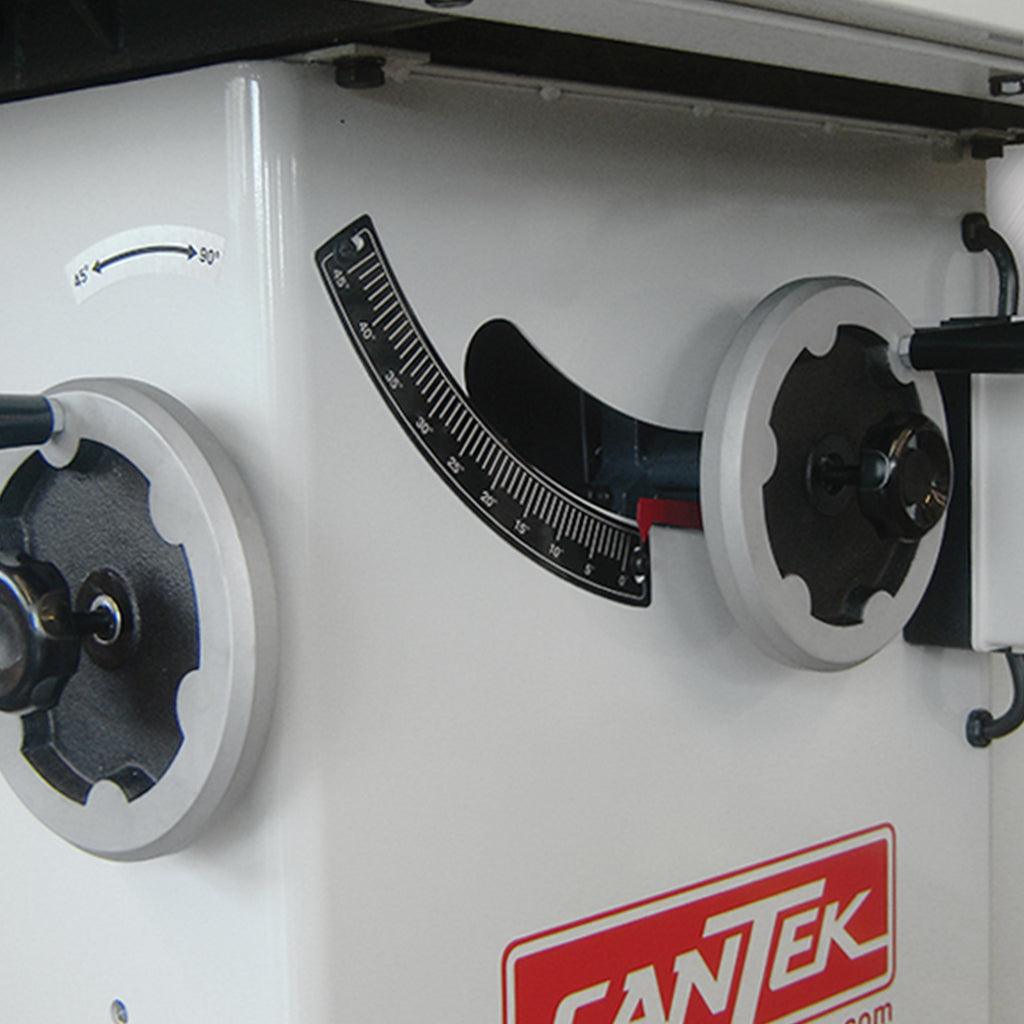

- Handwheel adjustment for blade height and tilting adjustments which can be locked in place

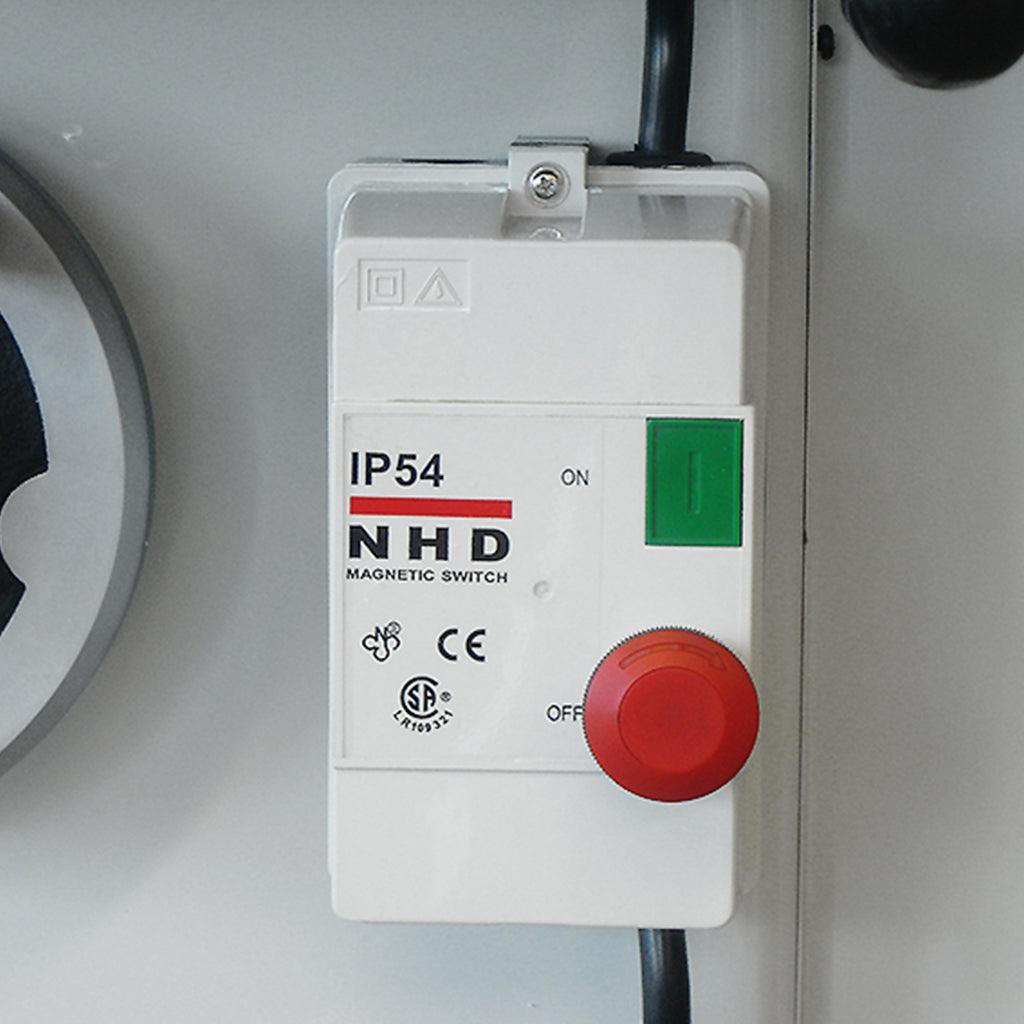

- CSA / UL approved magnetic switch
Saw Blade Diameter
Max. depth of cut at 90°
Max. depth of cut at 45°
Dado arbor diameter
Max. rip to right of blade
230/3/60 = 15.2 Full Load Amps
230/1/60 = 28 Full Load Amps
Packing size (LxWxH)
