Overview

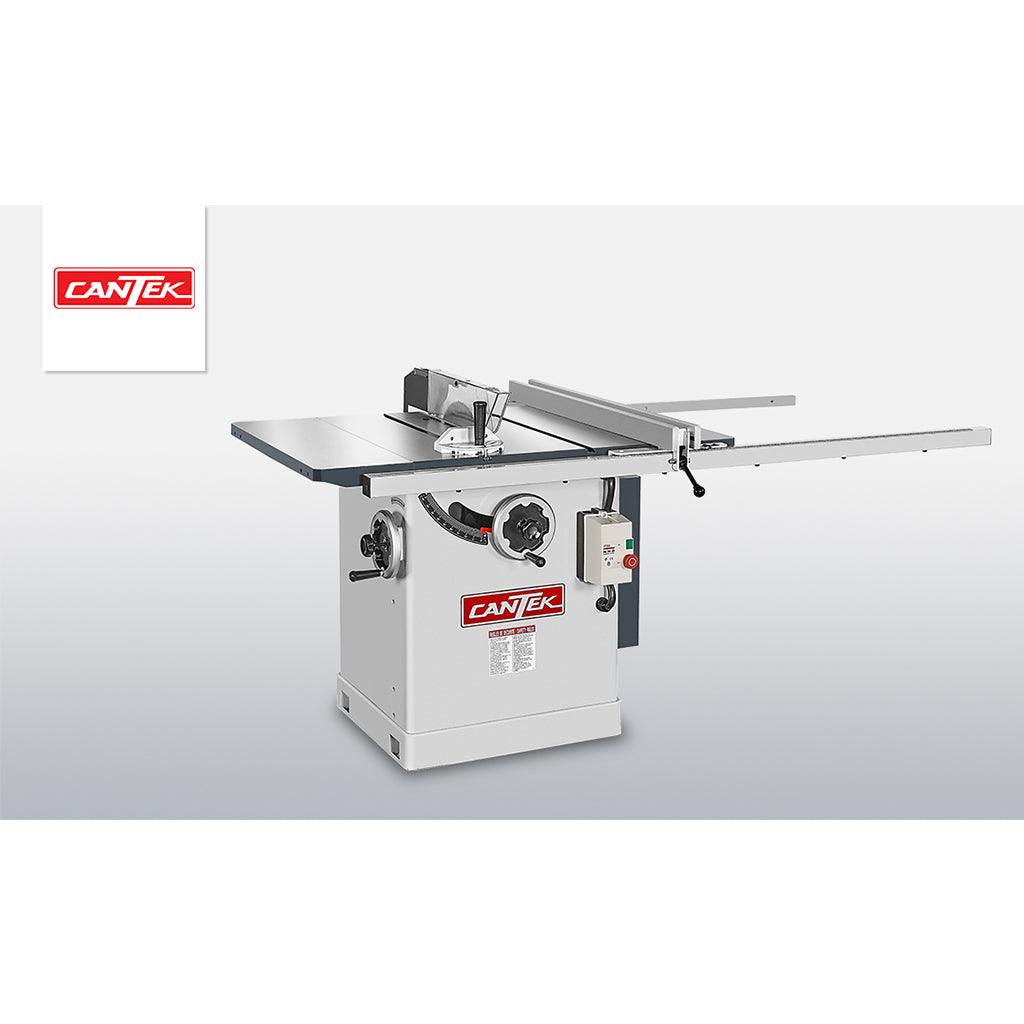

The Cantek TA16B is an industrial 16″ cabinet table saw with a powerful 10HP motor, built for serious woodworkers and production shops that require an industrial strength, powerful table saw. The large precision-ground & polished cast-iron table and cast-iron saw unit ensure vibration-free cutting with optimum cut quality, and the quick-setting T-square rip fence has dual inch & metric scales for precise rip cutting.
Key Features
- Heavy-duty cast iron table, precision ground for accuracy
- Industrial strength cast iron saw carriage and trunnion for vibration-free cutting
- 50″ capacity T-square rip fence assembly locks on front rail for a precise parallel reference to the blade
- Right tilt blade to 45°

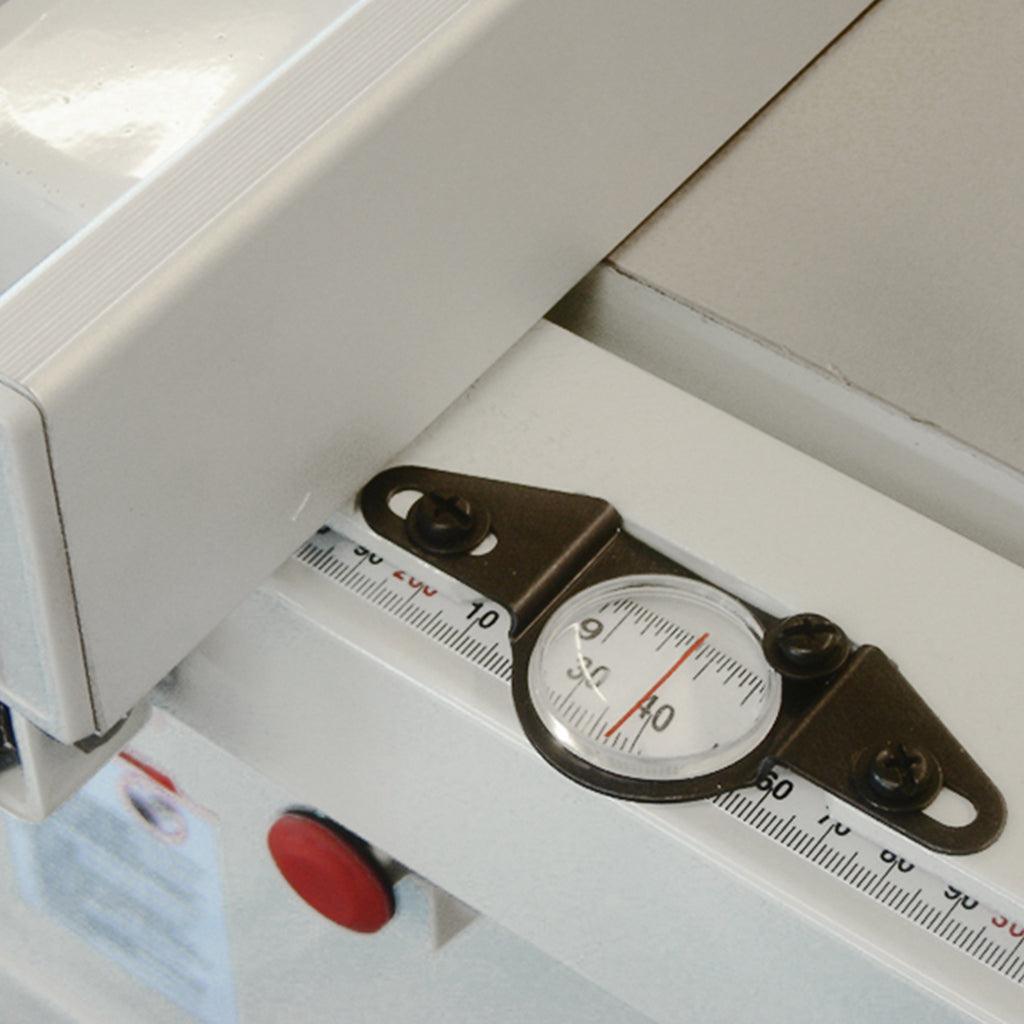

- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility

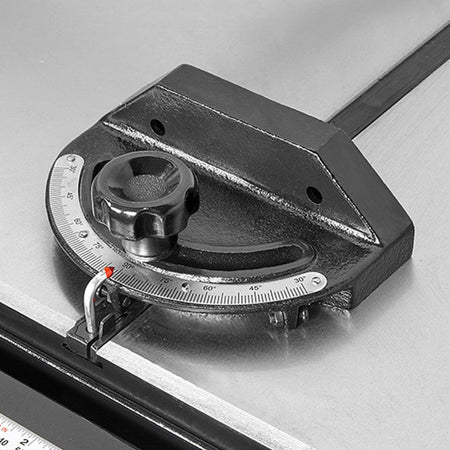

- Miter gauge with two miter slots in the table

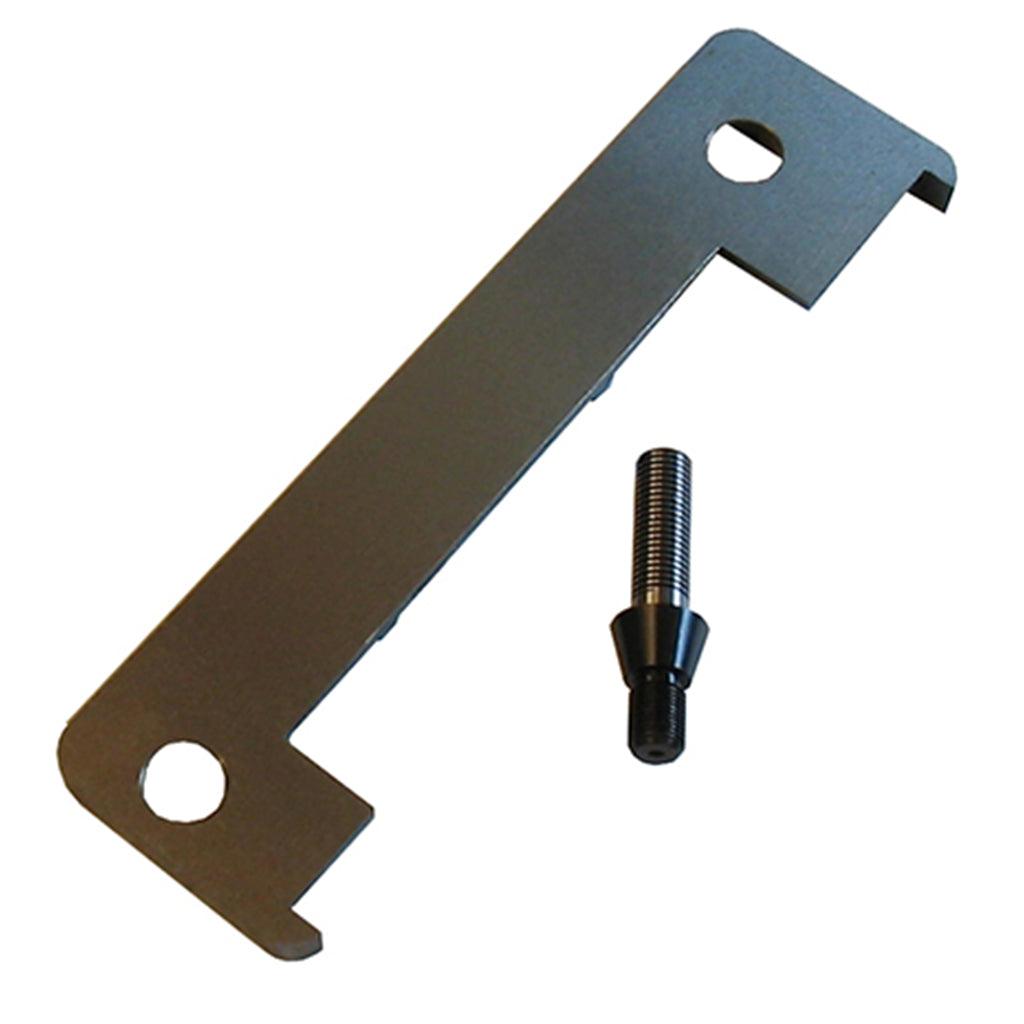

- Comes with dado arbor & dado table insert
- 16″ blade can be lowered completely under the table
- Rugged machine frame construction for maximum stability and reduced vibration
- Saw guard with built-in splitter and anti-kickback safety unit
- 1″ standard and 1″ dado arbor included with appropriate cast iron table inserts

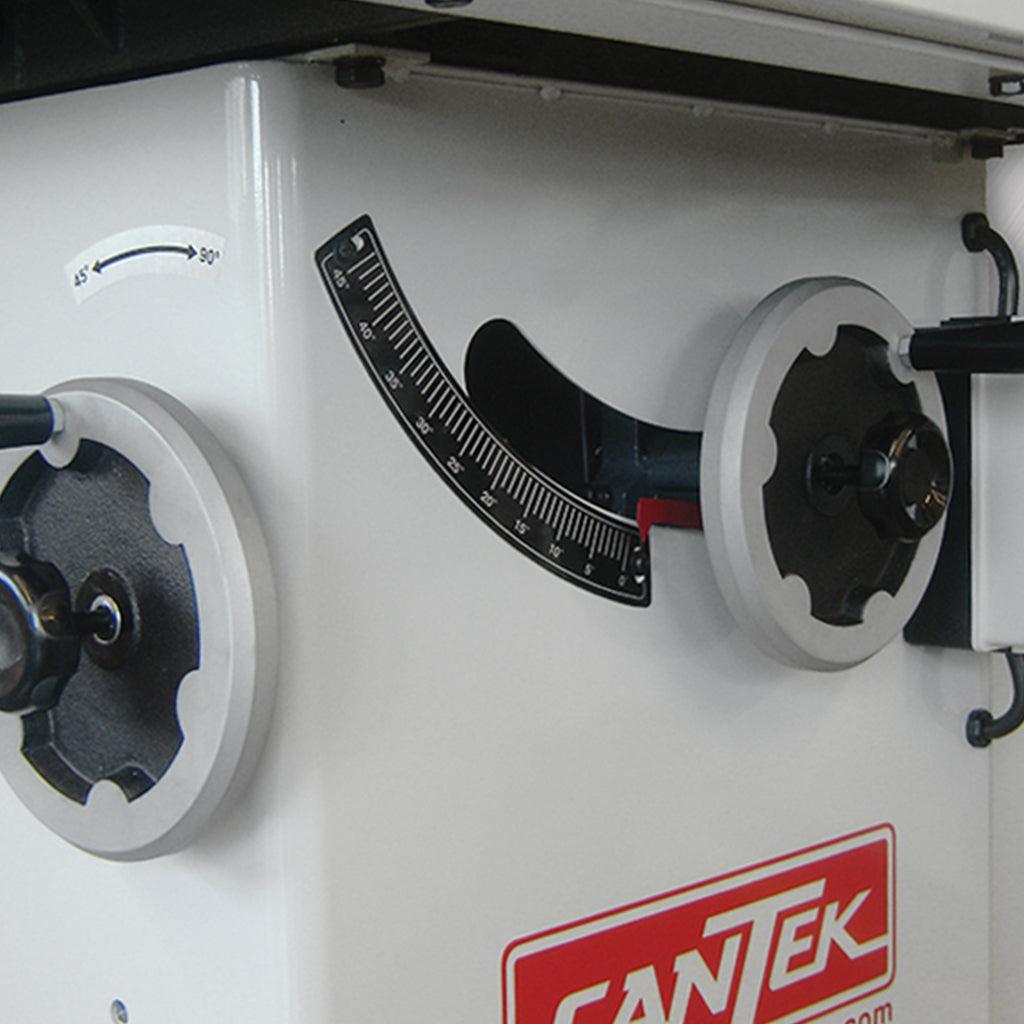

- Handwheel adjustment for blade height and tilt, lockable in place

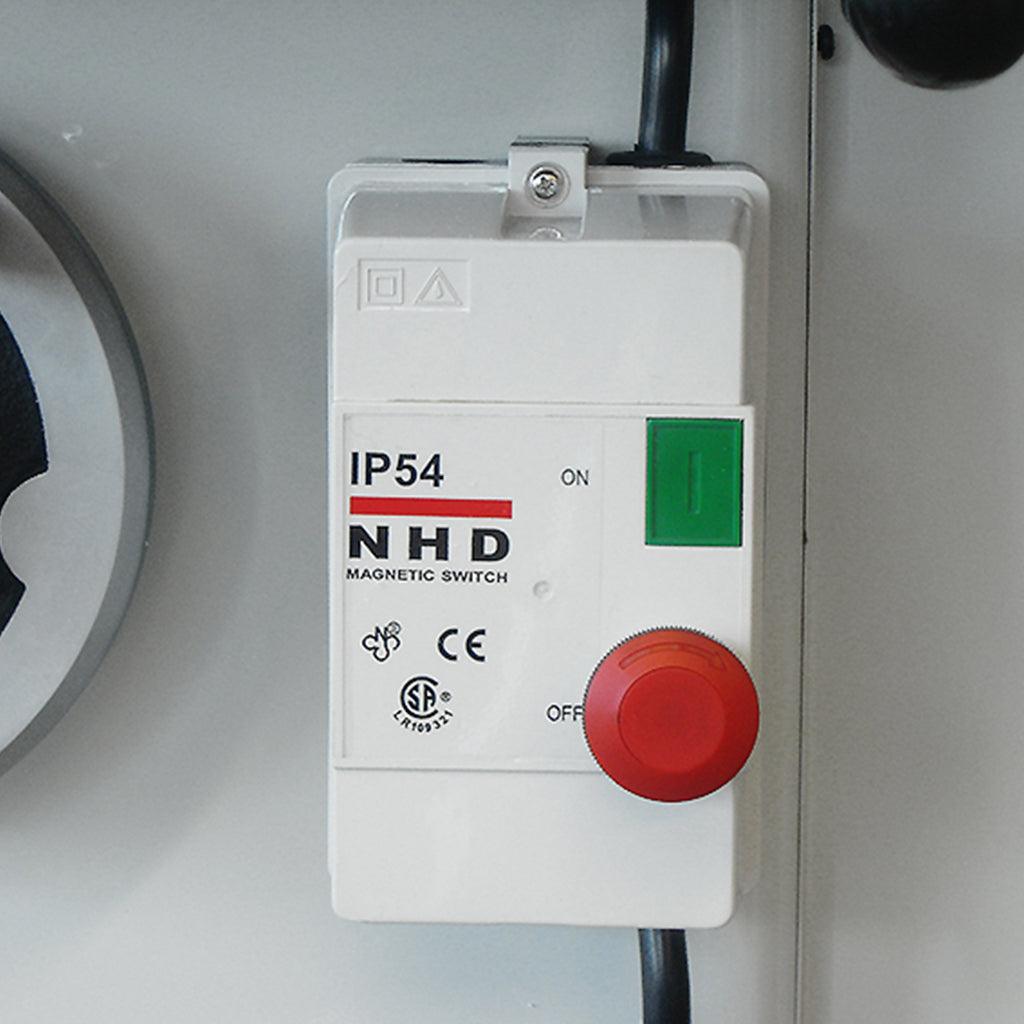

- CSA / UL approved magnetic switch
Specifications
| Saw Blade Diameter | 16″ |
|---|---|
| Max. Depth of Cut at 90° | 5½″ |
| Max. Depth of Cut at 45° | 3 7/8″ |
| Arbor Diameter | 1″ |
| Dado Arbor Diameter | 1″ |
| Arbor Speed | 3750 RPM |
| Table Size | 48″ x 38″ |
| Table Height | 34¼″ |
| Max. Rip to Right of Blade | 50″ |
| Motor | 10 HP |
| Electrical | 230/3/60 = 28 Full Load Amps; 460/3/60 = 14 Full Load Amps |
| Net Weight | 869 lbs |
| Gross Weight | 1036 lbs |
| Packing Size (LxWxH) | 37″ x 44″ x 42″ |
