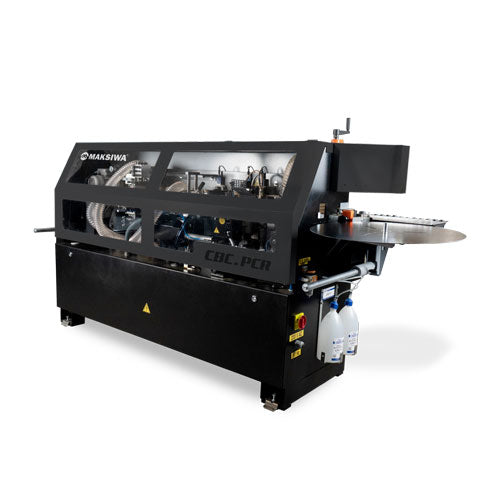

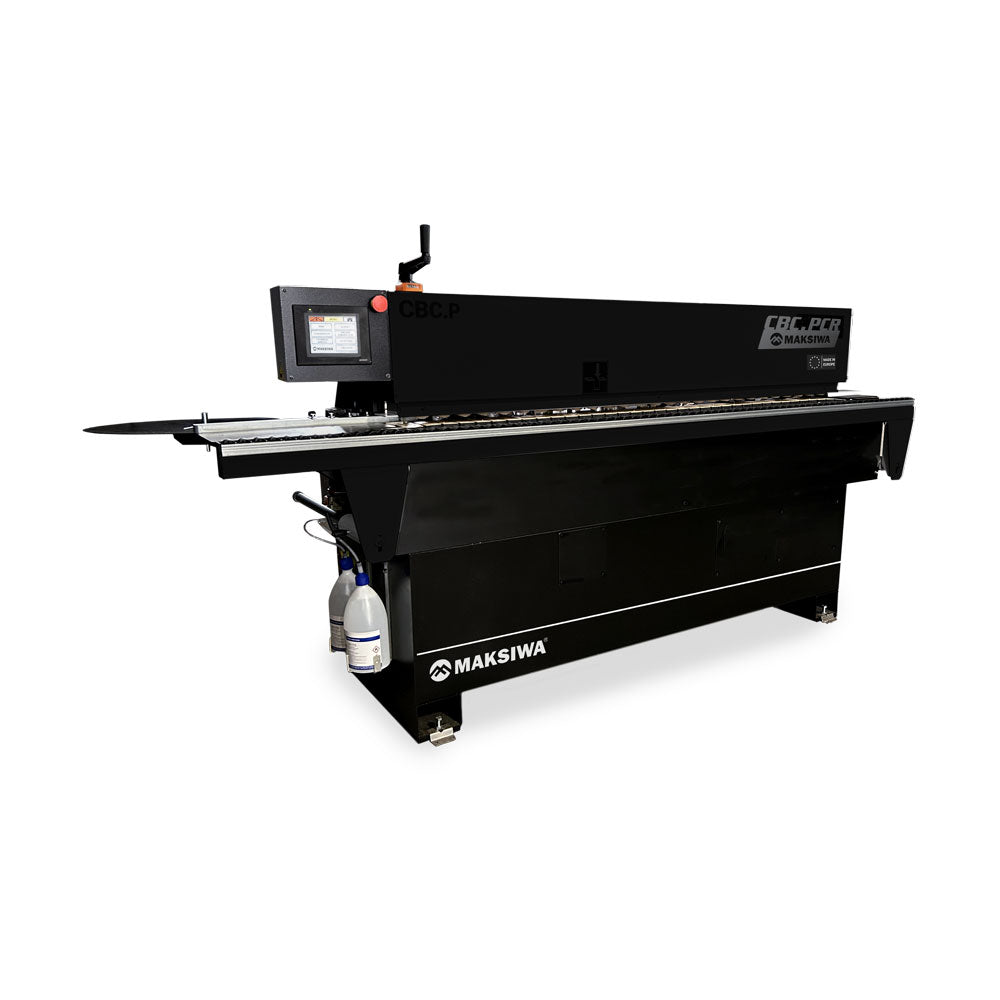

Maksiwa Edgebander Platinum Corner Rounding | CBC.PCR (Delivery and Onsite Installation Included)
Couldn't load pickup availability
Payment details
Help your customers identify what payments are accepted by your store.
Got questions?
Feel free to get in touch
Ask an expert!
Delivery and onsite installation included
The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot
system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.
Pre-milling & Corner Rounding in a small footprint
-
Features:
• Automatic Feeding speed: 18 ft/min/5.5m/min
• Panel thickness Min/Max: 21/64" - 1 31/32"/8 - 50mm
• Max Pre-milling Height: 1"/30mm
• Edgebanding thickness: 0.0157" - 0.118"/0.4-3mm
• Glue Pot Capacity: 3.3lb./1.5Kg
• Max Edgebanding Height: 2"/51mm
• Minimum panel width: 3"/75mm
• Minimum panel length: 7 7/8"/200mm
• Extendable Panel Support Rail Length: 103"/2627mm
• Extension table Max Width: 54"/1371mm
• Size of Dust Collector Ports: 6"/150mm
• Minimum Dust Collection Requirements: 1236 CFM/2100 m3/h
• Air Pressure Requirement: 14 SCFM @ 87PSI/0.7 Mpa
• Edgebanding coil Support Diameter: 59"/1498mm
• Recommend Glue Temperature Range: 356°F - 410°F/180°C - 210°C
• Max. machine dimensions (LxWxH): 119"x 40 16/16"x 48. 7/16"/3026 x 1036 x 1230 mm
• Net weight: 1411lb./640Kgs
• Glue Type: Granulated Hot-Melt EVA/PUR
• Sound Rating: 80 dB
• Electrical Requirement: 1 Phase 220V 30 Amps 60 Hz
• Conveyer Motor: 60 Hz 1390 RPM .66 kw
• Top/Bottom Trimmer HFM: 200 Hz 12,000 RPM .27kw
• End Trimmer Motor HFM: 200 Hz 12,000 RPM .27kw
• Front/Rear Pre-Milling HFM: 150 Hz 9000 RPM .75/.25K
• Top Buffing Motor: 60 Hz 1680 RPM .11kw
• Bottom Buffing Motor: 60 Hz 1680 RPM .11kw
Pre-Milling and Corner Rounding in a Small Footprint: • Edge Tape: 0.4-3 mm
• Panel Thickness: 8-50mm
• 1 Phase 220V 60Hz
• Corner Rounding Unit
• Glue Scraper Unit
• Buffing Unit
• End Trimming HF Motor

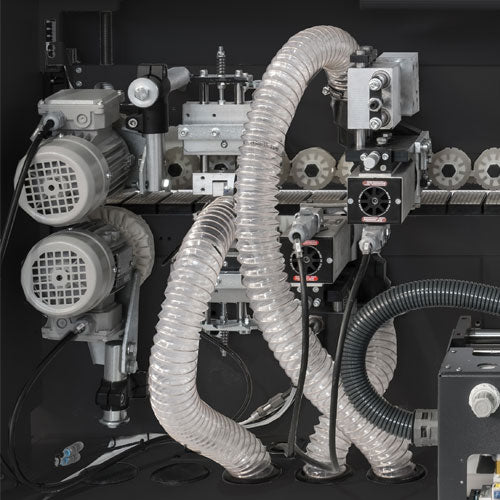

• Pre-milling Unit 2 HF Motors with Diamond Cutters
• XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)
• C.A.S.S - Cleaning Agent Spraying System
• Glue Pot Capacity 1.5kg|3.3lb. Teflon Coated
• Automatic feeding Speed 18 ft/min
• Conveyor Chain Feed System for optimum results.
• HF motors controlled by independent electronic converters
• Net Weight 1411 lb.|640 kgs
• Compact Design
PLC controlled by TFT touch screen

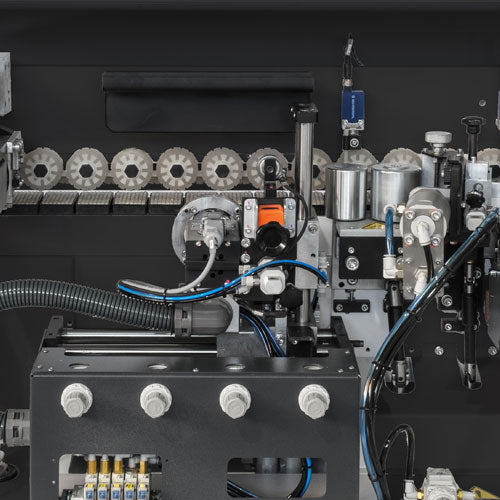

Corner Rounding

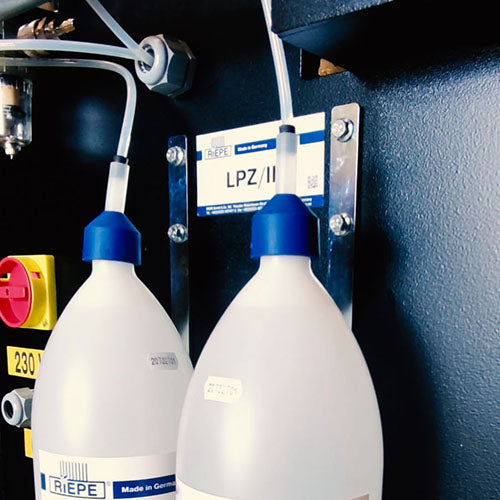

Cleaning agent Spray System
Buffing Unit
