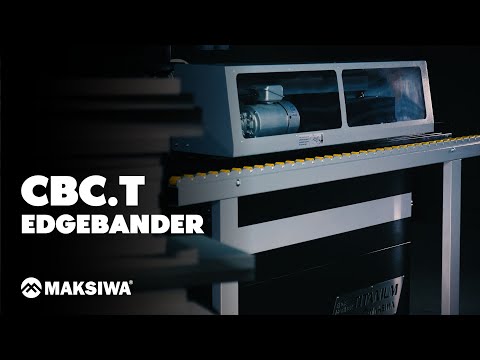

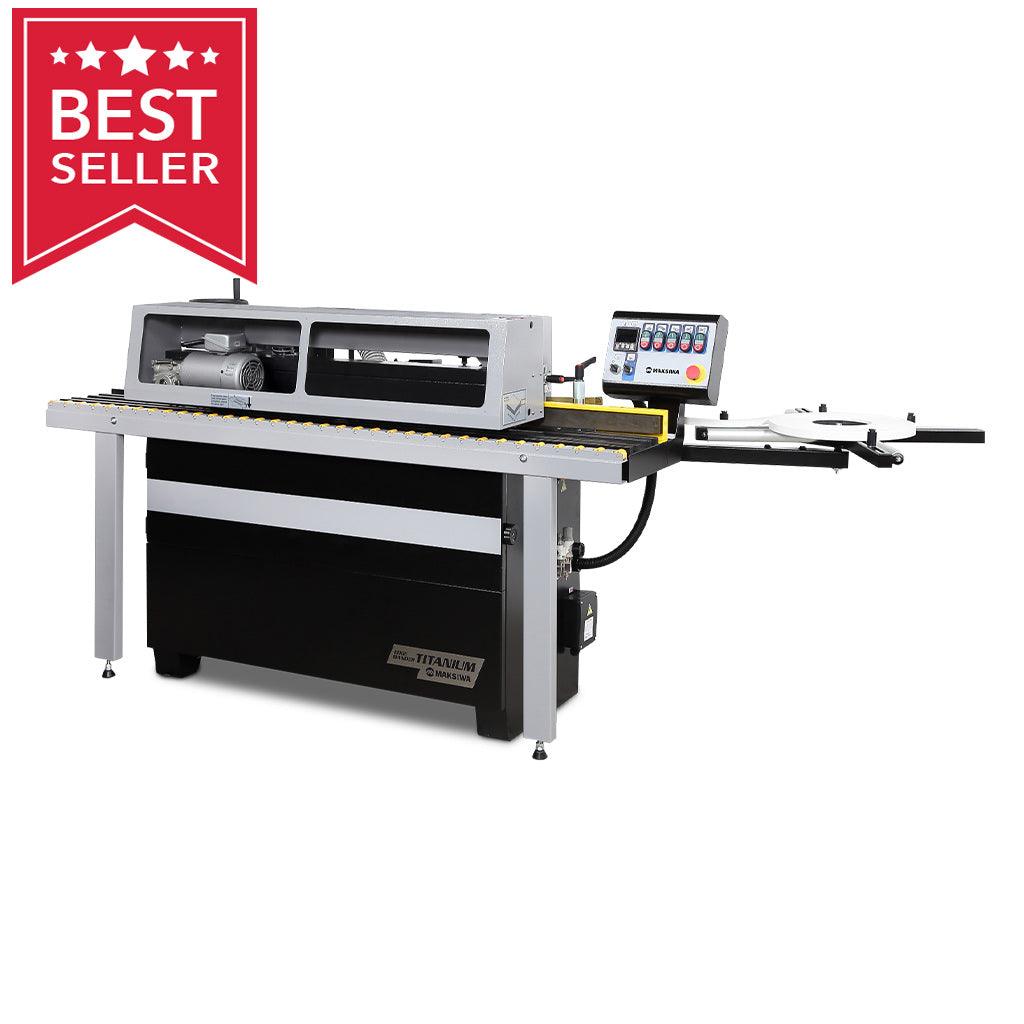

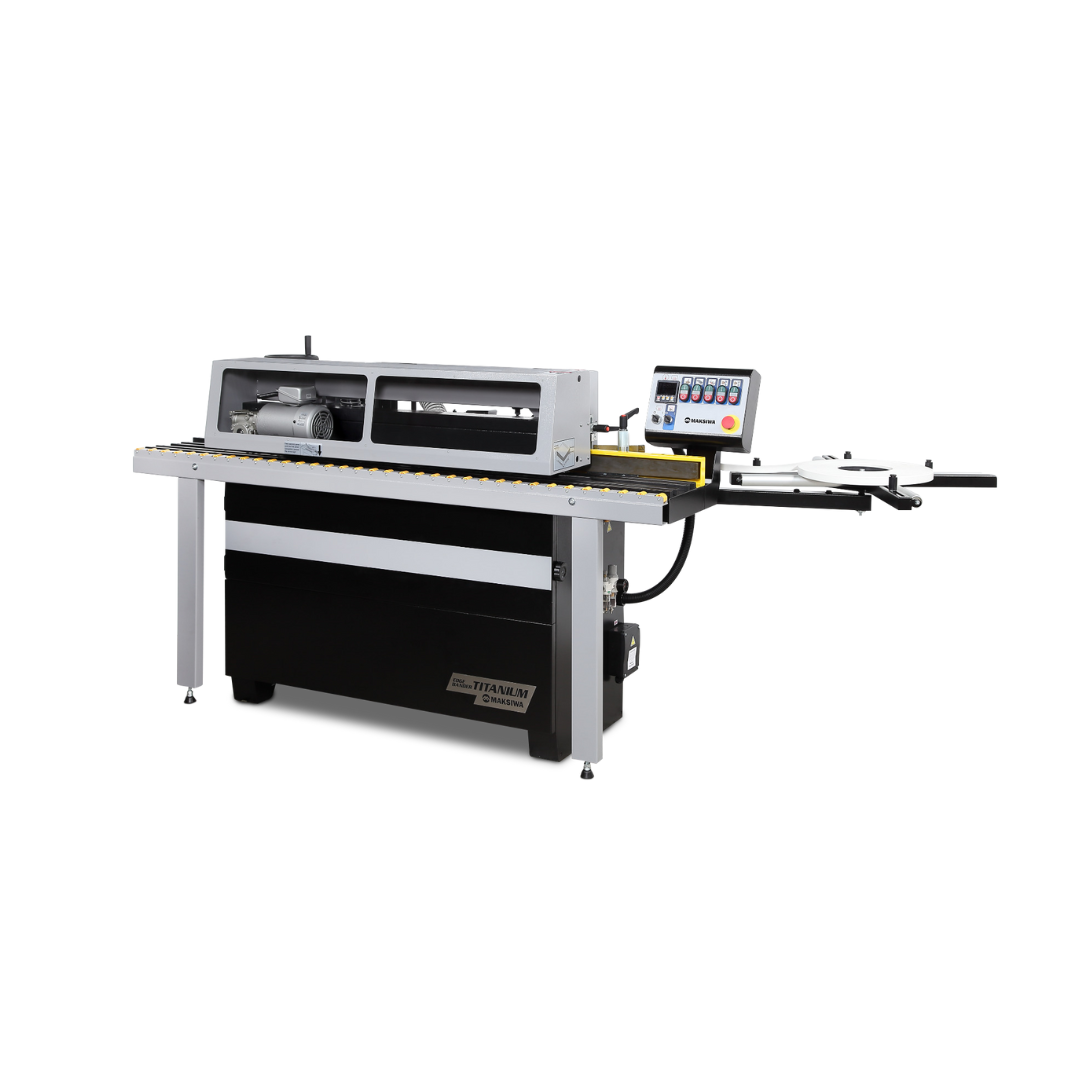

Titanium Automatic Edgebander
The new Maksiwa CBC.T Automatic Edgebander is already one of our customers favorite! Super steady and stable, with a stainless-steel mono-block base. All operating units are easy to be accessed through the upper protection hood. The friction-free worktable feed panels with high-precision and rollers moves the panels through effortlessly and smoothly. All stations are adjusted with a mechanical readout for reference and panel processing is fully automatic with all operating units synchronized.
- Machine frame made out of steel, single block base with superior stability.

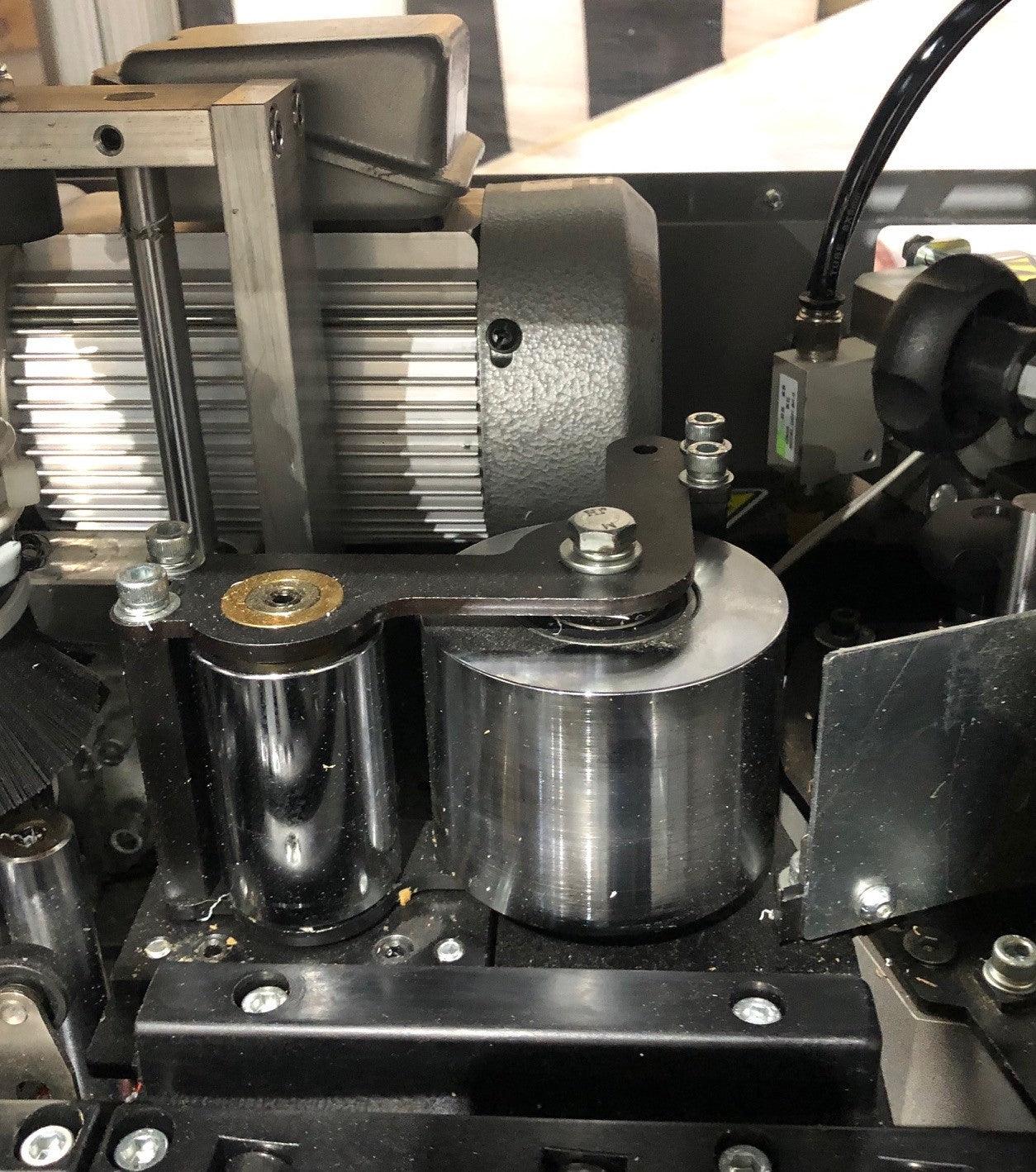

- Dual pressure rollers.

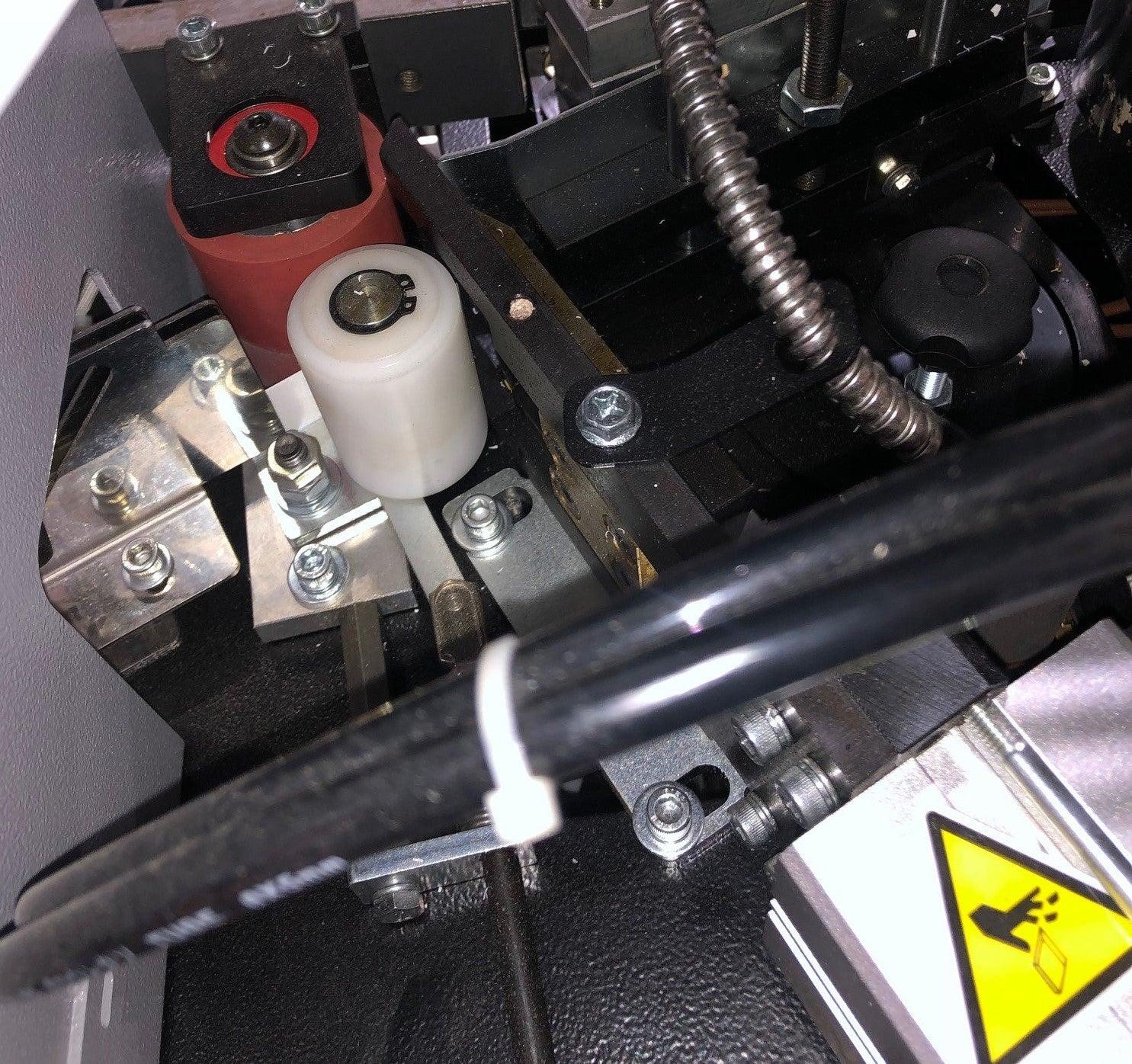

- Automatic belt feed.

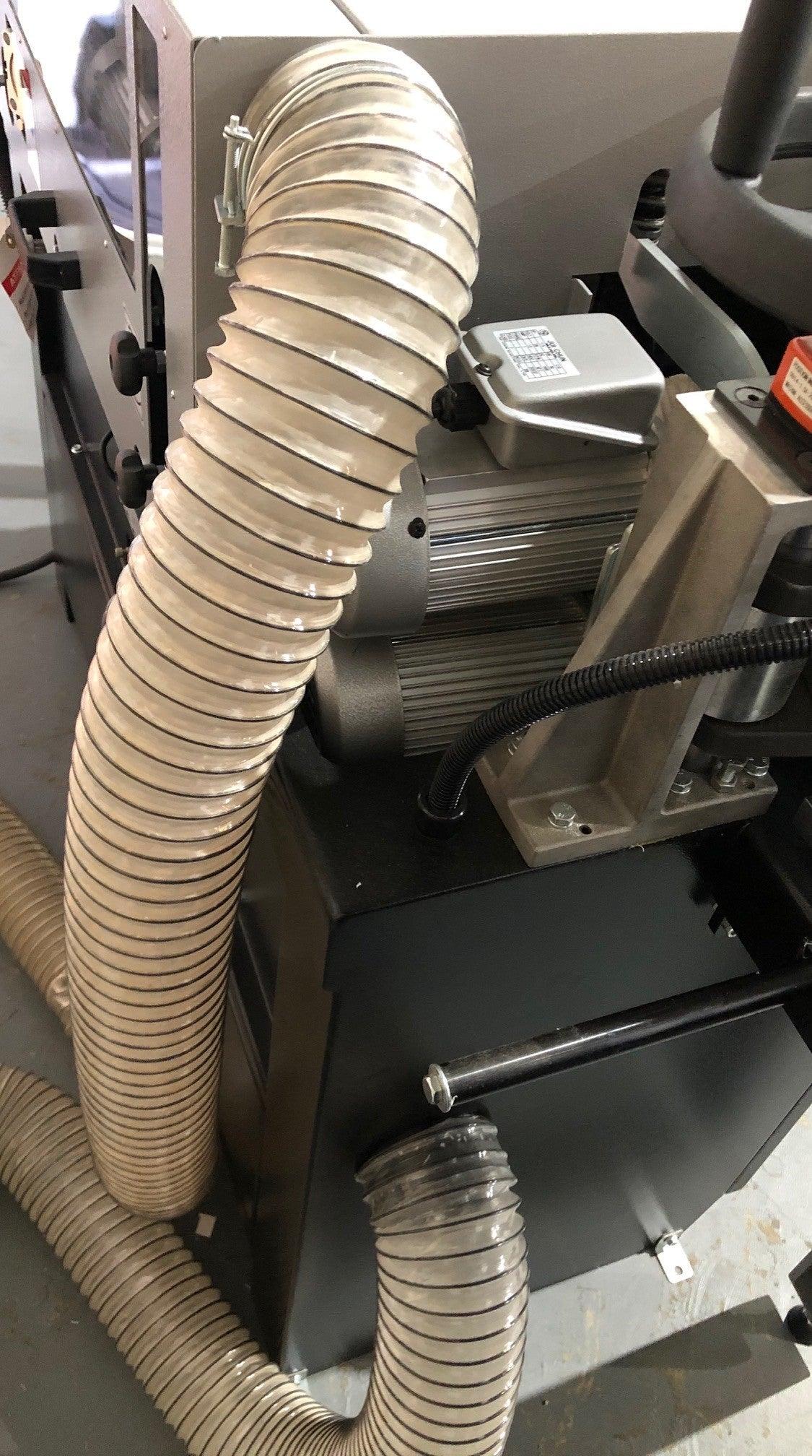

- Dust collection Port.
- Friction-free worktable.

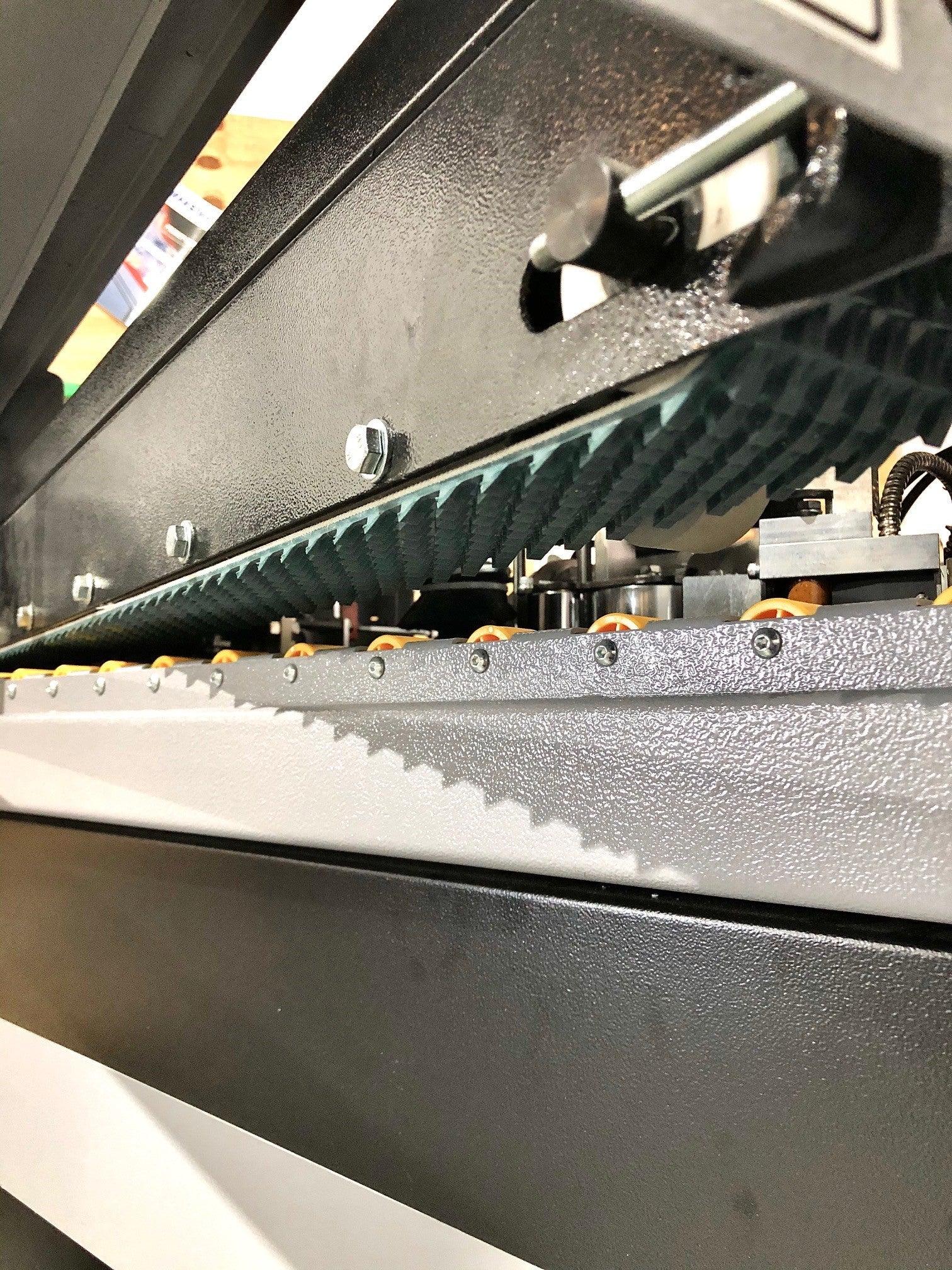

- Top feeder with high-adherence toothed head belt with steel cables inside.
- Telescopic front support with rollers.
- Anodized aluminum outfeed fence.
- Emergency push button.

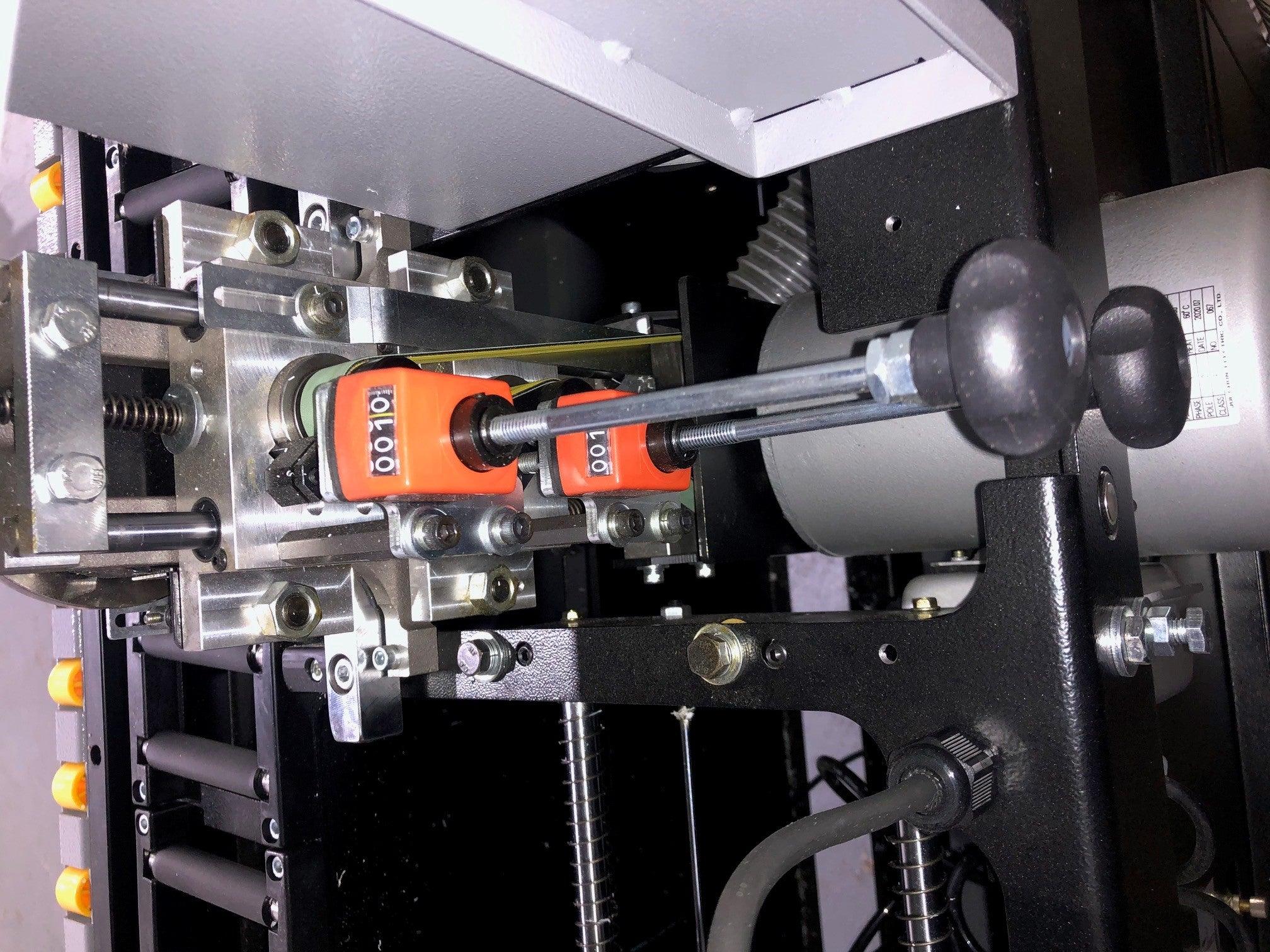

- Mechanical indicator for panel thickness.

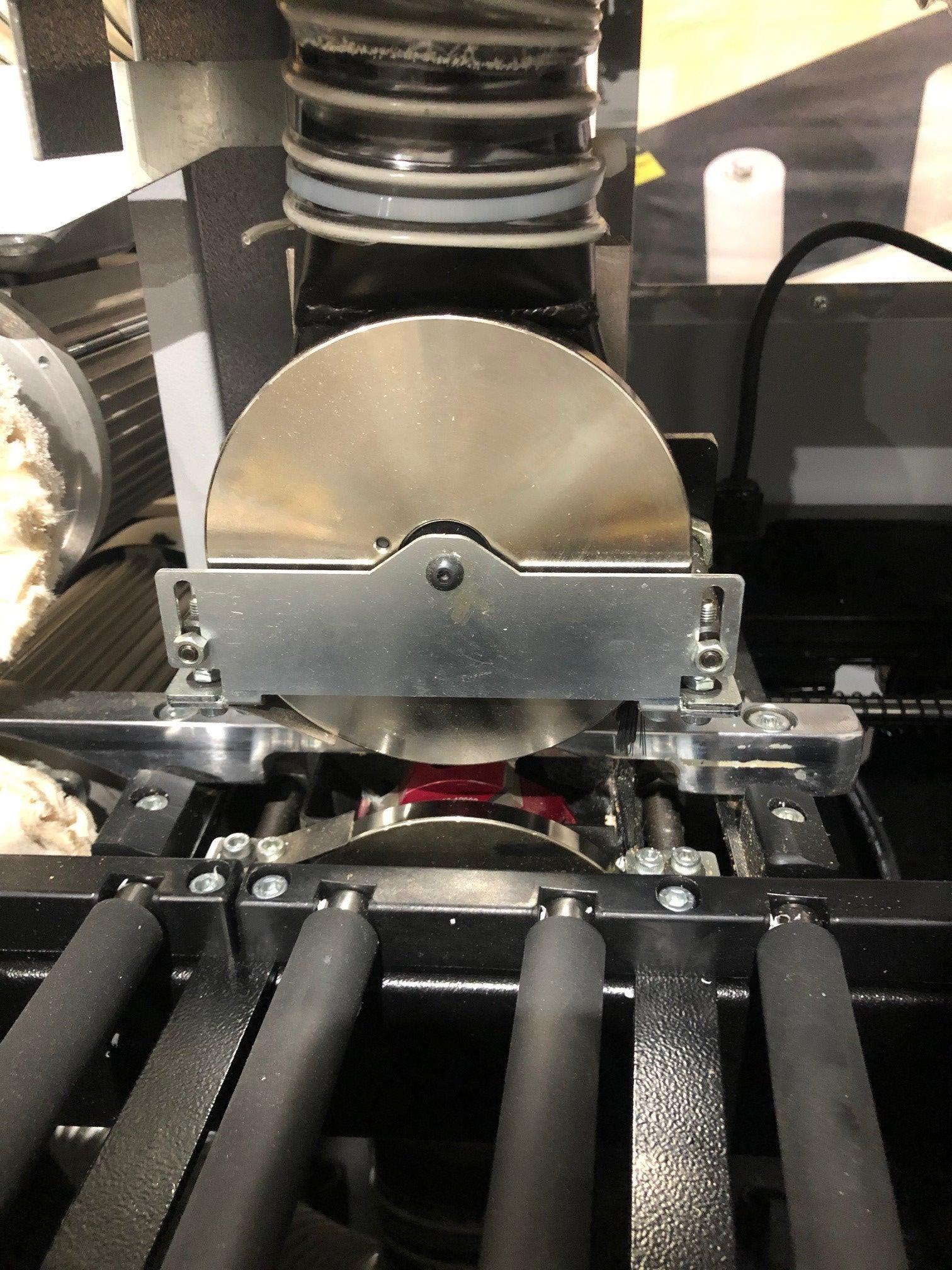

- Mechanical indicators for top and bottom trimmers.
- Mechanical indicators on fence for tape thickness.

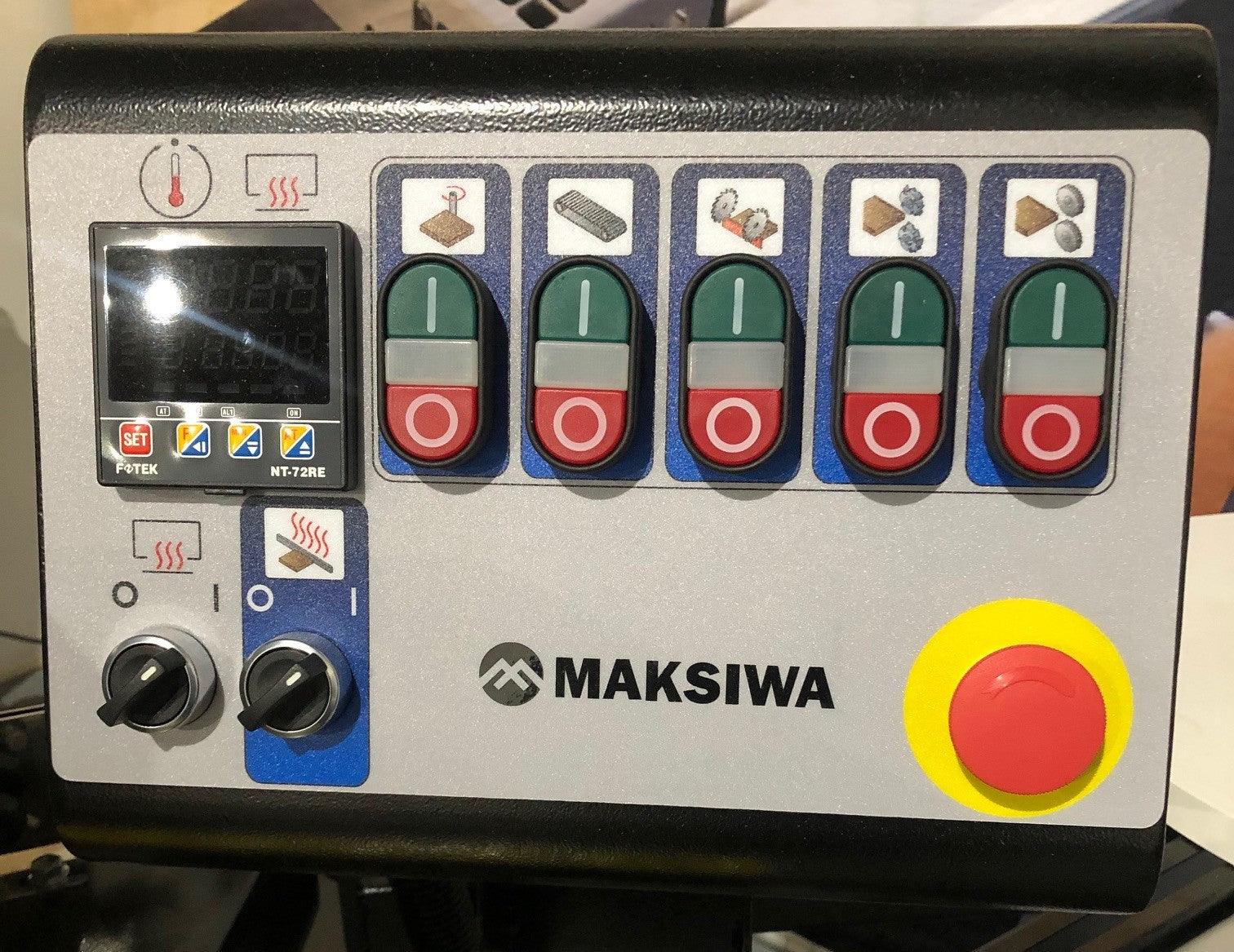

- Electrical cabinet with PLC, padlockable main switch and overload protection.
- Angled feed rollers in table bed.
- Angled feed rollers in table bed.
- Roller copy bearings.

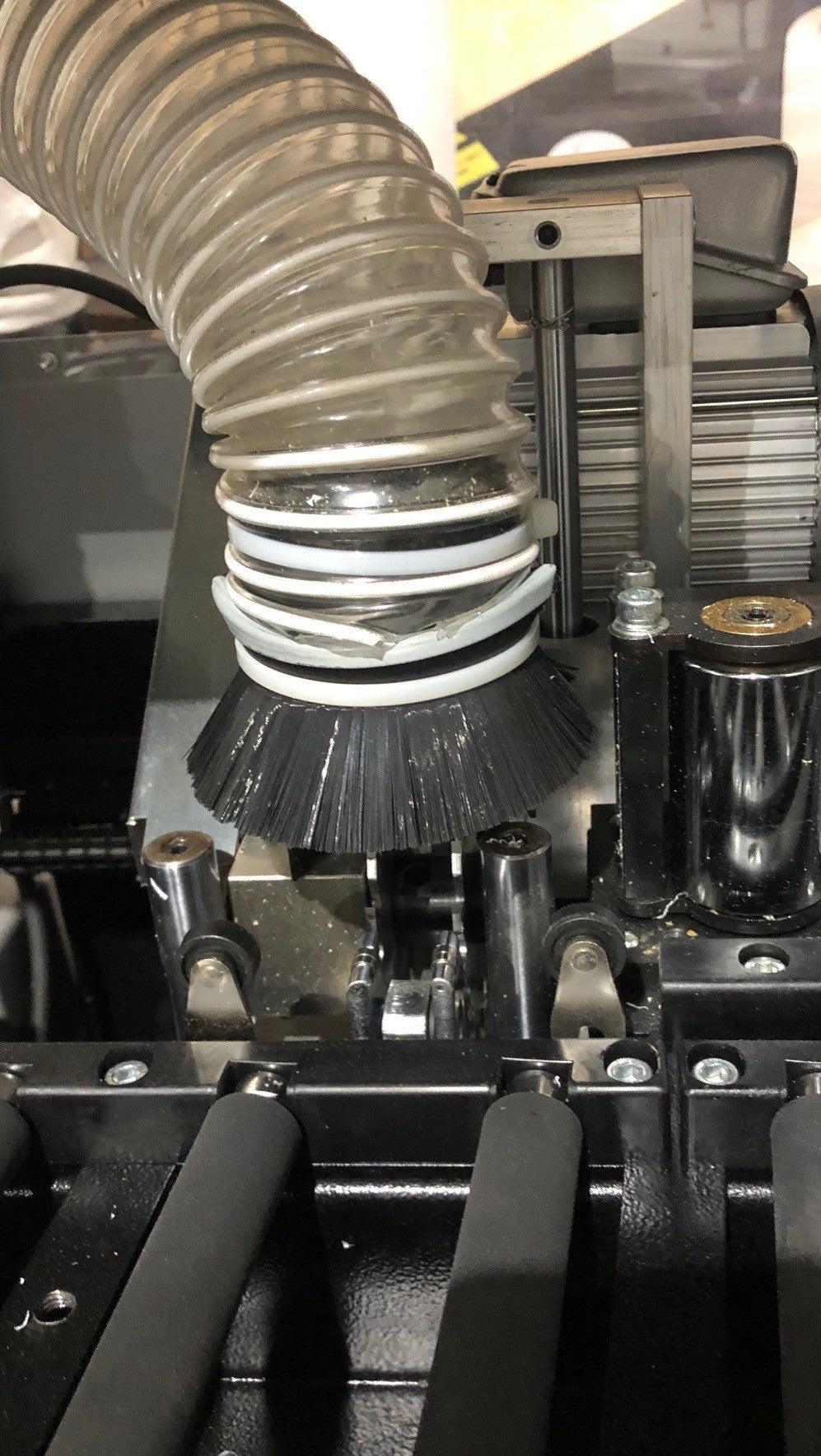

- End trim with saw blade.
- Safety enclosure.
Additional Information
- Working table dimensions: 2000 x 265 mm
- Extensible support: 310 mm
- Panel thickness: 12 / 45 mm
- Automatic panel feed speed: c.a5 mt/1’
- End trimming unit rotation speed: 9.000 RPM
- Flush trimming unit rotation speed: 10.000 RPM
- (T.C.T) cutters: Ø 75 mm Z4-12° R=2 mm
- Dust collection outlet: Ø 100 mm
- Glue pot elements: 1.135 W
- Total power installed: Ca. 3.3 KW
- Voltage: 380 – 440/50 – 60/3, 220 – 240/50 – 60/3
- Approx. weight (N.W./G.W.): 336 / 385KGS *** 740 / 849LBS
