Overview

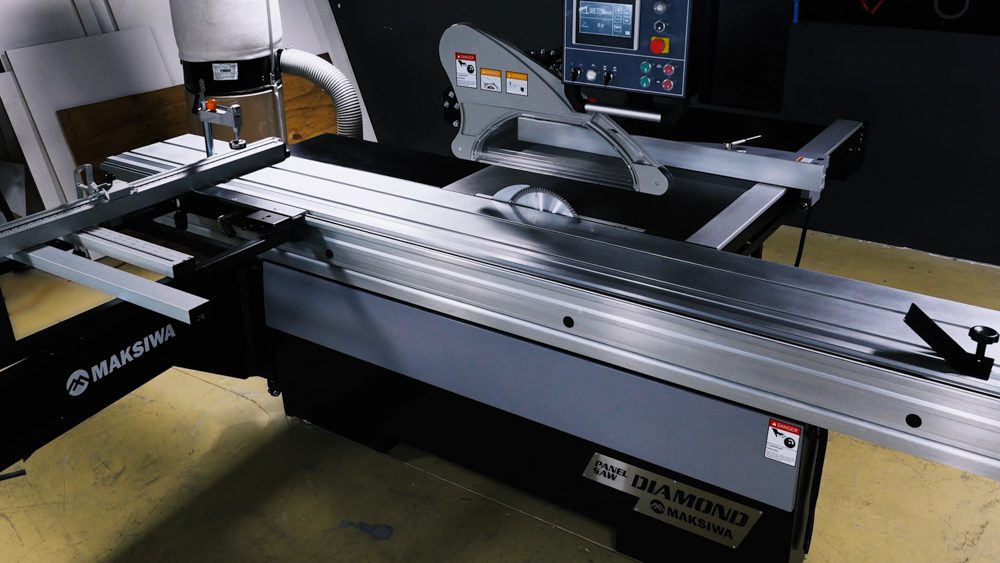

With over 30 years of experience building sliding panel saws, Maksiwa's BMD.3200.IR represents the newest and most advanced machine in its category. Built for exceptional durability and ultra-smooth operation, it uses superior components and materials from design through final assembly to deliver top-tier performance.
Key Features

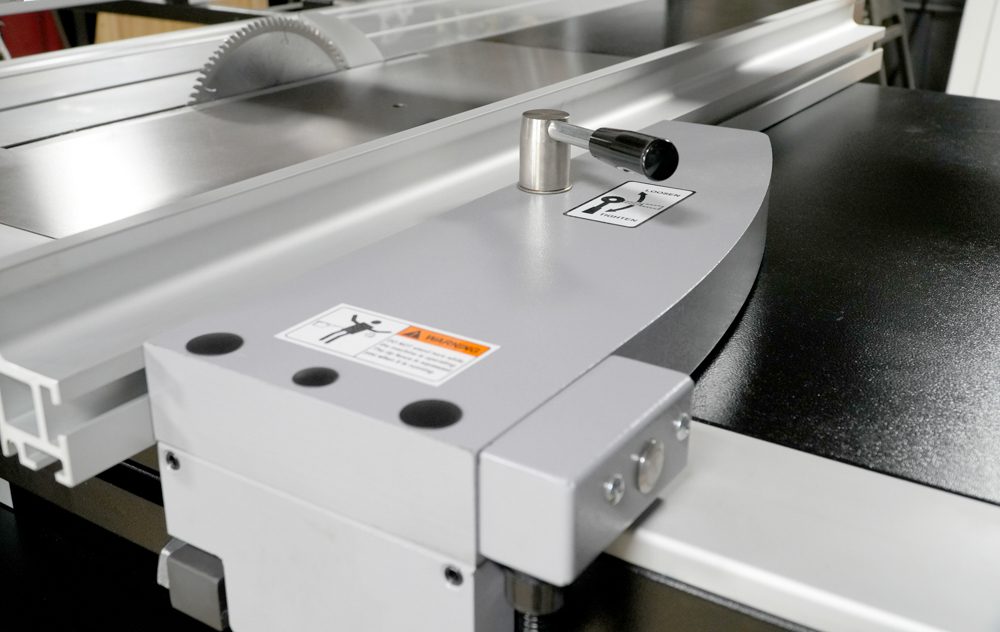

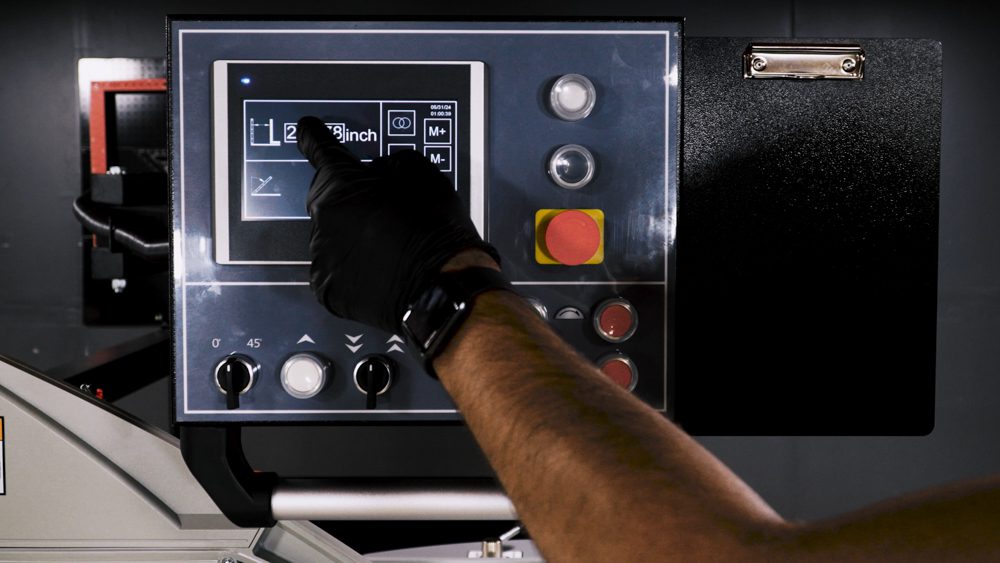

- Programmable rip fence
- 10 HP, 3-phase main motor
- Set of blades included

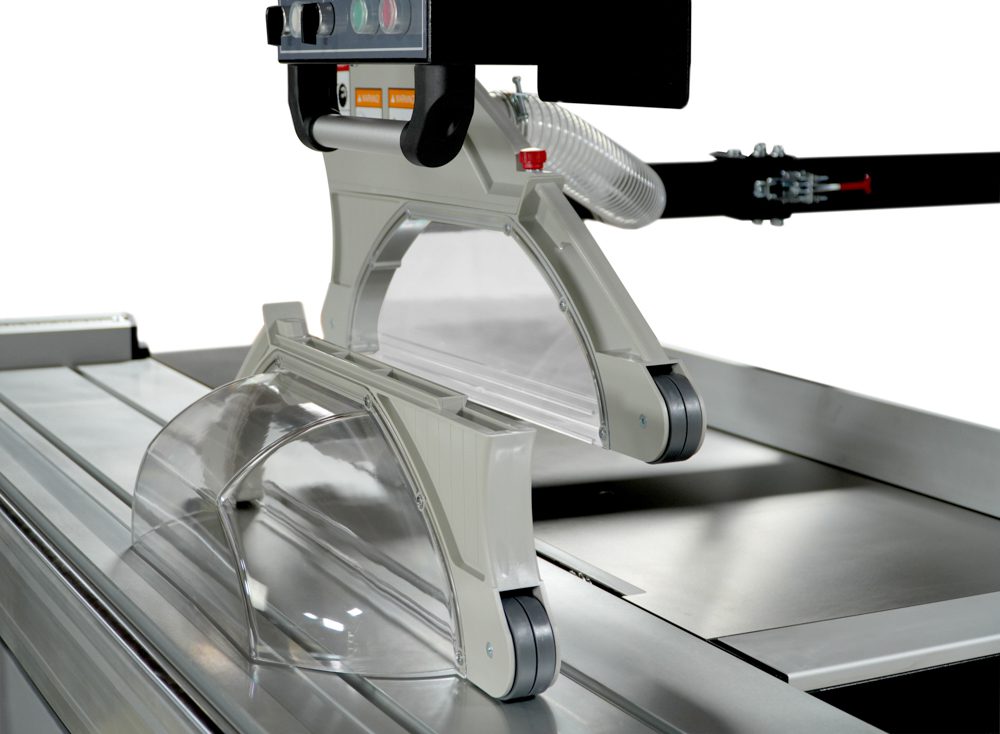

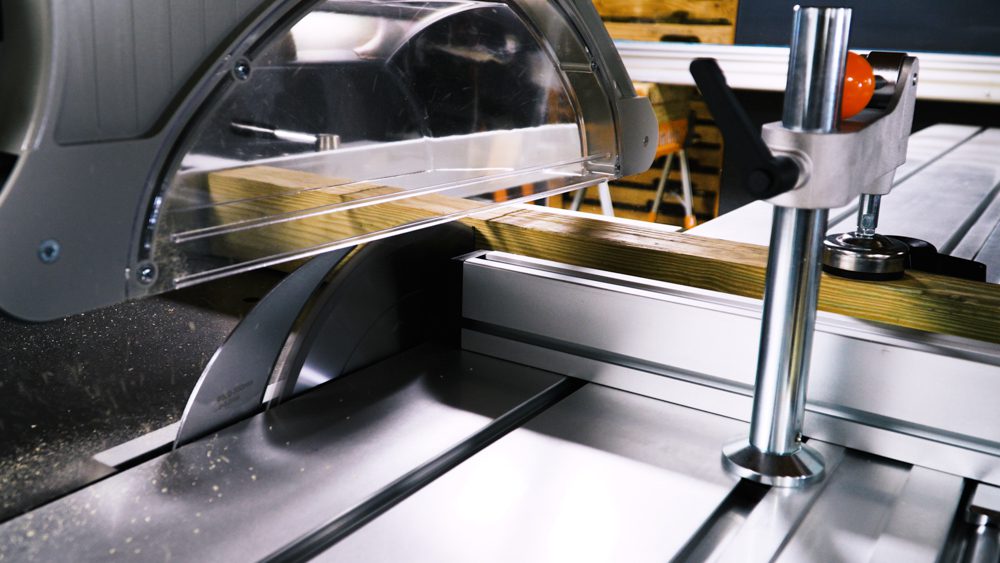

- Dual blade protection cover
- Manual blade tilt (0°–45°) and height adjustment
Specifications
| Main Motor Power | 10 HP, 3 Phase, 220V |
|---|---|
| Scoring Motor Power | 1 HP (0.75 kW) |
| Sliding Table Dimensions | 126″ x 15″ (3200 x 378 mm) |
| Cast Iron Table | 35″ x 21″ (896 x 548 mm) |
| Rear Extension Table | 37″ x 35″ (952 x 896 mm) |
| Front Extension Table | 32.5″ x 12.5″ (830 x 320 mm) |
| Total Table Size | 68″ x 59″ (1726 x 1500 mm) |
| Max Blade Diameter | 16″ (400 mm) |
| Main Blade Arbor Size | 1″ (30 mm) |
| Main Blade Speed | 3,000 / 4,000 / 5,000 RPM |
| Max Cutting Height @ 90° | 5″ (130 mm) |
| Max Cutting Height @ 45° | 3.5″ (90 mm) |
| Max Cutting Capacity | 51″ (1300 mm) |
| Scoring Blade Diameter | 4-3/4″ (120 mm) |
| Scoring Blade Arbor Size | 3/4″ (20 mm) |
| Scoring Blade Speed | 8,000 RPM |
| Overhead Guard Dust Port | 4″ (100 mm) |
| Main Dust Port | 4-3/4″ (120 mm) |

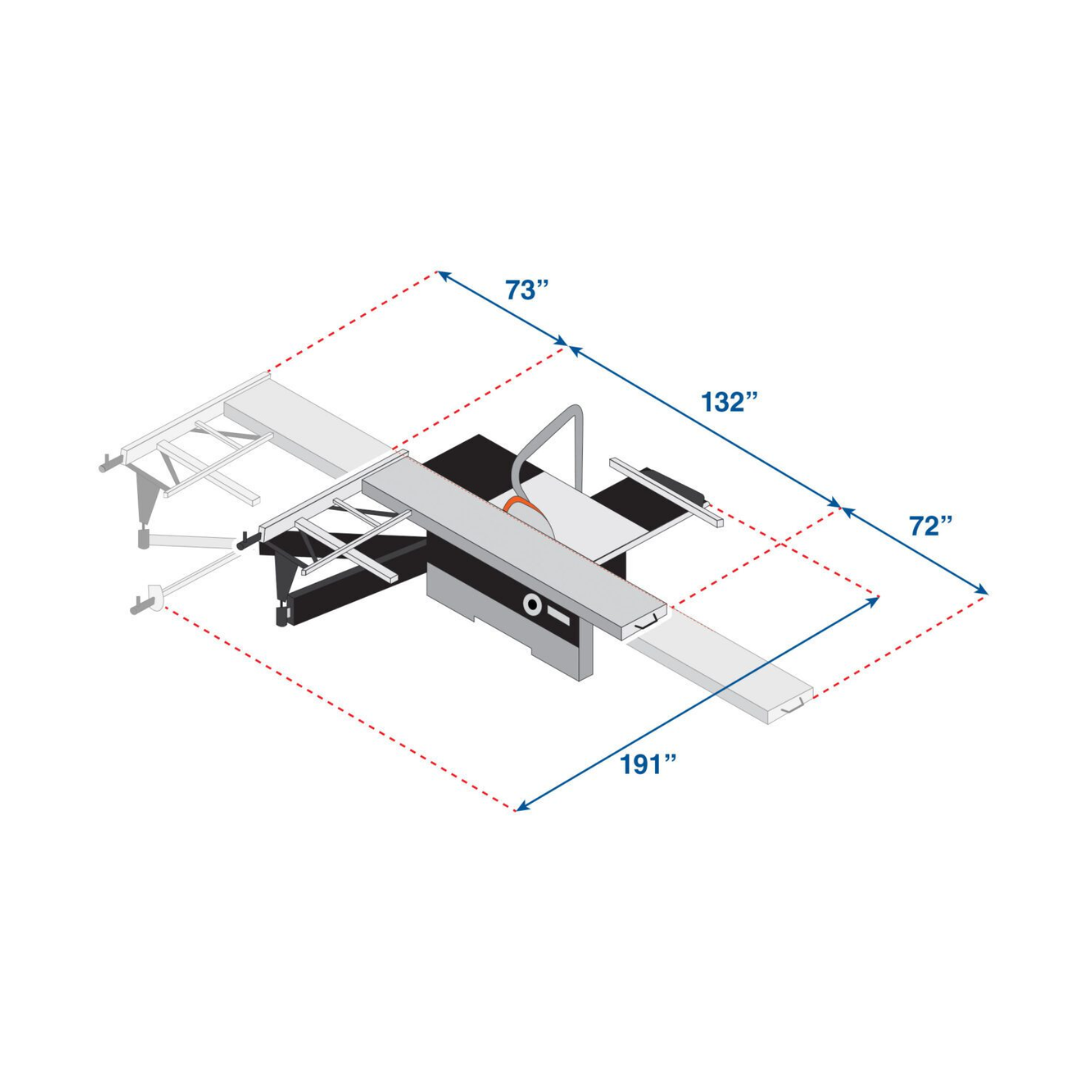

| Machine Dimensions | 82″ x 47″ x 43-3/4″ (2100 x 1200 x 1110 mm) |
| Net Weight | 1,179 lb (535 kg) |
| Gross Weight | 1,400 lb (635 kg) |
