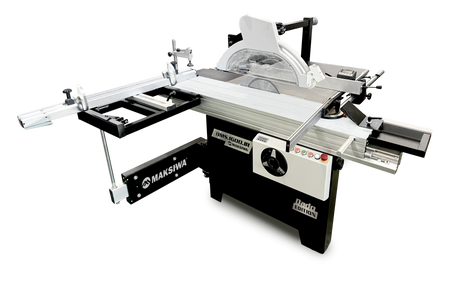

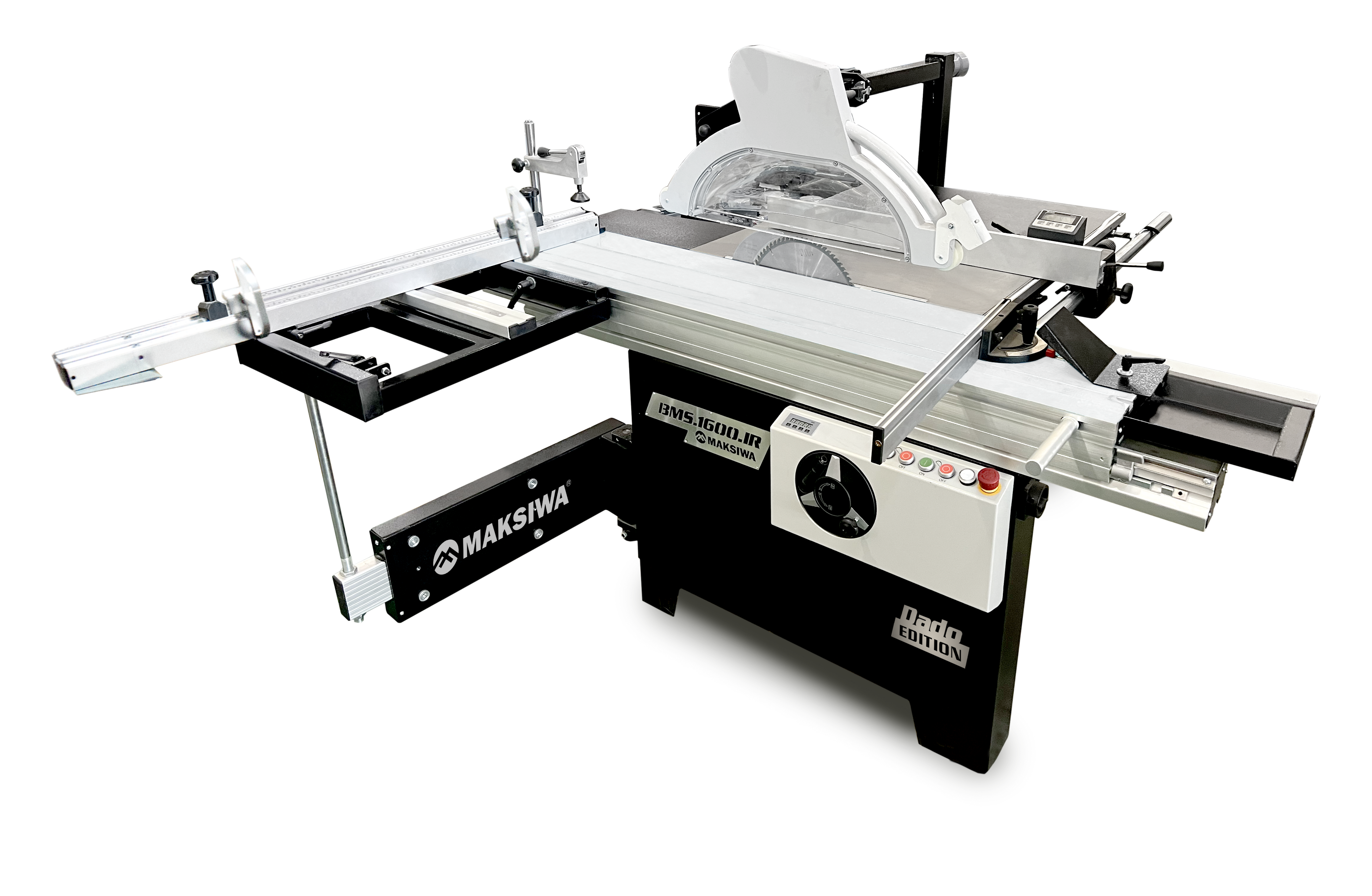

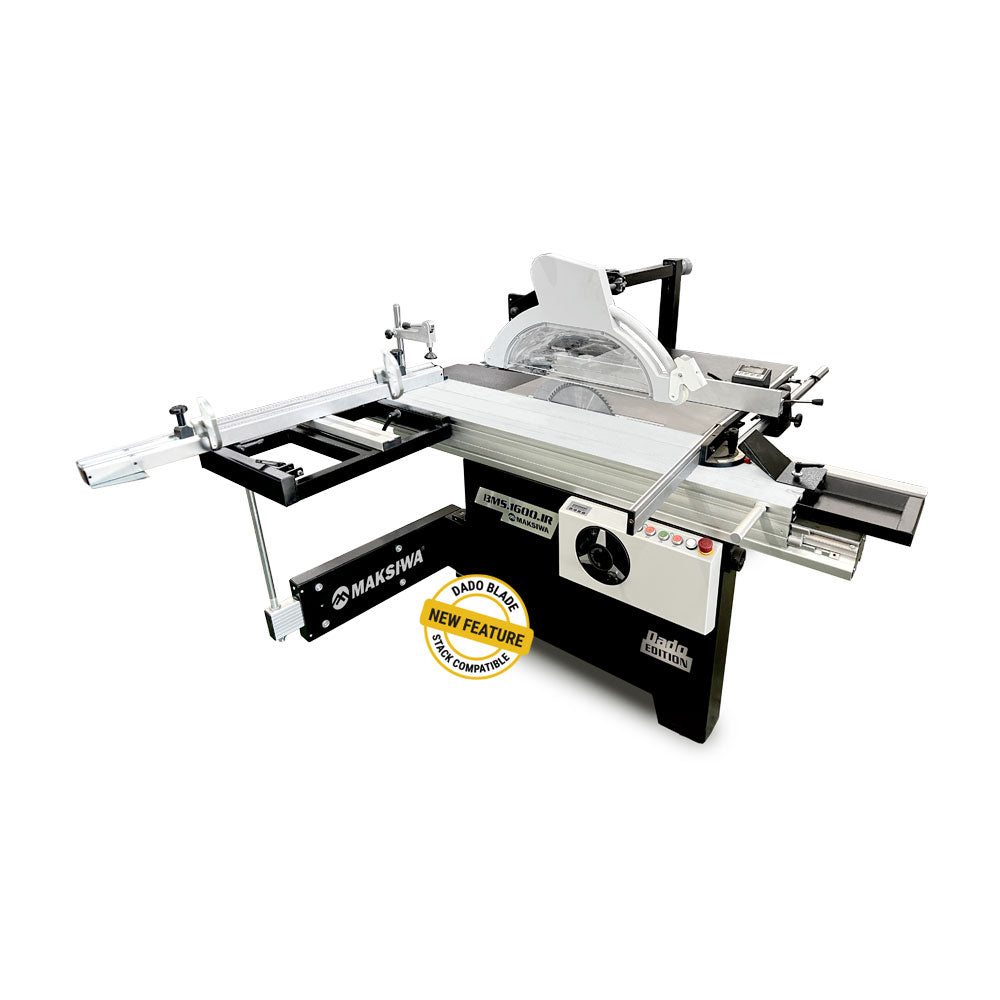

Maksiwa BMS.1600.IR
Compact Sliding Panel Saw
Model: BMS.1600.IR
Product Overview
Sometimes a full 10’ sliding table simply won’t fit in the shop. Maksiwa listens to the needs of woodworkers, which is why we introduced our most compact sliding panel saw.
The BMS.1600.IR is nearly half the size of the larger BMS.3200.IR while maintaining the same 5 HP motor and blade capacity. Designed for smaller spaces without compromising performance, this machine delivers power, precision, and efficiency in a compact footprint.
Additional Information
General Specifications
| Specification | Details |
|---|---|
| Sliding Table Dimensions | 63” × 14” |
| Main Table with Supporting Table | 31.5” × 40” |
| Crosscut Fence Max (Collapsed) | 50” |
| Crosscut Fence Max (Extended) | 85” |
| Crosscut Fence Flip Stopper | 1 |
| Rip Fence Bar | 1” Solid Steel, Micro Polished |
| Emergency Buttons | 1 |
| Max Tilt | 45° |
| Max Depth of Cut | 3” |
| Max Cutting Length | 62” |
| Max Cutting Height @ 90° | 3.5” / 90 mm |
| Max Cutting Height @ 45° | 2.4” / 62 mm |

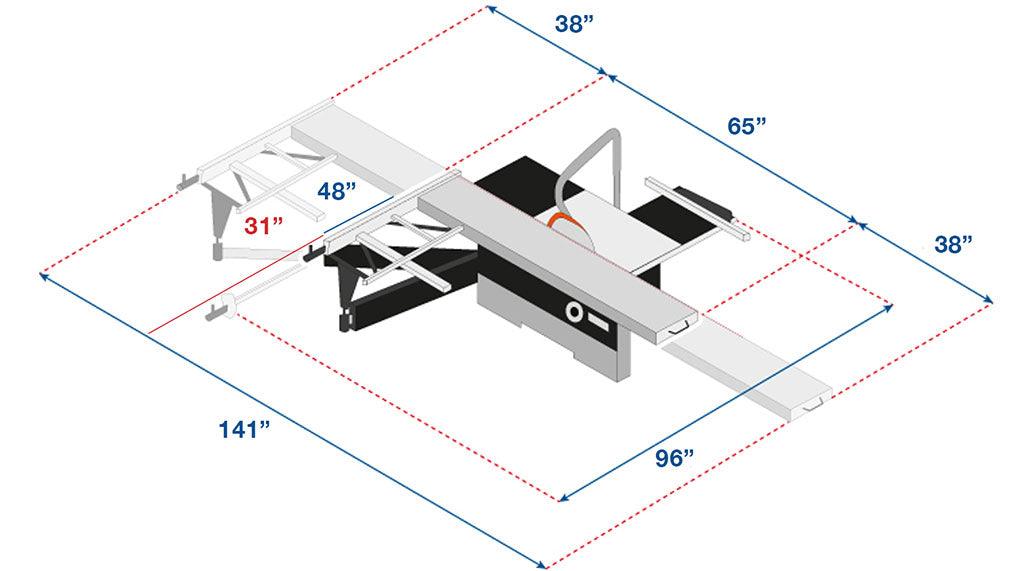

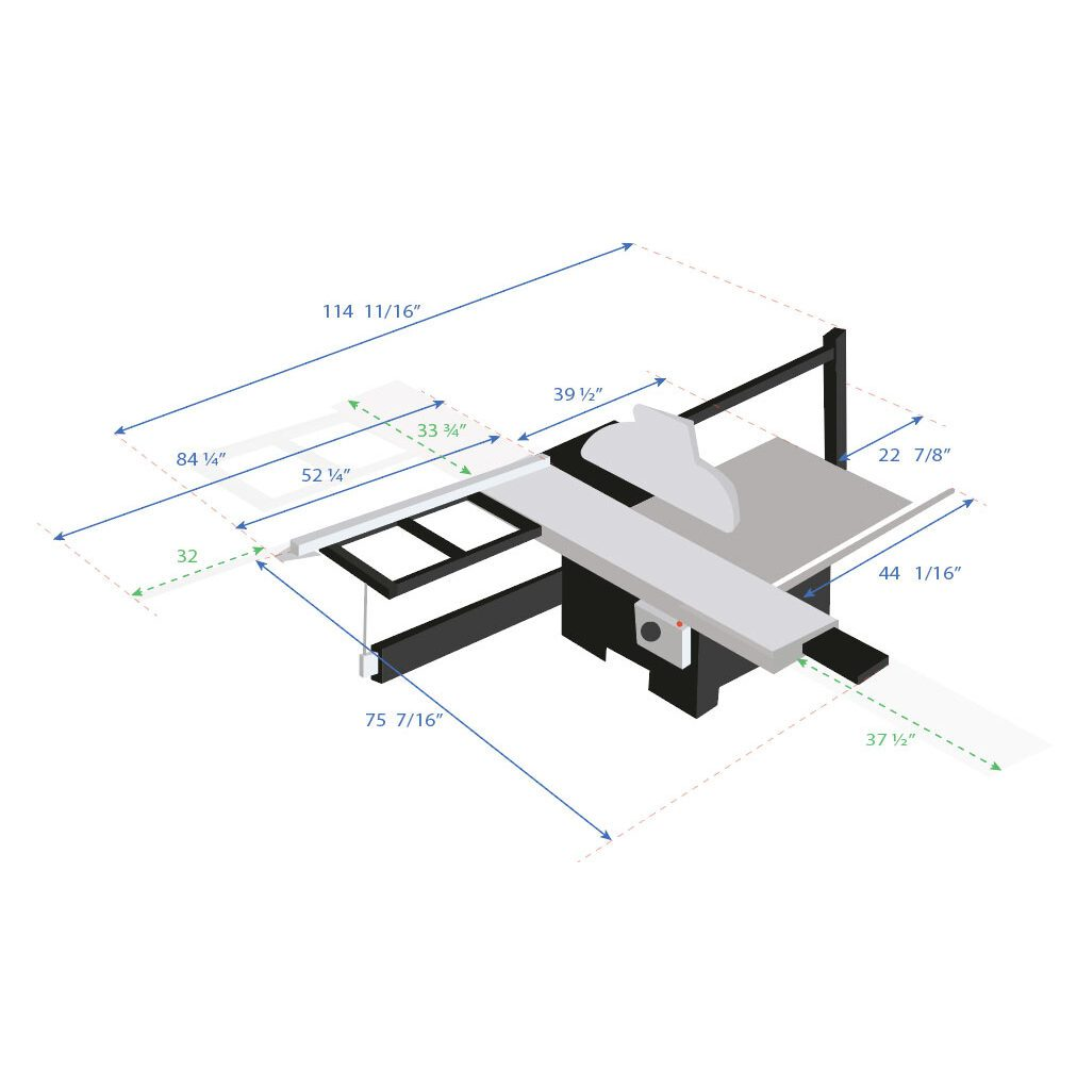

| Machine Dimensions (Collapsed) | L 66” × W 98” × H 42” |
Dust Collection
| Component | Specification |
|---|---|
| Overhead Blade Guard Dust Port | 2” |
| Main Side Dust Port | 4” |
Motor Specifications
| Component | Specification |
|---|---|
| Main Motor | 5 HP – 24 Amps – 60 Hz – 3.7 kW |
| Main Blade Speed | 4,000 RPM |
| Scoring Motor | 1 HP – 6 Amps – 0.55 kW |
| Scoring Blade Speed | 8,000 RPM |
Blade Specifications
| Specification | Details |
|---|---|
| Main Blade Diameter | 305 mm |
| Main Blade Arbor Size | 30 mm |
| Scoring Blade Diameter | 120 mm |
| Scoring Blade Arbor Size | 20 mm |
