Overview

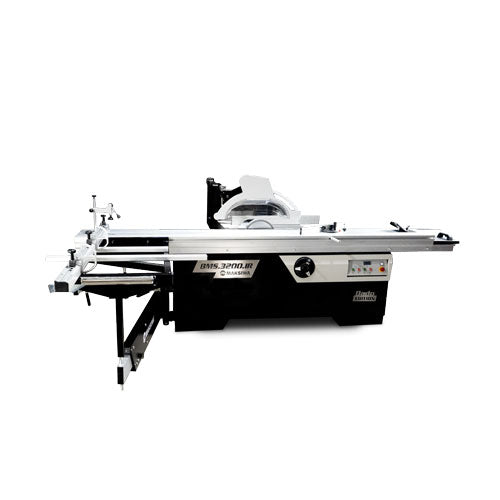

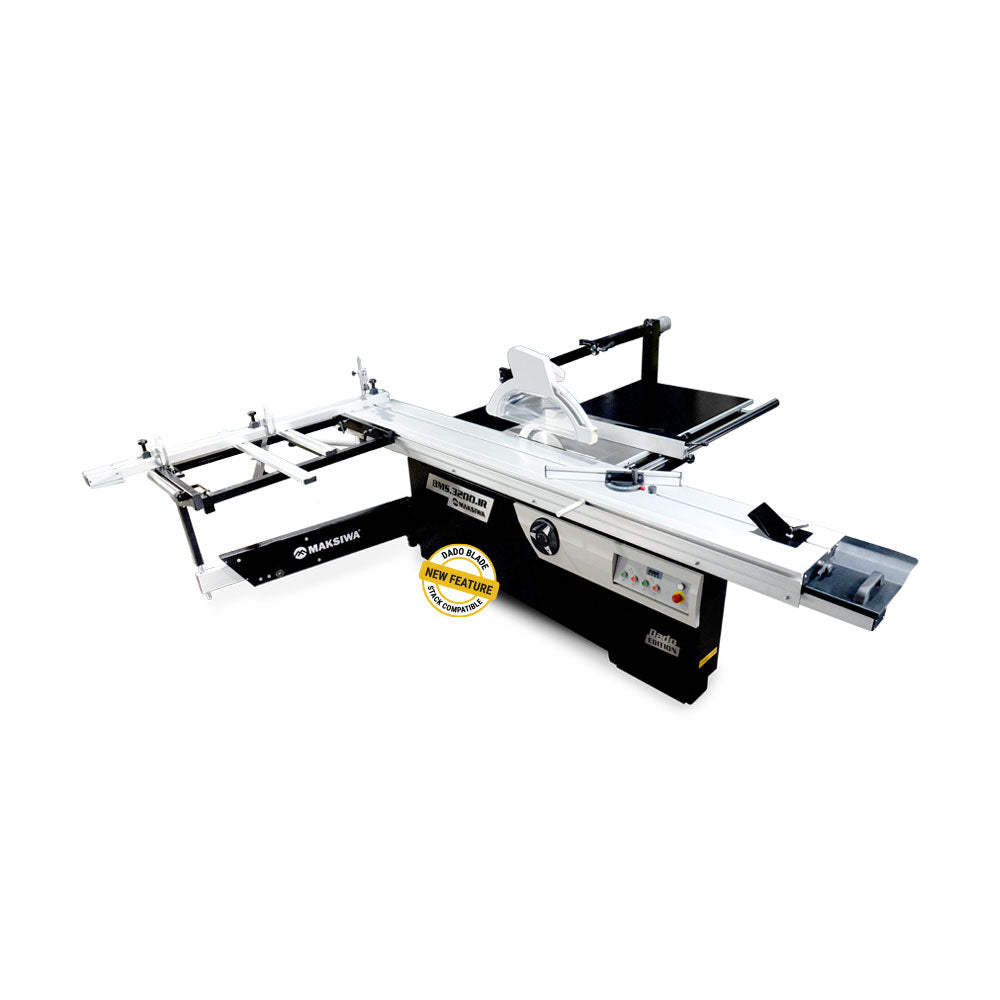

The BMS.3200.IR Black Edition Dado Sliding Panel Saw is the newest evolution in Maksiwa's best-selling series, adding dado blade capability to a 126″ sliding panel saw. Available in 1-Phase and 3-Phase 220V configurations, it pairs a 5 HP main motor with a 1 HP scoring motor for demanding applications, delivering perfectly straight, chip-free, parallel cuts. This offer includes a free Maksiwa CP/2.C 2HP dust collector.
Key Features

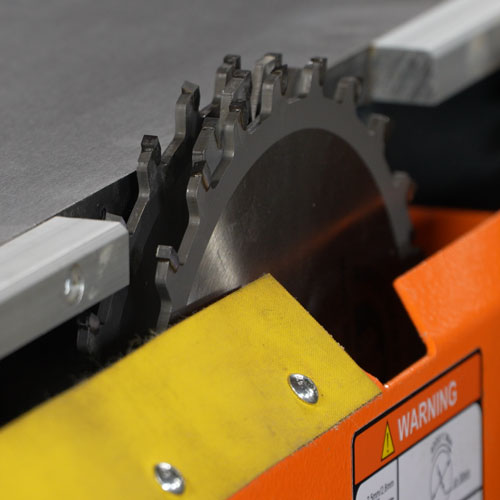

- Dado blade compatible: up to 8″ dado blades, 1-1/4″ max dado capacity
- Easy blade access for quick switching between dado and standard blades
- Available in 1-Phase and 3-Phase 220V configurations
- 1 HP scoring motor for clean cuts on laminated/finished materials

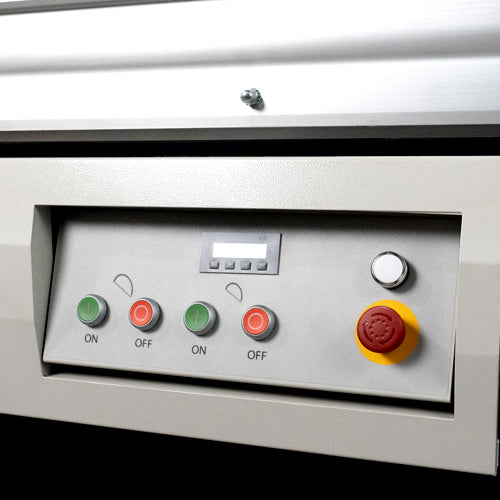

- 2 emergency stop buttons, lockable main power switch
- Includes a free Maksiwa CP/2.C 2HP dust collector
- 2-Year Warranty
Specifications
| Weight | 1,470 lb |
|---|---|
| Machine Dimensions (Closed) | L 133″ x W 135″ x H 65″ |
| Machine Dimensions (Max) | L 192″ x W 280″ x H 65″ |
| Sliding Table Dimensions | 14-3/4″ x 132″ |
| Sliding Table Max Travel | 280″ |
| Fixed Table Max Width | 52″ |
| Guide Size (Closed) | 71″ |
| Guide Size (Max) | 128″ |
| Max Tilt | 45° |
| Max Depth of Cut | 3″ |
| Max Cutting Length | 120″ |
| Main Blade Diameter | 12″ |
| Main Blade Arbor Size | 1-3/16″ |
| Scoring Blade Diameter | 4-3/4″ |
| Scoring Blade Arbor Size | 25/32″ |
| Main Motor (3 Phase, 380V) | 3 HP, 8A, 3,500 RPM |
| Main Motor (3 Phase, 220V) | 5 HP, 15A, 3,500 RPM |
| Main Motor (1 Phase, 220V) | 5 HP, 20A, 3,400 RPM |
| Warranty | 2 Years |
Compare Our Sliding Panel Saws
BMS.1600.IR
Main motor: 5 HP 1 Phase
Scoring motor: 1 HP
Max blade: 12″
Bearings: Roller bearings
+ LEARN MORE
BMS.3200.IR
Main motor: 5 HP 1 Phase or 3 Phase
Scoring motor: 1 HP
Max blade: 12″
Bearings: Roller bearings
You are viewing this model
BMT.3200.IR
Main motor: 5 HP 1 Phase
Scoring motor: 1 HP
Max blade: 12″
Bearings: Roller bearings
+ LEARN MORE
BMP.3200.IR
Main motor: 7.5 HP 3 Phase
Scoring motor: 3/4 HP
Max blade: 12″
Bearings: Ball bearings
+ LEARN MORE
BMD.3200.IR
Main motor: 10 HP 3 Phase
Scoring motor: 1 HP
Max blade: 16″
Bearings: Ball bearings
+ LEARN MOREIn-stock and in-store products ship the same day. Dropship items that are stocked usually ship same day or the next day. For products that are out of stock, shipping times may vary. We’re here to help if you have any questions about your order or delivery status.
